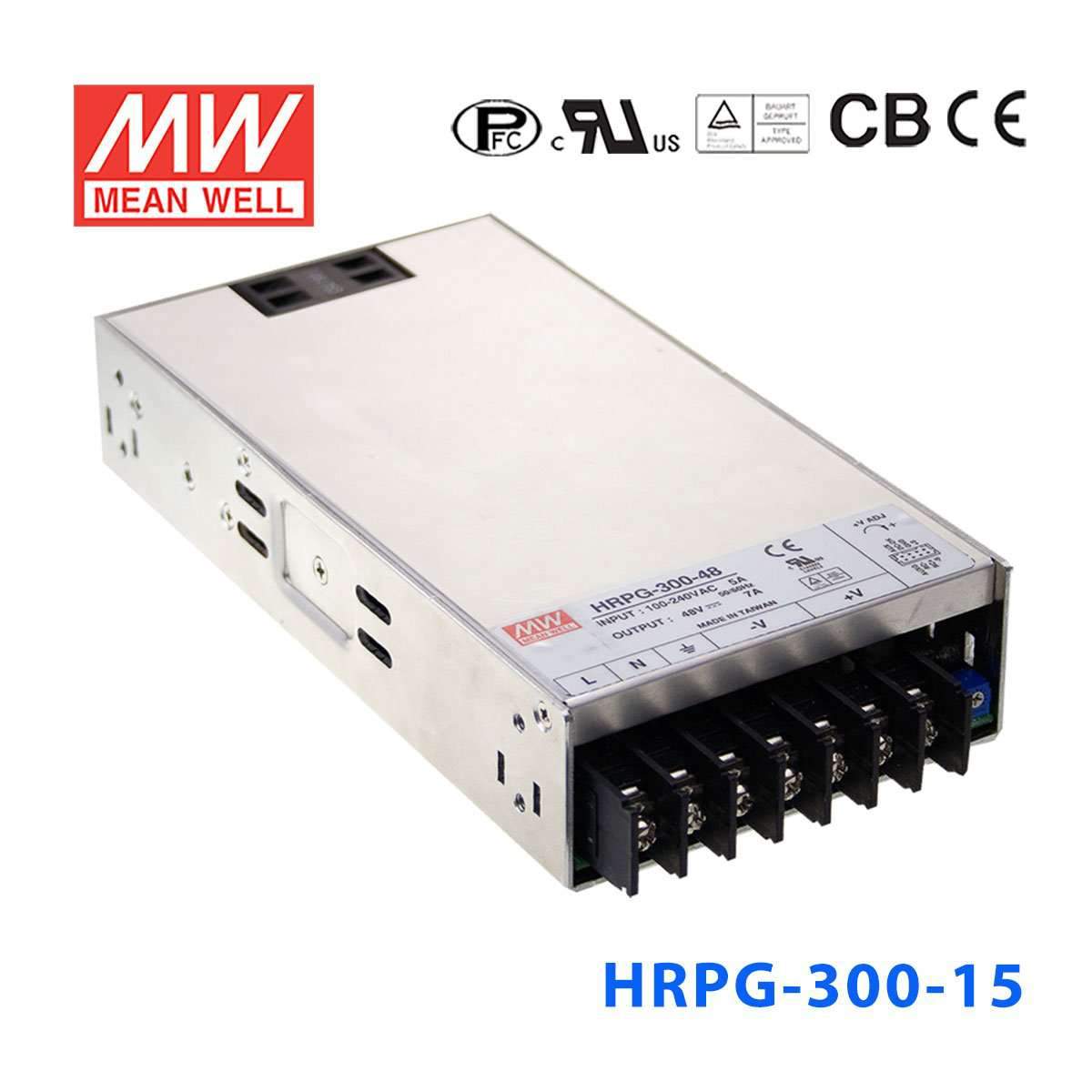

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HRPG-300-15 Power Supply 330W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-300-15 Power Supply 330W 15V
The HRPG-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1, I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ℃ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating330 Watt
-
Output Voltage15 Volt
-
Rated Current22 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-300-15 for a 15V industrial control or automation load?
Yes, this model is a constant voltage power supply with a 15V output and up to 22A of output current. Its 330W rating makes it suitable for 15V industrial or automation equipment that stays within those published output limits.
Is the HRPG-300-15 a fit for 15V embedded test benches or lab fixtures?
It can be a fit where the equipment requires a regulated 15V DC source and the total load does not exceed 22A or 330W. The wide 85-264VAC input also helps when the same bench or fixture may be used across different AC input environments.
Can this power supply support a centralized 15V DC bus in an OEM machine?
It is intended for constant voltage applications and provides 15V at up to 22A. For an OEM machine using a single 15V DC bus, the key fit check is keeping the connected 15V loads within the 330W total output rating.
Would the HRPG-300-15 work for low-profile IT or control cabinet builds?
It can be useful where space is limited because the housing is 199.0 x 105.0 x 41.0 mm and the design is described as 1U low profile. That makes it easier to consider for shallow industrial cabinets or compact rack-adjacent power sections that need 15V output.
Is the HRPG-300-15 suitable for outdoor or harsh-temperature environments?
The published operating temperature range is -40°C to +70°C, so the unit is specified for a wide temperature span. No IP rating is listed in these specs, so the product page does not confirm direct outdoor exposure and is better treated as a protected indoor or enclosure-mounted supply unless a separate enclosure is used.
How does the HRPG-300-15 compare with other HRPG-300 models?
Within the HRPG-300 group, the listed variants are 198W at 3.3V and 60A, 300W at 5V and 60A, 300W at 7.5V and 40A, 324W at 12V and 27A, 330W at 15V and 22A, 336W at 24V and 14A, 324W at 36V and 9A, and 336W at 48V and 7A. This model sits in the middle of that range at 15V with a 330W rating and 22A output current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-300 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-300-7.5 Power Supply 300W 7.5V | 300W | 7.5V | 40A | Indoor | $101.19 | View |
| Mean Well HRPG-300-5 Power Supply 300W 5V | 300W | 5V | 60A | Indoor | $96.57 | View |
| Mean Well HRPG-300-48 Power Supply 336W 48V | 336W | 48V | 7A | Indoor | $100.53 | View |
| Mean Well HRPG-300-36 Power Supply 324W 36V | 324W | 36V | 9A | Indoor | $101.19 | View |
| Mean Well HRPG-300-3.3 Power Supply 198W 3.3V | 198W | 3.3V | 60A | Indoor | $101.19 | View |
| Mean Well HRPG-300-24 Power Supply 336W 24V | 336W | 24V | 14A | Indoor | $93.84 | View |
| Mean Well HRPG-300-12 Power Supply 324W 12V | 324W | 12V | 27A | Indoor | $101.20 | View |
