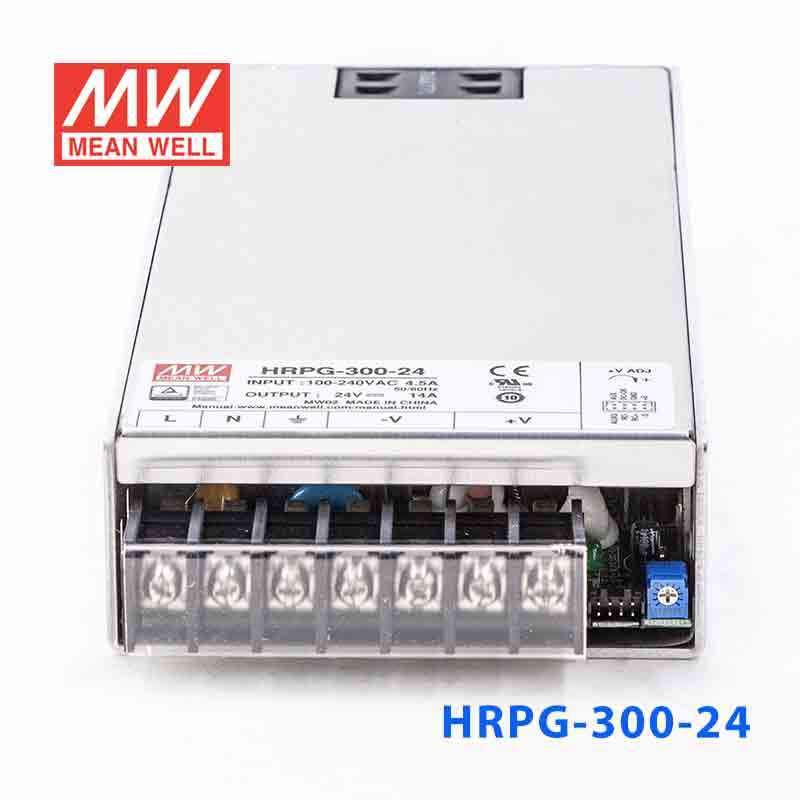

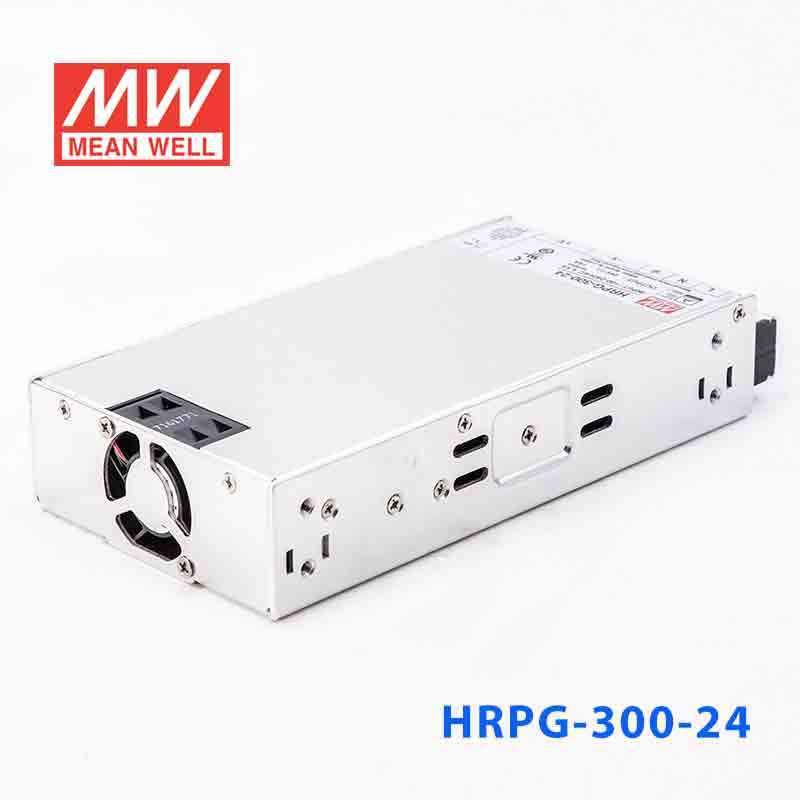

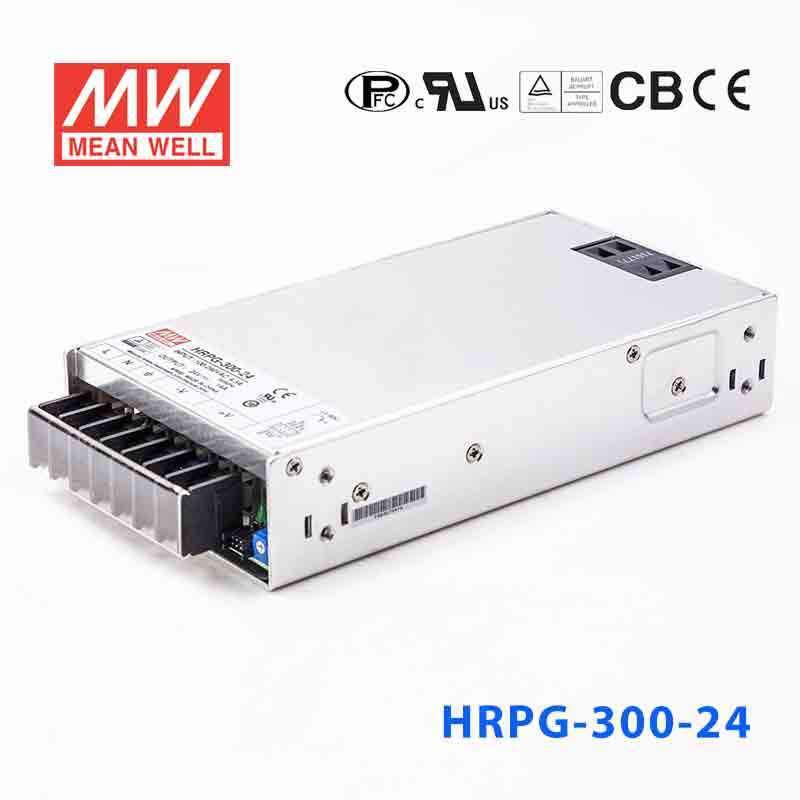

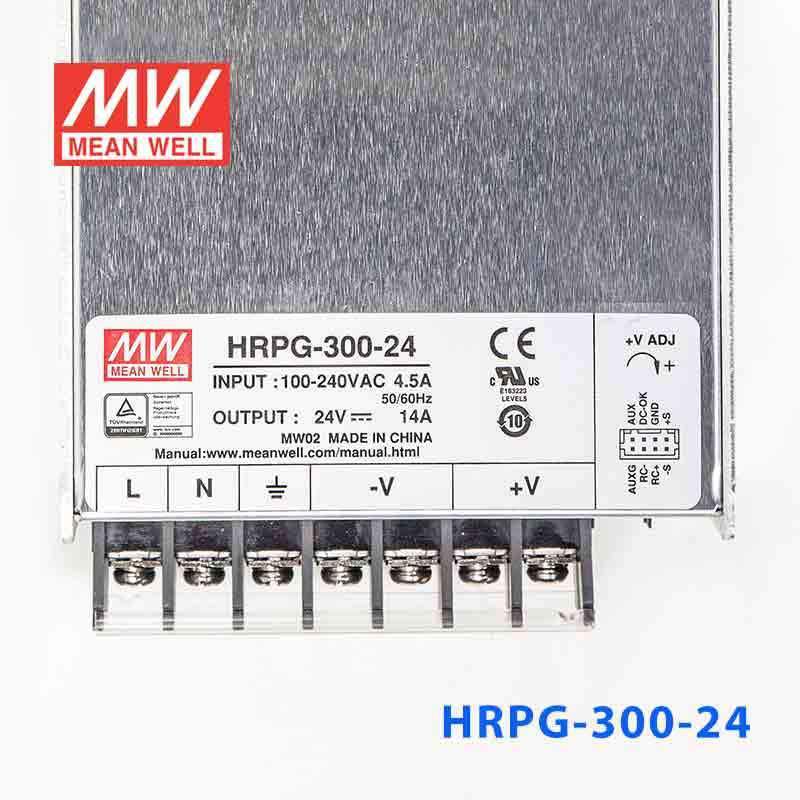

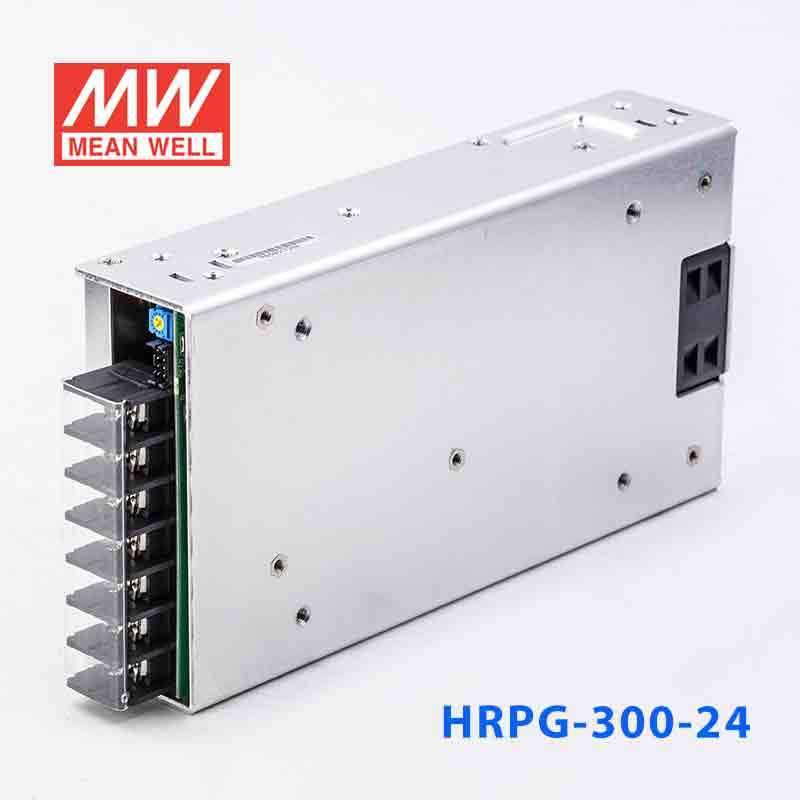

Mean Well HRPG-300-24 Power Supply 336W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-300-24 Power Supply 336W 24V
The HRPG-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1, I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ℃ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating336 Watt
-
Output Voltage24 Volt
-
Rated Current14 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-300-24 for a 24V PLC or industrial automation panel?
Yes, it is a constant voltage 24V power supply rated for up to 14A and 336W. That makes it suitable for 24V automation loads when the full connected demand stays within those published limits.
Is this model appropriate for 24V sensors, relays, and control hardware on one DC supply?
It can be used where the grouped devices are all designed for a 24V constant voltage source. The sizing check is straightforward: the combined load must remain at or below 14A and 336W.
Would the HRPG-300-24 fit a compact machine or control enclosure?
The unit has a 1U low-profile form factor and measures 199.0 x 105.0 x 41.0 mm. That profile is useful in compact industrial enclosures that need 24V output without moving to a larger chassis supply.
Can the HRPG-300-24 be used in IT or embedded systems that distribute 24V DC internally?
It can be considered for systems built around a 24V DC rail, provided the total draw stays within 14A and 336W. The 85-264VAC input also supports use across a broad AC input range.
Can I use the HRPG-300-24 in hot or cold industrial environments?
The specified operating temperature range is -40°C to +70°C, which covers a wide span for industrial conditions. No IP rating is shown in the provided specs, so the listing does not establish outdoor exposure and is best treated as a protected indoor or enclosure-installed power supply.
How does the HRPG-300-24 compare with the other HRPG-300 voltage options?
The HRPG-300 range includes 198W at 3.3V and 60A, 300W at 5V and 60A, 300W at 7.5V and 40A, 324W at 12V and 27A, 330W at 15V and 22A, 336W at 24V and 14A, 324W at 36V and 9A, and 336W at 48V and 7A. This version is one of the two 336W models and provides 24V with up to 14A output.
