Mean Well HRPG-300-36 Power Supply 324W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours

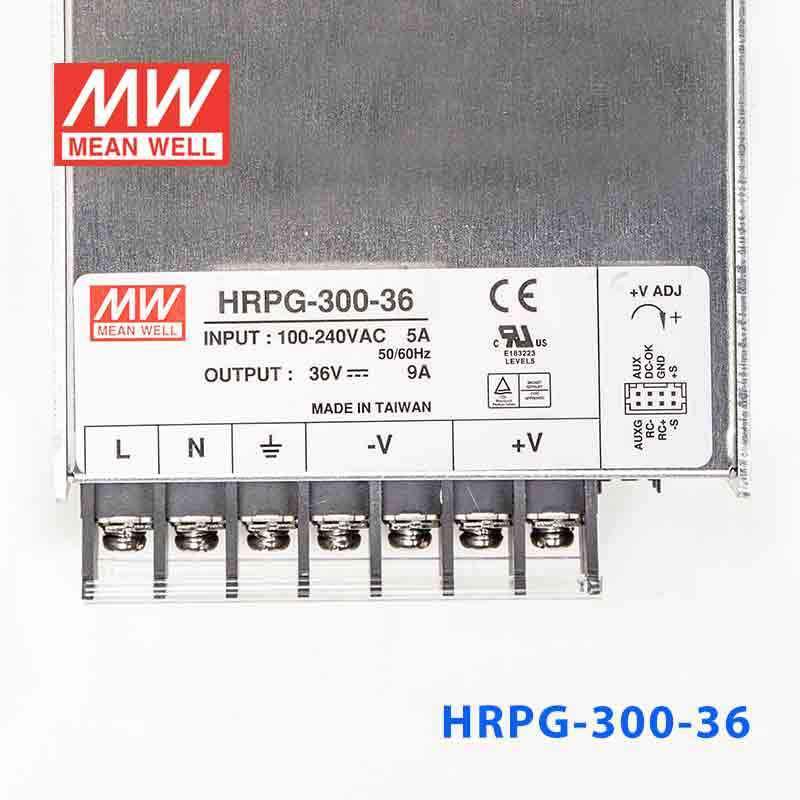

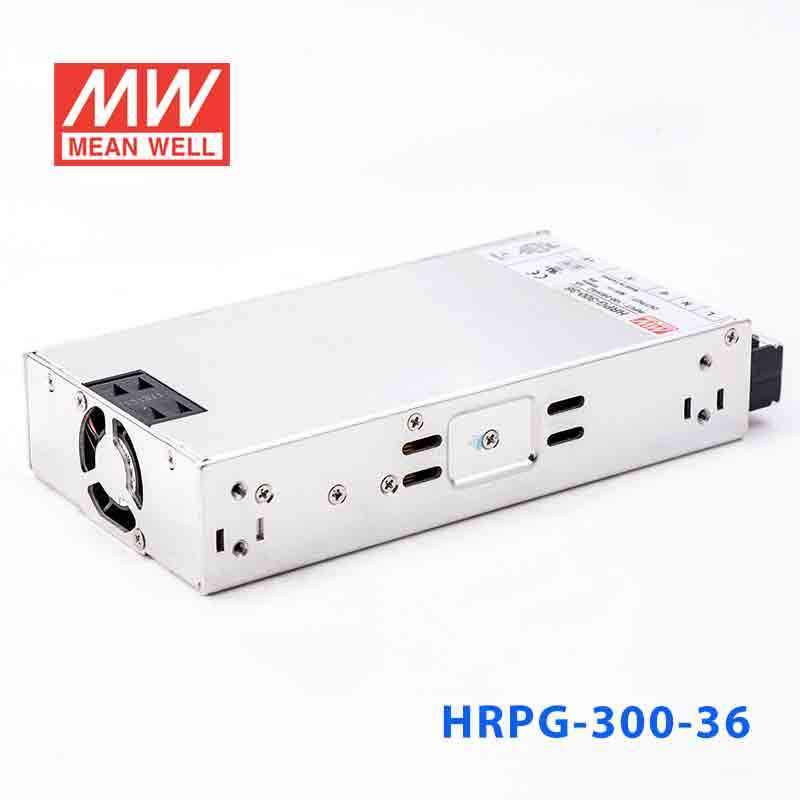

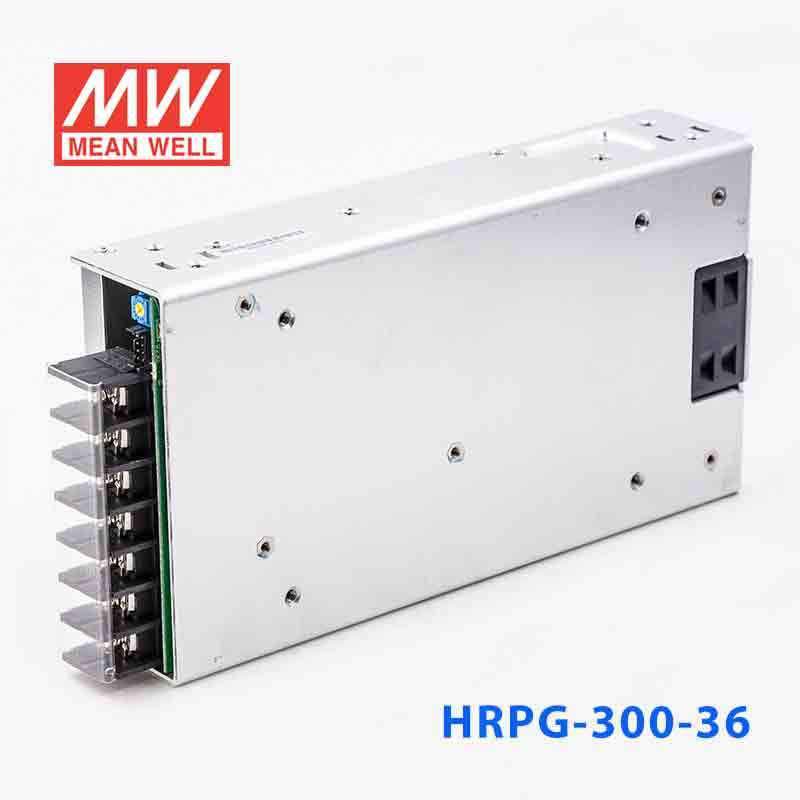

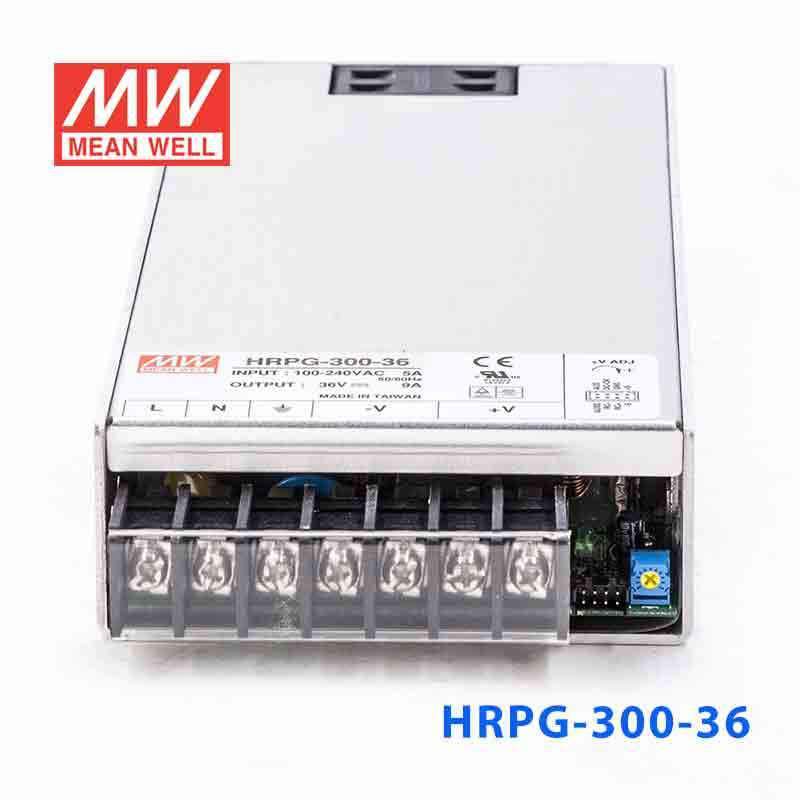

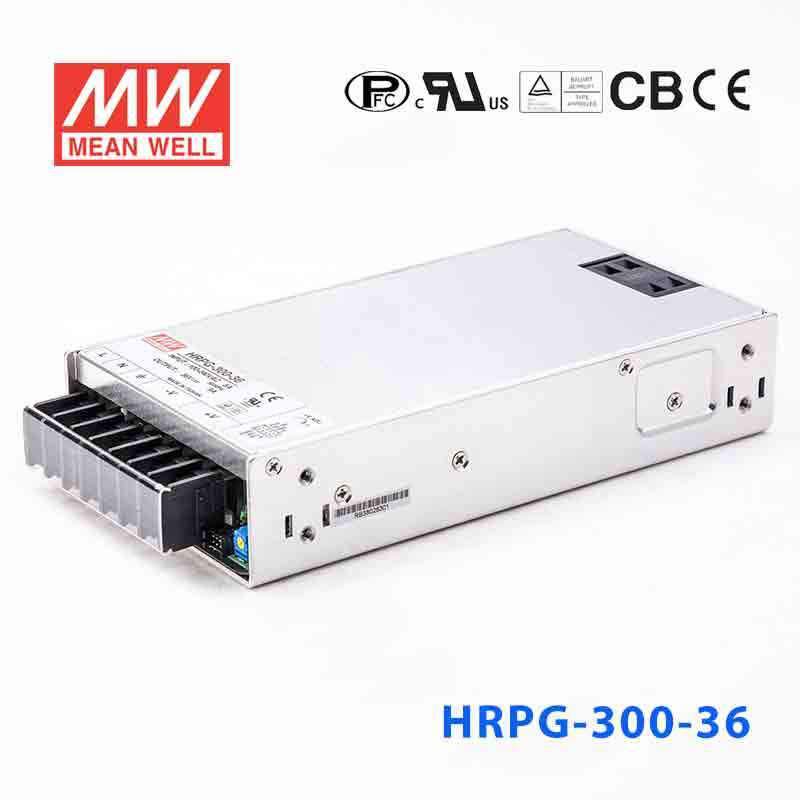

Mean Well HRPG-300-36 Power Supply 324W 36V
The HRPG-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1, I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ℃ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating324 Watt
-
Output Voltage36 Volt
-
Rated Current9 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-300-36 for a 36V industrial automation load?
Yes, if the equipment requires constant voltage at 36V and the total draw stays within 9A and 324W. That makes it suitable for 36V automation or industrial DC loads that match those output limits.
Is the HRPG-300-36 suitable for embedded or OEM systems built around a 36V DC rail?
It can be used in systems that distribute 36V DC from a central supply. The important fit check is that the combined load remains at or below the rated 9A output current and 324W power.
Would this model work for a compact 36V control cabinet power section?
The 1U low-profile construction and 199.0 x 105.0 x 41.0 mm dimensions make it practical where enclosure depth is limited. That is useful in control cabinets or machine compartments needing a 36V constant voltage source.
Can the HRPG-300-36 be used where AC input conditions vary by site?
It accepts 85-264VAC input, which supports deployment across a broad AC input range. On the DC side, it provides a fixed 36V output with up to 9A available.
Is the HRPG-300-36 suitable for outdoor use or temperature extremes?
The published operating temperature range is -40°C to +70°C, so the temperature specification is broad. No IP rating is provided in these specs, so the listing does not confirm direct outdoor exposure and it should be treated as a protected indoor or enclosure-mounted supply.
How does the HRPG-300-36 compare with the rest of the HRPG-300 family?
The listed HRPG-300 models are 198W at 3.3V and 60A, 300W at 5V and 60A, 300W at 7.5V and 40A, 324W at 12V and 27A, 330W at 15V and 22A, 336W at 24V and 14A, 324W at 36V and 9A, and 336W at 48V and 7A. This version shares the 324W class with the 12V model and delivers 36V at 9A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-300 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-300-7.5 Power Supply 300W 7.5V | 300W | 7.5V | 40A | Indoor | $101.19 | View |
| Mean Well HRPG-300-5 Power Supply 300W 5V | 300W | 5V | 60A | Indoor | $96.57 | View |
| Mean Well HRPG-300-48 Power Supply 336W 48V | 336W | 48V | 7A | Indoor | $100.53 | View |
| Mean Well HRPG-300-3.3 Power Supply 198W 3.3V | 198W | 3.3V | 60A | Indoor | $101.19 | View |
| Mean Well HRPG-300-24 Power Supply 336W 24V | 336W | 24V | 14A | Indoor | $93.84 | View |
| Mean Well HRPG-300-15 Power Supply 330W 15V | 330W | 15V | 22A | Indoor | $101.19 | View |
| Mean Well HRPG-300-12 Power Supply 324W 12V | 324W | 12V | 27A | Indoor | $101.20 | View |
