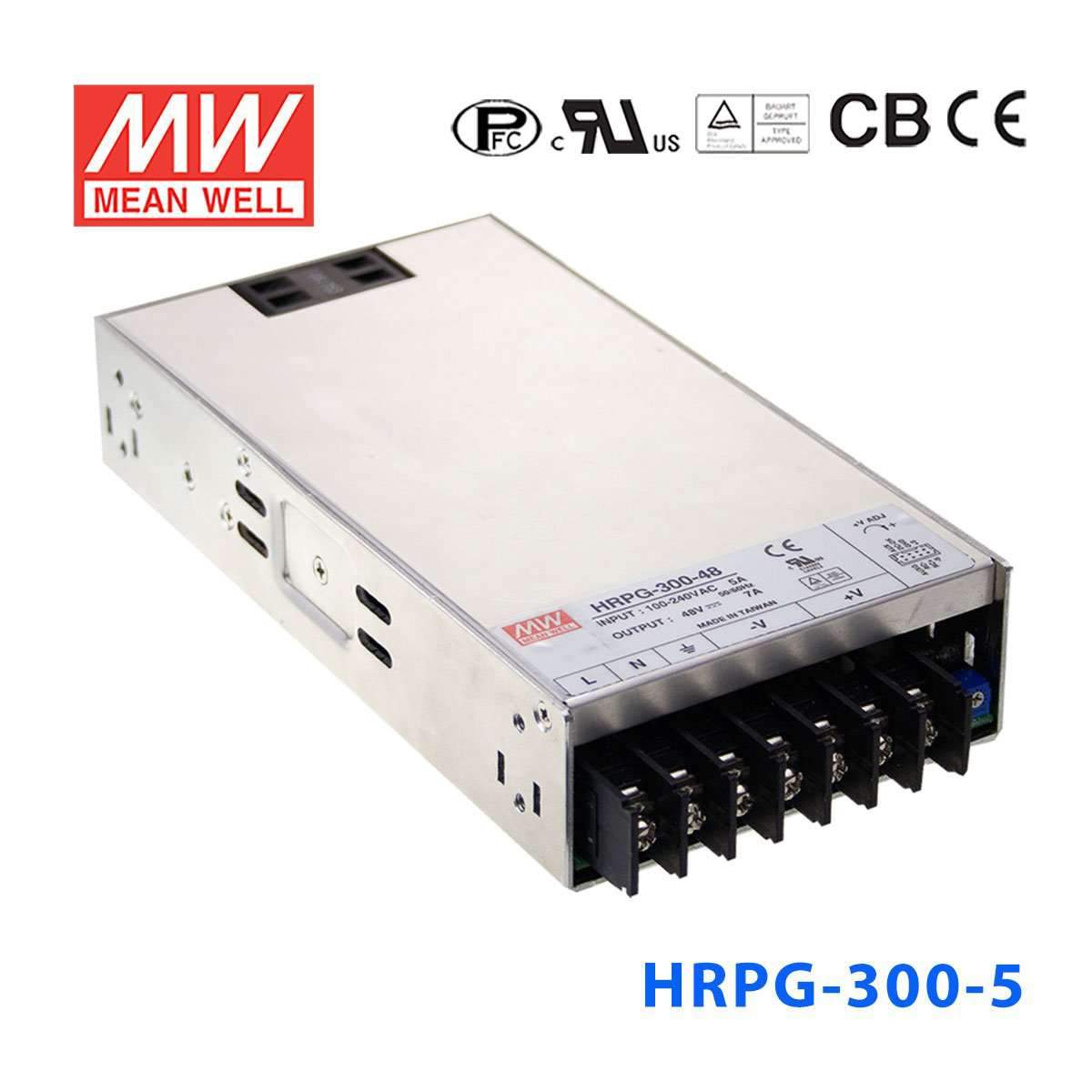

Mean Well HRPG-300-5 Power Supply 300W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-300-5 Power Supply 300W 5V
The HRPG-300 is a 300W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL62368-1, TUV EN62368-1, I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC ℃ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating300 Watt
-
Output Voltage5 Volt
-
Rated Current60 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-300-5 for a 5V industrial controller or PLC cabinet?
This model is a constant-voltage 5V supply rated for 300W and up to 60A, so it fits 5V industrial control electronics that need a high-current DC source. Its 85-264VAC input and -40°C to +70°C operating temperature also suit panels used across varied industrial power environments.
Is the HRPG-300-5 suitable for powering multiple 5V embedded boards from one supply?
It can support centralized 5V embedded systems when the total load stays within 300W and 60A. The constant-voltage design is appropriate for equipment that expects a regulated 5V DC bus rather than a constant-current source.
Can this 5V 300W power supply be used for 5V automation peripherals and digital I/O loads?
Yes, it is intended for 5V DC loads and provides up to 60A from a 300W constant-voltage output. That makes it a fit for grouped 5V automation peripherals or digital electronics where the combined demand matches the unit's 5V, 60A, and 300W ratings.
Is the HRPG-300-5 appropriate for outdoor or washdown environments?
The published specs show an operating range of -40°C to +70°C, but no IP rating is listed for this model. That means the temperature range is broad, yet the product data does not identify it as an outdoor-rated or washdown-rated enclosure.
How does the HRPG-300-5 compare with the other HRPG-300 models?
Within the HRPG-300 group, the listed versions are HRPG-300-3.3 at 198W, 3.3V, 60A; HRPG-300-5 at 300W, 5V, 60A; HRPG-300-7.5 at 300W, 7.5V, 40A; HRPG-300-12 at 324W, 12V, 27A; HRPG-300-15 at 330W, 15V, 22A; HRPG-300-24 at 336W, 24V, 14A; HRPG-300-36 at 324W, 36V, 9A; and HRPG-300-48 at 336W, 48V, 7A. This model is the 5V, 60A member of that 300-class range.
