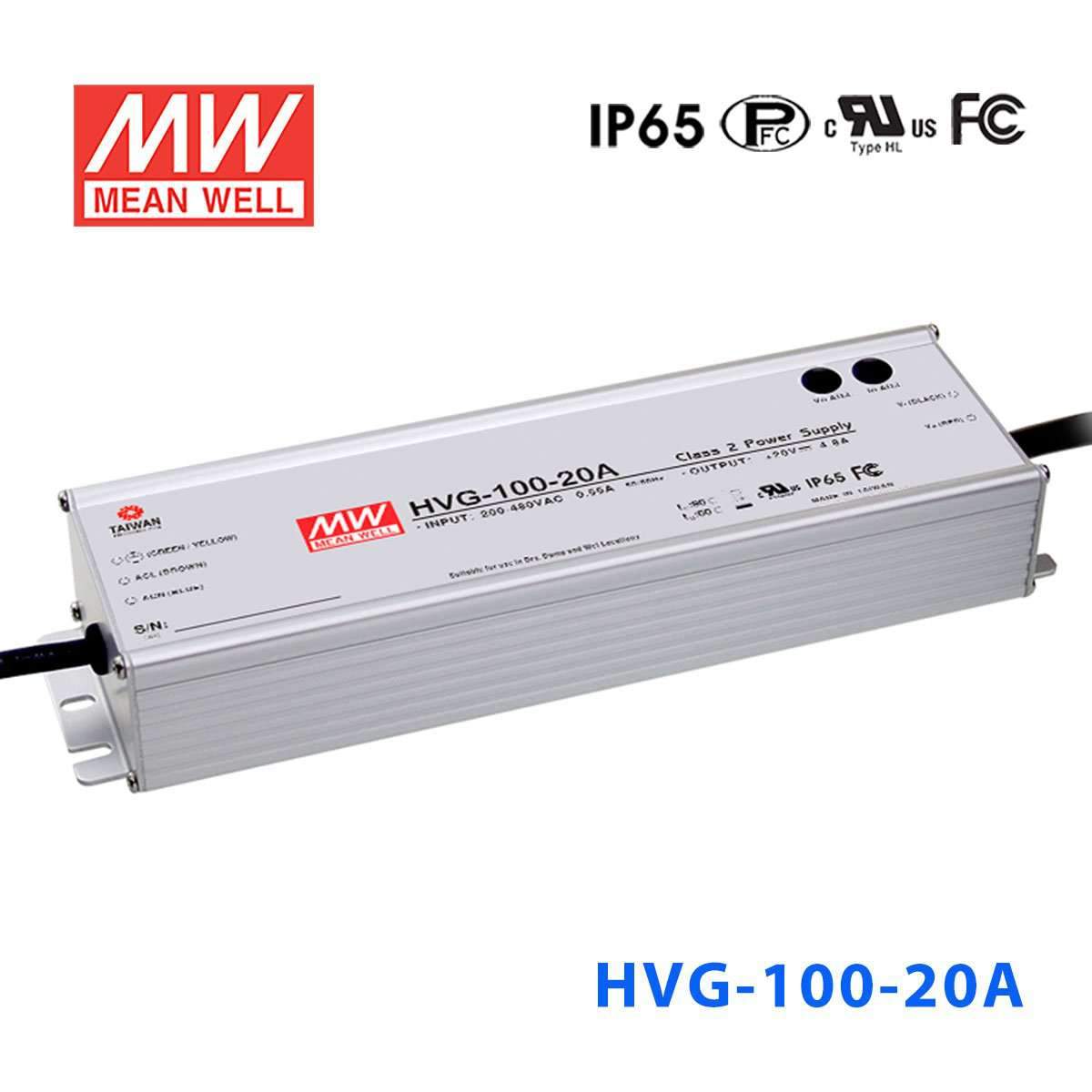

Mean Well HVG-100-20A Power Supply 100W 20V - Adjustable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage20 Volt
-
Rated Current4.8 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-20A for 20V LED strip lighting in covered outdoor spaces?
Yes, if your 20V lighting load stays within 96W and 4.8A. Its IP65 water-resistant housing suits outdoor areas where the driver may see dust or water spray, but it is not the same as an IP67 waterproof model.
Is this a suitable power supply for 20V illuminated sign lighting?
It is suitable for 20V sign lighting loads that stay within the driver's 96W maximum and 4.8A output. The 10-20V constant current range means the connected lighting load also needs to match that output range.
Can the HVG-100-20A be used for 20V linear or accent lighting runs?
It can be used where the lighting product requires 20V and the total demand remains at or below 96W. With 4.8A output and an operating temperature range of -40°C to +90°C, it is designed for commercial lighting environments as long as the load is correctly matched.
How do I estimate the maximum 20V LED strip length for this driver?
Calculate it from the strip's rated watts per meter: maximum length = 96W ÷ strip watts per meter. You also need to stay within the 4.8A output limit, so check your strip rated power per meter before sizing the run.
How does the HVG-100-20A compare with other HVG-100 voltage options?
Within the HVG-100 range, the 20V versions are HVG-100-20A, HVG-100-20AB, and HVG-100-20B at 96W, 20V, and 4.8A, while HVG-100-20D is listed at 75W. Other HVG-100 outputs in the same family include 15V at 75W and 5A, 24V at 96W and 4A, 30V at 96W and 3.2A, 36V at 95.4W and 2.65A, 42V at 95.76W and 2.28A, 48V at 96W and 2A, and 54V at 95.58W and 1.77A.
