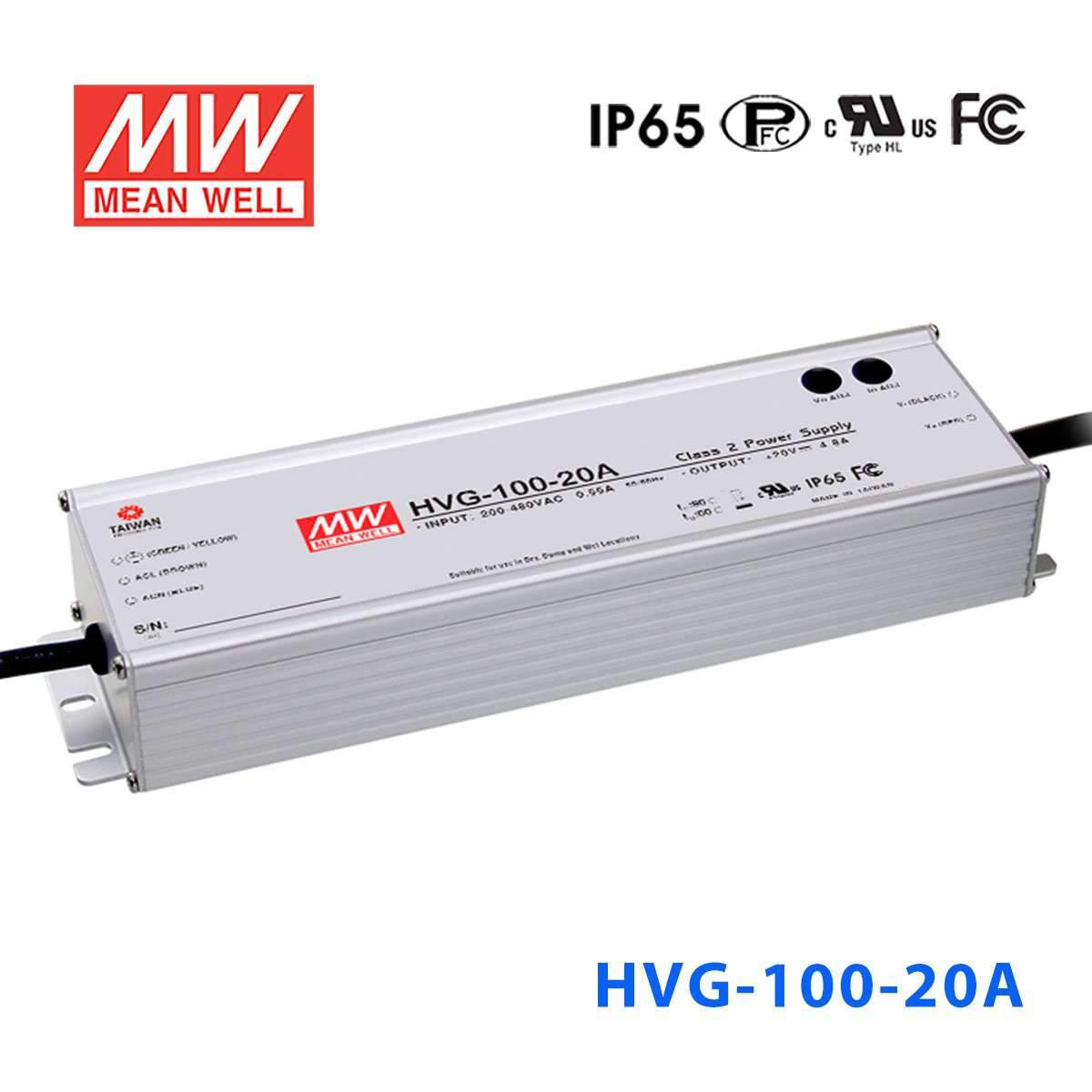

Mean Well HVG-100-20A Power Supply 100W 20V - Adjustable 4.8A

Name: Mean Well HVG-100-20A Power Supply 100W 20V - Adjustable 4.8A
Brand: Mean Well
SKU: HVG-100-20A
Price: 75.83 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-100-20A

$75.83 USD

Shipping calculated at checkout.

Select model — 9 in this family

HVG-100-20A

HVG-65-20A Adjustable Backorder $59.16 USD

HVG-65-20B Dimmable Backorder $61.05 USD

HVG-65-20AB Adjustable and Dimmable Backorder $61.98 USD

HVG-100-20A Adjustable Backorder $75.83 USD

HVG-100-20B Dimmable Backorder $77.72 USD

HVG-100-20AB Adjustable and Dimmable Backorder $77.79 USD

HVG-150-20A Adjustable Backorder $78.72 USD

HVG-150-20B Dimmable Backorder $79.65 USD

HVG-150-20AB Adjustable and Dimmable Backorder $81.81 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVG-100-20A is the 20V output model of this series: rated current 4.8A, rated power 96W, typical efficiency 90%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HVG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-100 operates from 180~528 VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Class 2 power unit
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-100-20ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 10~20V
RATED CURRENT: 4.8A
RATED POWER: 96W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 17 ~ 22V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 2.64 ~ 4.8A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 30ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 15V model]; @ load≧75%/480VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 27V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧50% load,@ load≧60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Built-in Smart timer dimming function by user request; IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-100-20A Block Diagram — Block Diagram

HVG-100-20A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-100-20A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-100-20A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HVG-100-20A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

HVG-100-20A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-100-20A datasheetHVG-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates3

EMC Certificate(HVG-100)(EN) PDF Download

FCC Certificate(HVG-100)(EN) PDF Download

UL Certificate(HVG-100)(EN) PDF Download

Test reports1

Test Report(HVG-100-20)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-100-20A for 20V LED strip lighting in covered outdoor spaces?

Yes, if your 20V lighting load stays within 96W and 4.8A. The HVG-100 series is IP65 or IP67 approved, and with a waterproof connector on the output cable it suits covered or exposed outdoor areas where the driver may see dust or water spray.

Is this a suitable power supply for 20V illuminated sign lighting?

It is suitable for 20V sign lighting loads that stay within the driver's 96W maximum and 4.8A output. The 10-20V constant current range means the connected lighting load also needs to match that output range.

Can the HVG-100-20A be used for 20V linear or accent lighting runs?

It can be used where the lighting product requires 20V and the total demand remains at or below 96W. With 4.8A output and a case temperature (Tcase) rating of -40°C to +90°C, it is designed for commercial lighting environments as long as the load is correctly matched.

How do I estimate the maximum 20V LED strip length for this driver?

Calculate it from the strip's rated watts per meter: maximum length = 96W ÷ strip watts per meter. You also need to stay within the 4.8A output limit, so check your strip rated power per meter before sizing the run.

How does the HVG-100-20A compare with other HVG-100 voltage options?

Within the HVG-100 range, the 20V versions HVG-100-20A, HVG-100-20AB, HVG-100-20B and HVG-100-20D all share the 96W, 20V and 4.8A rating on the sheet. Other HVG-100 outputs in the same family include 15V at 75W and 5A, 24V at 96W and 4A, 30V at 96W and 3.2A, 36V at 95.4W and 2.65A, 42V at 95.76W and 2.28A, 48V at 96W and 2A, and 54V at 95.58W and 1.77A.
