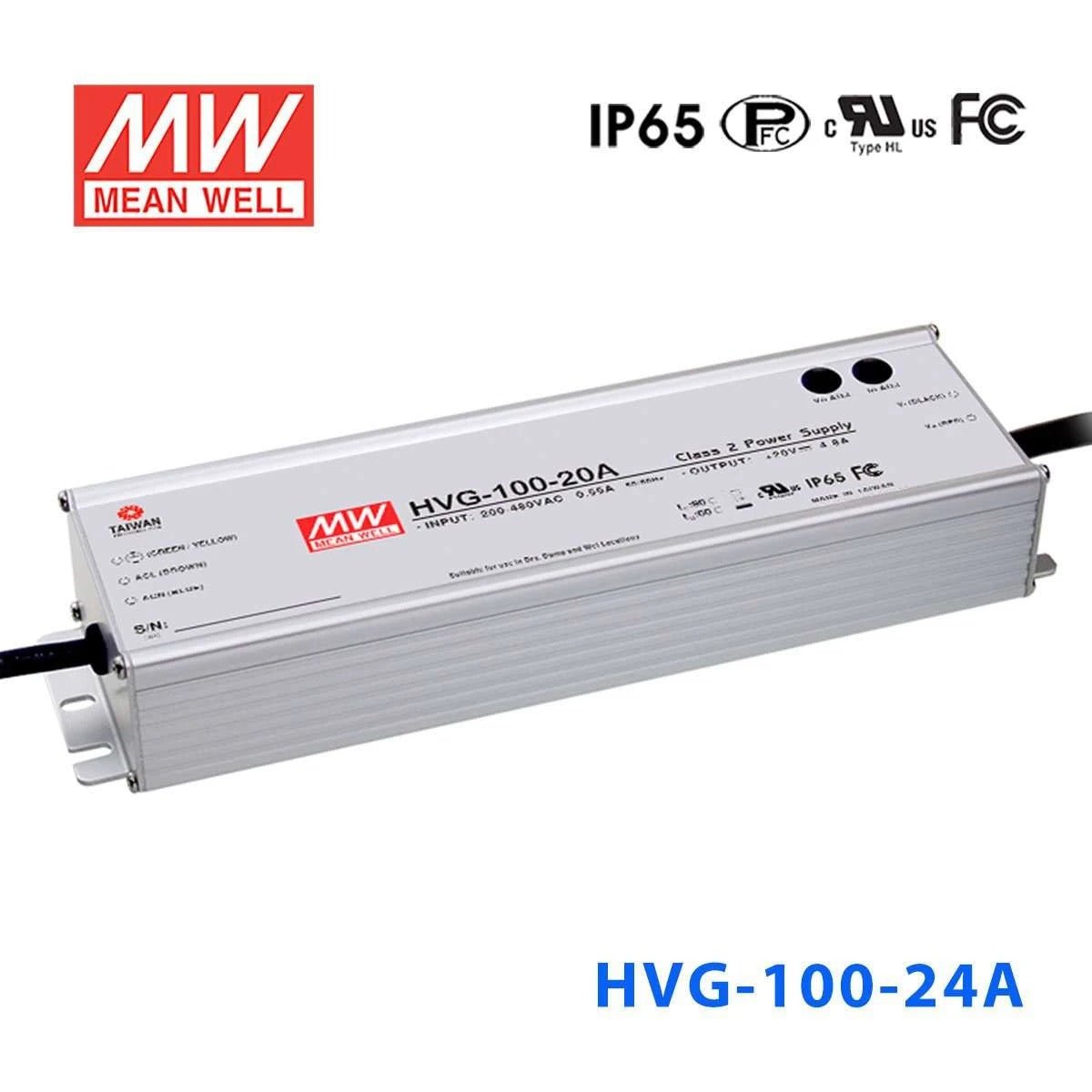

Mean Well HVG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable
The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.29 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
Can I use the HVG-100-24AB for 24V LED strip lighting in retail shelving or display cases?
Yes, it is rated for 24V output and up to 96W total power, so it fits many 24V LED strip lighting runs used in shelving and display lighting. Check that your strip voltage matches 24V and that the full strip load stays within 96W and 4A.
Is this driver suitable for 24V illuminated signage or channel letter lighting?
It can be used for 24V signage loads that stay within its 96W maximum output. Its IP65 water-resistant housing also makes it more suitable for sign-related environments where moisture resistance is needed than an indoor-only unit.
Can this power supply run 24V architectural accent lighting outdoors?
It can support 24V architectural or facade accent lighting as long as the connected load does not exceed 96W or 4A. The IP65 rating means it is water-resistant, so it is intended for damp or outdoor locations where direct weather exposure is a consideration.
How much 24V LED strip can the HVG-100-24AB power?
Use the strip wattage per meter to estimate length: 96W divided by your strip's W/m equals the maximum theoretical length. For example, the math is 96W / strip W per meter, and you should always check your strip rated power per meter before sizing the run.
What is the difference between the HVG-100-24AB and other 24V HVG-100 models?
Within the 24V HVG-100 group, the HVG-100-24A, HVG-100-24AB, and HVG-100-24B are all 96W, 24V, 4A models, while the HVG-100-24D is listed at 75W. This model also carries an IP65 water-resistant rating, while the sibling list here identifies the shared electrical ratings for the 24V 96W versions.
