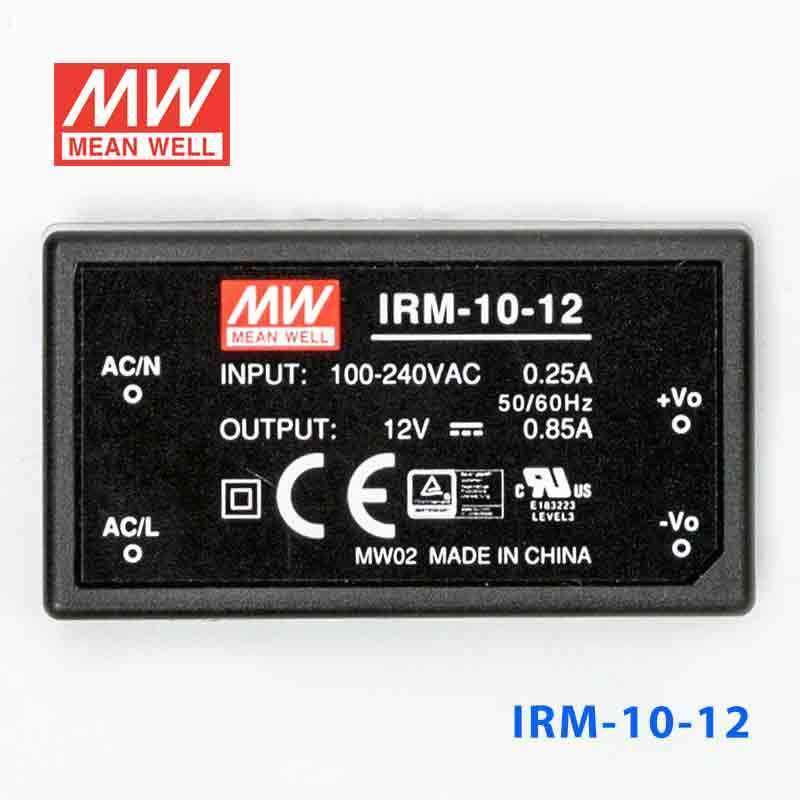

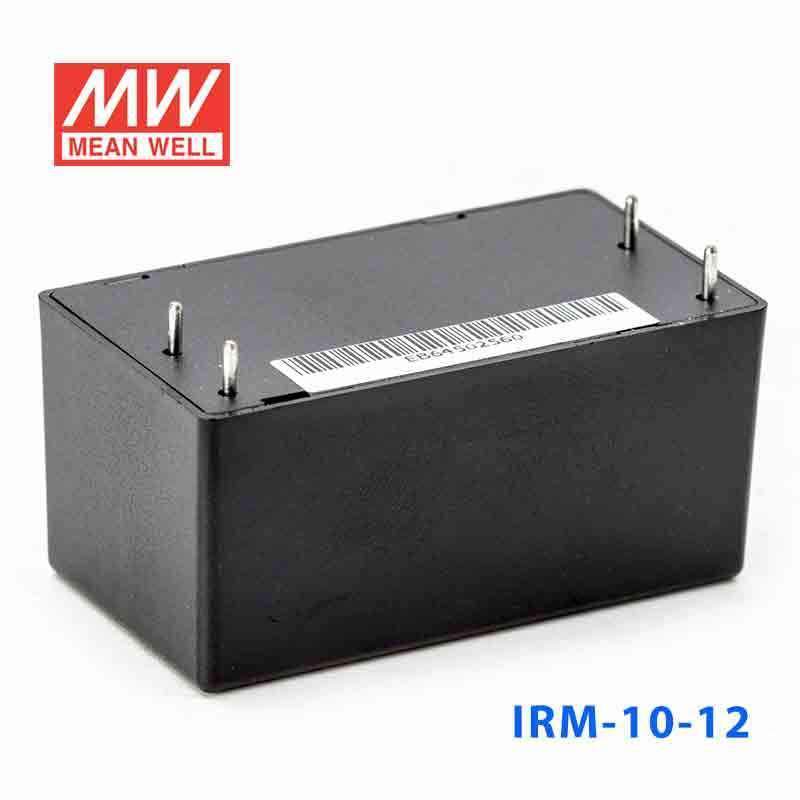

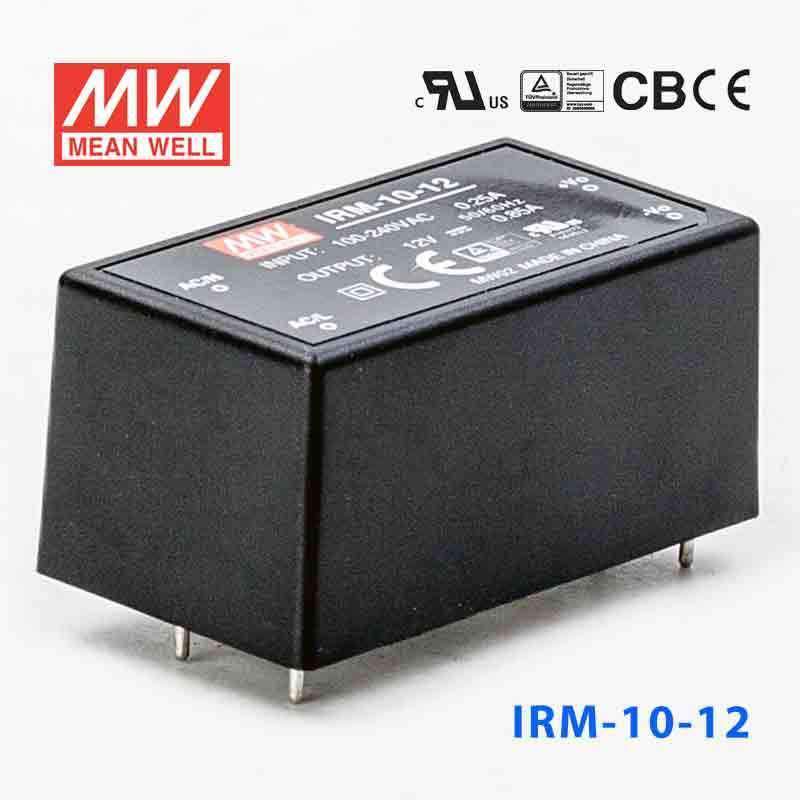

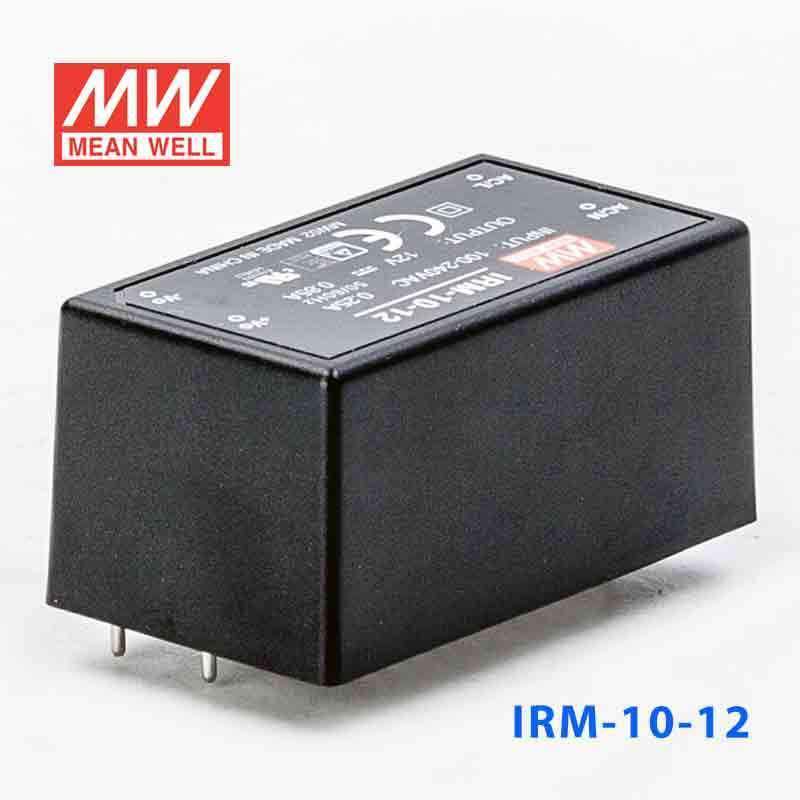

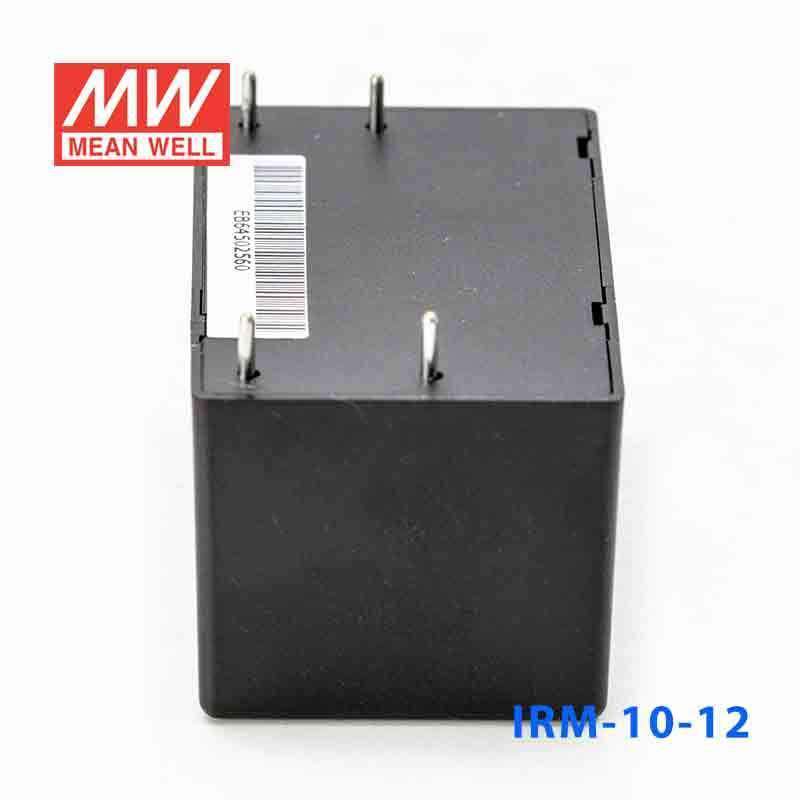

Mean Well IRM-10-12 Switching Power Supply 10.2W 12V 0.85A - Encaps...
The IRM-10 is a 10W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What output does the Mean Well IRM-10-12 provide?
The IRM-10-12 is a 12V AC/DC switching power supply rated for 0.85A output current. Its maximum power rating is 10.2W, making it suitable for low-power embedded and PCB-based applications that require a regulated 12V output.
What input voltage range does the IRM-10-12 support?
This model accepts a universal input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide input range makes it useful for equipment intended for different mains regions without needing separate input-specific versions.
What kinds of applications is the IRM-10-12 typically used for?
The IRM-10-12 is designed for compact internal power conversion in open-frame or embedded equipment where board space matters. Its miniature encapsulated form factor, free-air cooling, and low no-load power consumption make it a fit for industrial and commercial low-power electronics.
What protections are built into the Mean Well IRM-10-12?
This model includes short circuit, overload, and over voltage protection. The overload protection is listed at 115% to 190%, and over voltage protection is listed at 115% to 135% of rated output voltage.
How compact is the IRM-10-12 power supply?
The listed dimensions are 45.7 x 25.4 x 21.5 mm, and the product weight is 0.033 kg. That compact size helps when designing space-constrained products that still need an enclosed AC/DC power module.
Is the IRM-10-12 intended for reliability-focused applications?
Yes. The product description lists a fully isolated plastic case, isolation class II construction, 100% full load burn-in testing, and a 5G vibration test, all of which support use in durability-focused equipment designs. It also carries a 3-year warranty.
