Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

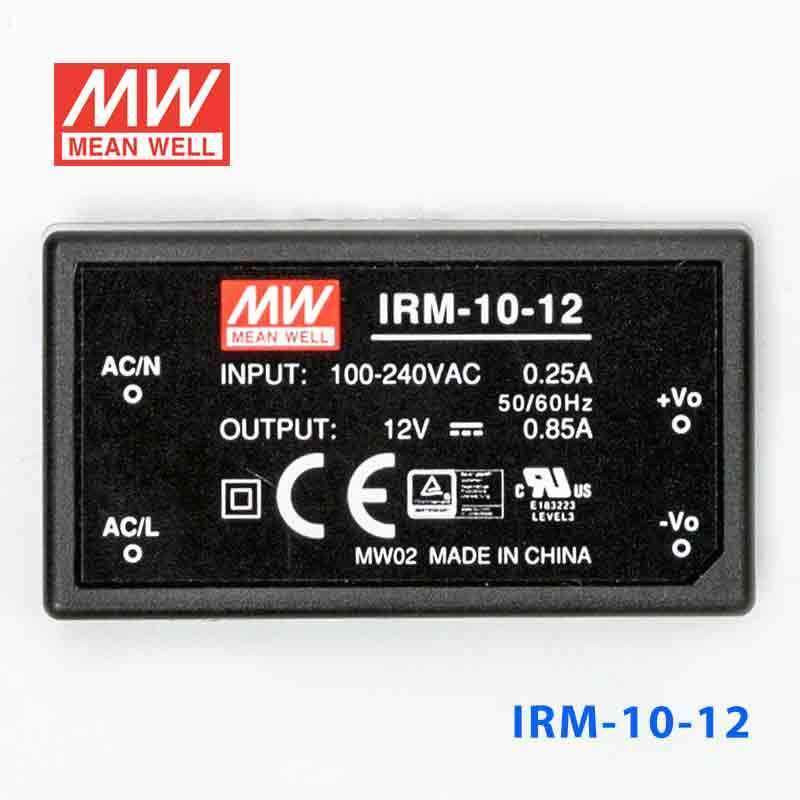

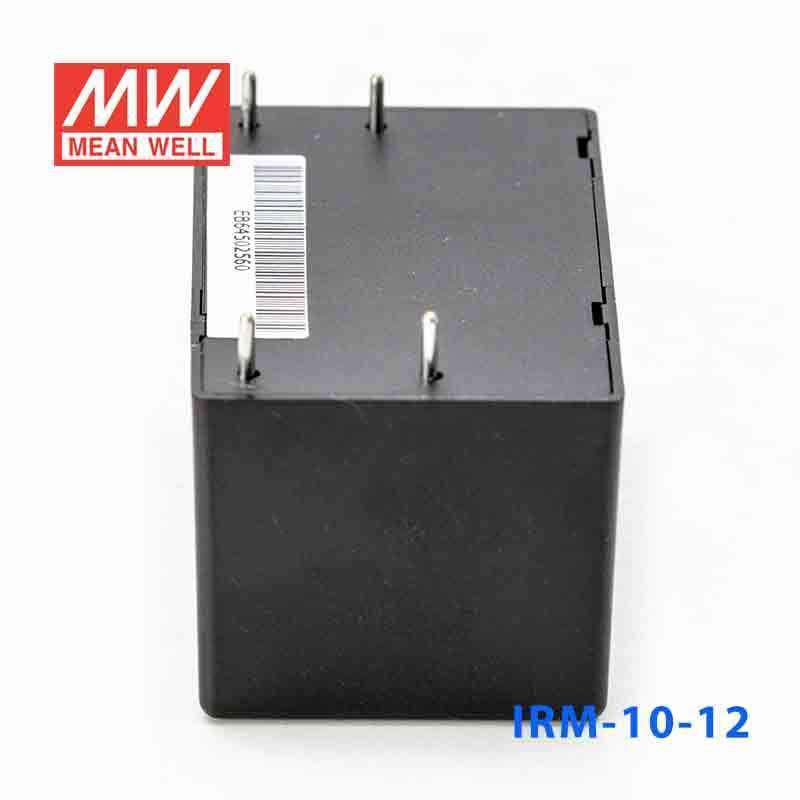

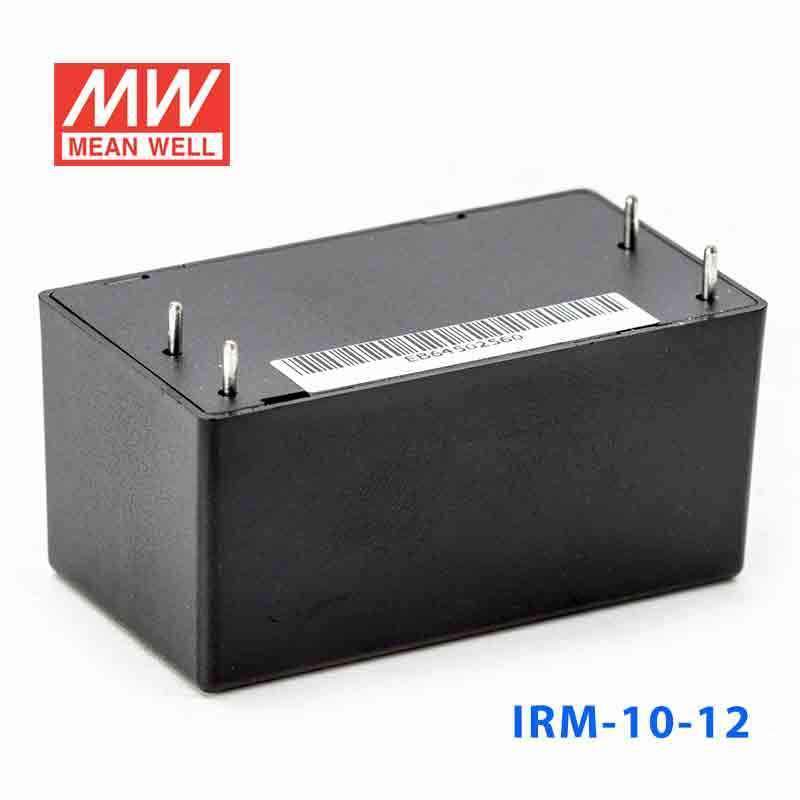

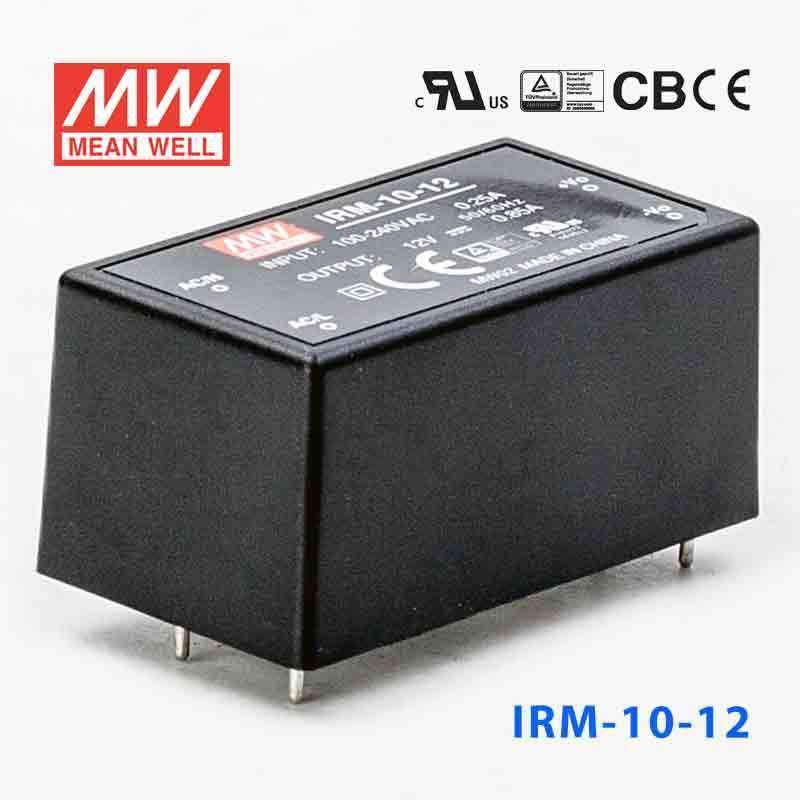

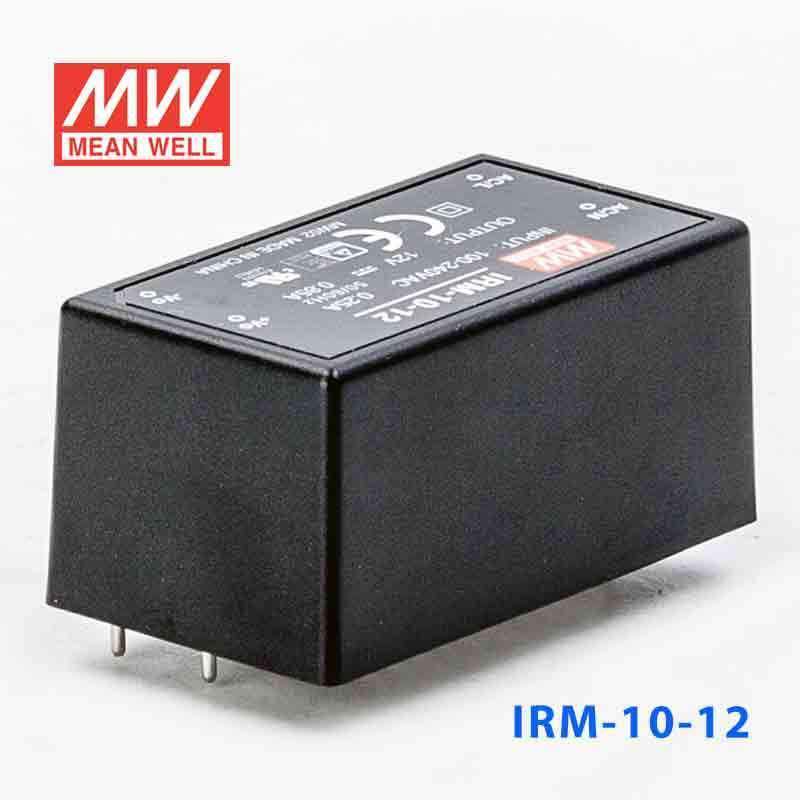

Mean Well IRM-10-12 Switching Power Supply 10.2W 12V 0.85A - Encaps...
$8.58 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Miniature size, high power density |
| Cooling by free air convection |
| Isolation class II |
| Fully isolated plastic case |
| Withstand 5G vibration test |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 20A at 115VAC, 40A at 230VAC |
| Setup, rise, hold up time | 600ms, 30ms, 30ms |
| Overload protection | 115%~190% |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.75mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 4 industrial pins |
| Dimension (LxWxH) | 45.7x 25.4x 21.5 |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
