Can I use the IRM-10-15 for a 15V HMI, controller, or industrial interface board?

Yes, if the load requires a constant 15V output and remains within 10.05W and 0.67A. That makes it suitable for higher-demand 15V control electronics than the smaller IRM-05-15.

Is the IRM-10-15 suitable for a compact automation subsystem that needs more 15V capacity?

It can be a fit when a compact PCB-mounted supply is needed but the load is above 4.95W. This model provides 15V at up to 0.67A in the same 45.7 × 25.4 × 21.5 mm encapsulated package format.

Can this power supply run a low-power 15V measurement or communications module?

Yes, as long as the module uses constant-voltage 15V DC and does not exceed 0.67A or 10.05W. The 85-305VAC input range also supports use in equipment intended for multiple AC mains environments.

What is the difference between the IRM-10-15 and the other IRM-10 models?

The IRM-10 family includes IRM-10-3.3 at 8.25W, 3.3V, 2.5A; IRM-10-5 at 10W, 5V, 2A; IRM-10-12 at 10.2W, 12V, 0.85A; IRM-10-15 at 10.05W, 15V, 0.67A; and IRM-10-24 at 10.08W, 24V, 0.42A. The IRM-10-15 is the 15V option in that series, trading voltage against available current within roughly the same power class.

Is the IRM-10-15 suitable for outdoor use or hot and cold environments?

Its operating temperature range is -40°C to +85°C, so it is specified for a wide temperature span in protected equipment. No IP rating is listed, so it should not be treated as an exposed outdoor supply and is better suited to enclosed installations.

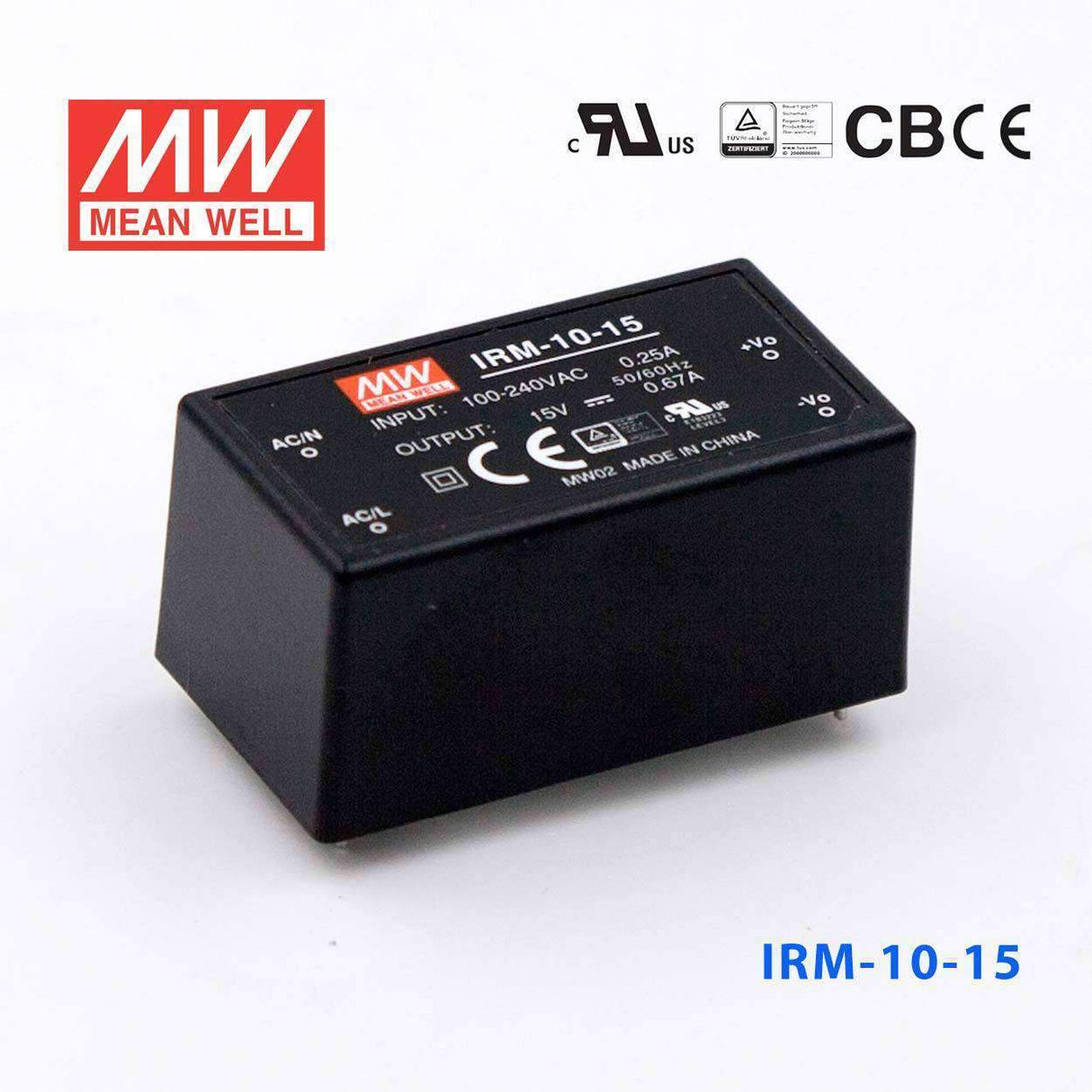

Mean Well IRM-10-15 Switching Power Supply 10.05W 15V 0.67A

Name: Mean Well IRM-10-15 Switching Power Supply 10.05W 15V 0.67A - Encapsulated
Brand: Mean Well
SKU: IRM-10-15
Price: 10.37 USD
Availability: InStock

The IRM-10 is a 10W Mean Well power converter (input range: 85~305VAC).

Key Features

✓ Input voltage range: 85~305VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
✓ 3 years warranty

Brand

Mean Well
Series

IRM Series
Power Rating

10.05 Watt
Output Voltage

15 Volt
Rated Current

0.67 Ampere
Input Voltage

85V~305V
No of Output

1
Dimming Control

None
Standards Met

BSMI,CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1.8 in
Width

1 in
Height

0.85 in
Weight

0.07 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well IRM-10-5 Switching Power Supply 10W 5V 2A - Encapsulated	10W	5V	2A	Indoor	$8.58	View
Mean Well IRM-10-3.3 Switching Power Supply 8.25W 3.3V 2.5A - Encapsulated	8.25W	3.3V	2.5A	Indoor	$8.58	View
