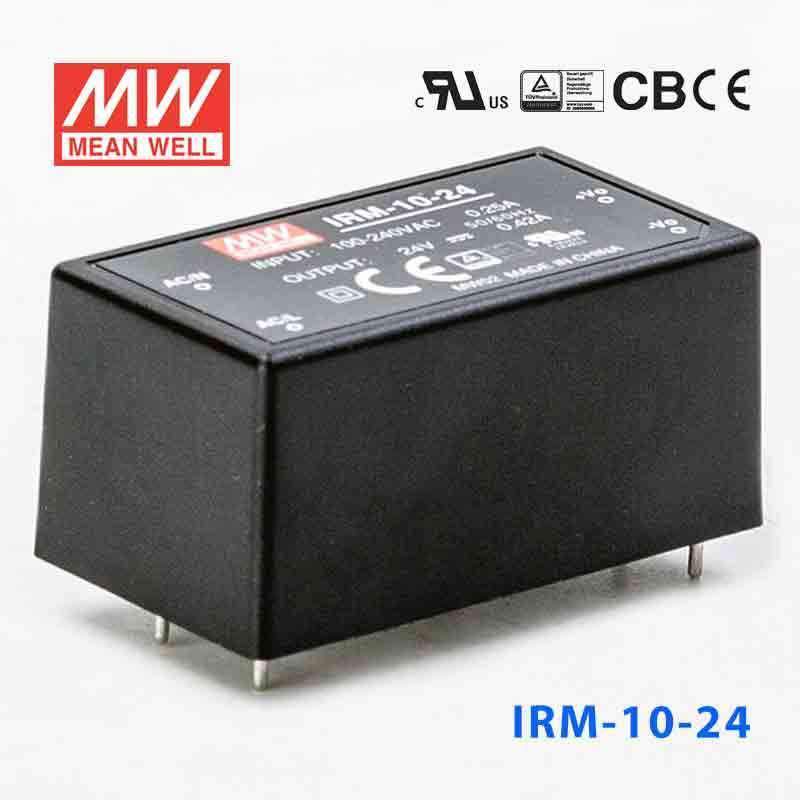

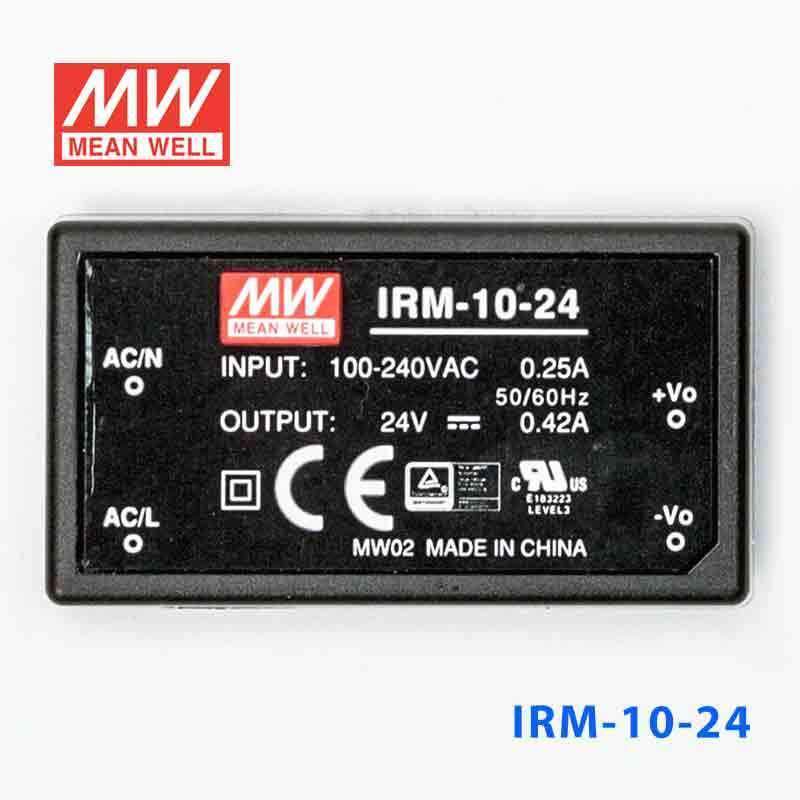

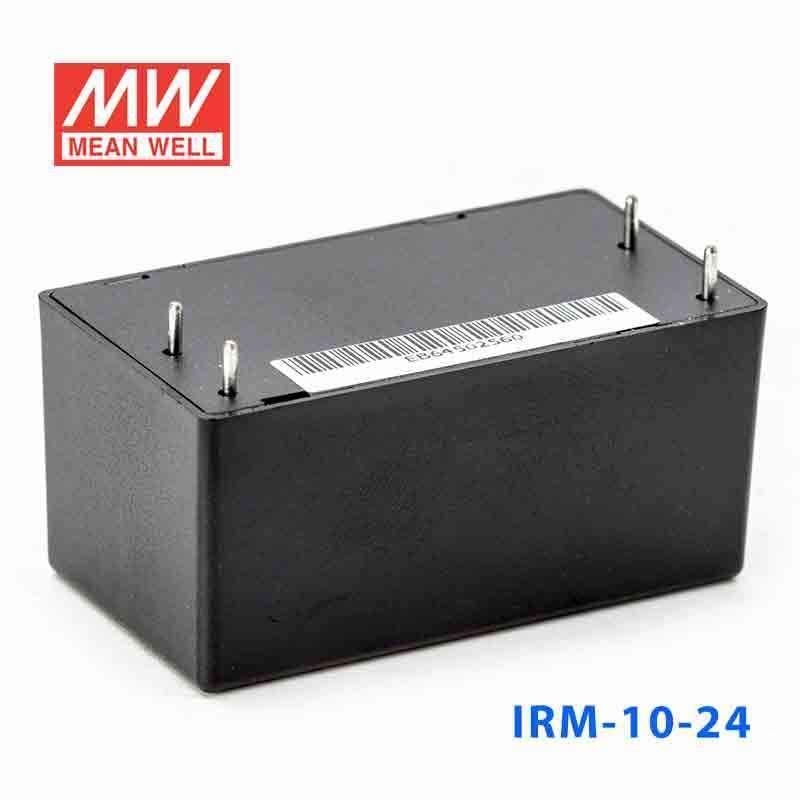

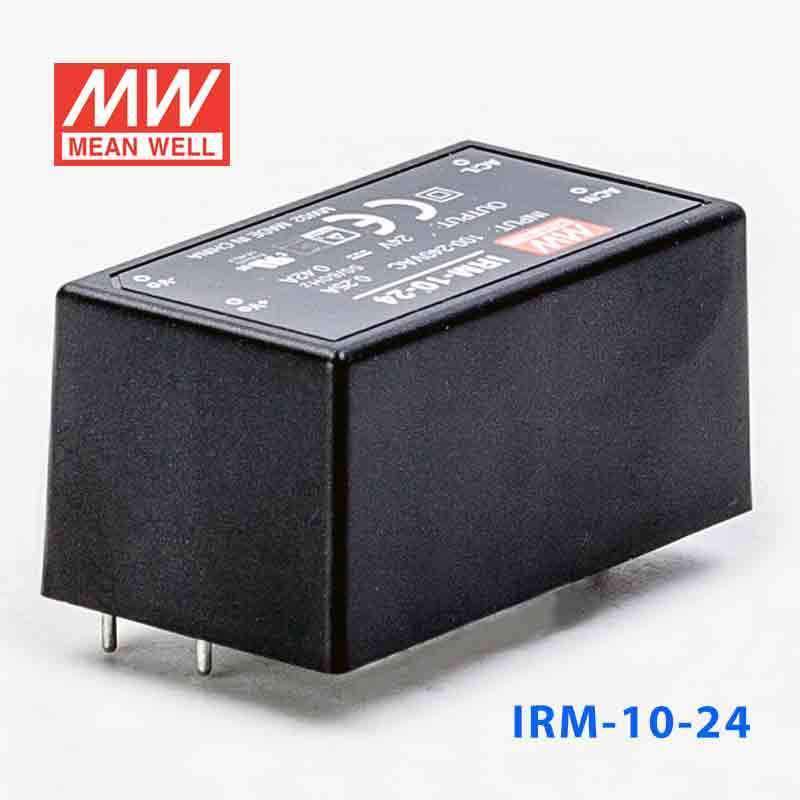

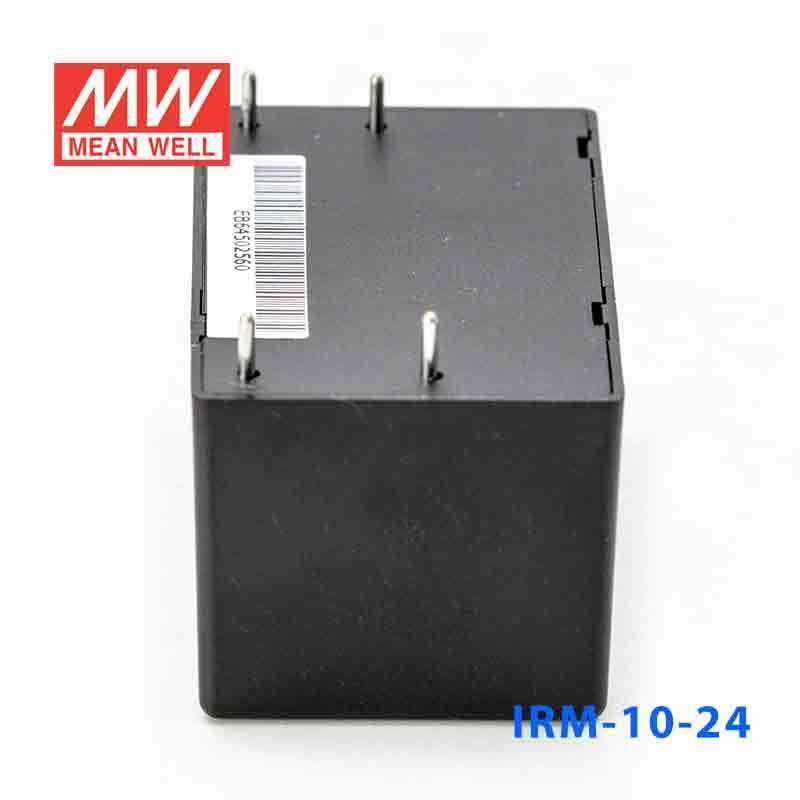

Mean Well IRM-10-24 Switching Power Supply 10.08W 24V 0.42A - Encap...
The IRM-10 is a 10W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating10.08 Watt
-
Output Voltage24 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.8 in
-
Width1 in
-
Height0.85 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
Can I use the IRM-10-24 for a small 24V PLC or automation control board?
Yes, if the board needs a constant 24V supply and its total load stays within 0.42A and 10.08W. The wide 85-305VAC input also fits equipment that may be deployed across different mains environments. Its miniature encapsulated PCB-mount form factor is better suited to compact internal control electronics than to high-current 24V loads.
Is the IRM-10-24 suitable for powering 24V sensors, transmitters, or signal-conditioning circuits?
It can be a fit for 24V industrial sensors, transmitters, or signal-conditioning sections when the combined demand does not exceed 0.42A at 24V. Because it is a constant-voltage model, it is intended for devices that expect a regulated 24V input. The compact 45.7 × 25.4 × 21.5 mm size also works well where PCB space is limited.
Can I use this 24V power supply in embedded industrial electronics or compact control modules?
Yes, this model is sized for embedded electronics that need 24V DC at modest power levels, up to 10.08W. Its encapsulated PCB-mount construction and 0.033 kg weight make it practical for small internal assemblies. It is not the right choice where the 24V rail needs more than 0.42A.
Is the IRM-10-24 appropriate for outdoor or harsh-environment use?
The operating temperature range is -40°C to +85°C, which supports a broad thermal envelope. However, no IP rating is listed in the provided specs, so these specs do not establish outdoor exposure resistance. Based on the listed data, it is better treated as an enclosed internal power supply rather than an exposed outdoor unit.
How does the IRM-10-24 compare with other 24V models in the IRM series?
Among the provided 24V siblings, the series includes IRM-01-24 and IRM-01-24S at 1W and 0.04A, IRM-02-24 and IRM-02-24S at 2W and 0.08A, IRM-03-24 and IRM-03-24S at 3W and 125A, IRM-05-24 at 5.52W and 0.23A, IRM-10-24 at 10.08W and 0.42A, IRM-15-24 at 15.12W and 0.63A, IRM-20-24 at 21.6W and 0.9A, IRM-30-24 and IRM-30-24ST at 31.2W and 1.3A, IRM-45-24 and IRM-45-24ST at 45.6W and 1.9A, IRM-60-24 and IRM-60-24ST at 60W and 2.5A, and IRM-90-24 and IRM-90-24ST at 90W and 3.75A. The IRM-10-24 sits in the lower-middle of that 24V range for both wattage and current.
