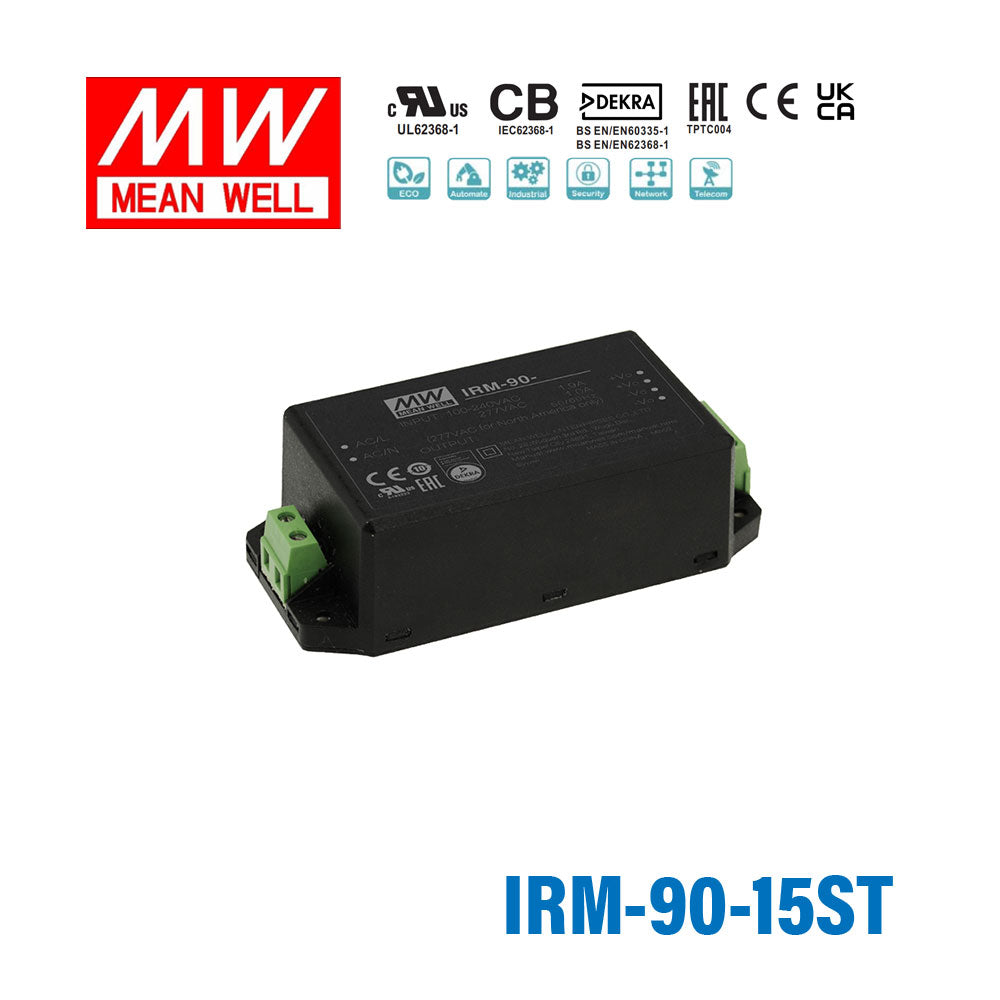

Mean Well IRM-90-15ST Switching Power Supply 93.5W 15V 6.23A - Encapsulated
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IRM-90-15ST Switching Power Supply 93.5W 15V 6.23A - Enca...
The IRM-90 is a 90W Mean Well power converter (input range: 80~305VAC).
Key Features
- ✓ Input voltage range: 80~305VAC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EC62368- UL62368- TUV EN62368-- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating85.05 Watt
-
Output Voltage15 Volt
-
Rated Current5.67 Ampere
-
Input Voltage80V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the IRM-90-15ST for a 15V industrial automation controller?
Yes, if the controller needs constant voltage 15V and stays within 85.05W or 5.67A. That output level suits higher-power 15V industrial control and automation assemblies better than smaller IRM-15 or IRM-30 models.
Is this a good power supply for 15V embedded equipment in a compact enclosure?
It can work well for embedded equipment that needs one internal 15V AC-DC module. The unit is encapsulated, measures 109.0 x 52.0 x 33.5 mm, and accepts 80-305VAC input while delivering 85.05W at 15V.
Can the IRM-90-15ST power multiple 15V control or interface loads from one source?
Yes, this model provides up to 5.67A on a 15V constant voltage output, with 85.05W total power. That makes it suitable for consolidated 15V control, interface, or monitoring loads inside industrial equipment.
Is the IRM-90-15ST appropriate for IT or industrial equipment that uses screw terminal style?
Yes, the screw terminal style is part of this model's feature set, and the supply is rated for 15V, 85.05W, and 5.67A. It is intended for internal use in equipment that needs a compact encapsulated AC-DC supply rather than a chassis power supply.
How does the IRM-90-15ST compare with the other IRM-90 outputs?
Across the IRM-90 family, the 12V models are 80.4W and 6.7A, the 15V models are 85.05W and 5.67A, the 24V models are 90W and 3.75A, and the 48V models are 90.2W and 1.88A. The ST version keeps the same 15V electrical rating as IRM-90-15 but uses screw terminal style instead of PCB mounting style.
Can this model be used in cold or high-heat indoor environments?
Its operating temperature range is -30C to +80C, so the temperature specification covers both cold and hot indoor equipment spaces. No IP rating is provided, so the specs do not establish outdoor weather exposure suitability.
