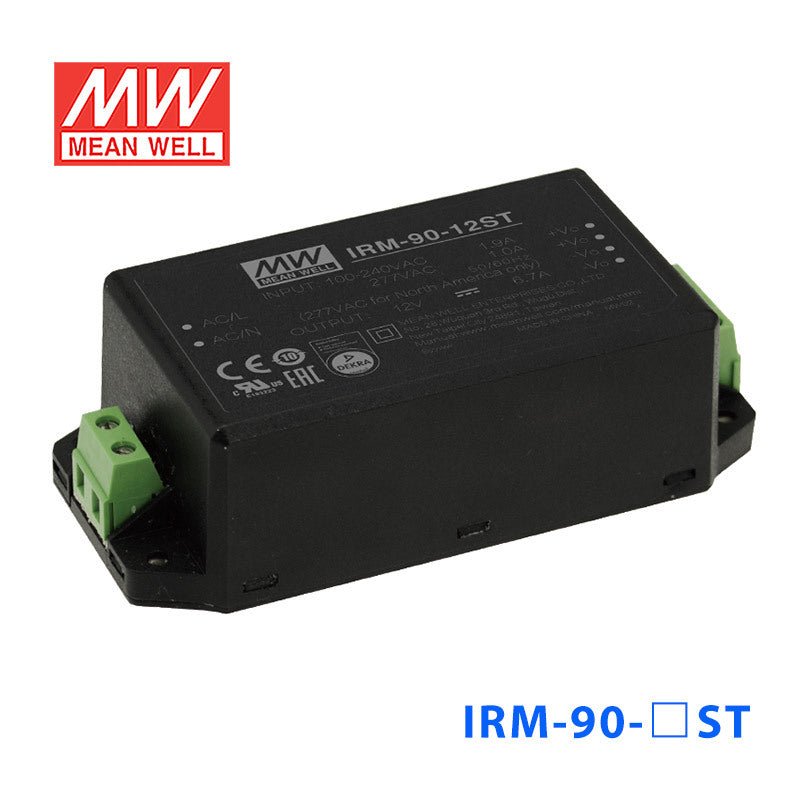

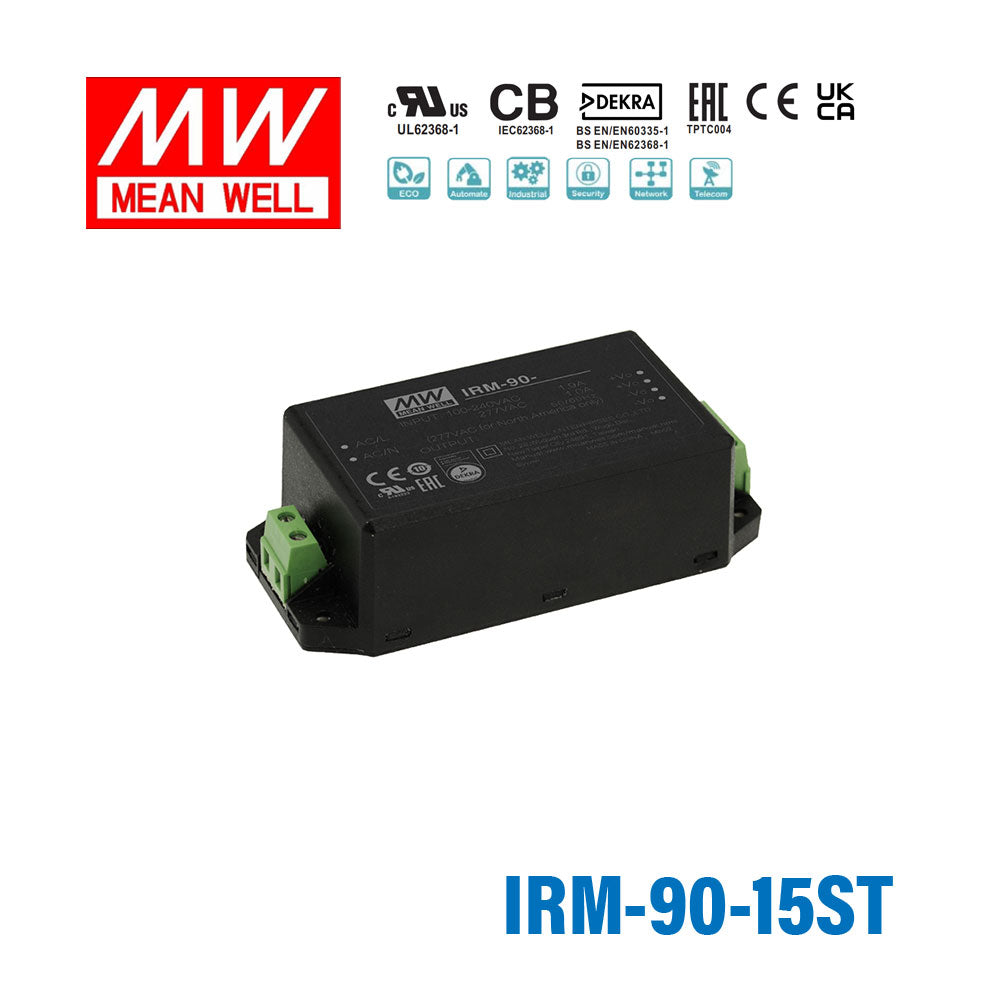

Mean Well IRM-90-15ST Switching Power Supply 93.5W 15V 6.23A

Name: Mean Well IRM-90-15ST Switching Power Supply 93.5W 15V 6.23A - Encapsulated
Brand: Mean Well
SKU: IRM-90-15ST
Price: 28.04 USD
Availability: InStock

Overview

IRM-90-15ST is the 15V output model of this series: typical efficiency 92.5%. Type ST: Screw terminal style.

IRM-90 is a 90W miniature (87*52*29.5mm) AC-DC PCB-mount module type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 80~305Vac. The 94V-0 flame retardant plastic case and potted with silicone enhance the heat dissipation and meet the anti-vibration demand up to 2~5G anti-vibration by model; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 93% and the extremely low no-load power consumption below 0.3W, IRM-90 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class Ⅱ design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the super EMC features keep the end electronic units from from electromagnetic interference. In addition to the PCB mounting style model, IRM-90 series also offers the screw terminal style model (ST).

Features

3.43"x2.05" compact size
PCB, chassis or screw terminal mounting version
Universal input 80~305Vac
No load power consumption<0.3W
EMI BS EN/EN55032 ClassB without additional components
Wide operating temp. rage -40~+85℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class Ⅱ
Over voltage category Ⅲ
Operating altitude up to 4000 meters (Note.7)
100W peak(10 sec.)
3 years warranty

Specifications

IRM-90-15STSpecifications from the official datasheet (2026-06-16 edition)

OUTPUT

DC VOLTAGE: 15V
CURRENT Peak(10 sec.): 6.23A
CURRENT Convection: 5.67A
RATED POWER Peak(10 sec.)^Note.2: 93.5W
RATED POWER Convection: 85.05W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230Vac 1000ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.): 30ms/230Vac 10ms/115Vac at full load

INPUT

VOLTAGE RANGE^Note.5: 80 ~ 305Vac 113 ~ 431Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 1.9A/115Vac 1.1A/230Vac
INRUSH CURRENT (Typ.): COLD START 30A/115Vac 65A/230Vac
LEAKAGE CURRENT (max.)^Note.6: < 0.25mA/240Vac

PROTECTION

OVERLOAD: 115% ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 15.8 ~ 20.3V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION: Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.7: Ⅲ; EN62368-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1, IEC60335-1, Dekra BS EN/EN60335-1,BS EN/EN62368-1,UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2,BS EN/EN55014-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
RF field susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT bursts BS EN/EN61000-4-4 Level 3, criteria A
Surge susceptibility BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted susceptibility BS EN/EN61000-4-6 Level 3, criteria A
Magnetic field immunity BS EN/EN61000-4-8 Level 4, criteria A
Voltage dip, interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
RF field susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT bursts	BS EN/EN61000-4-4	Level 3, criteria A
Surge susceptibility	BS EN/EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, criteria A
Voltage dip, interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 5088.4K hrs min. Telcordia SR-332 (Bellcore) ; 609.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING: PCB mounting style : 0.197Kg;60pcs/11.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT

MODEL ENCODING

Blank: PCB mounting style
ST (this model): Screw terminal style

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Leakage current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

IRM-90-15ST Block Diagram — Block Diagram

IRM-90-15ST Derating Curve — Derating Curve

IRM-90-15ST Mechanical Specification — Mechanical Specification

Typical applications

Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device

Downloads

Datasheet1

IRM-90-15ST datasheetIRM-90-spec.pdf · 2026-06-16 edition PDF Download

Certificates9

Mean Well IRM-90-Dekra seal.PDF Certificate PDF Download

Mean Well IRM-90(ST)-DEKRA-Mark Certificate PDF Download

Mean Well IRM-90(ST)-CB Certificate PDF Download

Mean Well IRM-90(ST)-CB(UL) Certificate PDF Download

Mean Well IRM-90-EMC Certificate PDF Download

Mean Well IRM-90-UK-dec Certificate PDF Download

Mean Well IRM-90-CE-dec Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well PHP-3500-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the IRM-90-15ST for a 15V industrial automation controller?

Yes, if the controller needs constant voltage 15V and stays within 85.05W or 5.67A. That output level suits higher-power 15V industrial control and automation assemblies.

Is this a good power supply for 15V embedded equipment in a compact enclosure?

It can work well for embedded equipment that needs one internal 15V AC-DC module. The unit is encapsulated, measures 109.0 x 52.0 x 33.5 mm, and accepts 80-305VAC input while delivering 85.05W at 15V.

Can the IRM-90-15ST power multiple 15V control or interface loads from one source?

Yes, this model provides up to 5.67A on a 15V constant voltage output, with 85.05W total power. That makes it suitable for consolidated 15V control, interface, or monitoring loads inside industrial equipment.

Is the IRM-90-15ST appropriate for IT or industrial equipment that uses screw terminal style?

Yes, the screw terminal style is part of this model's feature set, and the supply is rated for 15V, 85.05W, and 5.67A. It is intended for internal use in equipment that needs a compact encapsulated AC-DC supply rather than a chassis power supply.

How does the IRM-90-15ST compare with the other IRM-90 outputs?

Across the IRM-90 family, the 12V models are 80.4W and 6.7A, the 15V models are 85.05W and 5.67A, the 24V models are 90W and 3.75A, and the 48V models are 90.2W and 1.88A. The ST version keeps the same 15V electrical rating as IRM-90-15 but uses screw terminal style instead of PCB mounting style.

Can this model be used in cold or high-heat indoor environments?

Its operating temperature range is -40C to +85C, with output derating at higher temperatures per the derating curve, so it covers both cold and hot indoor equipment spaces. No IP rating is provided, so the specs do not establish outdoor weather exposure suitability.
