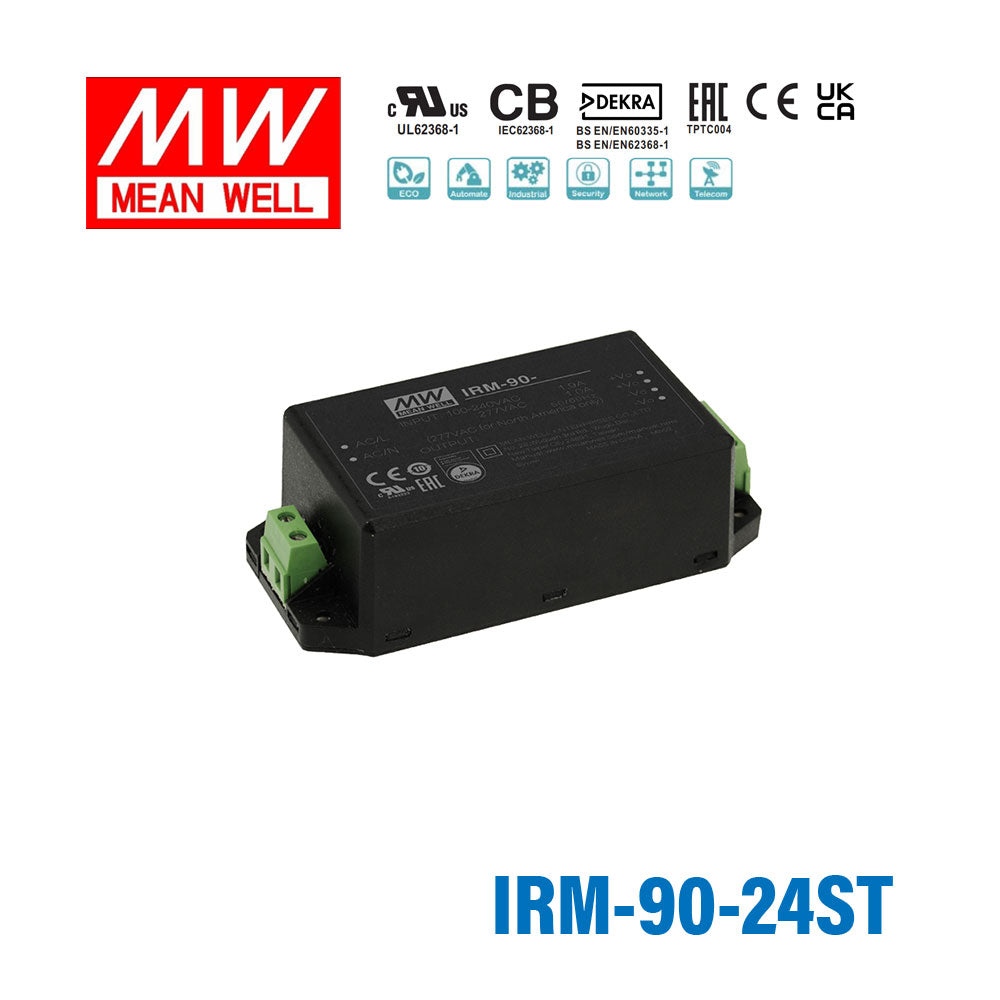

Mean Well IRM-90-24ST Switching Power Supply 99W 24V 4.13A - Encaps...
The IRM-90 is a 90W Mean Well power converter (input range: 80~305VAC).
Key Features
- ✓ Input voltage range: 80~305VAC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: EC62368- UL62368- TUV EN62368-- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length4.29 in
-
Width2.05 in
-
Height1.32 in
-
Weight0.48 lb
::specification::
Frequently Asked Questions
Can I use the IRM-90-24ST for a 24V industrial automation panel or control module?
Yes, this model delivers constant voltage 24V output rated at 90W and 3.75A. That output is appropriate for 24V automation panels, industrial controls, and machine subsystems that need a higher-power encapsulated supply.
Is the IRM-90-24ST suitable for 24V DIN-style control loads inside equipment, even if it is not a DIN rail supply itself?
It can supply 24V control loads that fit within 90W and 3.75A, provided the equipment uses an internal encapsulated AC-DC module. The input range is 80-305VAC, and the package size is 109.0 x 52.0 x 33.5 mm.
Can this power supply support 24V industrial sensors, I/O, or monitoring hardware from one source?
Yes, when the combined 24V load remains within 3.75A and 90W. Its constant voltage operation makes it suitable for grouped 24V industrial electronics that need one centralized internal supply.
Is the IRM-90-24ST appropriate for equipment that needs screw terminal style instead of PCB mounting?
Yes, screw terminal style is one of the defining features of this version. Electrically it provides the same 24V, 90W, and 3.75A rating as IRM-90-24, but in the larger 109.0 x 52.0 x 33.5 mm ST format.
What are the main IRM-90 output choices in this series?
The IRM-90 series includes 12V at 80.4W and 6.7A, 15V at 85.05W and 5.67A, 24V at 90W and 3.75A, and 48V at 90.2W and 1.88A. For 24V specifically, IRM-90-24 and IRM-90-24ST share the same electrical rating, with PCB mounting on the non-ST version and screw terminal style on the ST version.
Can the IRM-90-24ST handle cold or hot operating conditions, and is it rated for outdoor use?
The stated operating temperature range is -30C to +80C, so it is specified for wide temperature conditions. No IP rating is provided, so these specs do not confirm outdoor or wet-location suitability.
