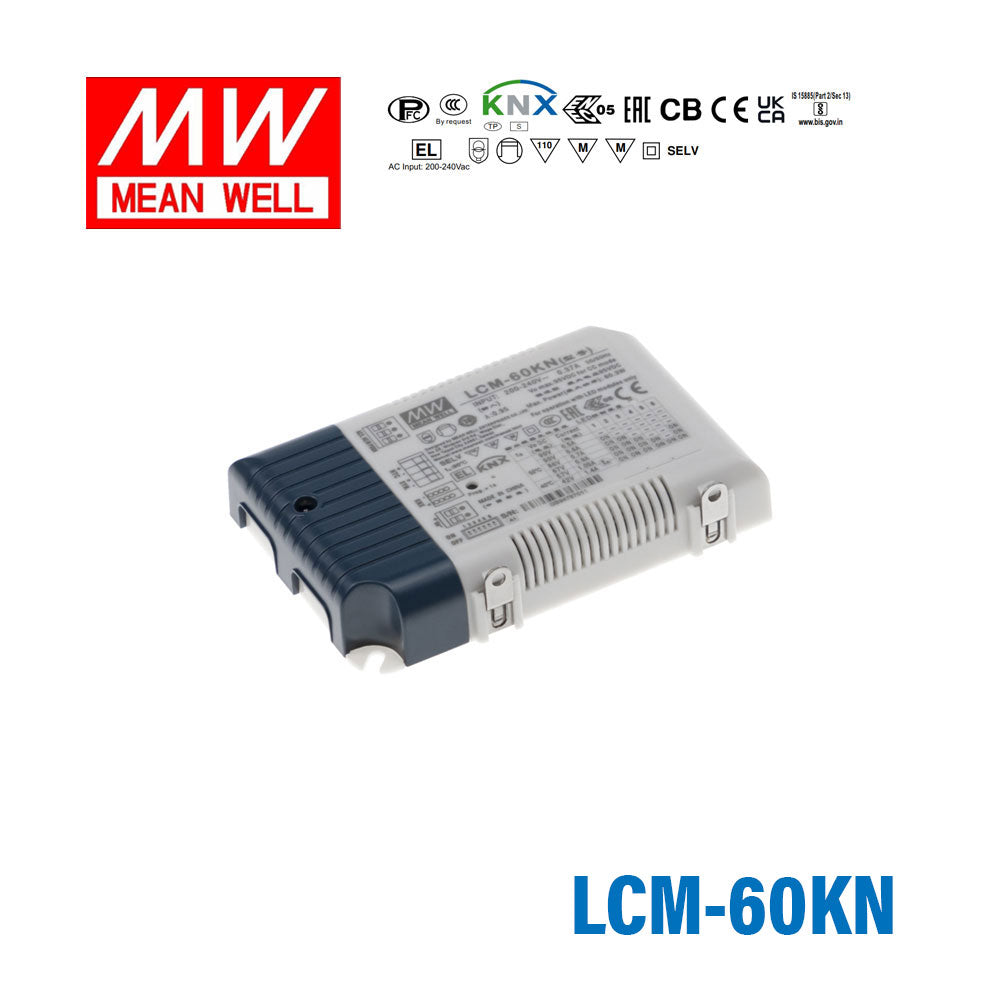

Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - KNX
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 90...
The LCM is a 25W Mean Well DIN rail power converter with a 105mm profile (input range: 6~54V, operating temperature: -30~+85℃).
Key Features
- ✓ 105mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 6~54V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1, BIS IS15885, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLCM KNX Series
-
Power Rating60.3 Watt
-
Output Voltage95 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output6
-
Dimming ControlKNX
-
Standards MetCB,CCC,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~90°C
-
Warranty3 Year
-
Length4.86 in
-
Width3.21 in
-
Height0.91 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the LCM-60KN for LED downlights in a KNX lighting system?
Yes, this model is a constant current LED driver with KNX protocol support, so it is suited to LED downlights that need KNX-based control. It provides 60.3W output and has multiple selectable current levels by dip switch, with 700mA as the default.
Is the LCM-60KN a good fit for small LED arrays in building automation projects?
Yes, it is intended for constant current LED loads and includes KNX protocol support for control integration. Its 2-86V constant current range and 60.3W rating make it suitable for LED arrays that fall within those electrical limits.
Can the LCM-60KN be used for constant current signage modules?
It can be used for signage modules when the module requires constant current rather than constant voltage output. The driver is rated 60.3W and supports selectable current settings from 500mA to 1400mA, with 700mA as the default.
Would the LCM-60KN work for synchronized multi-driver LED lighting runs?
Yes, one of the listed features is synchronization of up to 10 units, which makes it suitable where multiple constant current LED drivers need coordinated behavior. This is specific to the LCM-60KN feature set and can matter in larger downlight or small array projects.
How do I check LED compatibility for the LCM-60KN?
This is a constant current driver, so the LED load must fit within the CC output voltage range of 2-86V and the selected output current setting. The number of LEDs depends on the forward voltage of each LED, so compatibility cannot be reduced to one fixed LED count.
What are the key differences between the LCM-60KN and related LCM siblings?
In the provided series list, LCM-25, LCM-25BLE, LCM-25DA, and LCM-25KN are 25.2W with 6-36V CC range; LCM-25DA2 is 25W with 277-180V CC range; LCM-40, LCM-40BLE, LCM-40DA, and LCM-40KN are 42W with 2-57V CC range; LCM-40DA2 is 40W with 295-180V CC range; LCM-40TW is 40W with 20-50V CC range; LCM-40U is 35W with 2-50V CC range; LCM-60, LCM-60BLE, and LCM-60DA are 60.3W with 2-86V CC range; LCM-60DA2 is listed as 6W with 295-180V CC range; and LCM-60U and LCM-60UDA are 50.4W variants with 2-72V listed for LCM-60U. The LCM-60KN itself is 60.3W, 2-86V, 700mA default, and adds KNX protocol plus synchronization up to 10 units.
