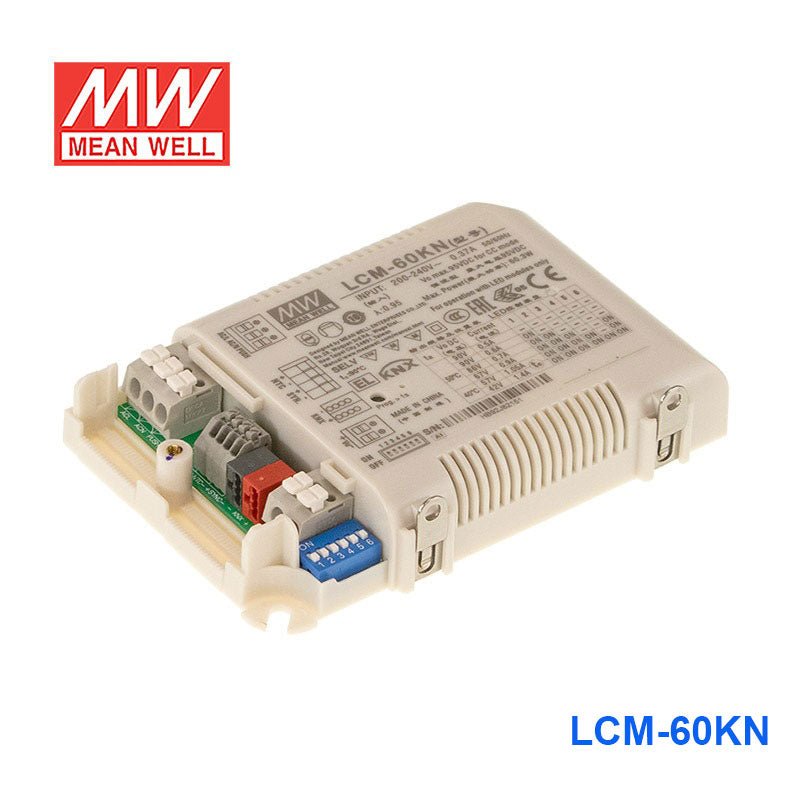

Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - KNX

Name: Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - KNX
Brand: Mean Well
SKU: LCM-60KN
Price: 54.76 USD
Availability: InStock

constant current model with multiple levels selectable by dip switchKNX protocolsynchronization up to 10 units

SKU LCM-60KN

$54.76 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LCM-60KN is the model of this series: rated power 60.3W, typical efficiency 91%.

LCM-60KN series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the KNX interface to avoid using the complicated KNX-DALI gateway. LCM-60KN operates from 180～295VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. In addition, LCM-60KN is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
KNX/EIB protocol
Flicker free design
Support emergency lighting(EL)
Integrated constant light output
Integrated KNX push button interface
Synchronization up to 10units
Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection...etc
3 years warranty

Specifications

LCM-60KNSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 500mA / 600mA / 700mA(default) / 900mA / 1050mA / 1400mA
RATED POWER: 60.3W
DC VOLTAGE RANGE: 2 ~ 90V @500mA; 2 ~ 90V @600mA; 2 ~ 86V @700mA(default); 2 ~ 67V @900mA; 2 ~ 57V @1050mA; 2 ~ 42V @1400mA
OPEN CIRCUIT VOLTAGE (max.): 95V @500mA / 600mA / 700mA; 73V @900mA / 1050mA / 1400mA
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only
SETUP TIME^Note.3: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC 220 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.975/230VAC, PF≧0.93/277VAC@ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.4: 91%
AC CURRENT (Typ.): 0.32A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=320μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 20 units (circuit breaker of type B) / 34 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.6: <0.5W for Blank-Type, <1.2W for AUX-Type

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 125V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

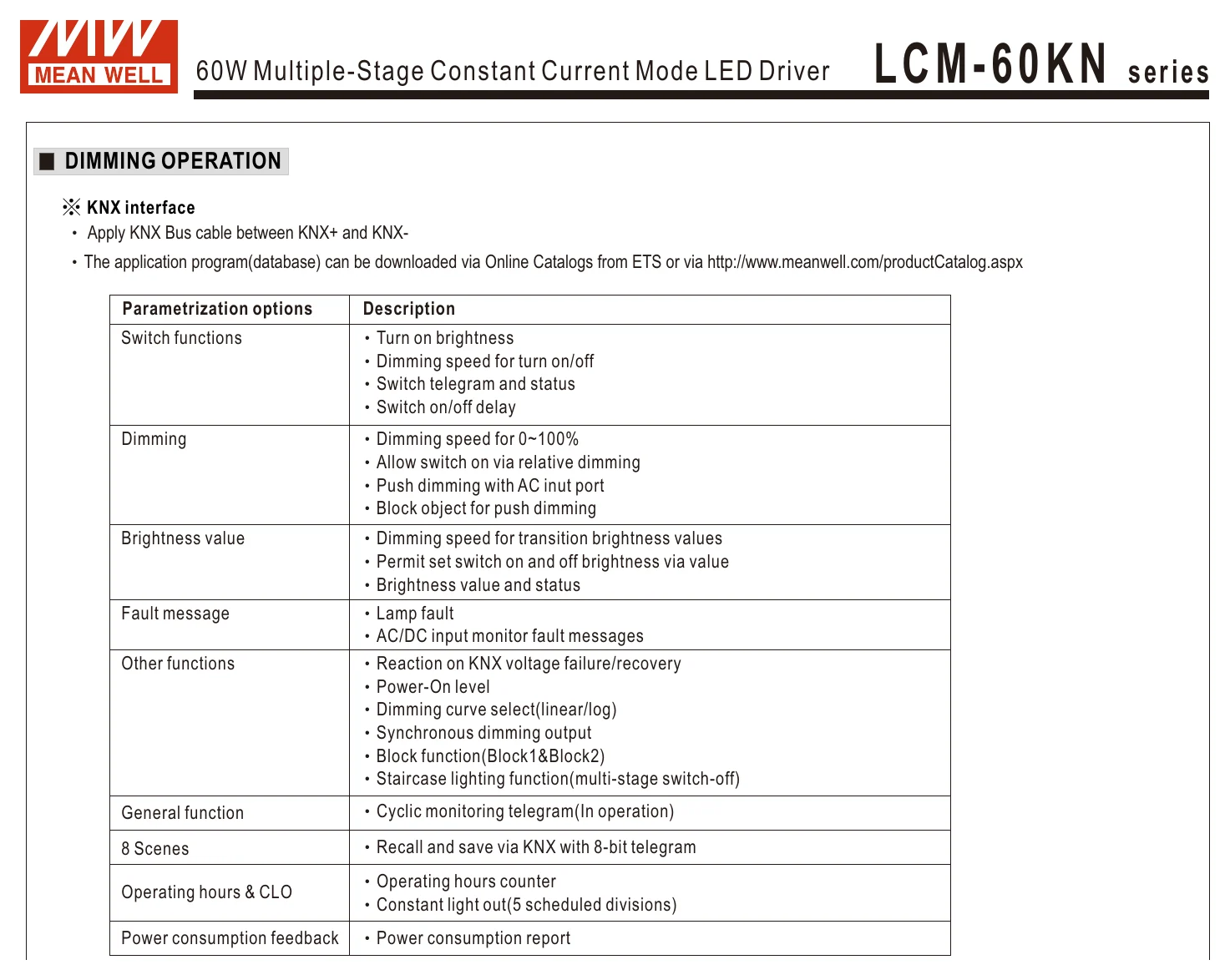

DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION” section
TEMP. COMPENSATION: By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004, GB/T19510.1 and GB/T19510.213(by request)approved ; According to BS EN/EN50172, BS EN/EN 60598-2-22, BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)
KNX STANDARDS: Certified protocol
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1764.2K hrs min. Telcordia SR-332 (Bellcore) ; 190.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.24Kg ; 54pcs/15Kg/1.12CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 900mA/67V output set by DIP switch.
5. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
6. Standby power consumption is measured at 180~230VAC.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

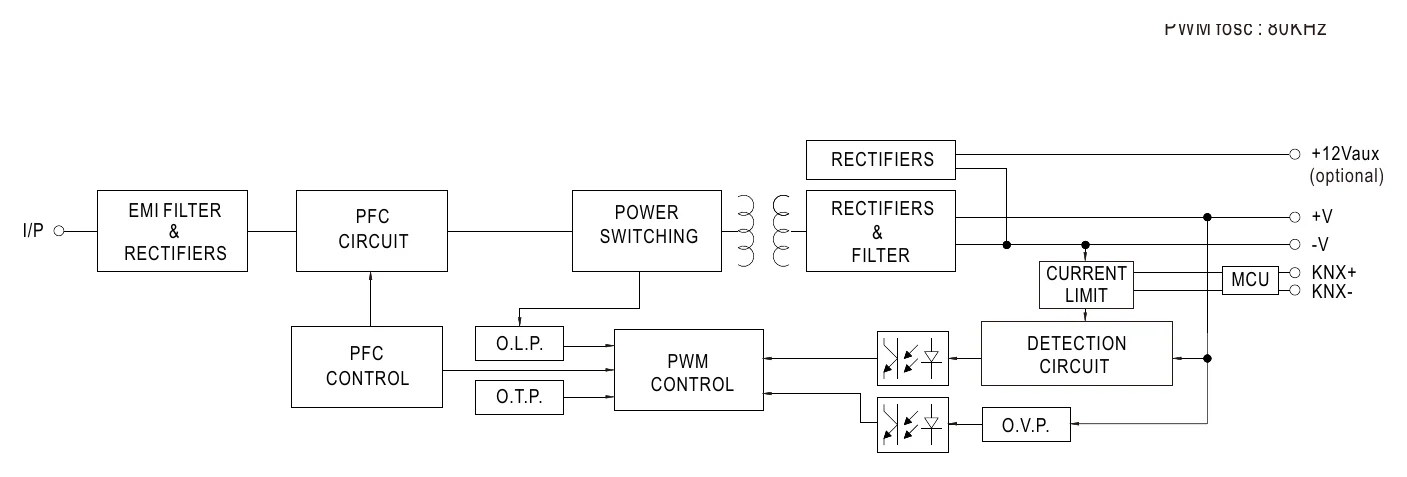

LCM-60KN LCM-60KN series — LCM-60KN series

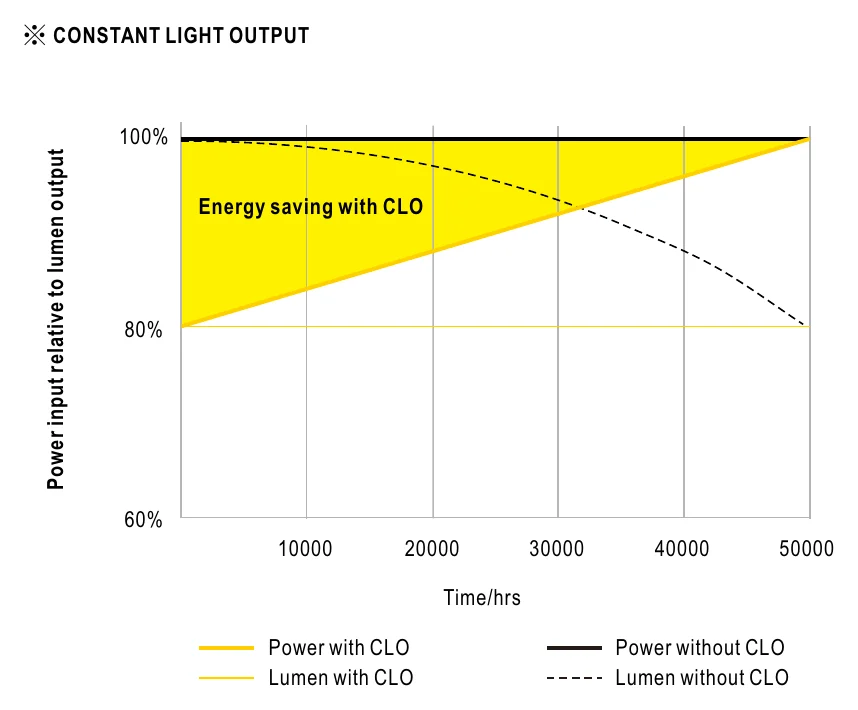

LCM-60KN ※ CONSTANT LIGHT OUTPUT — ※ CONSTANT LIGHT OUTPUT

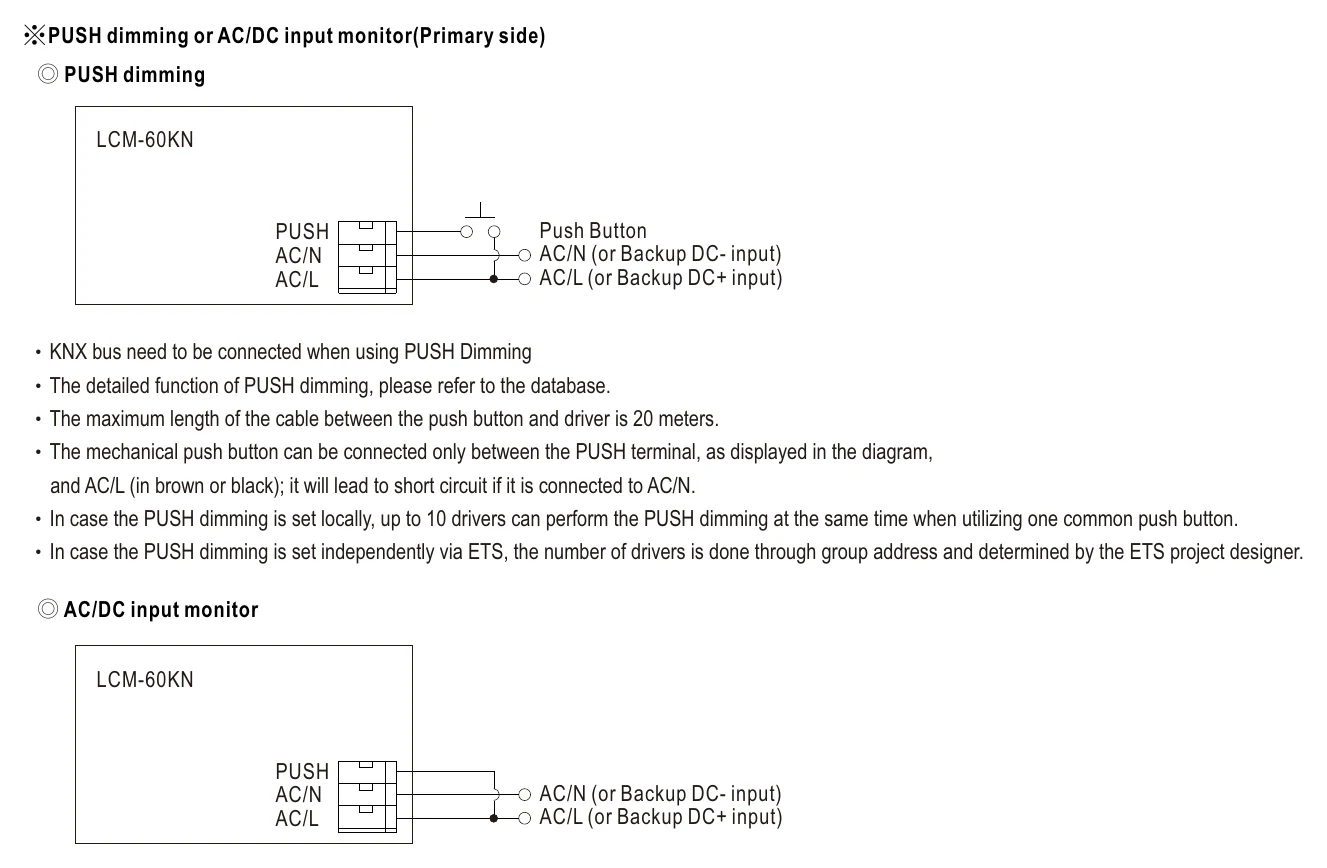

LCM-60KN ※PUSH dimming or AC/DC input monitor(Primary side) — ※PUSH dimming or AC/DC input monitor(Primary side)

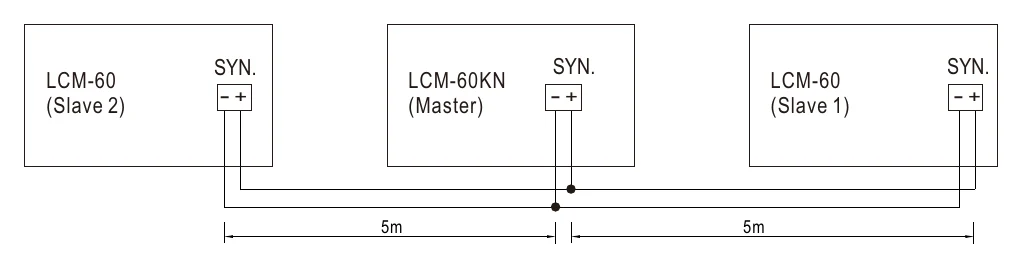

LCM-60KN SYNCHRONIZATION OPERATION — SYNCHRONIZATION OPERATION

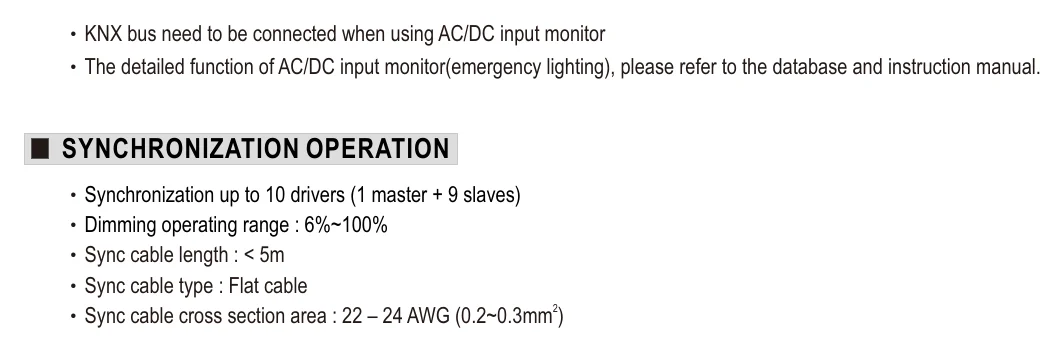

LCM-60KN SYNCHRONIZATION OPERATION (2) — SYNCHRONIZATION OPERATION (2)

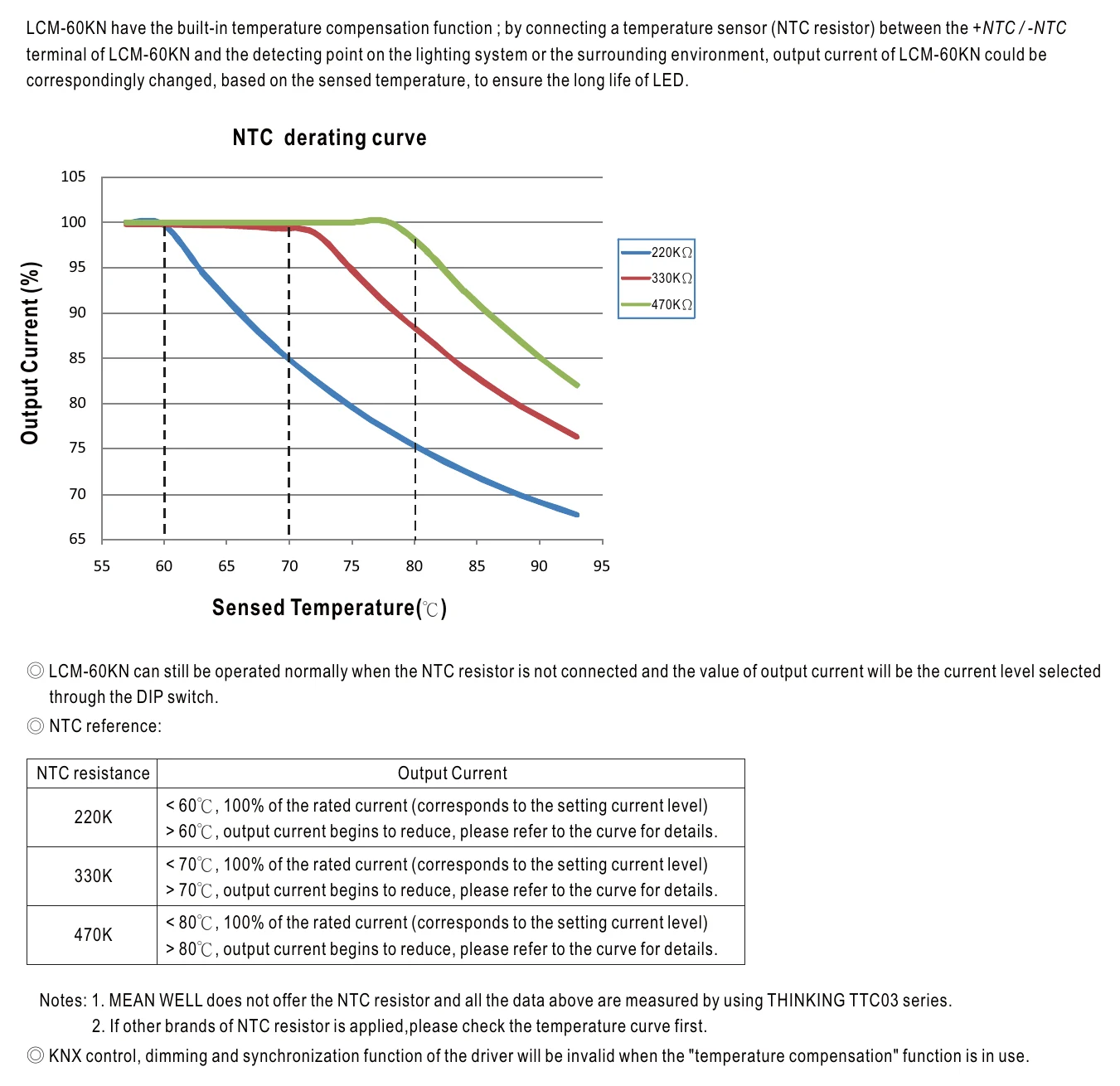

LCM-60KN TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

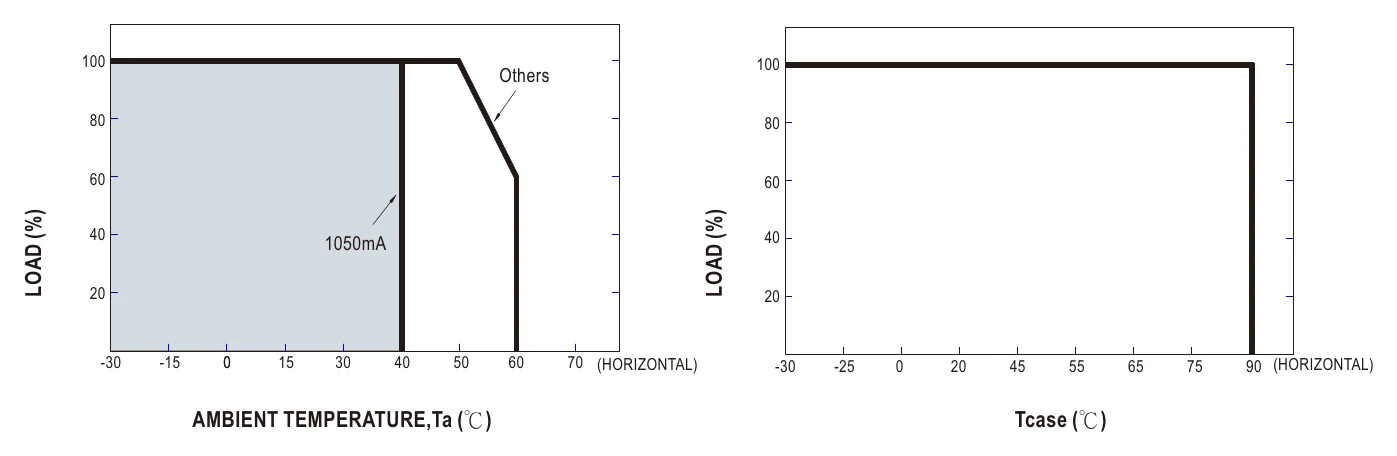

LCM-60KN OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

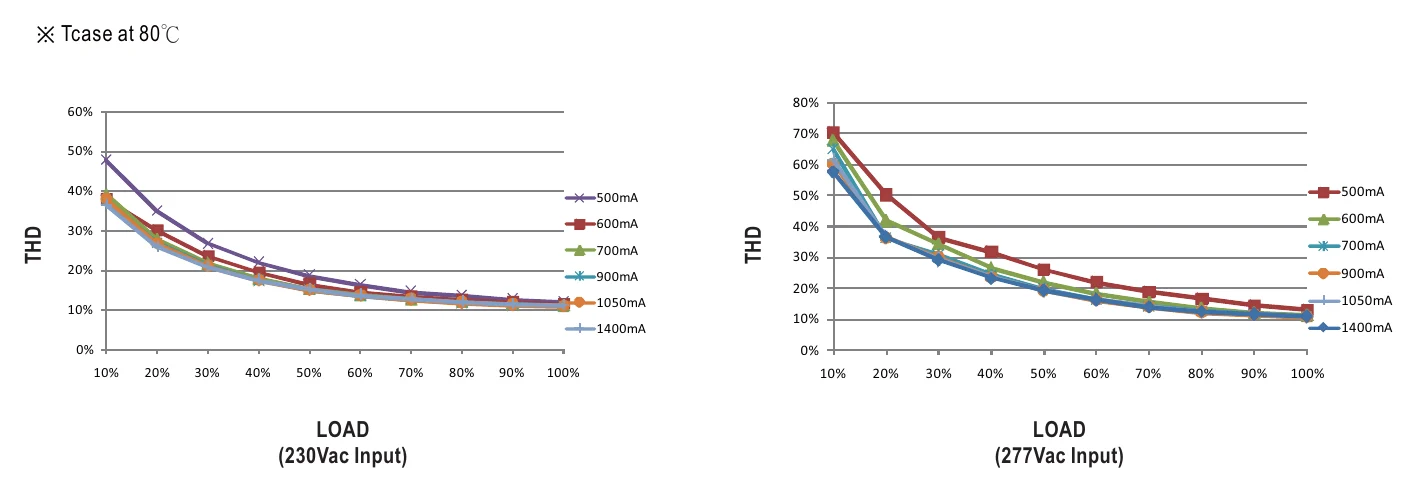

LCM-60KN TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

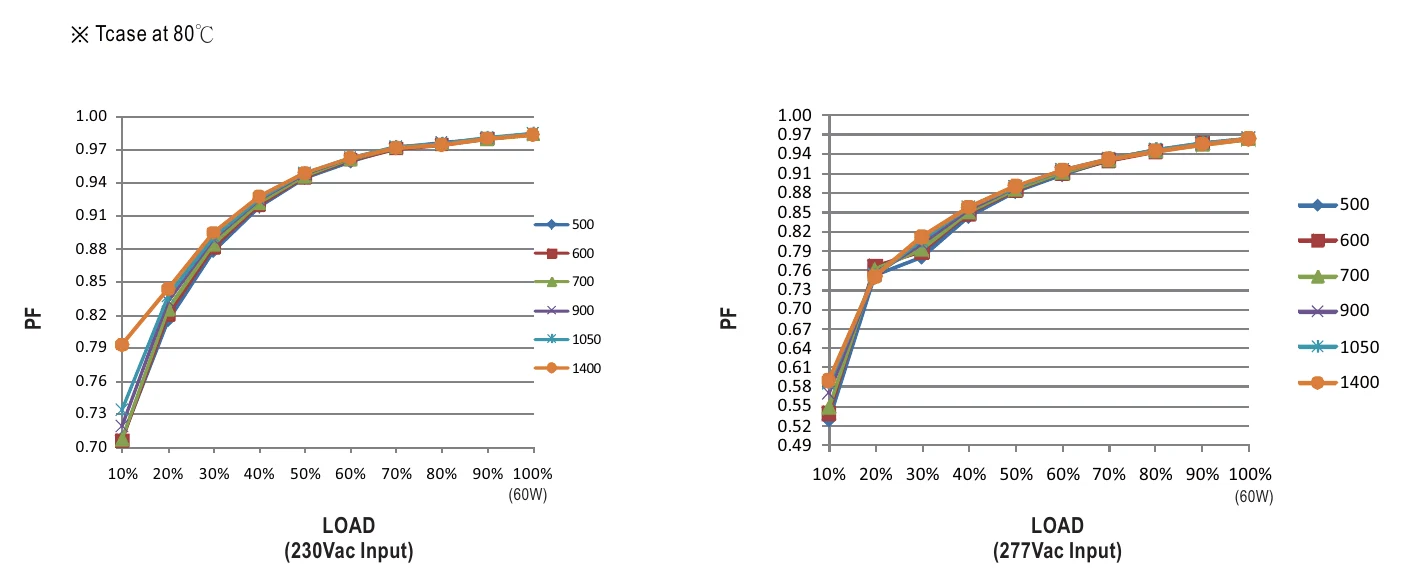

LCM-60KN POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

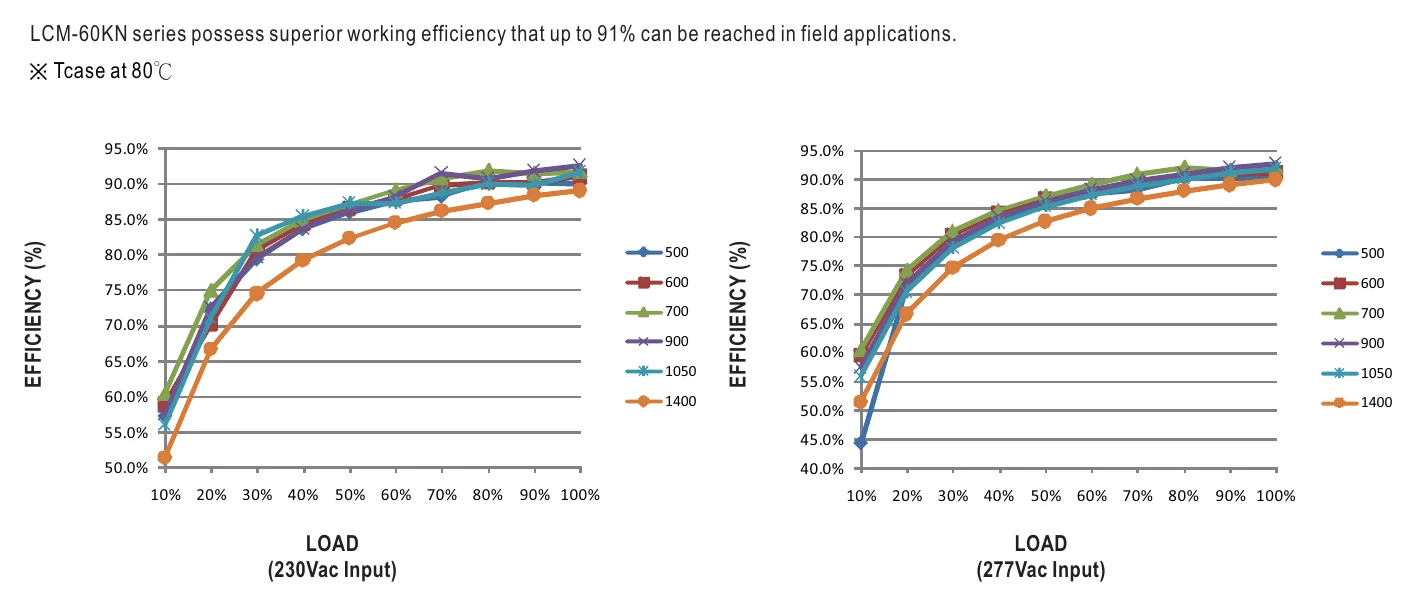

LCM-60KN EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

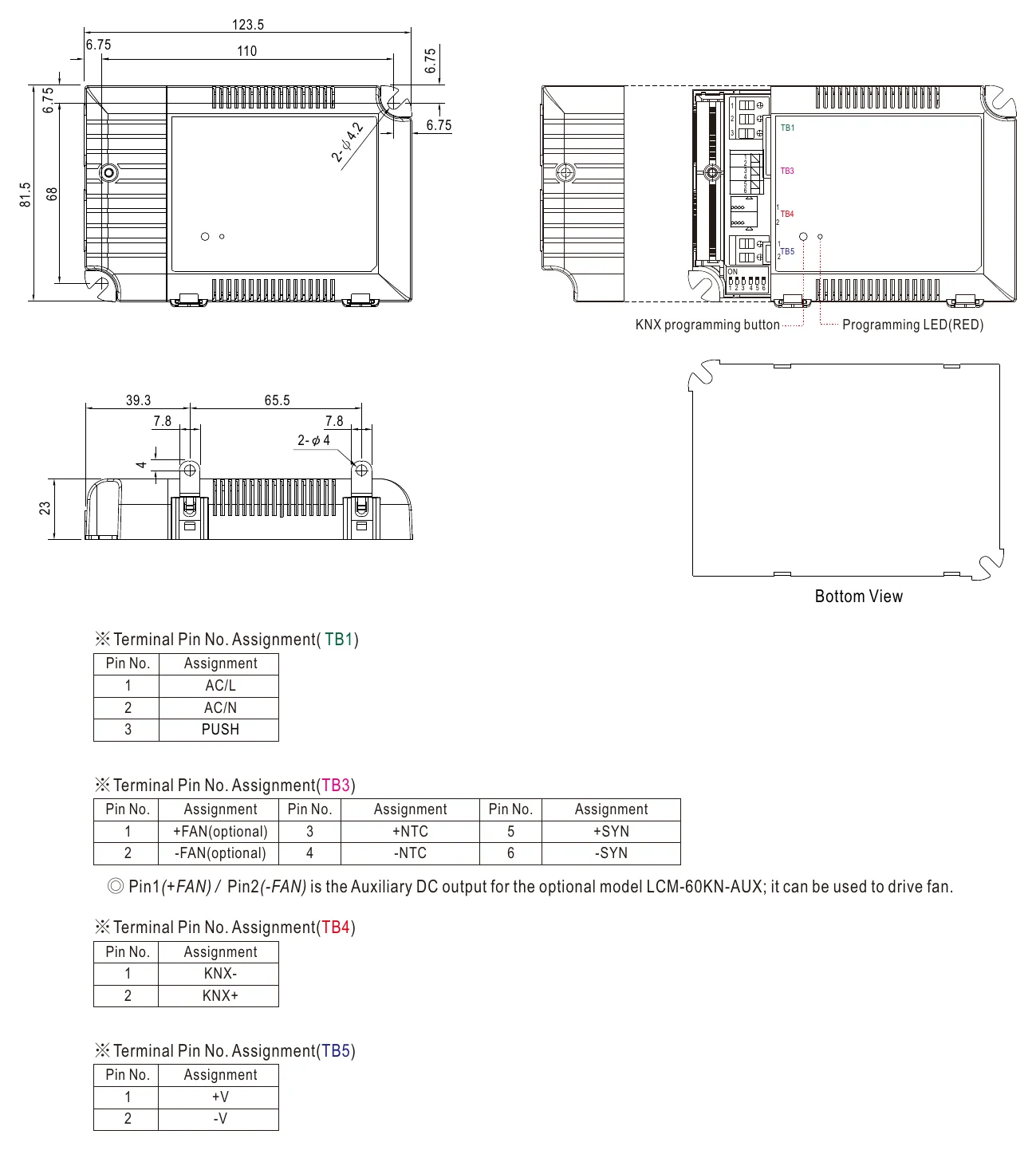

LCM-60KN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Downloads

Certificates3

EMC Certificate(LCM-60DA)(EN) PDF Download

CB Certificate(LCM-60DA)(EN) PDF Download

ENEC Certificate(LCM-60DA)(EN) PDF Download

Test reports1

Test Report (LCM-60DA)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Building Automation Catalog PDF Download

FAQ

Can I use the LCM-60KN for LED downlights in a KNX lighting system?

Yes, this model is a constant current LED driver with KNX protocol support, so it is suited to LED downlights that need KNX-based control. It provides 60.3W output and has multiple selectable current levels by dip switch, with 700mA as the default.

Is the LCM-60KN a good fit for small LED arrays in building automation projects?

Yes, it is intended for constant current LED loads and includes KNX protocol support for control integration. Its 60.3W rating and output voltage range, from 2-90V at 500mA down to 2-42V at 1400mA depending on the selected current, make it suitable for LED arrays that fall within those electrical limits.

Can the LCM-60KN be used for constant current signage modules?

It can be used for signage modules when the module requires constant current rather than constant voltage output. The driver is rated 60.3W and supports selectable current settings from 500mA to 1400mA, with 700mA as the default.

Would the LCM-60KN work for synchronized multi-driver LED lighting runs?

Yes, the driver supports synchronization of up to 10 drivers (1 master + 9 slaves), which makes it suitable where multiple constant current LED drivers need coordinated behavior. This can matter in larger downlight or small array projects.

How do I check LED compatibility for the LCM-60KN?

This is a constant current driver, so the LED load must fit within the output voltage range for the selected current setting, e.g. 2-86V at the 700mA default, 2-90V at 500mA or 2-42V at 1400mA. The number of LEDs depends on the forward voltage of each LED, so compatibility cannot be reduced to one fixed LED count.
