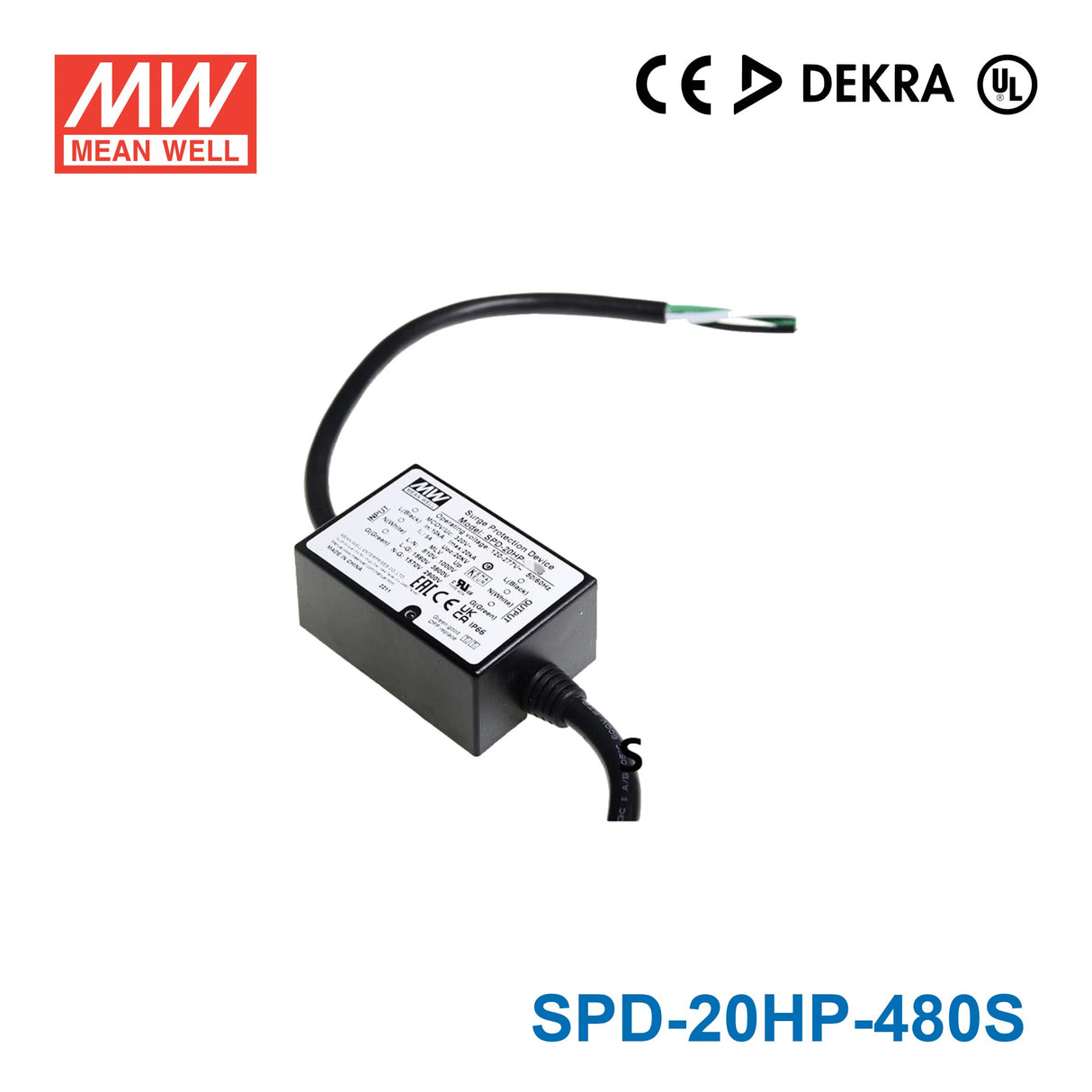

Mean Well SPD-20HP-480S Surge Protection Device 347~480VAC 20KV
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPD-20HP-480S Surge Protection Device 347~480VAC 20KV
The SPD-20HP is a Mean Well power converter.
Key Features
- ✓ Safety approvals: UL1449(Fourth Edition), EN61643-11
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSPD
-
Input Voltage347V~510V
-
Standards MetCE,DEKRA,UL
-
Operating Temperature-40°C~75°C
-
Warranty1 Year
-
Length2.82 in
-
Width2.67 in
-
Height1.26 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
What is the Mean Well SPD-20HP-480S used for?
The SPD-20HP-480S is a surge protection device designed for LED driver protection. It is intended for applications using Class I insulation and helps protect equipment from high-energy surge events.
What voltage range is this surge protection device designed for?
This model is designed for 347~480VAC applications, as indicated by the product name. That makes it suitable for higher-voltage lighting and power environments where protection at that range is required.
How much surge protection capability does the SPD-20HP-480S provide?
The SPD-20HP-480S provides up to 20kA maximum discharge current at an 8/20 microsecond waveform. It is also described as having 20KV surge protection capability for demanding protection scenarios.
Can this model be used outdoors or in harsh environments?
Yes. The SPD-20HP-480S has an IP66-rated design for indoor or outdoor installations, and its operating temperature range is -40°C to 75°C. Those specifications make it appropriate for challenging environmental conditions.
How can I tell if the SPD-20HP-480S needs servicing?
This model includes an LED status indicator. The indicator illuminates during normal status and turns off when servicing is needed.
What makes the SPD-20HP-480S a good fit for commercial LED protection projects?
This model combines a high 20kA maximum discharge current, 20KV surge protection capability, UL1449 Type 4 component assembly classification, and an IP66 enclosure design. That combination makes it a strong option for commercial LED driver protection where durability and clear status indication matter.
What is the warranty period for the SPD-20HP-480S?
The listed warranty period for this model is 1 year. For procurement or project planning, that gives buyers a defined coverage term for this specific surge protection device.
