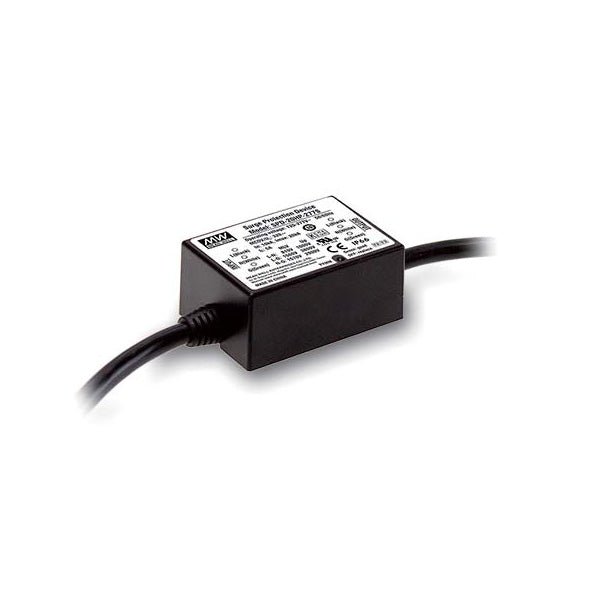

Mean Well SPD-20HP-277S Surge Protection Device 120~277VAC 20KV
Overview
SPD-20HP thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection. It is constructed with thermally protected varistor technology. Its built-in thermal disconnect function provides additional protection to prevent catastrophic failure and fire hazard even under the extreme circumstances of varistor end-of-life or sustaining over voltage conditions. The SPD-20HP provides coordinated surge protection with more LED drivers than other SPDs due to its exceptionally low Measured Limiting Voltage (MLV) and Voltage Protection Level (UP). This lower clamping voltage can also help to extend the life-time of the luminaire. It also features a built-in LED indicator that notifies when replacement of the module is needed.
Features
- Series connection style
- UL1449 type 4 component assemblies
- Line to Ground & Line to Line protected
- 20kA maximum discharge current(Iₘₐₓ), 8/20μs
- Low MLV/UP
- Thermally protected
- Double insulation cable wire
- LED status indicator
- IP66 design for indoor or outdoor installations
- Suitable for LED driver surge protection with classⅠ insulation
- 20KV surge protection capability
Specifications
SPECIFICATION
- OPERATING VOLTAGE
- 120 ~ 277VAC 50/60Hz
- MCOV/UC (MAX. CONTINUOUS OPERATING VOLTAGE)Note.1
- 320VAC
- CONTINUOUS CURRENT (max.)
- 5A
- MLV (MEASURED LIMITING VOLTAGE)Note.2
- L-N: 810V L-G: 1560V N-G: 1570V
- UP (VOLTAGE PROTECTION LEVEL)Note.3
- L-N: 1000V L-G/PE: 3800V N-G/PE: 2900V
- In(NOMINAL DISCHARGE CURRENT)Note.4
- 10kA, 8/20μs
- Imax. (MAX. DISCHARGE CURRENT)Note.5
- 20kA, 8/20μs
- OPERATING TEMPERATURE
- -40 ~ +75℃
- SAFETY STANDARDS
- UL1449(Fourth Edition), BS EN/EN61643-11, EAC TP TC 004 approved
- DIMENSION
- 71.6*67.7*32 (L*W*H)
- PACKING
- 0.233Kg/Unit ; 1.67Kg/one box(6pcs); 9Kg/carton(including 5 boxs)
SPECIFICATION for SPD-20HP-277S only
- Temporary Overvoltage (V) TOV UT @ tT = 5s
-
Parameter Standard 403VAC LV System Fault for TN power Grid - Temporary Overvoltage (V) TOV UT @ tT = 120 min.
-
Parameter Standard 529VAC LV System Fault for TN power Grid - Power grids
- TN
- Backup fuse (A)
-
Parameter Standard 21A Maximum gG Fuse - End of life indication
-
Parameter Standard Yes Optical Light ON: SPD is functional Light OFF: SPD has reached end-of-life - Max earth leakage current at Uc (μA)
- 50
- IEC 61643-11 Test Classification
- Test Class II and III
- BS EN/EN61643-11 Type Classification
- Type 2 and 3
- UL 1449 Type
- 4CA
Certifications & ratings
- Outdoor
- IP66
- Marked features
- Streetlight
Test conditions and notes5
- 1. MCOV/UC: Maximum Continuous Operating Voltage - maximum r.m.s. voltage that could be continuously applied to the SPD.
- 2. MLV: UL1449 Measured limiting voltage; the highest value of residual voltage measurements during the application of impulses of 8/20μs nominal discharge current (In); an average voltage value of 15 impulses.
- 3. UP : IEC 61643-11 Voltage protection level; the highest value of residual voltage measurements during the application of impulses of 8/20μs nominal discharge current(In); a rounding voltage value of maximum measurement.
- 4. Nominal Discharge Current In (A): The nominal discharge current is a measure of the SPDs endurance capability; 15 impulses of discharge current uses the 8/20μs current waveform.
- 5. Maximum Discharge Current Imax (A): The maximum discharge current is a measure of the SPDs maximum capability; single impulse of discharge current uses the 8/20μs current waveform. All Devices pass maximum discharge current with possible, safe opening of thermal disconnect.

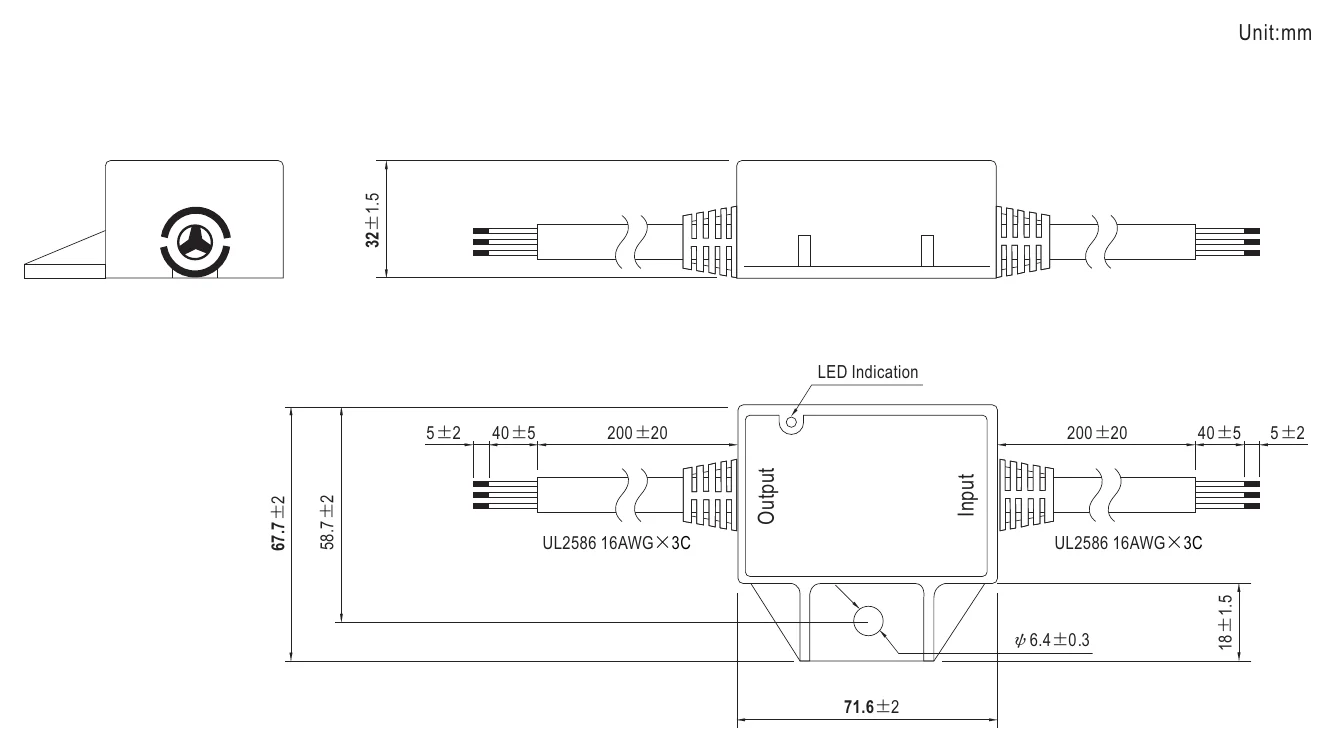

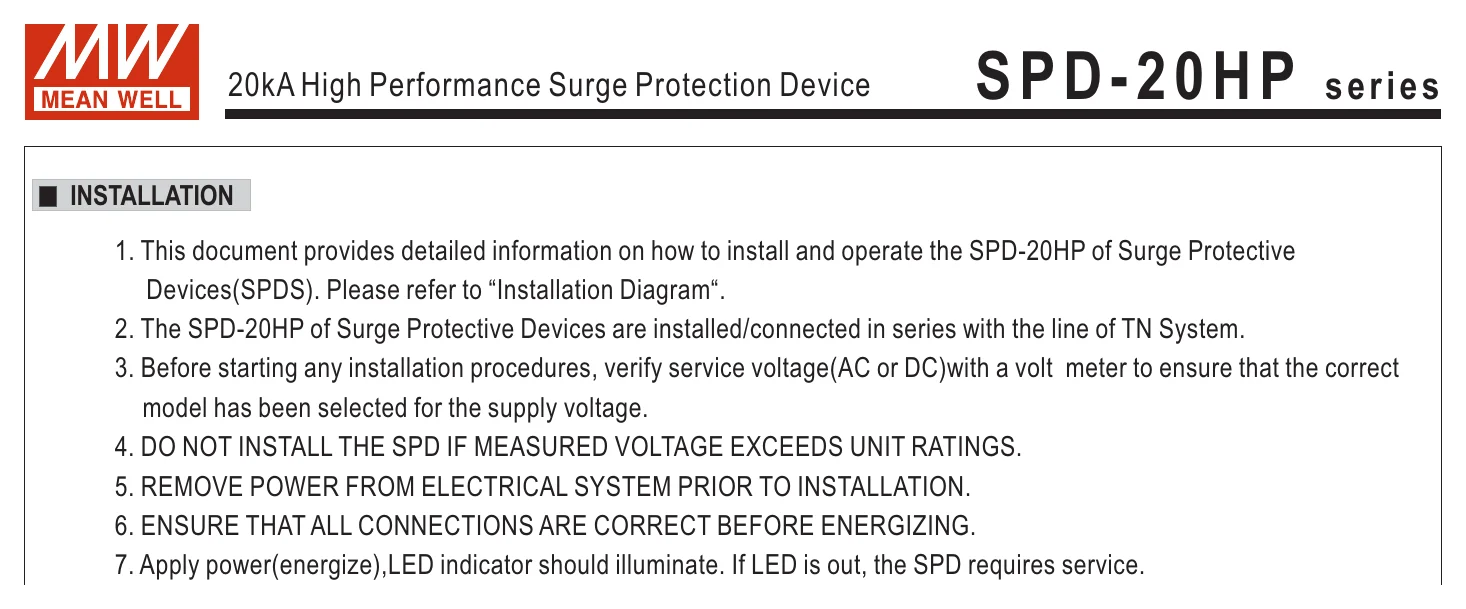

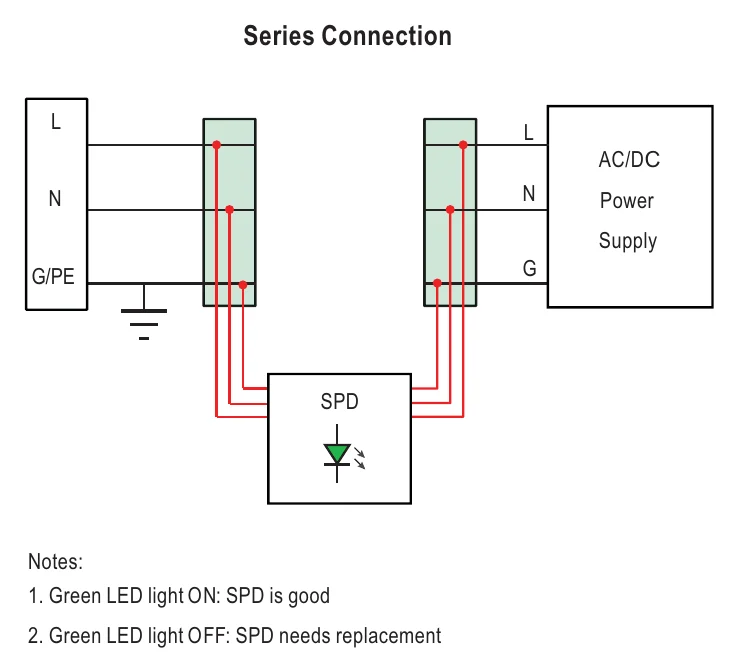

Technical drawings
Typical applications
- Outdoor and commercial LED Lighting
- Roadway lighting
- Traffic lighting
- Digital signage
- Wall wash lighting
- Parking garage/lot lighting
- Flood lighting
- Tunnel lighting
- Street lighting
Downloads
Certificates5
Catalogues1
FAQ
What does the Mean Well SPD-20HP-277S do?
The SPD-20HP-277S is a surge protection device designed to help protect LED driver applications from electrical surges. This model is rated for 120~277VAC systems and offers up to 20KV surge protection capability.
What surge rating does the SPD-20HP-277S provide?
This model has a maximum discharge current of 20kA (Imax) with an 8/20μs waveform rating. It is also described with 20KV surge protection capability for demanding LED driver protection applications.
Is the SPD-20HP-277S suitable for outdoor environments?
Yes, the SPD-20HP-277S features an IP66 design for indoor or outdoor installations. It is also rated for operation from -40°C to 75°C, which supports use in harsh environments.
How can I tell if the SPD-20HP-277S needs servicing?
This surge protection device includes an LED status indicator. The indicator illuminates when the unit is on and turns off when servicing is needed.
What applications is the SPD-20HP-277S compatible with?
The SPD-20HP-277S is suitable for LED driver surge protection with Class I insulation. Its 120~277VAC rating makes it relevant for commercial and industrial lighting power environments within that voltage range.
What safety and construction features distinguish the SPD-20HP-277S?
This model is listed as a UL1449 type 4 component assembly and includes thermal protection. It also features double insulation able wire construction, which supports durability in protected lighting system applications.
