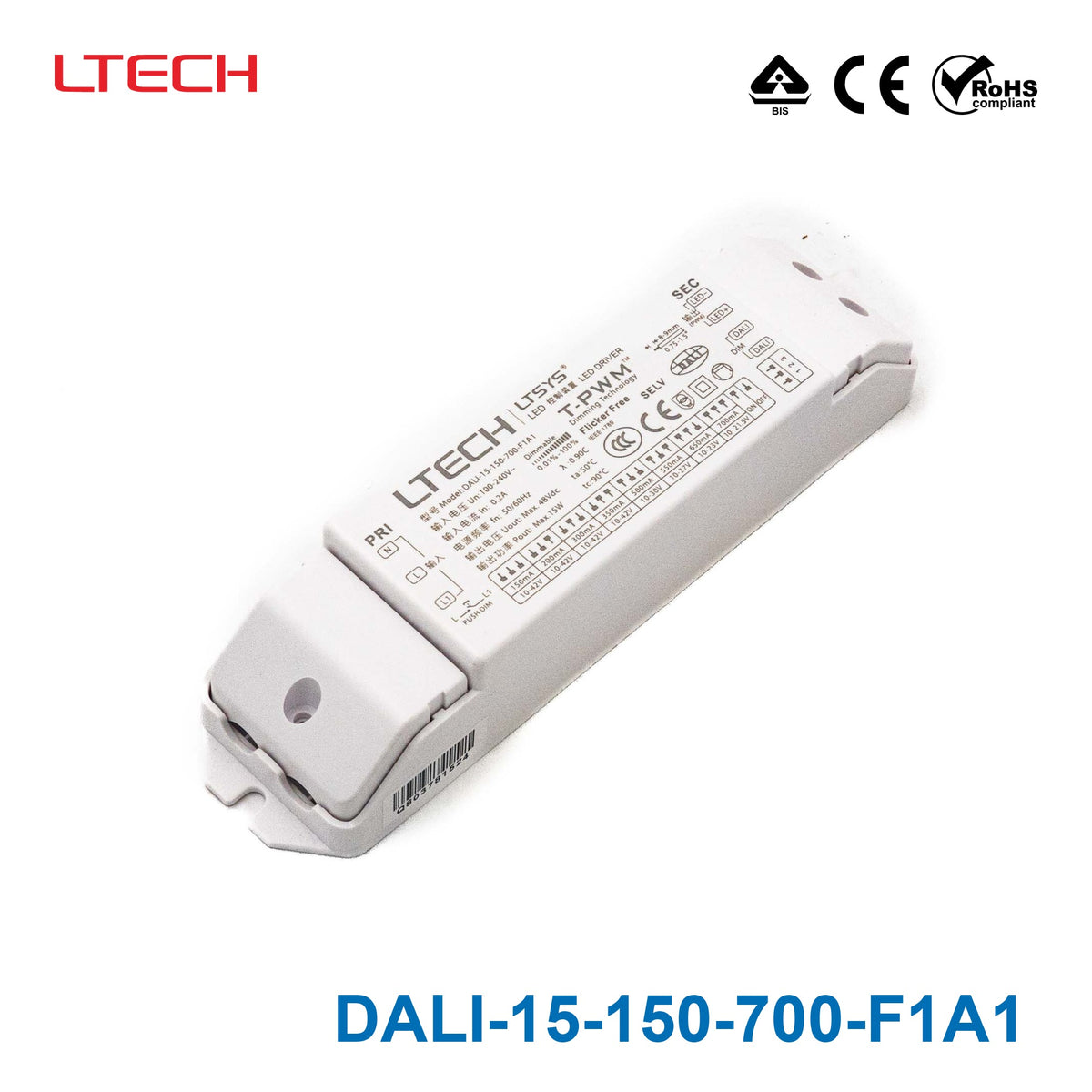

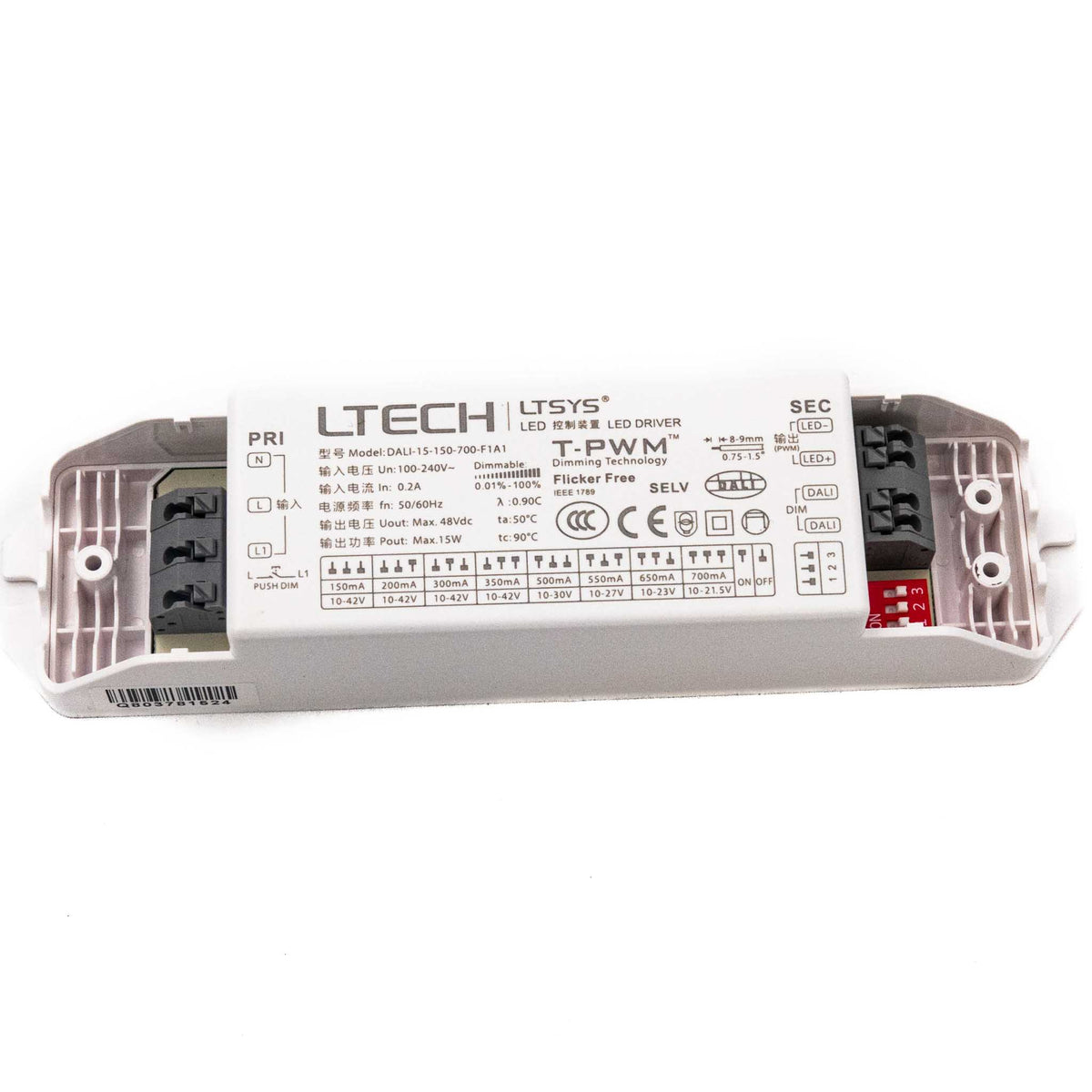

Ltech DALI-15-150-700-F1A1 15W 150mA ~ 700mA Dali LED Driver - Sele...
The DALI-15-150-700-F1A1 is a 15W constant-current LED driver with DALI dimming control. It is designed for applications that need selectable output current within a single model rather than a fixed-current driver.
Input 100~240VAC. Operating temperature -30~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 100~240VAC
- ✓Dimming: DALI
- ✓Output voltage: 48V

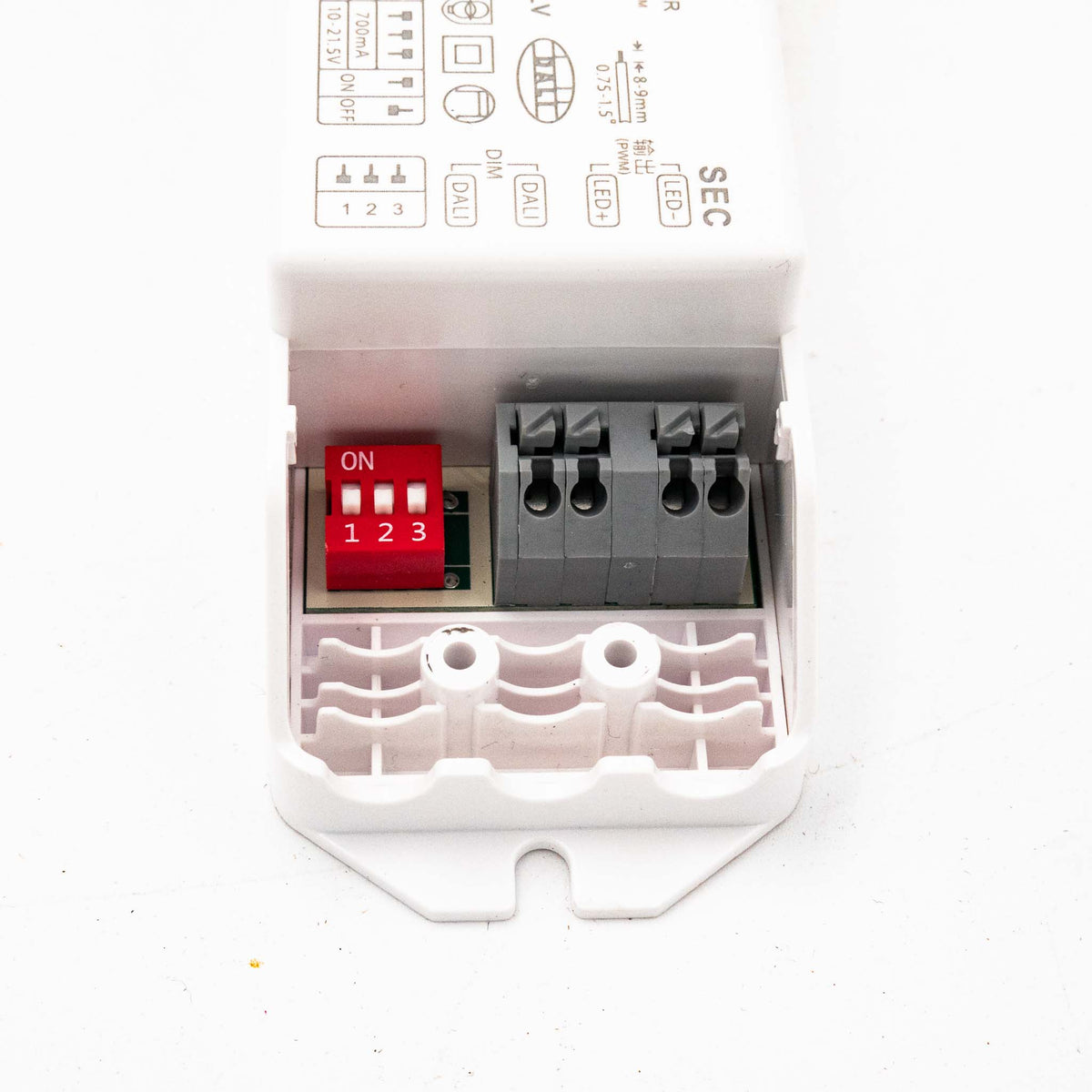

- ✓Output current: 150~700mA, selectable by DIP switch
- ✓Rated power: 15W
- ✓Operating temperature: -30~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 167 x 41 x 32mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating15 Watt
-
Output Voltage48 Volt
-
Rated Current0.15 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Ltech DALI-15-150-700-F1A1?
The DALI-15-150-700-F1A1 is a 15W constant-current LED driver with DALI dimming control. It is designed for applications that need selectable output current within a single model rather than a fixed-current driver.
What output current range does this LED driver support?
This model supports selectable output current from 150mA up to 700mA. That makes it useful when matching different constant-current LED fittings while staying within the product's stated operating range.
Is this driver suitable for DALI dimming systems?
Yes, this model is built for DALI dimming and also supports Push Dim. It also states compliance with DALI bus standards IEC62386-101, 102, and 207, which is relevant for buyers specifying compatible DALI-based lighting control projects.
How smooth is the dimming performance on this model?
The product is specified with a 0 to 100% dimming range and flicker-free performance to IEEE 1789. It also states that LED start at 0.01% is possible, which helps on projects where very low dimming levels are important for visual comfort.
What environments is the DALI-15-150-700-F1A1 rated for?
This driver is rated for ambient temperatures from -30°C to 50°C. The description also states it is suitable for internal lights application, so it is intended for indoor use cases rather than exposed outdoor installation.
What protections are included in this LED driver?
The DALI-15-150-700-F1A1 includes overload, over-heat, and short-circuit protection with automatic recovery. It also references innovative thermal management and power life protection features, which are relevant for long-term reliability in commercial lighting applications.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DALI-15 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| LTECH DALI-15-100-700-U1P1 15W 100mA ~ 700mA CC Dali LED Driver - Selectable Output | 15W | 58V | 0.1A | — | $44.24 | View |
| Ltech DALI-15-100-700-E1A1 15W 100mA ~700mA CC Dali LED Driver - Selectable Output | 15W | 58V | 0.1A | Indoor | $41.97 | View |
