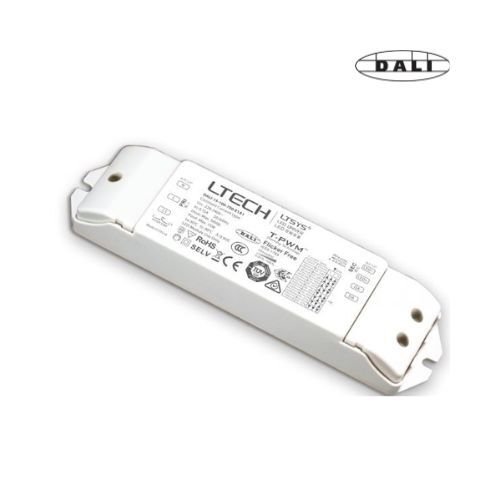

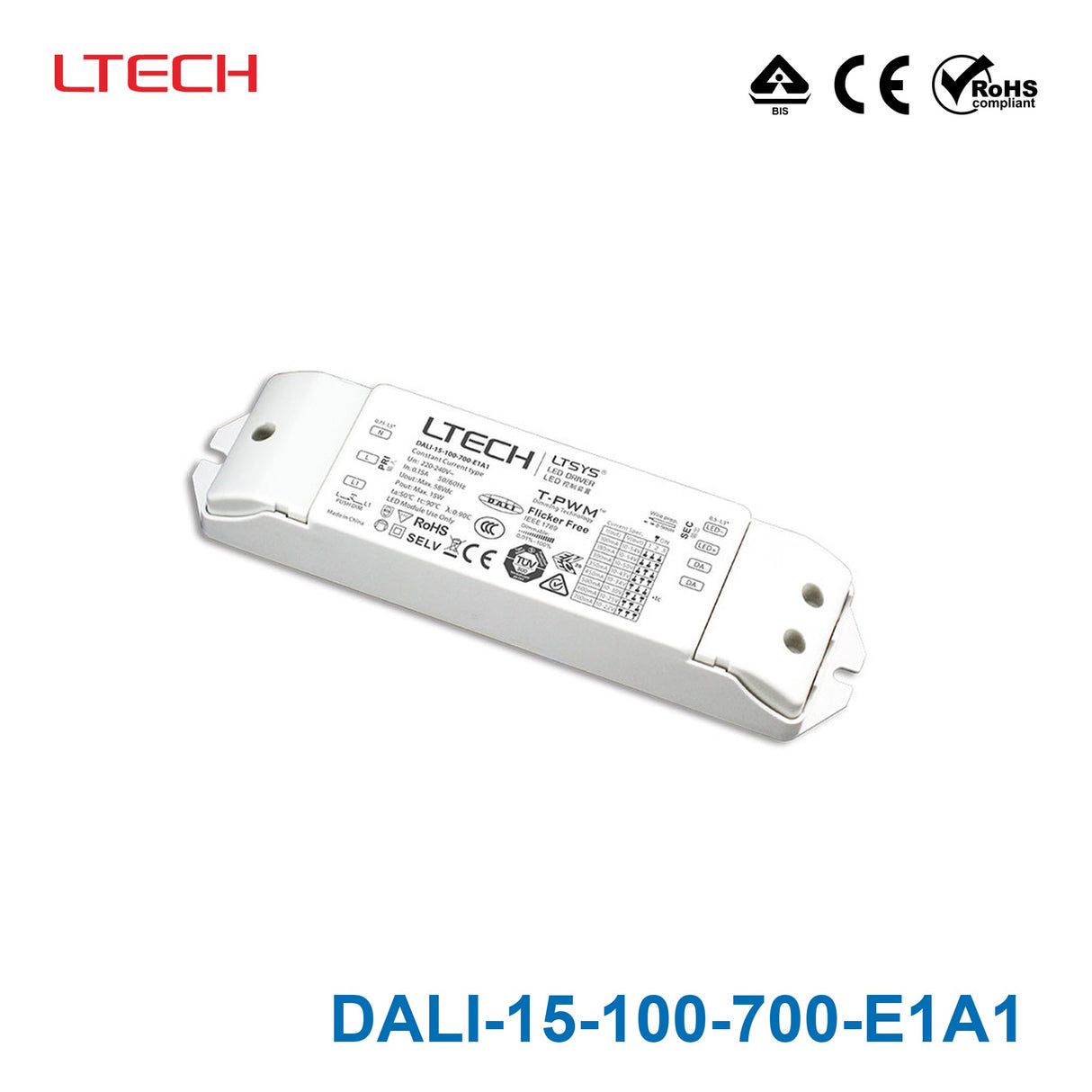

Ltech DALI-15-100-700-E1A1 15W 100mA ~700mA CC Dali LED Driver - Se...
- Dimming interface: DALI
- Push DIM
- T-PWM digital dimming
- Dimming range: 0~100%
- LED start at 0.01% possible.
- 0-100% flicker-free
- (IEEE 1789 standard)
- Innovative thermal management technology
- intelligent power life protection.
- DALI dimming curve can be either linear or logarithmic.
- Multi-current & wide voltage
- suitable for different power LED.
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Short circuit / Over load/Over heat
- Non-load protection recover automatically
- DALI bus standard: IEC62386-101
- 102
- 207
- Suitable for internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating15 Watt
-
Output Voltage58 Volt
-
Rated Current0.1 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What kind of LED application is the Ltech DALI-15-100-700-E1A1 designed for?
This model is a constant-current DALI LED driver intended for internal lighting applications. It suits projects that need dimming control and a selectable output current within the 100mA to 700mA range for compatible power LEDs.
Does this LED driver support smooth low-level dimming?
Yes. The product supports 0 to 100% dimming and states LED start at 0.01% is possible. It also specifies flicker-free dimming in line with IEEE 1789.
Is this model only compatible with DALI control systems?
No. In addition to DALI, the product description lists Push DIM and T-PWM digital dimming support. That makes it a better fit for projects that need more than one dimming control option in the same driver family.
What makes this driver different from a fixed-output-current LED driver?
The DALI-15-100-700-E1A1 is differentiated by its selectable output current, which gives more flexibility across different compatible LED loads. It also combines that flexibility with DALI dimming, wide voltage capability, and very low dimming performance down to 0.01% start.
What protection features are included in this LED driver?
This model includes short circuit, overload, overheat, and non-load protection with automatic recovery. It also states a non-load output voltage of 0V to help prevent LED damage caused by poor contact.
What operating environment is this driver rated for?
The specified operating temperature range is -30°C to 50°C. The description also states it is suitable for internal lights applications, so it is intended for indoor use rather than exposed outdoor environments.
What are the main electrical and product specifications for this model?
This Ltech driver is rated at 15W and lists an output voltage of 58V. It also comes with a 5-year warranty and has an approximate weight of 0.17kg.
