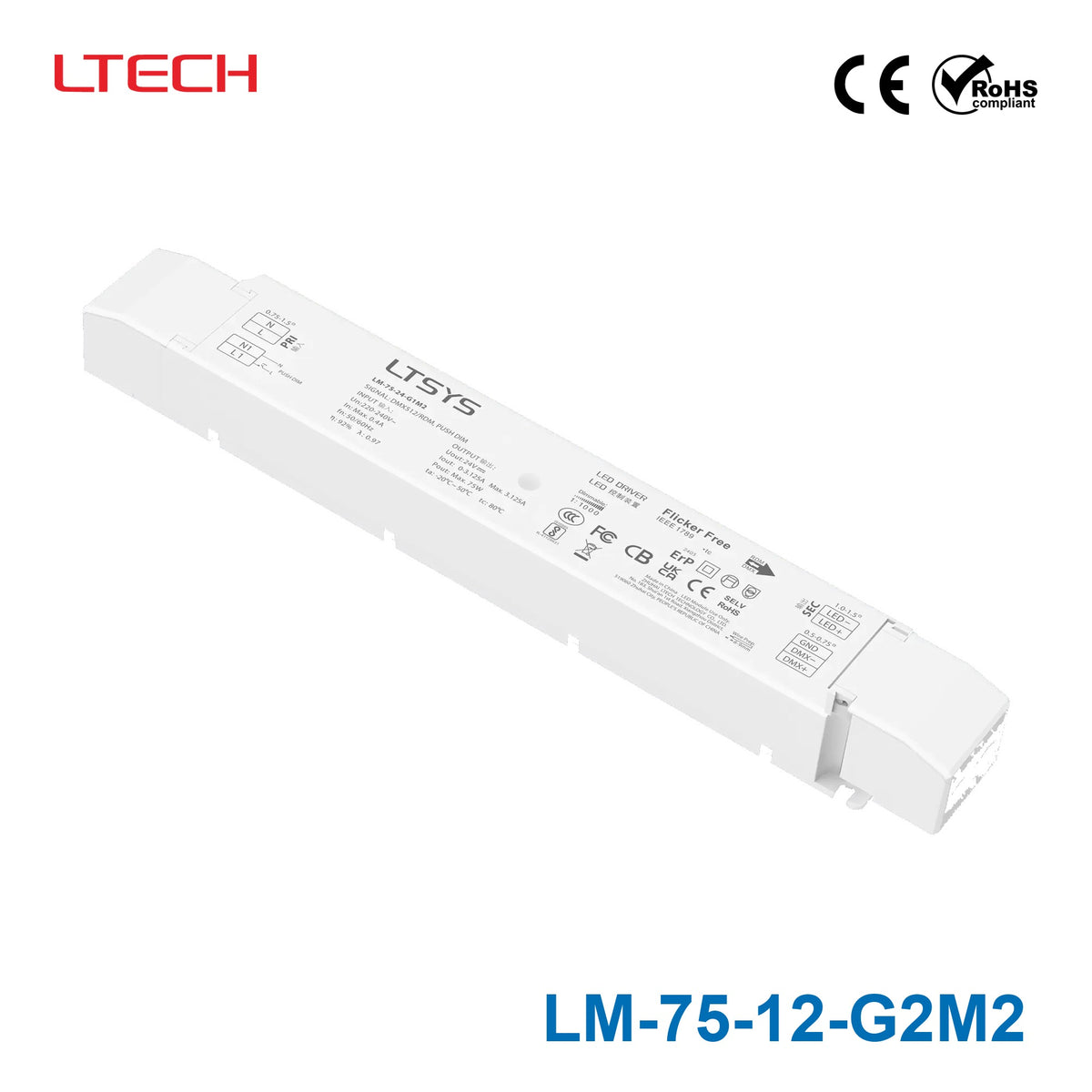

Ltech LM-75-12-G2M2 75W 12VDC CV DMX LED Driver - DMX dimmable 6.25A
The LM-75-12-G2M2 is a 75W constant-voltage LED driver for 12VDC lighting systems that need DMX dimming and color temperature control. It is aimed at tunable white indoor LED applications where two independent output channels and stable brightness are important.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DMX
- ✓Output voltage: 12V
- ✓Rated output current: 6.25A
- ✓Rated power: 75W
- ✓Operating temperature: -20~+50°C
- ✓Certifications: CE, ROHS
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output2
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What is the Ltech LM-75-12-G2M2 designed for?
The LM-75-12-G2M2 is a 75W constant-voltage LED driver for 12VDC lighting systems that need DMX dimming and color temperature control. It is aimed at tunable white indoor LED applications where two independent output channels and stable brightness are important.
Does this model support DMX control and remote management?
Yes. This model supports DMX512 control and also includes RDM support for remote device management. That makes it a fit for projects where centralized dimming control and device-level management are required.
What are the main electrical ratings of the LM-75-12-G2M2?
This LED driver is rated for 75W total output at 12VDC, with a rated current of 6.25A. It is a constant-voltage model with 2 independently SELV output channels and a dimming range from 0 to 100%.
Is this driver suitable for tunable white LED lighting?
Yes. The LM-75-12-G2M2 supports Push DIM/CCT and is specified for color temperature adjustment from 2700K to 6500K. Its constant power design is intended to help maintain the same brightness while adjusting color temperature.
Can this model be used in low-light dimming applications?
Yes. Ltech states that the LM-75-12-G2M2 dims from 0 to 100% and can start LEDs at 0.1%. It is also specified as flicker-free across the 0 to 100% dimming range in line with IEEE 1789.
What environments is the LM-75-12-G2M2 intended for?
This model is intended for indoor lighting applications and is housed in a full protective plastic case. Its stated operating temperature range is -20°C to 50°C, and it is described as suitable for indoor Class I, II, and III type lamp applications.
What protection features and warranty does this LED driver include?
The LM-75-12-G2M2 includes short circuit, over-heat, over-load, and over-voltage protection, with automatic recovery for short circuit protection. It also comes with a 5-year warranty and is specified with standby power consumption below 0.5W.
