Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

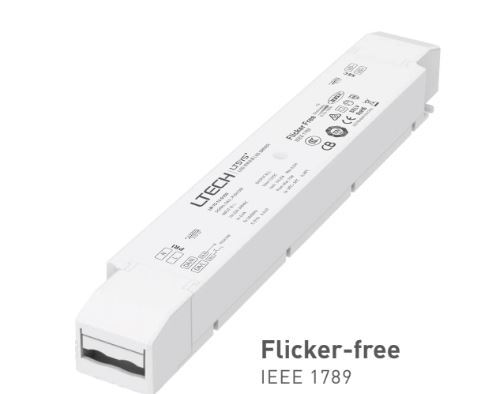

LTECH LM-75-12-G2M2 75W 12VDC CV DMX LED Driver - DMX dimmable
$80.77 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM/CCT.
- 2 independently SELV constant voltage output channels
- Constant power design
- adjust different color temperature to keep the same brightness
- Supports RDM remote device management protocol.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Color temperature adjusting range: 2700-6500K
- 0-100% flicker-free(IEEE 1789 standard)
- In line with the EU energy efficiency ERP directive
- standby power consumption < 0.5W
- Innovative thermal management technology
- intelligent power life protection.
- Short circuit / Over-heat / Over load protection/Over voltage
- short circuit protection
- recover automatically
- Full protective plastic housing.
- Suitable for indoor I/II/IIItype lamps application
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output2
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
