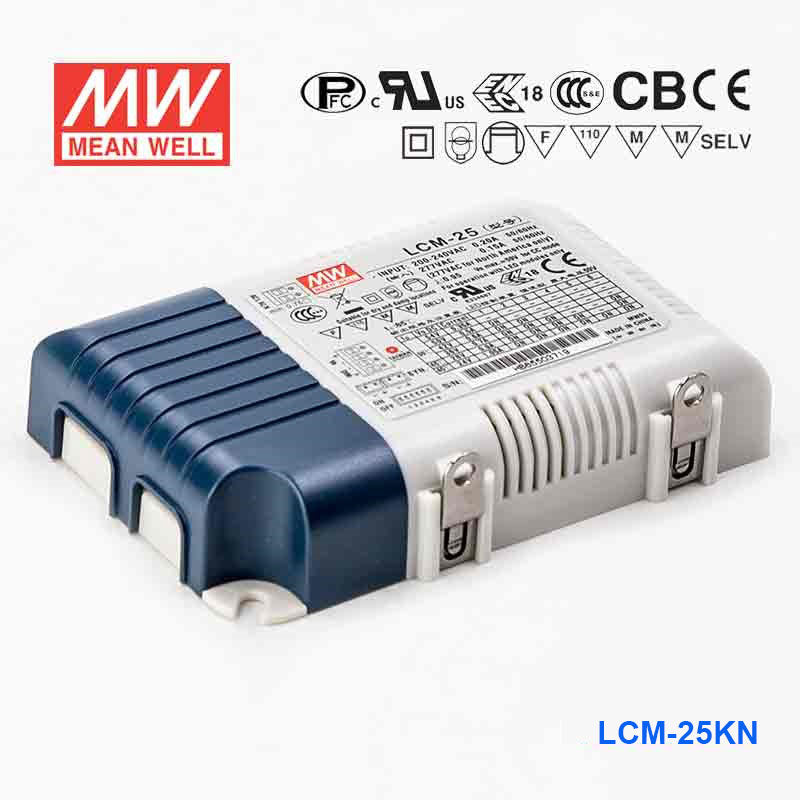

Mean Well LCM-25KN Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - KNX
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-25KN Power Supply 25W 350mA 500mA 600mA 700mA(default...
The LCM-25 is a 25.2W Mean Well AC-DC constant current LED driver (input: 180~277VAC, output: 41V, operating temperature: -30~+85°C).
Key Features
- ✓ Input voltage: 180~277VAC
- ✓ Output voltage (max): 41V
- ✓ Rated output current: 700mA
- ✓ Selectable output current via dip switch
- ✓ Operating temperature: -30~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesLCM KNX Series
-
Power Rating25.2 Watt
-
Output Voltage41 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~277V
-
No of Output6
-
Dimming ControlKNX
-
Standards MetCB,CCC,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.13 in
-
Width2.68 in
-
Height0.91 in
-
Weight0.38 lb
::specification::
Frequently Asked Questions
Can I use the LCM-25KN for LED downlights in a KNX-controlled lighting system?
Yes, the LCM-25KN is a constant current LED driver rated at 25.2W with a 700mA default output and a 6-36V CC range. That makes it relevant for LED downlights designed for constant current operation, and this version adds KNX protocol support.
Is the LCM-25KN a fit for signage modules that need KNX control?
It can be used when the signage modules are constant current LED loads rather than constant voltage products. The driver operates at 700mA default across a 6-36V constant current range with a 25.2W rating, and it includes KNX protocol support.
Can the LCM-25KN run a small LED array in a building control project?
Yes, for a small LED array that requires constant current, the LCM-25KN fits loads within 6-36V at 700mA default. It is rated at 25.2W and also supports synchronization of up to 10 units.
How do I size LEDs for the LCM-25KN?
The LEDs must be compatible with a constant current driver and have a combined forward voltage within the 6-36V CC output range. The number of LEDs depends on each LED's forward voltage, so this is not sized the same way as a constant voltage power supply.
What operating conditions is the LCM-25KN rated for?
The listed operating temperature range is -30°C to +85°C. That gives it a broad temperature specification for lighting equipment, while the electrical input range is 180-277VAC.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LCM KNX Series Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - KNX | 60.3W | 95V | 0.7A | Indoor | $54.76 | View |
| Mean Well LCM-40KN Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - KNX | 42W | 65V | 0.7A | Indoor | $51.92 | View |
