Mean Well PLC-100-12 Power Supply 100W 12V - PFC 5A
Notify me when it's back in stock
Your order will be processed within 24 hours

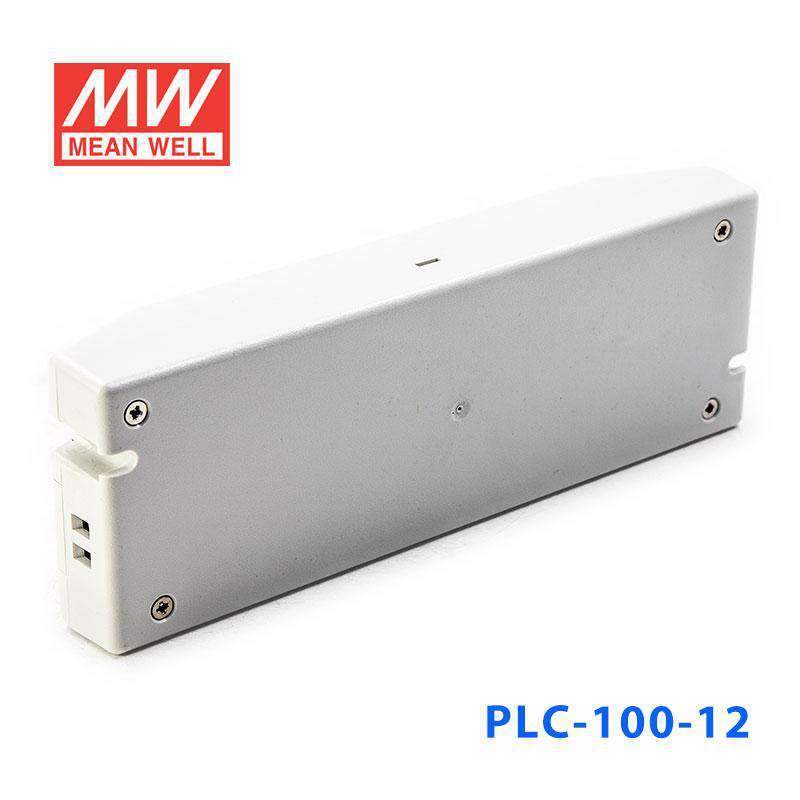

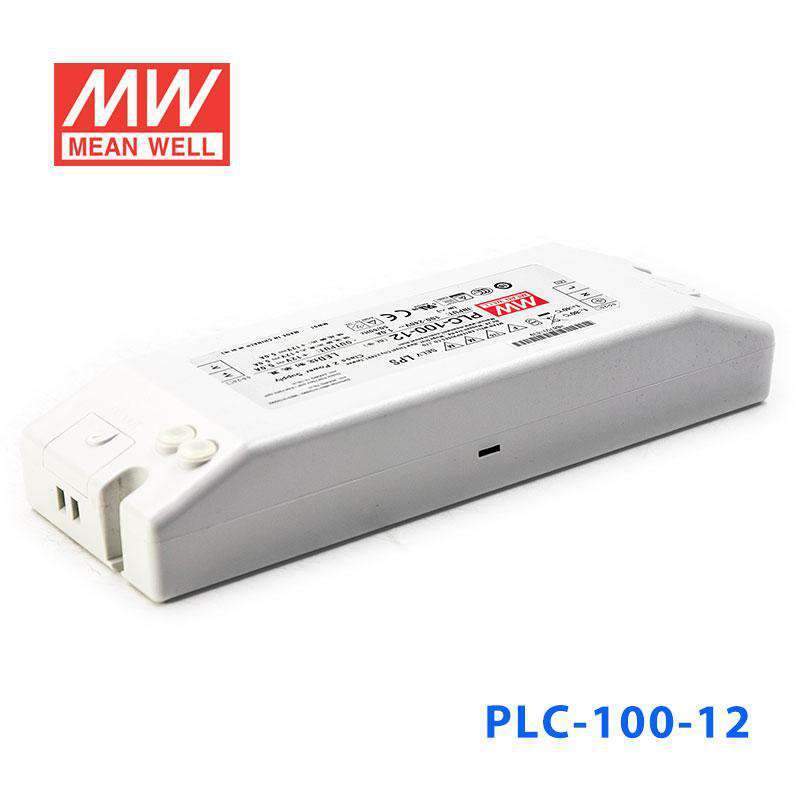

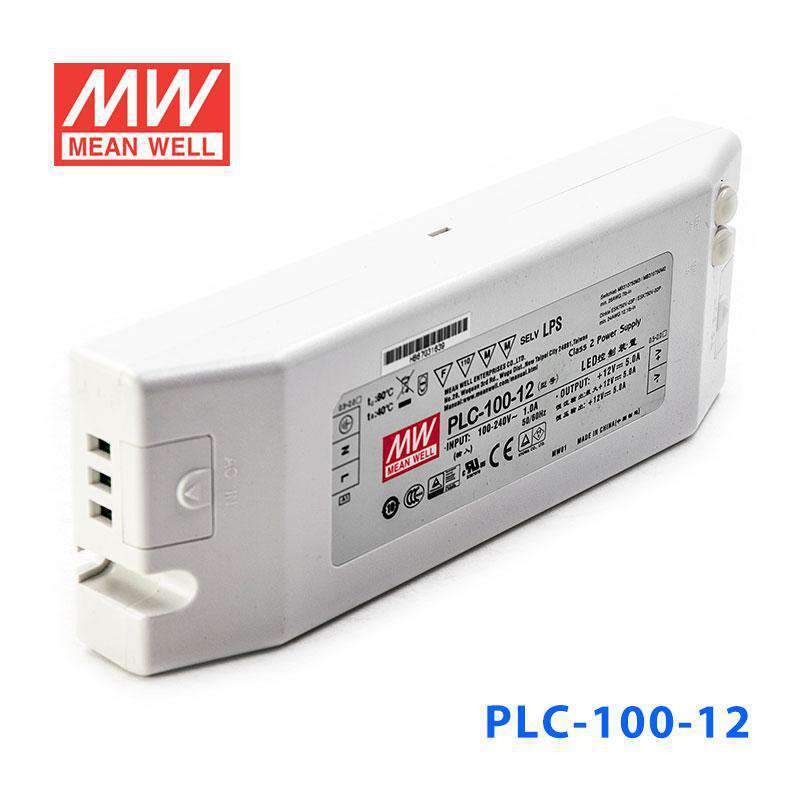

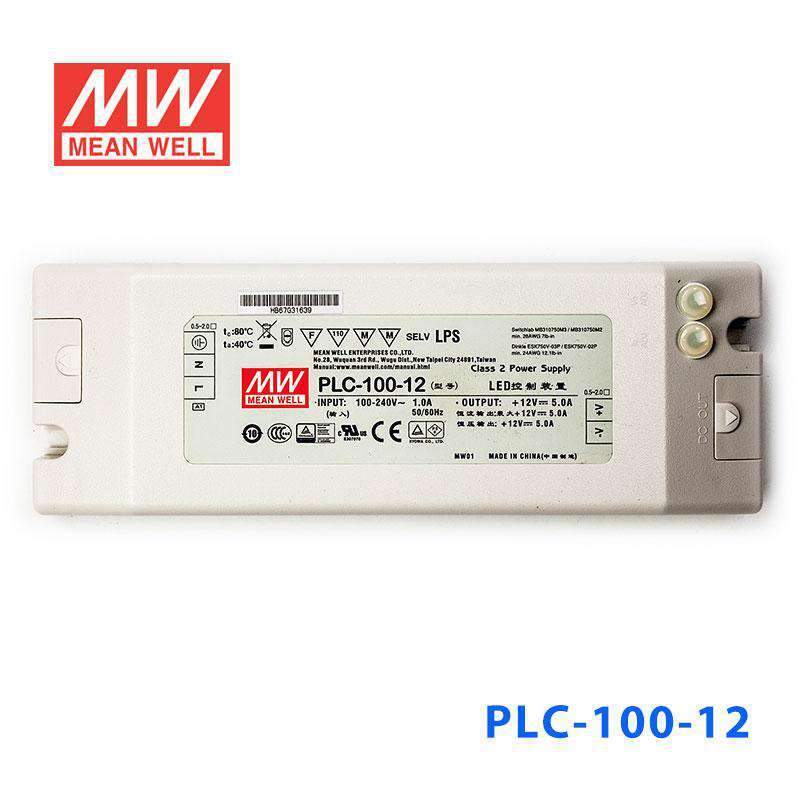

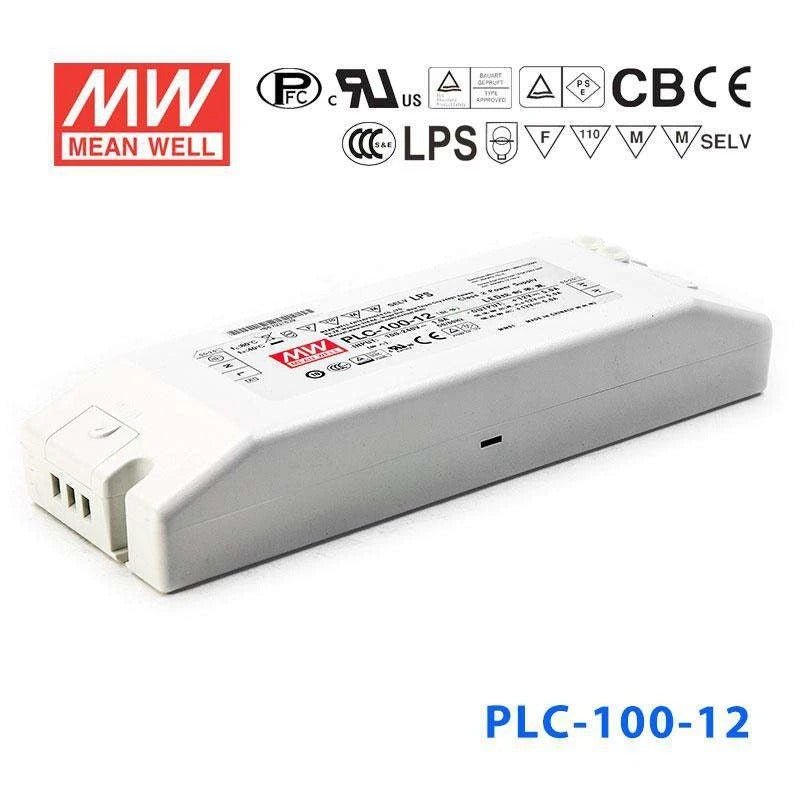

Mean Well PLC-100-12 Power Supply 100W 12V - PFC 5A
The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What kinds of applications is the Mean Well PLC-100-12 designed for?
This model is intended for LED lighting and moving sign applications. It provides a 12V output and includes constant current limiting behavior, which makes it relevant for commercial and industrial low-voltage lighting use cases.
Is the PLC-100-12 a 12V power supply?
Yes. The provided product data lists this model with a 12V output voltage and a rated current of 5A. That makes it a fit for equipment designed to operate from a 12V DC power source.
Does the PLC-100-12 support dimming control?
No dimming control is listed for this model. The product data specifically shows dimming control as none, so it should not be selected when built-in dimming functionality is required.
What protection features are included on the PLC-100-12?
The description lists protection for short circuit, over current, over voltage, and over temperature. These built-in protections help support reliability in demanding LED power applications.
Can the PLC-100-12 be used in environments with temperature extremes?
The provided operating temperature range is -30°C to 50°C. That gives this model a relatively wide working range for many indoor and protected commercial environments.
What makes the PLC-100-12 different from a basic non-PFC power supply?
This model includes active PFC, with the description stating PF greater than 0.9 at 75% load or higher. Compared with a basic non-PFC unit, that is a meaningful feature for buyers who prioritize power quality and commercial-grade performance.
What warranty period is listed for the PLC-100-12?
The provided product data lists a 2-year warranty period for this model. That gives buyers a defined coverage term when evaluating it for project or replacement use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLC-100-48 Power Supply 100W 48V - PFC 2A | 96W | 48V | 2A | Indoor | $48.14 | View |
| Mean Well PLC-100-36 Power Supply 100W 36V - PFC 2.65A | 95.4W | 36V | 2.65A | Indoor | $48.14 | View |
| Mean Well PLC-100-27 Power Supply 100W 27V - PFC 3.55A | 95.85W | 27V | 3.55A | Indoor | $48.14 | View |
| Mean Well PLC-100-24 Power Supply 100W 24V - PFC 4A | 96W | 24V | 4A | Indoor | $49.62 | View |
| Mean Well PLC-100-20 Power Supply 100W 20V - PFC 4.8A | 96W | 20V | 4.8A | Indoor | $48.14 | View |
| Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A | 75W | 15V | 5A | Indoor | $48.14 | View |
