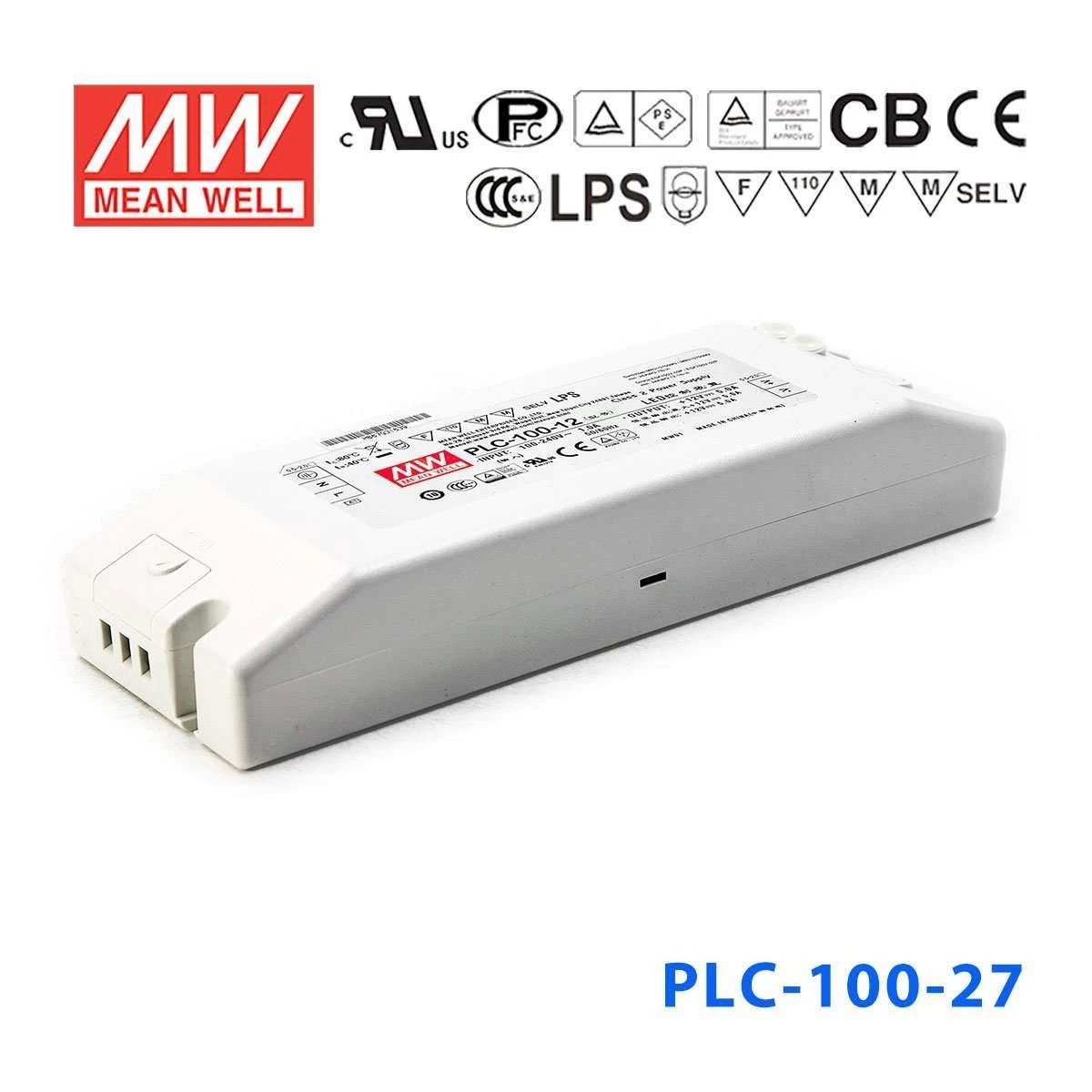

Mean Well PLC-100-27 Power Supply 100W 27V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-100-27 Power Supply 100W 27V - PFC
The PLC-100 is a 100W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating95.85 Watt
-
Output Voltage27 Volt
-
Rated Current3.55 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLC-100-27 used for?
The PLC-100-27 is a 100W AC/DC power supply designed for LED lighting and moving sign applications. It provides a 27V output and includes a built-in constant current limiting circuit in C.V.+C.C. mode, which makes it suitable for applications that need stable DC output from a dedicated LED power supply.
What are the main electrical ratings of the PLC-100-27?
This model is rated at 95.85W with a 27V output and a rated current of 3.55A. It also features active power factor correction and can achieve efficiency up to 89%, based on the provided product data.
Does the Mean Well PLC-100-27 support dimming?
No. The listed dimming control for this model is none, so it is not presented as a dimmable power supply in the provided specifications. Buyers needing integrated dimming should compare it against other models with a stated dimming interface.
Can the PLC-100-27 be used in demanding temperature conditions?
This power supply is specified for operation from -30°C to 50°C. That range makes it suitable for a variety of commercial and industrial environments, provided the application stays within the stated ambient limits.
What protection features are included in the PLC-100-27?
The product description lists protection for short circuit, over current, over voltage, and over temperature. It is also described as a Class 2 power unit and Pass LPS, which can matter for buyers evaluating protection and compliance-related characteristics.
Is this model a good fit when adjustable output is needed?
Yes, this model is described as having adjustable output voltage and current level. For buyers comparing fixed-output versus adjustable-output units, that makes the PLC-100-27 more flexible within applications that require some output tuning while staying with this specific 27V model.
