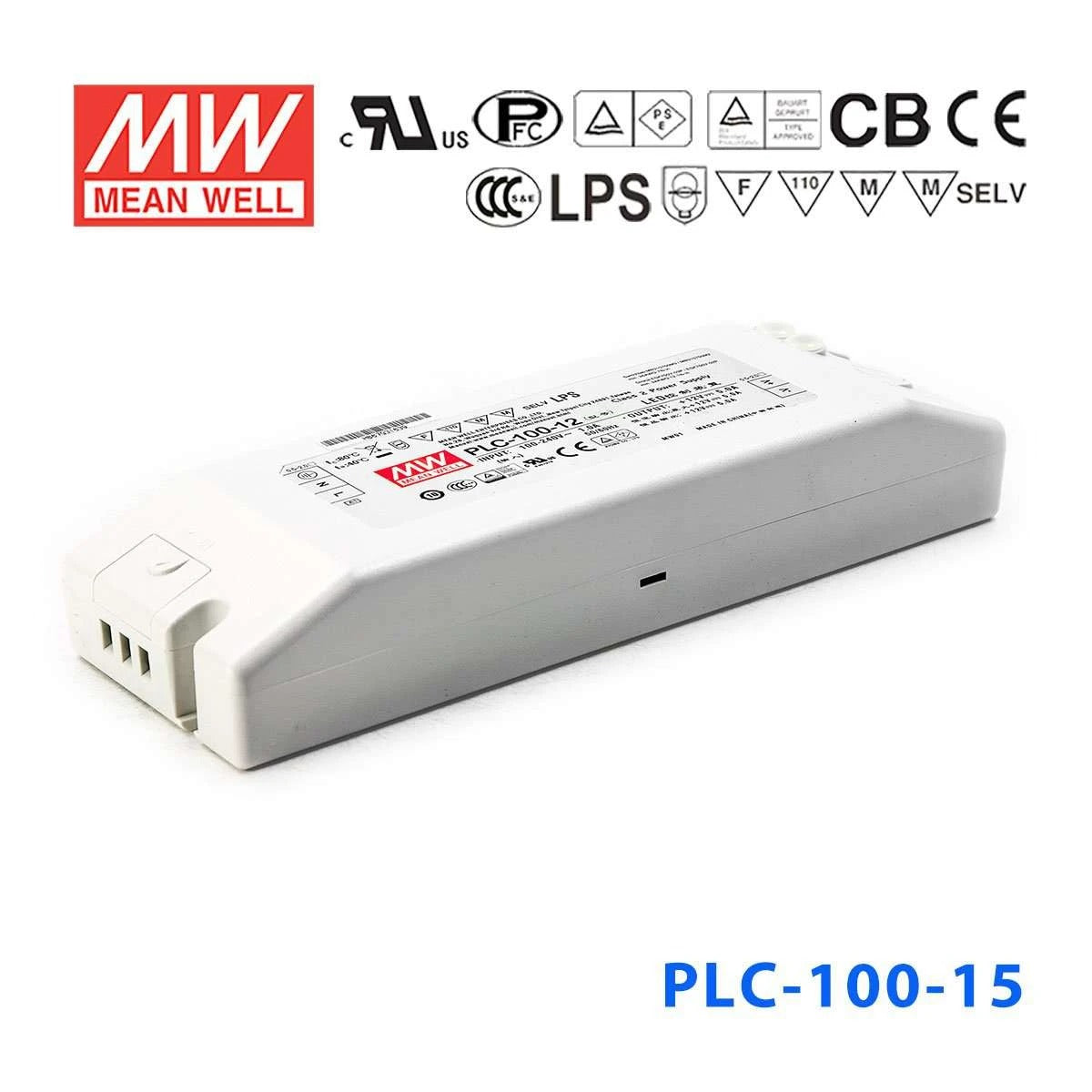

Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-100-15 Power Supply 100W 15V - PFC 5A
The PLC-100 is a 75W Mean Well AC-DC LED driver (input: 90~264VAC, output: 15V, operating temperature: -30~+50°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 15V
- ✓ Rated output current: 5A
- ✓ Operating temperature: -30~+50°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, TÜV, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.89 in
-
Width2.74 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What output does the Mean Well PLC-100-15 provide?
The PLC-100-15 is specified for a 15V DC output with a rated current of 5A. In the provided product data, its listed power rating is 75W. It is designed as a C.V.+C.C. power supply with adjustable output voltage and current level.
What kinds of applications is the PLC-100-15 suited for?
This model is described as suitable for LED lighting and moving sign applications. Its constant voltage plus current-limiting design makes it relevant for systems that need a regulated 15V output rather than dimming control. For buyers comparing options, the key fit is 15V equipment within the unit's rated current and power limits.
Does the PLC-100-15 include power factor correction?
Yes. This model includes built-in active PFC, and the description states a power factor above 0.9 at 75% load or higher. That makes it a stronger fit for commercial and professional applications where power quality is an important purchasing factor.
Can the PLC-100-15 be used in demanding temperature conditions?
The listed operating temperature range is -30°C to 50°C. That gives it a usable span for many indoor and protected equipment environments where temperature swings matter. Buyers should still confirm the surrounding enclosure and full system conditions are appropriate for that range.
Does the PLC-100-15 support dimming control?
No. The product data lists dimming control as none. If your application requires integrated dimming, you would need to compare this model with a different power supply or LED driver that explicitly includes a dimming interface.
What protection and compliance-related features are included on the PLC-100-15?
The description lists short circuit, over current, over voltage, and over temperature protection. It is also described as a Class 2 power unit and Pass LPS design. Those details make it easier to evaluate for commercial LED and power supply use where protection coverage is part of the buying decision.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLC-100-12 Power Supply 100W 12V - PFC 5A | 60W | 12V | 5A | Indoor | $43.63 | View |
| Mean Well PLC-100-48 Power Supply 100W 48V - PFC 2A | 96W | 48V | 2A | Indoor | $48.14 | View |
| Mean Well PLC-100-36 Power Supply 100W 36V - PFC 2.65A | 95.4W | 36V | 2.65A | Indoor | $48.14 | View |
| Mean Well PLC-100-27 Power Supply 100W 27V - PFC 3.55A | 95.85W | 27V | 3.55A | Indoor | $48.14 | View |
| Mean Well PLC-100-24 Power Supply 100W 24V - PFC 4A | 96W | 24V | 4A | Indoor | $49.62 | View |
| Mean Well PLC-100-20 Power Supply 100W 20V - PFC 4.8A | 96W | 20V | 4.8A | Indoor | $48.14 | View |
