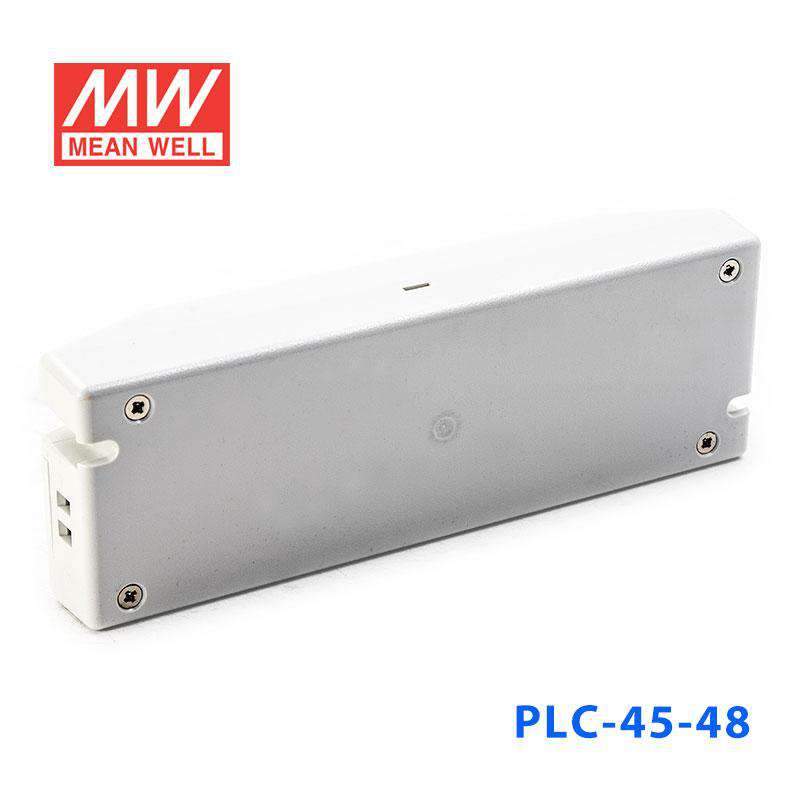

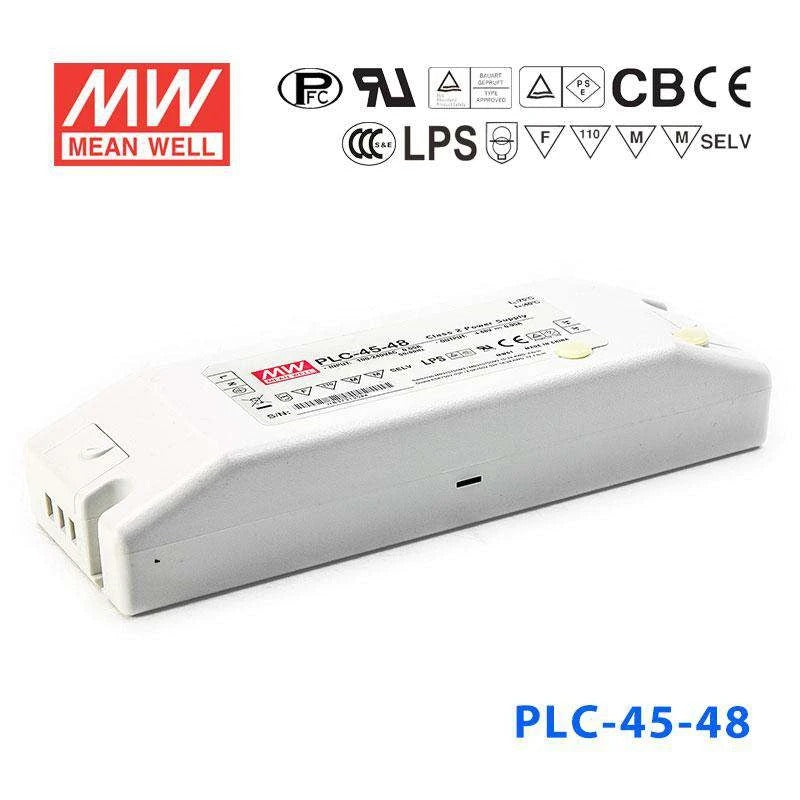

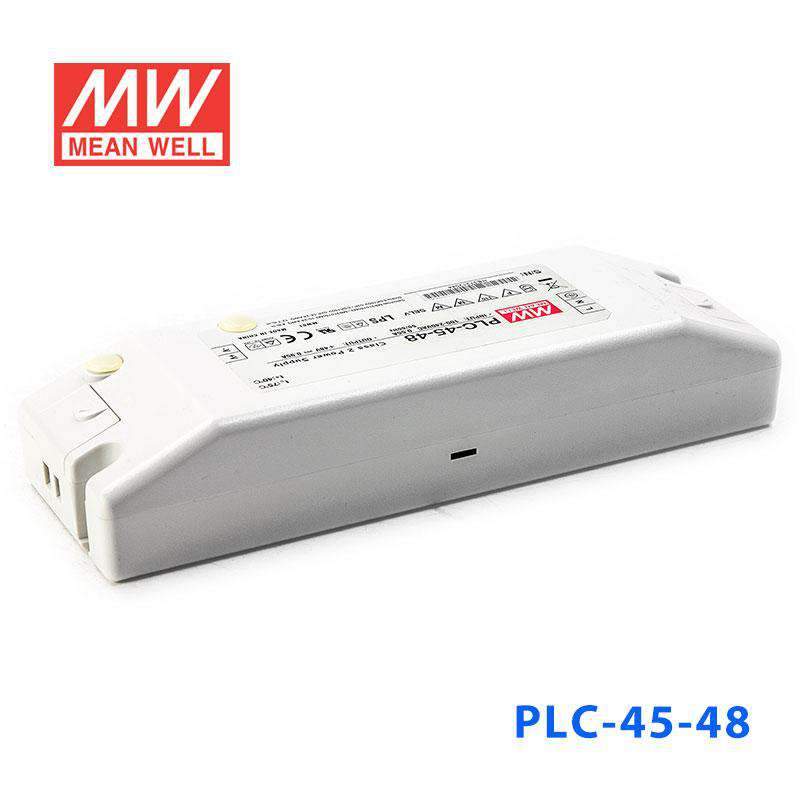

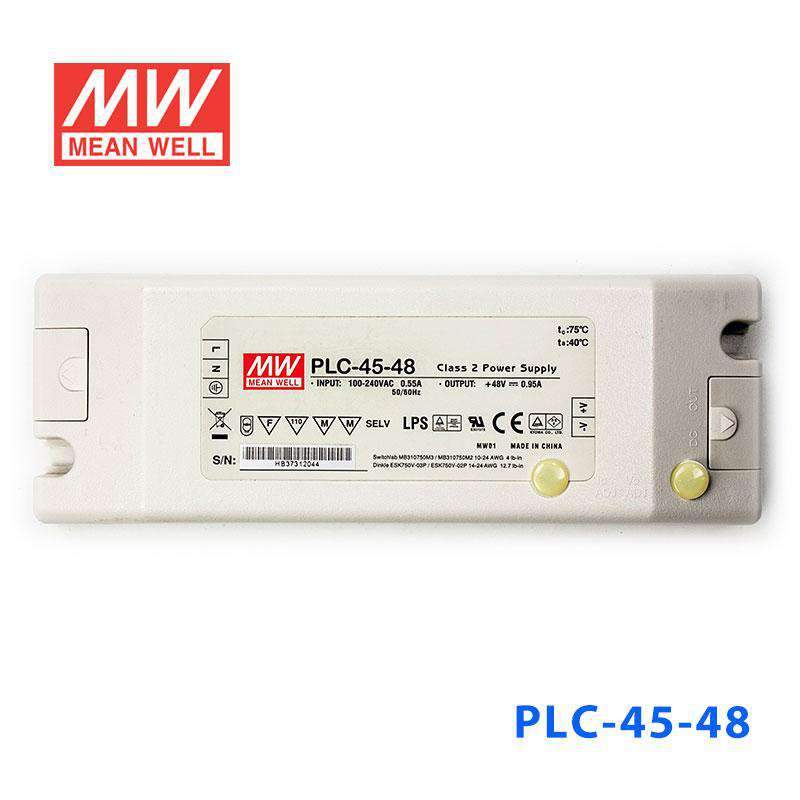

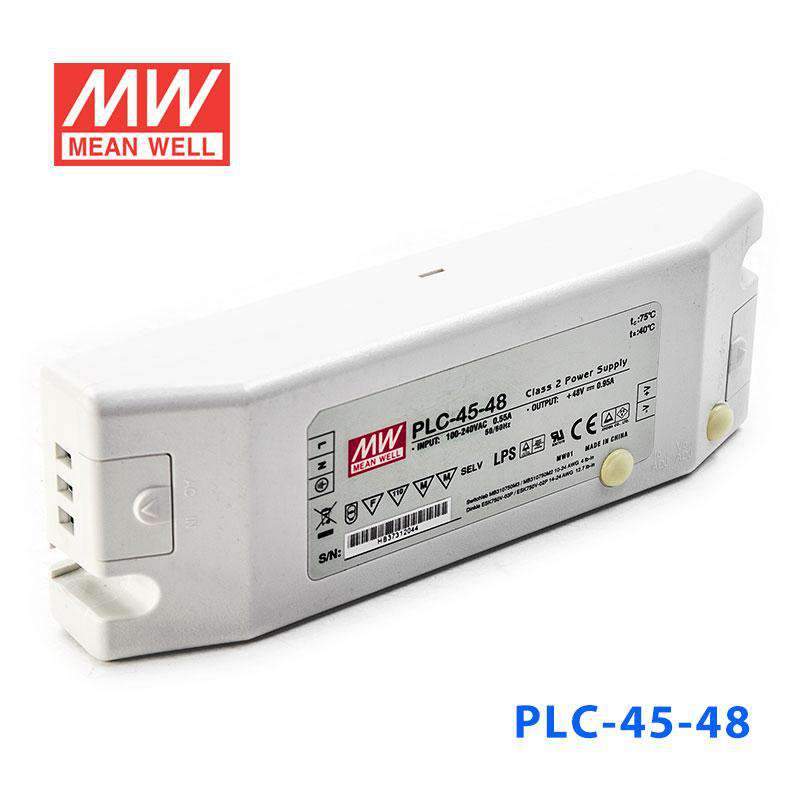

Mean Well PLC-45-48 Power Supply 45W 48V - PFC 950mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-45-48 Power Supply 45W 48V - PFC 950mA
The PLC-45 is a 45W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Ul1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating45.6 Watt
-
Output Voltage48 Volt
-
Rated Current0.95 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What is the output of the Mean Well PLC-45-48?
The PLC-45-48 is rated for 45.6W output with a nominal 48V DC output. Its rated current is 0.95A, making it suitable for 48V applications that fit within that power and current range.
What types of applications is the PLC-45-48 designed for?
This model is described as suitable for LED lighting and moving sign applications. Its constant-voltage design with built-in constant-current limiting also makes it relevant for buyers looking for a protected 48V power supply in those categories.
Does the Mean Well PLC-45-48 include power factor correction?
Yes, this model includes built-in active PFC. The listed specification states PF greater than 0.9 at 75% load or higher, which can be important for commercial and OEM purchasing requirements.
Can the output voltage or current be adjusted on the PLC-45-48?
Yes, the product description states that both output voltage and current level are adjustable. That gives some flexibility when selecting this model for a 48V application, while still staying within the unit's rated operating range.
What operating temperature range is specified for the PLC-45-48?
The specified operating temperature range is -30°C to 50°C. Buyers evaluating this unit for indoor or enclosure-based use should confirm their environment stays within that stated range.
Does the PLC-45-48 support dimming control?
No dimming control is listed for this model. If your project requires dimming, this is a point to verify carefully against alternative LED driver options before purchase.
