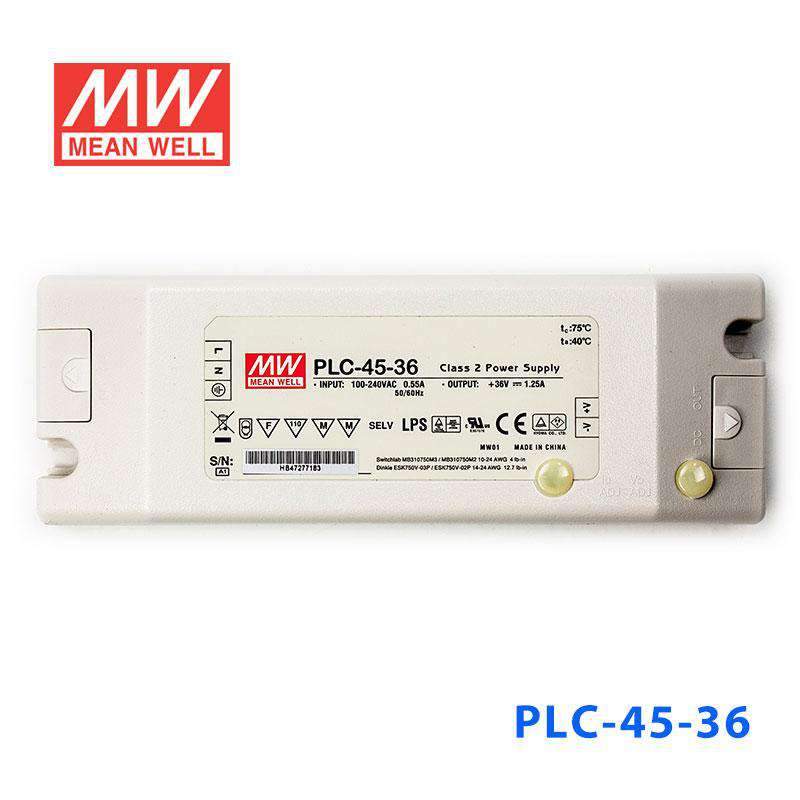

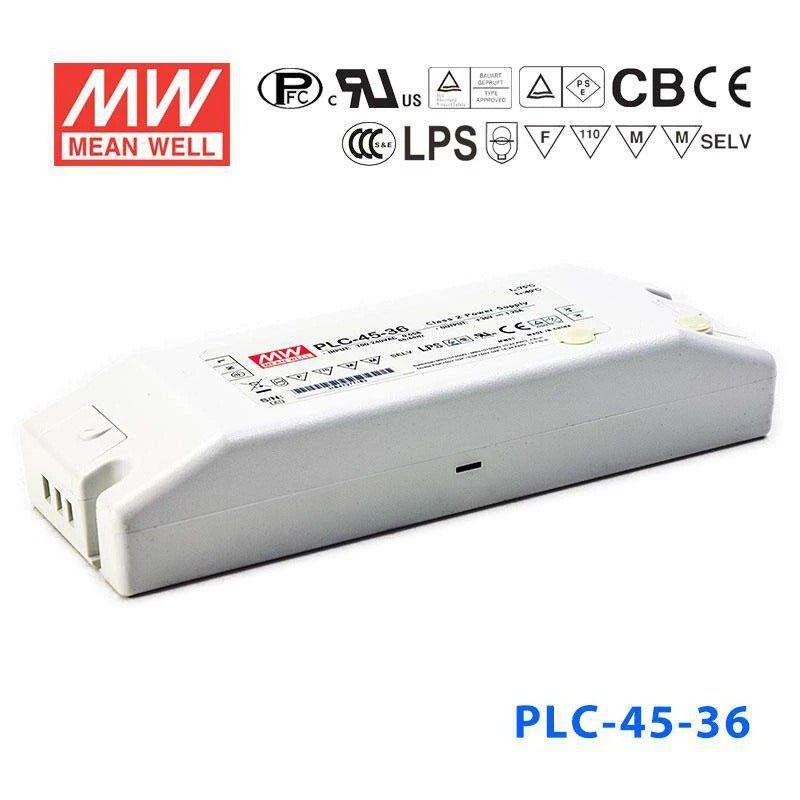

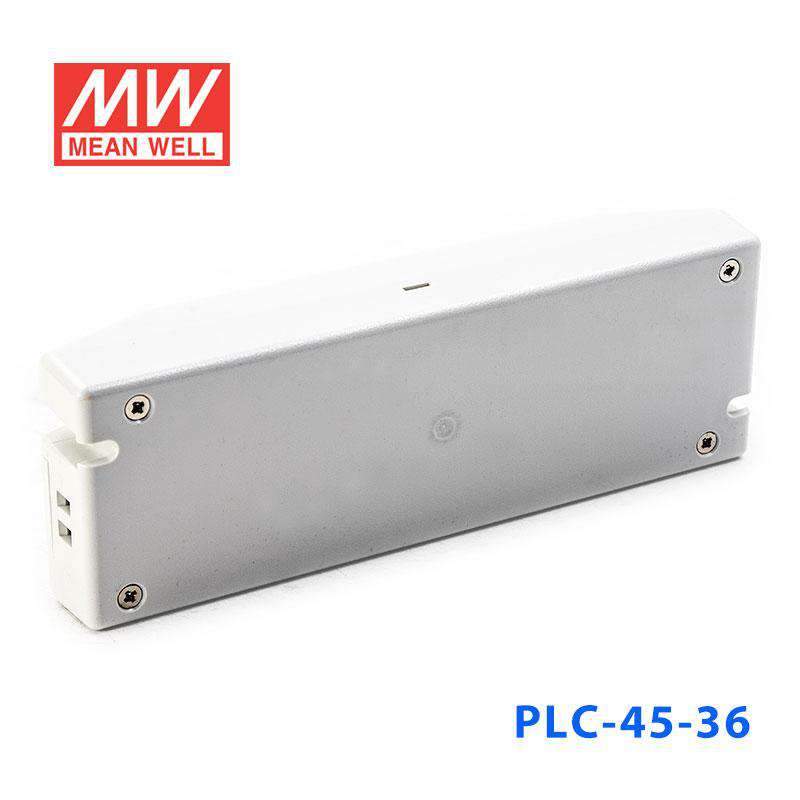

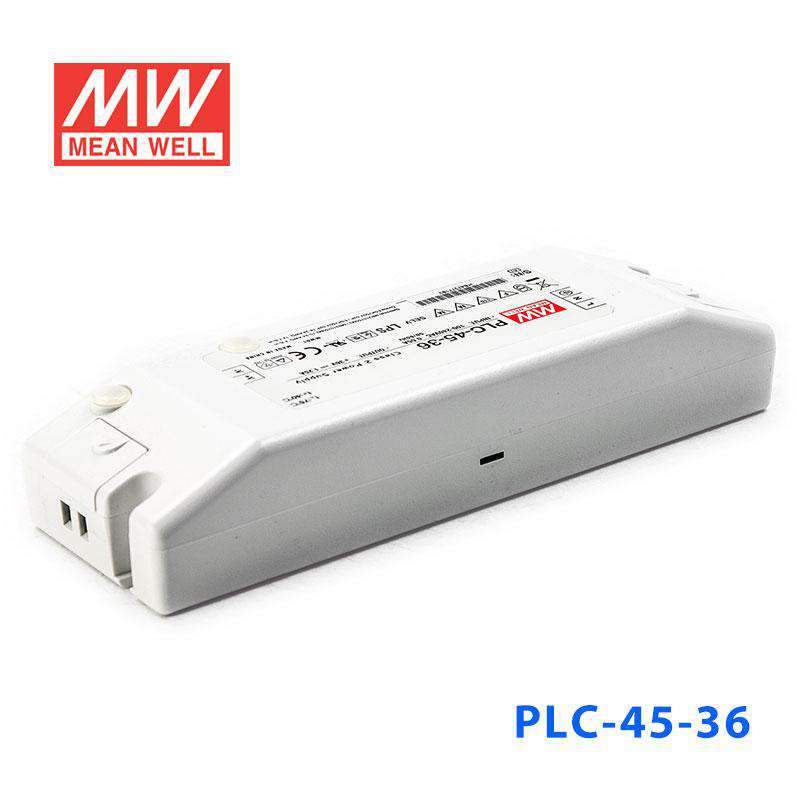

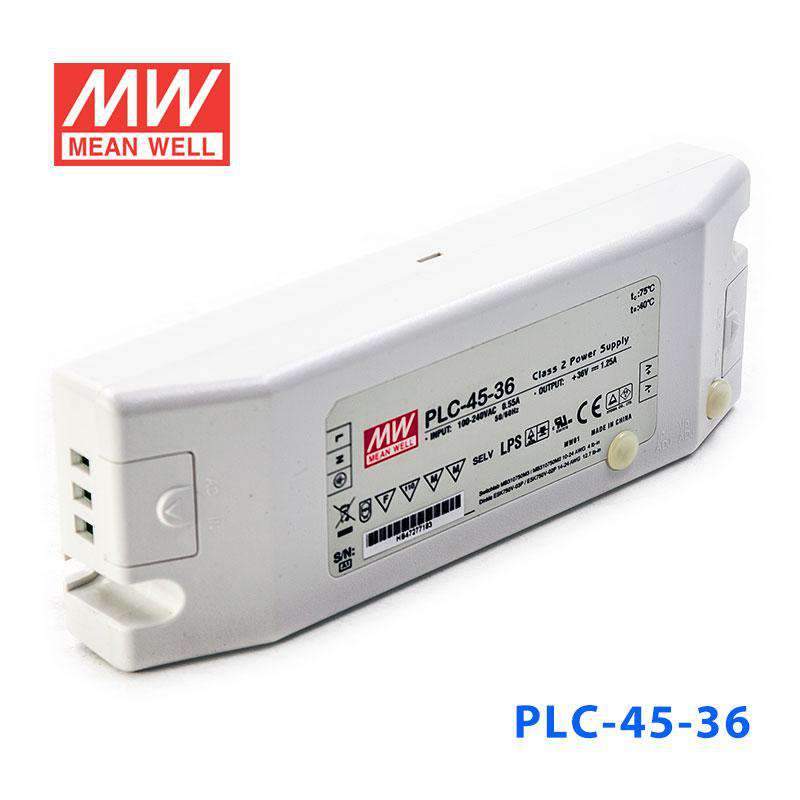

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLC-45-36 Power Supply 45W 36V - PFC

screw terminal, fully isolated plastic case, suitable for signage applications

SKU:

PLC-45-36

$36.95 USD ~~$125.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Fully isolated plastic case with screw terminal style of I/O

Built-in constant current limiting circuit (C.V.+C.C. mode)

Adjustable output voltage and current level

Built-in active PFC function, PF>0.9 for 75% of load or higher

High efficiency up to 89%

Class 2 power unit / Pass LPS

Protections: Short circuit / Over current / Over voltage / Over temperature

100% full load burn-in test

Suitable for LED lighting and moving sign applications

Cooling by free air convection

2 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	90%~110% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup time	1500ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-30~+50°C (refer to output derating curve)
Safety standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards	EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output)	3+2P screw terminal block
Dimension (LxWxH)(mm)	181.5x 62x 35
Packing	0.41kg ; 30pcs / 13.3kg

Specifications

Brand

Mean Well
Series

PLC Series
Power Rating

45 Watt
Output Voltage

36 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.15 in
Width

2.44 in
Height

1.38 in
Weight

0.9 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of power supply is the Mean Well PLC-45-36?

The PLC-45-36 is a 45W AC/DC power supply with a 36V output. It uses a constant voltage design with built-in constant current limiting and includes active power factor correction. This model is intended for applications that need a regulated 36V DC output.

What is the output rating of the PLC-45-36?

This model is rated for 36V DC output at 1.25A, with a total power rating of 45W. Those ratings make it suitable for loads designed to operate within that voltage and current range. Buyers should match the load requirement to the unit's 36V, 1.25A capacity.

Is the PLC-45-36 suitable for LED lighting applications?

Yes, this model is described as suitable for LED lighting and moving sign applications. Its constant voltage output with built-in current limiting can be useful in systems that require a stable 36V DC supply. It is positioned as a power solution for commercial and industrial lighting-related use cases.

Does the Mean Well PLC-45-36 support dimming control?

No, the PLC-45-36 does not include a dimming control function. If a project requires integrated dimming, this model may not be the right fit. It is better suited to applications needing fixed-output 36V DC power.

What operating environment is the PLC-45-36 designed for?

The specified operating temperature range is -30°C to 50°C. It also uses a fully isolated plastic case and includes protections for short circuit, over current, over voltage, and over temperature. These characteristics make it appropriate for demanding indoor equipment environments within its rated temperature limits.

What are the key protection and performance features of the PLC-45-36?

The PLC-45-36 includes protection for short circuit, over current, over voltage, and over temperature. It also features active PFC, with PF greater than 0.9 at 75% load or higher, and efficiency up to 89%. These features help distinguish it from more basic fixed-output power supplies.
