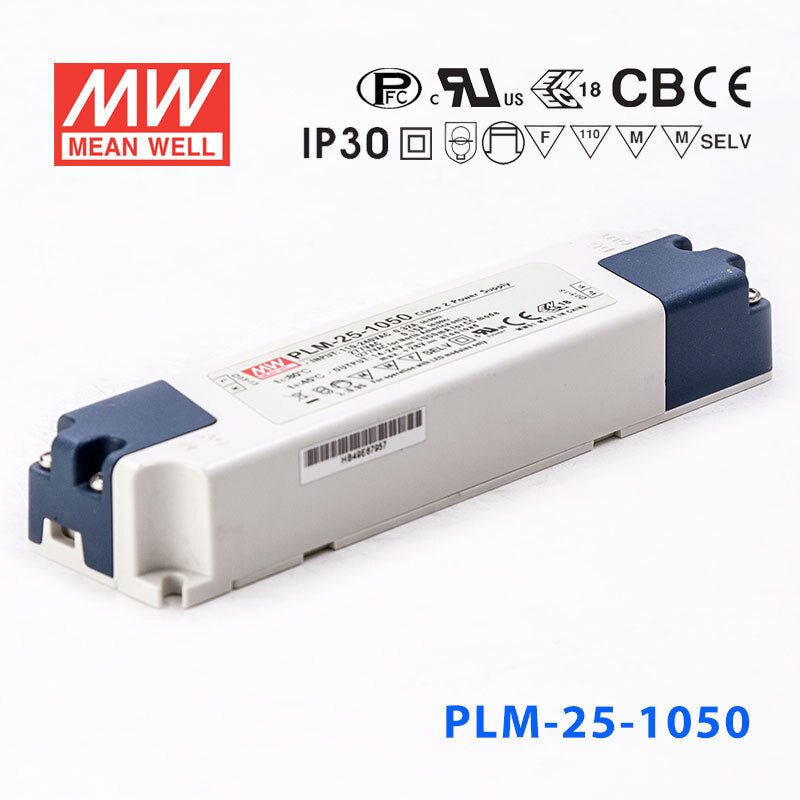

Mean Well PLM-25-1050, 1050mA Constant Current with PFC - Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLM-25-1050, 1050mA Constant Current with PFC - Terminal ...
The PLM-25 is a 25.2W Mean Well AC-DC constant current LED driver (input: 110~295VAC, output: 28V, operating temperature: -30~+45°C).
Key Features
- ✓ Input voltage: 110~295VAC
- ✓ Output voltage (max): 28V
- ✓ Rated output current: 1050mA
- ✓ Class II design — no earth connection required
- ✓ Operating temperature: -30~+45°C
- ✓ Safety certifications: CB, CE, EAC, ENEC, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating25.2 Watt
-
Output Voltage28 Volt
-
Rated Current1.05 Ampere
-
Input Voltage110V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.5 in
-
Height0.87 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
Can I use the PLM-25-1050 for a 1050mA LED downlight?
Yes, if the downlight requires a constant current driver at 1050mA and the LED load stays within the 14-24V constant-current range. This is not a constant voltage driver, so it should be matched to a 1050mA constant current LED load rather than a fixed-voltage LED product.
Is the PLM-25-1050 suitable for small LED arrays?
It can be used for small LED arrays that are designed for 1050mA constant current operation. The total forward voltage of the array must fall within the 14-24V CC range, and the driver is rated at 25.2W.
Can this driver run constant current signage modules?
It can, but only if the signage module assembly is a constant current design that needs 1050mA. The connected load must stay within the 14-24V constant-current range, and it is not intended for constant voltage modules.
How do I know if this 1050mA driver is compatible with my LEDs?
Compatibility depends on two things: the LEDs must require 1050mA constant current, and their combined forward voltage must stay within 14-24V during constant current operation. The number of LEDs depends on each LED's forward voltage, so the voltage range matters more than a fixed LED count.
How does the PLM-25-1050 compare with the other 25W PLM constant current models?
Within the PLM 25W group, PLM-25-350 is 350mA with a 42-72V CC range at 25.2W, PLM-25-500 is 500mA with a 30-50V CC range at 25W, PLM-25-700 is 700mA with a 21-36V CC range at 25.2W, and PLM-25-1050 is 1050mA with a 14-24V CC range at 25.2W. The E versions listed for the same outputs use the same output current, CC range, and wattage values.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLM-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLM-25-700, 700mA Constant Current with PFC - Terminal Block | 25.2W | 42V | 0.7A | Indoor | $15.19 | View |
| Mean Well PLM-25-500, 500mA Constant Current with PFC - Terminal Block | 25W | 56V | 0.5A | Indoor | $15.19 | View |
| Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block | 25.2W | 80V | 0.35A | Indoor | $16.06 | View |
