Mean Well

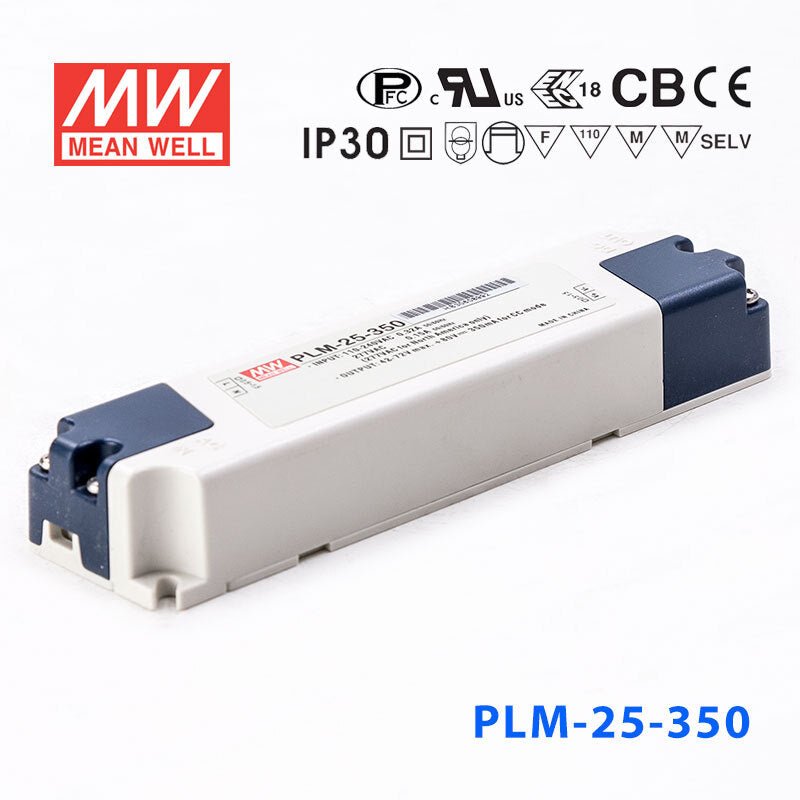

Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-25-350
Price: 17.84 USD
Availability: InStock

Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block

24 units in stock

$17.84 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
AC inrush current (max.)	COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
DC adjustment range
Current adjustment range
Short circuit protection	Hiccup mode, auto-recovery
Over temperature protection	Hiccup mode, auto-recovery
Setup time	Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+45ºC
Safety standards	UL8750, ENEC EN61347-1,2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection	DG235-7.2-2P
Dimension (LxWxH) (mm)	1453822mm
Packing	60pcs/8.6Kg
