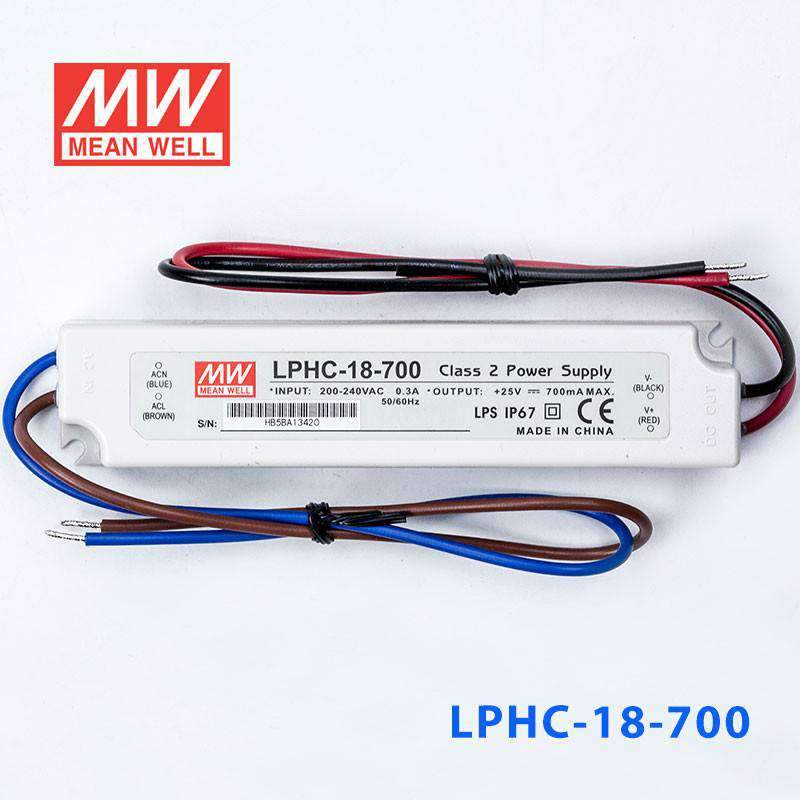

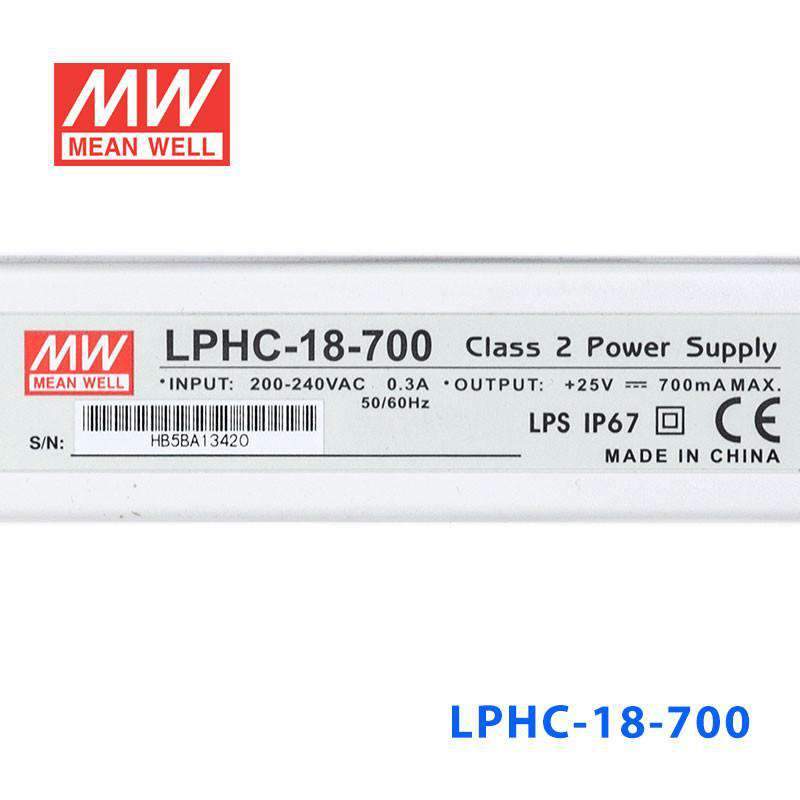

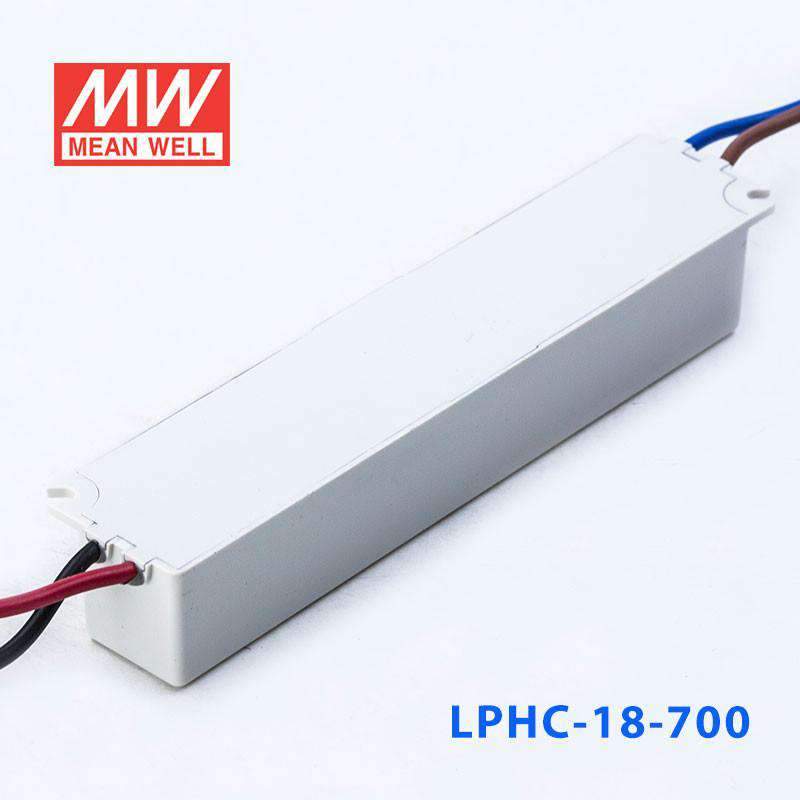

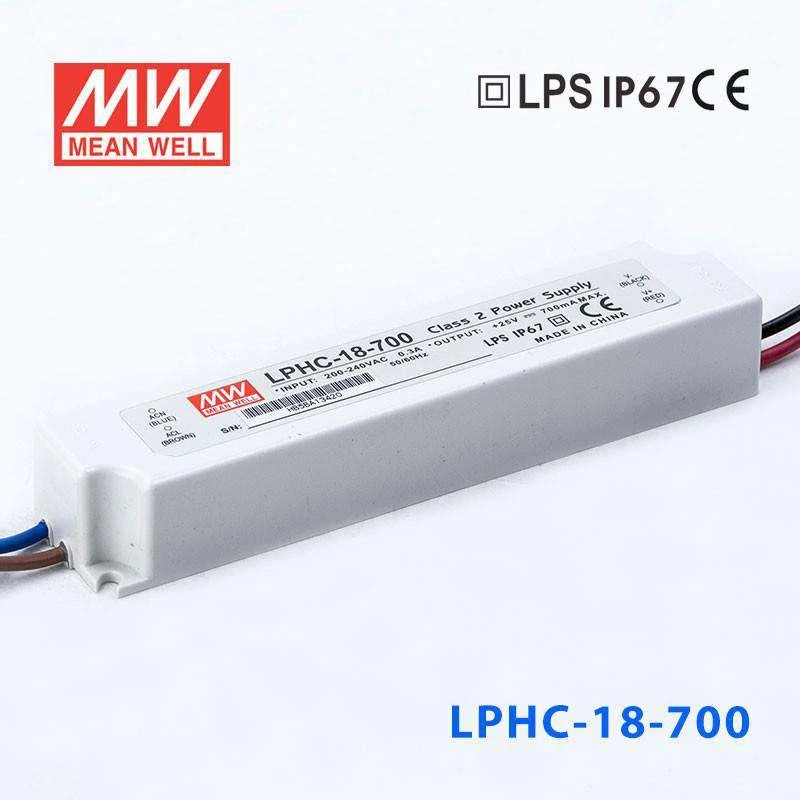

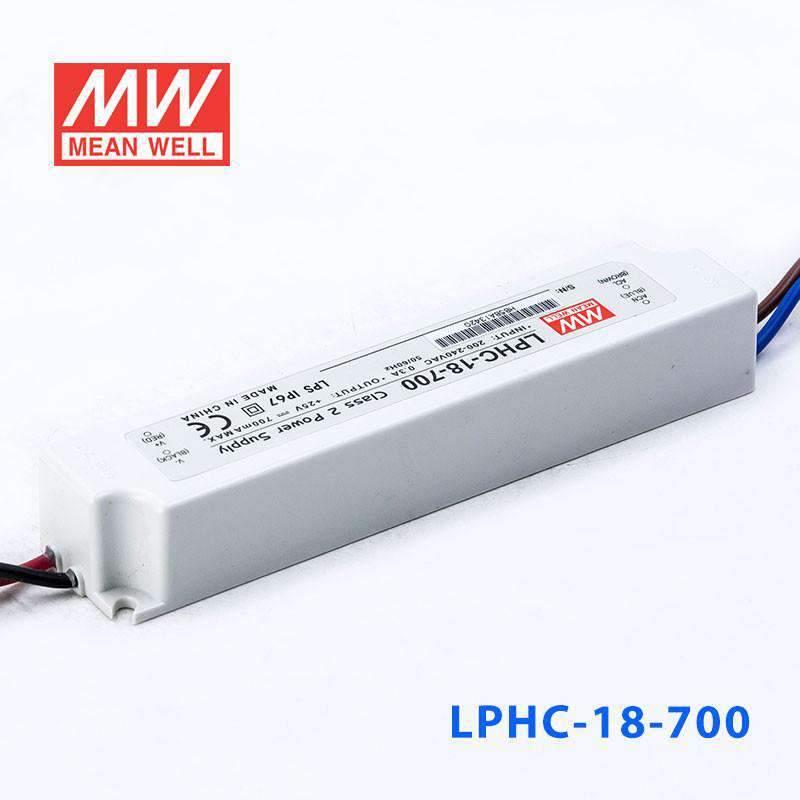

Mean Well LPHC-18-700 AC-DC Single output LED driver Constant Current
The LPHC-18 is a 18W Mean Well power converter (input range: 180~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Over voltage / Over temperature
- ✓ Safety approvals: IP67 approved; design refer to UL1310 Class 2,TUV EN60950-1, CAN/CSA C22.2 No. 223-M91
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPHC Series
-
Power Rating17.5 Watt
-
Output Voltage25 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length5.51 in
-
Width1.18 in
-
Height0.87 in
-
Weight0.39 lb
::specification::
Frequently Asked Questions
Can the LPHC-18-700 run a 700mA LED downlight?
Yes, this driver is intended for constant current LED loads that require 700mA. It is suitable when the LED downlight's total forward voltage falls within the 6-25V constant current range.
Is this a good choice for signage modules or compact LED arrays that need higher current?
It can be used for signage modules or compact LED arrays that are specified for constant current operation at 700mA. The load must stay within the 6-25V constant current range, and the exact number of LEDs depends on the forward voltage of each LED.
Can I use the LPHC-18-700 with LEDs that are designed for constant voltage power?
No, this is a constant current LED driver rather than a constant voltage power supply. It should be matched only with LED loads that are rated for 700mA constant current and operate within the 6-25V constant current range.
What should I check to confirm LED compatibility with the LPHC-18-700?
First, confirm the LEDs are designed for constant current operation at 700mA. Then verify that the total forward voltage of the LED load is within 6-25V, keeping in mind that the number of LEDs depends on each LED forward voltage.
Is the LPHC-18-700 appropriate for outdoor or exposed environments?
It has an IP67 waterproof rating, so it is built for use where dust and water resistance are needed. Its operating temperature range is -30°C to +70°C, which also supports use in hot or cold environments within that range.
How does the LPHC-18-700 compare with the LPHC-18-350?
The LPHC-18-700 provides 700mA output, a 6-25V constant current range, and 17.5W power, while the LPHC-18-350 provides 350mA output, a 6-48V constant current range, and 16.8W power. Both models use 180-264VAC input, are rated IP67, and have the same 140.0 × 30.0 × 22.0 mm size and 0.175 kg weight.
