Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

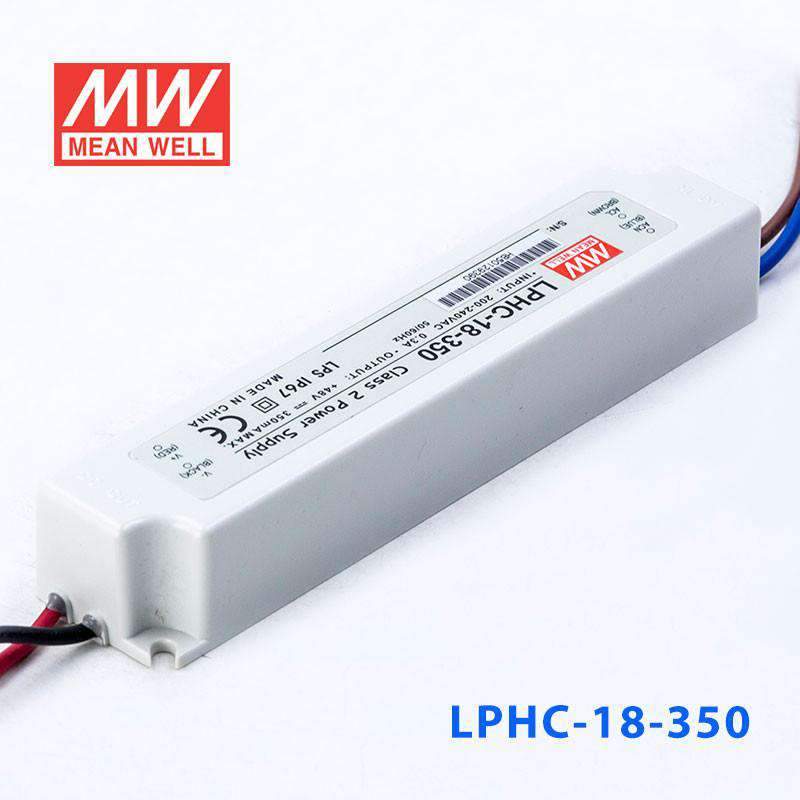

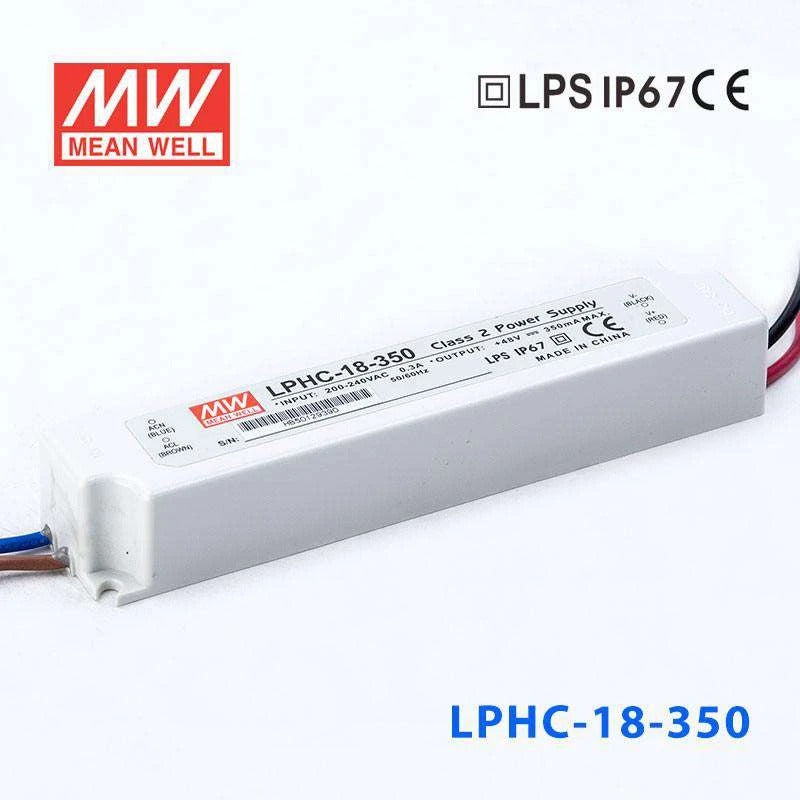

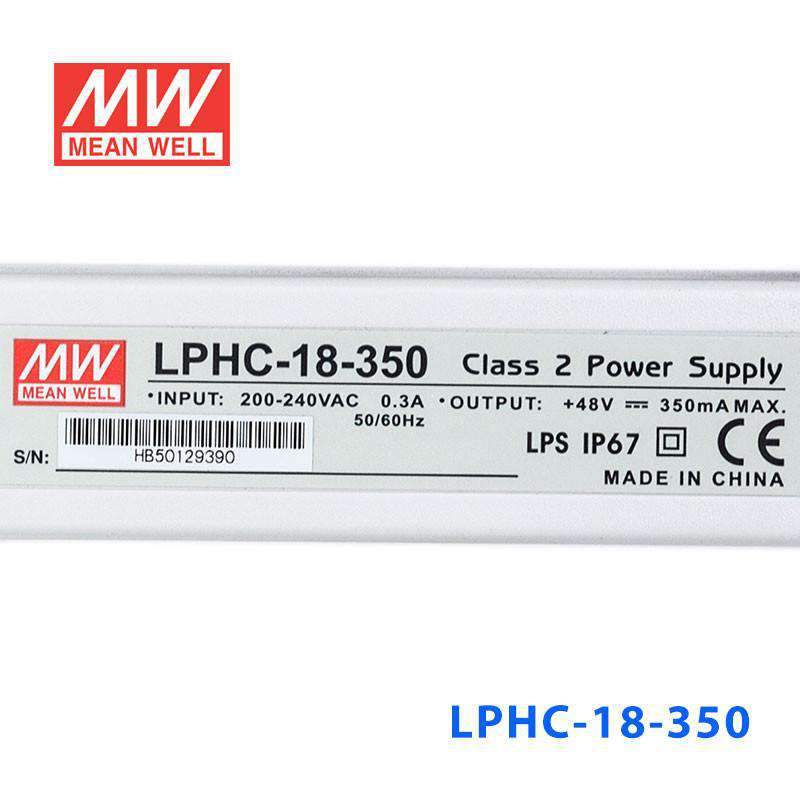

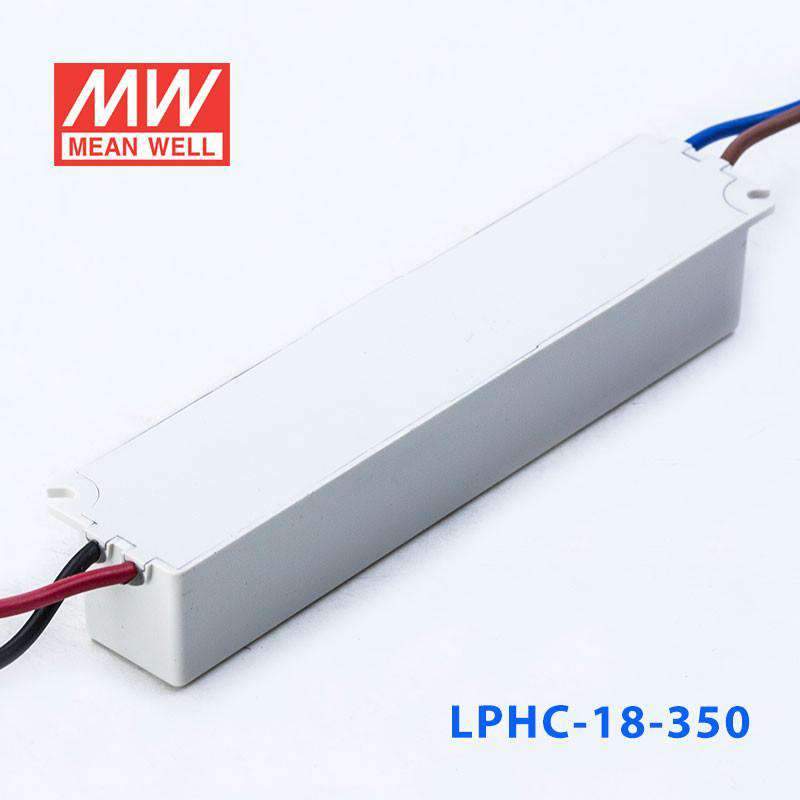

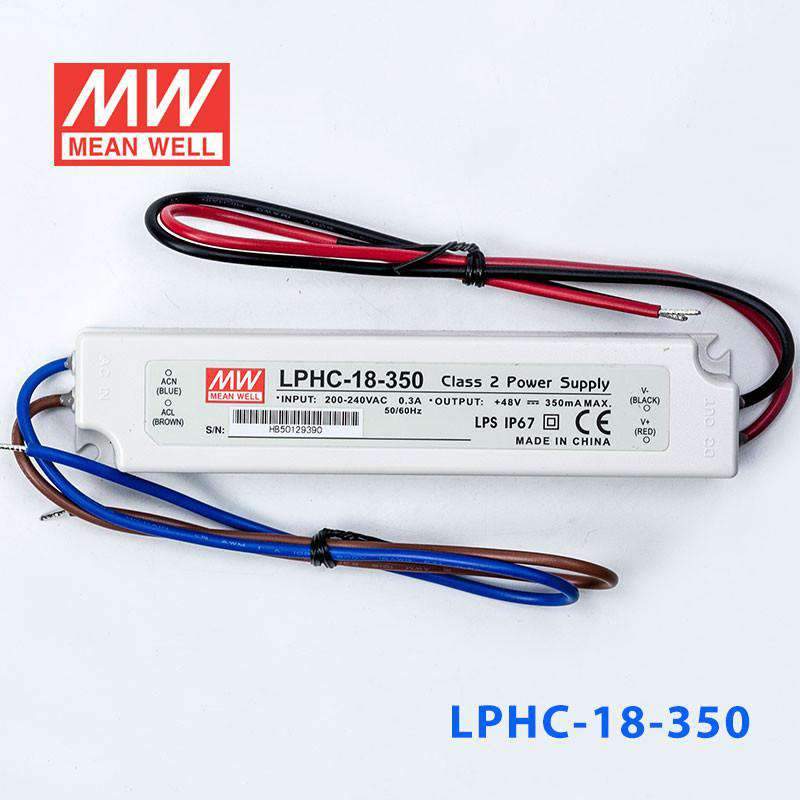

Mean Well LPHC-18-350 AC-DC Single output LED driver Constant Current

Name: Mean Well LPHC-18-350 AC-DC Single output LED driver Constant Current
Brand: Mean Well
SKU: LPHC-18-350
Price: 8.42 USD
Availability: InStock

slim plastic case, economical, IP67

SKU:

LPHC-18-350

Datasheet:

LPHC-18-350 Datasheet

$8.42 USD

Shipping calculated at checkout.

Quantity Prices

Quantity	Discount	Unit Price
10+	5%	$8.00
20+	7%	$7.83
50+	9%	$7.66
100+	10%	$7.58
200+	11%	$7.49
500+	13%	$7.33
1000+	15%	$7.16

This discount is applied to the total quantity of this product in your cart

Your order will be processed within 24 hours

Description

Features

180~264VAC input only

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage / Over temp.

Constant current design (C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	180~264VAC
AC inrush current	Cold start, 50A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to UL1310, EN60950-1
EMC standards	FCC part 15 class A (LPLC-18), EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	140x 30x 22

Specifications

Brand

Mean Well
Series

LPHC Series
Power Rating

16.8 Watt
Output Voltage

48 Volt
Rated Current

0.35 Ampere
Input Voltage

180V~264V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

5.51 in
Width

1.18 in
Height

0.87 in
Weight

0.39 lb

File Downloads

Specification Sheet

Spec Sheet (LPHC-18-350)(EN)

Certificates

EMC Certificate (LPHC-18)(EN)

Test Reports

Test Report (LPHC-18-350)(EN)

Catalog

Mean Well LED Driver Catalog

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

180~264VAC input only

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage / Over temp.

Constant current design (C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range

180~264VAC

AC inrush current

Cold start, 50A at 230VAC

Over voltage protection

105%~135% rated output voltage

Withstand voltage

I/P-O/P: 3kVAC

Working temperature

-30~+70°C

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

Design refer to UL1310, EN60950-1

EMC standards

FCC part 15 class A (LPLC-18), EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11

Connection Input

UL rated, 18AWGx2C (30cm)

Connection Output

UL rated, 18AWGx2C (30cm)

Dimension (LxWxH)(mm)

140x 30x 22
