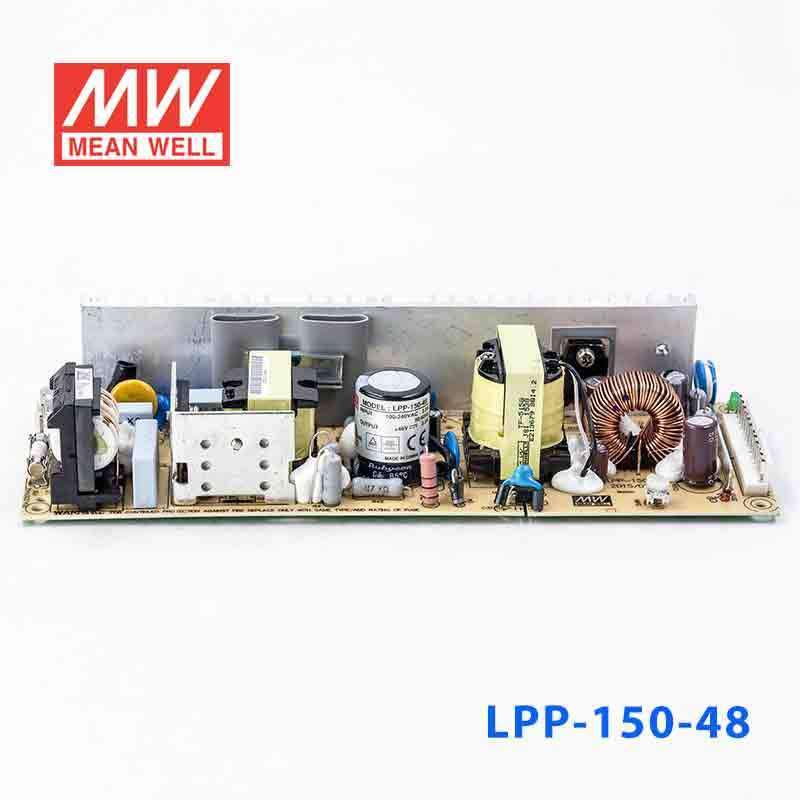

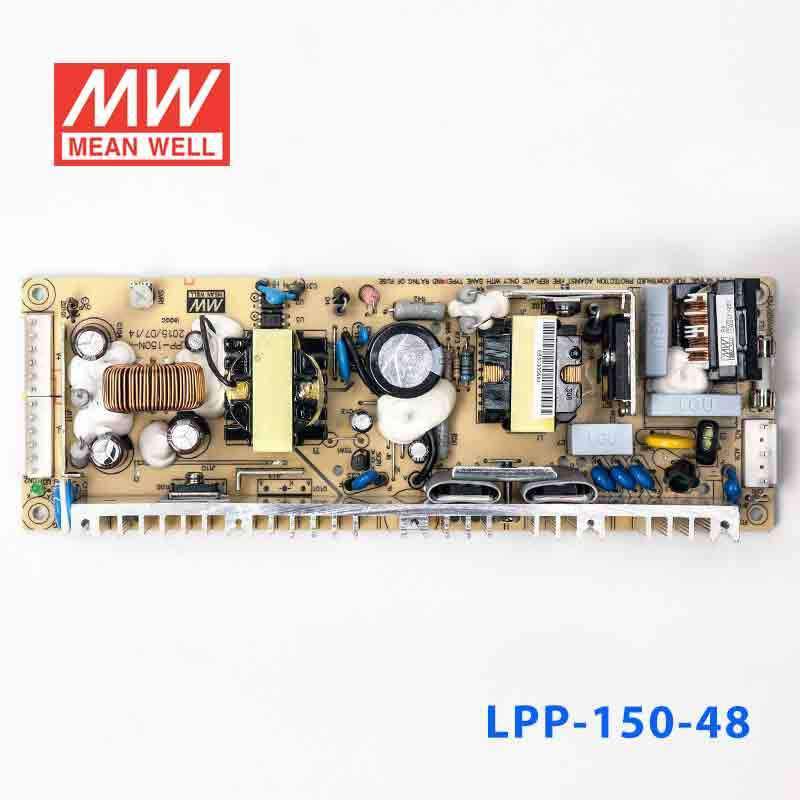

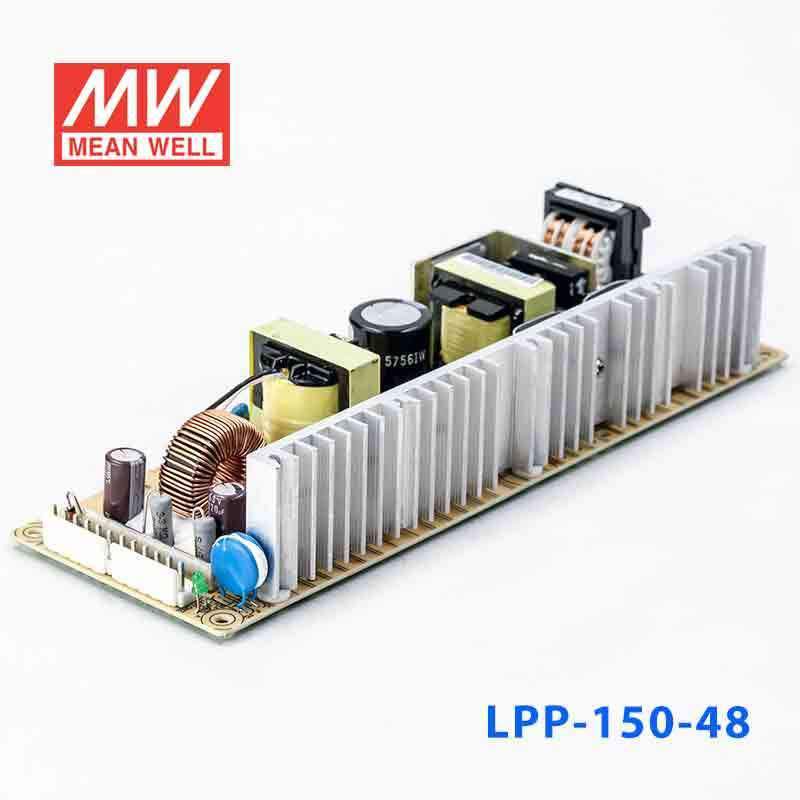

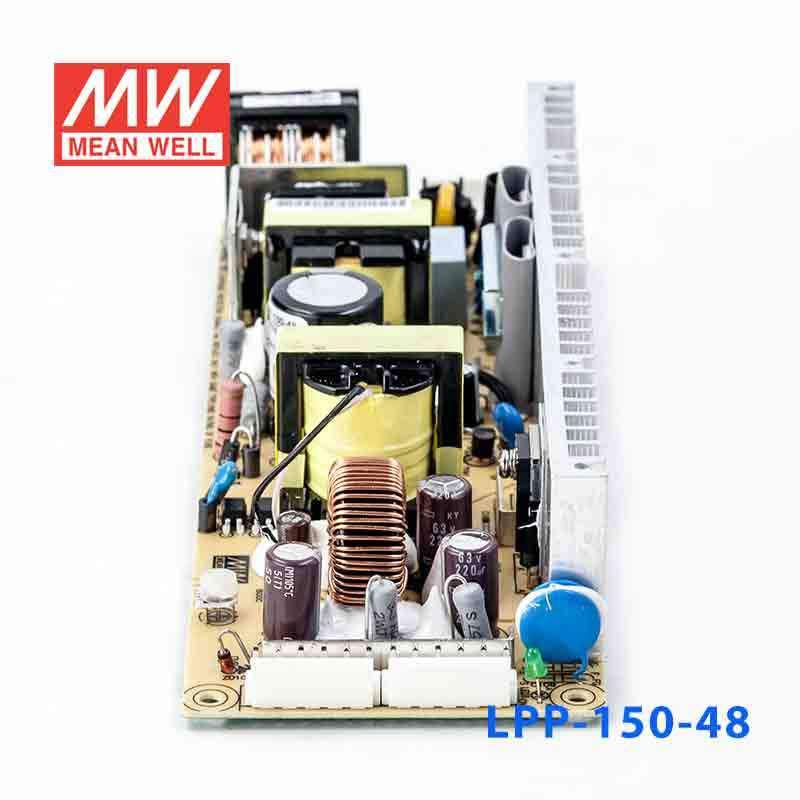

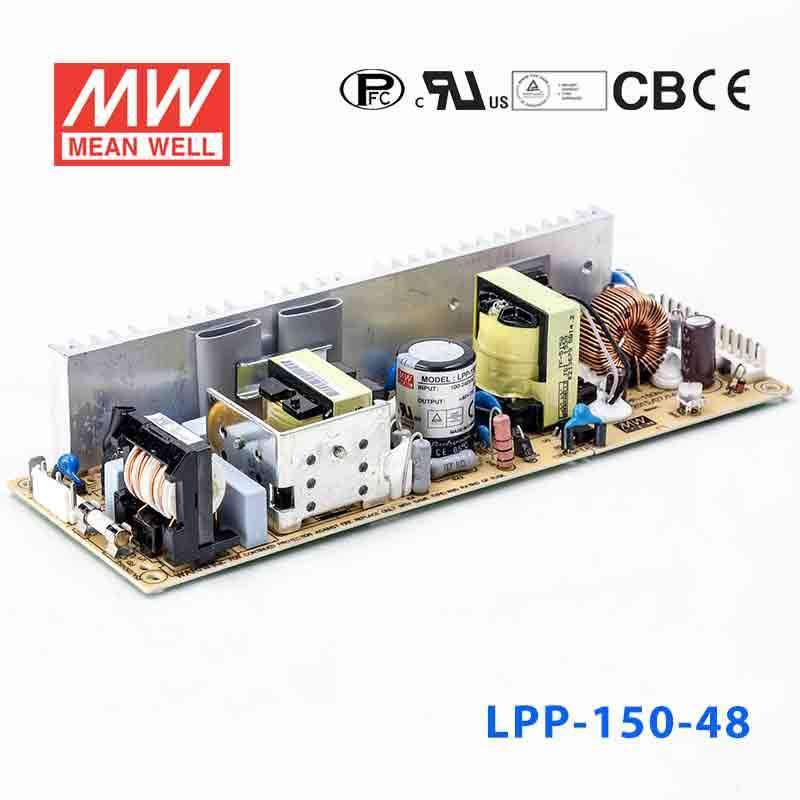

Mean Well LPP-150-48 Power Supply 153W 48V
The lpp-150 is a 150W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPP Series
-
Power Rating153.6 Watt
-
Output Voltage48 Volt
-
Rated Current3.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.74 in
-
Width2.95 in
-
Height1.61 in
-
Weight1.37 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well LPP-150-48 for a 48V industrial control or automation system?
It is intended for constant-voltage applications that need 48V output, up to 3.2A, and 153.6W. That makes it a fit for 48V industrial, embedded, or automation equipment when the load stays within those output limits.
Is the LPP-150-48 suitable for 48V embedded or IT equipment?
It can suit 48V embedded or IT equipment that needs a constant 48V supply and draws no more than 3.2A or 153.6W. The wide 85-264VAC input also helps when the equipment is used across standard AC power environments.
Can I use this 48V power supply for a higher-power 48V device than the LPP-100-48?
Yes, if the device needs more than the LPP-100-48 rating, this model provides more available output at 153.6W and 3.2A. It is still a constant-voltage 48V unit, so the load needs to match that output and stay within the rated current and power.
What is the difference between the LPP-150-48 and the other LPP-150 series models?
Within the listed LPP-150 range, the models are LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; and LPP-150-48 at 153.6W, 48V, 3.2A. The series context also lists LPP-150-24-OB, but no output specs were provided for that model here.
Is the LPP-150-48 suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature of -10°C to +60°C, but they do not include an IP rating. Based on that, the temperature range is stated, but outdoor or exposed-environment suitability cannot be confirmed from the provided data alone.
