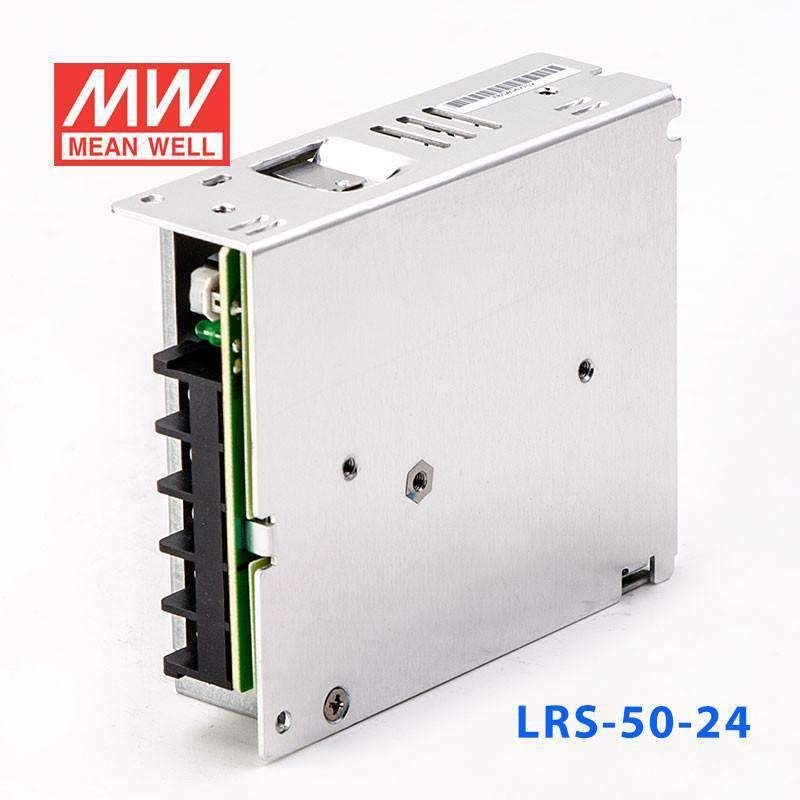

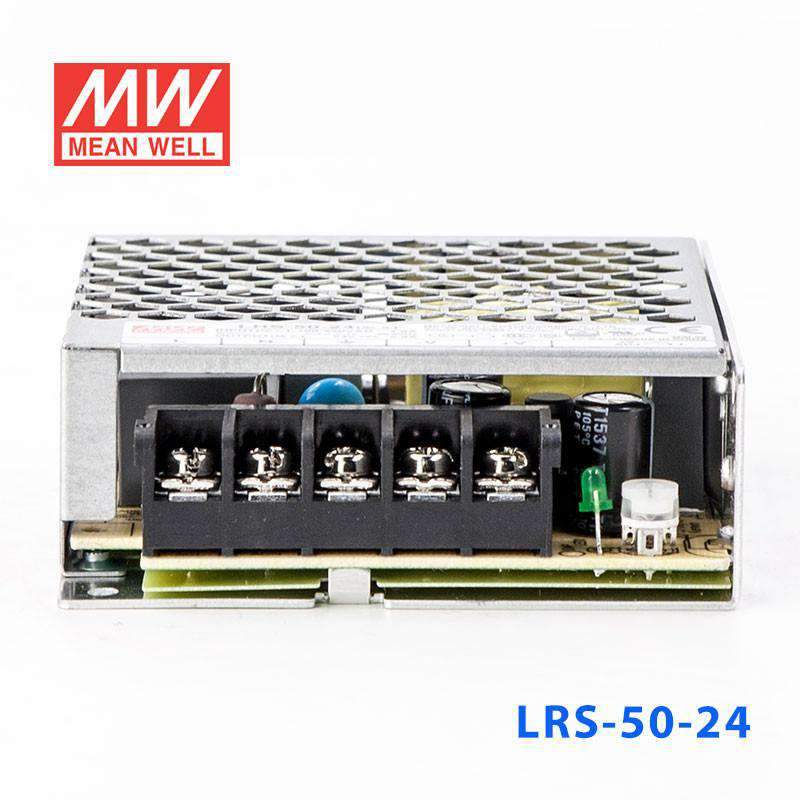

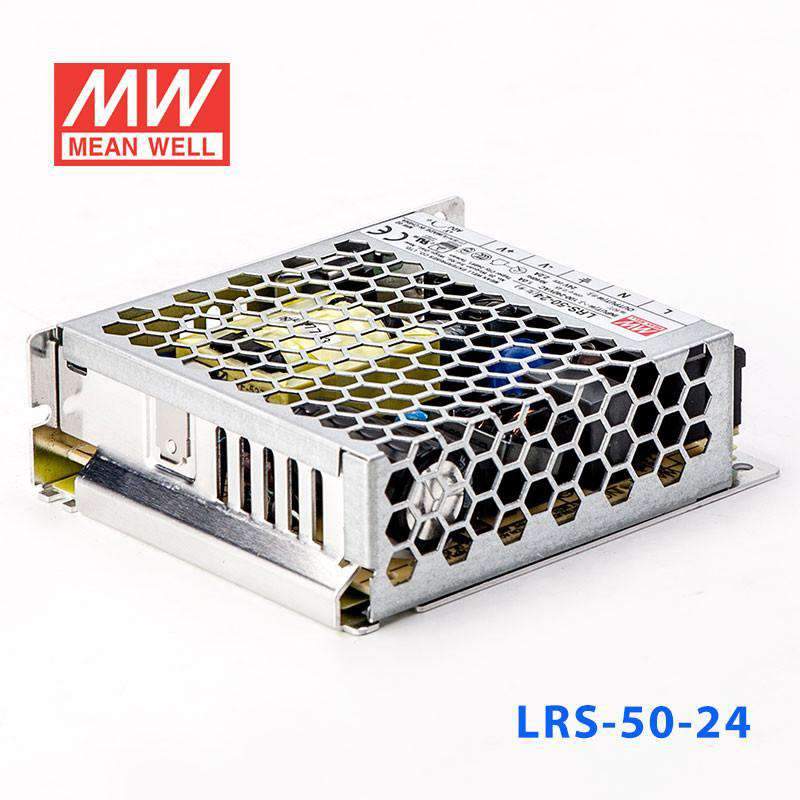

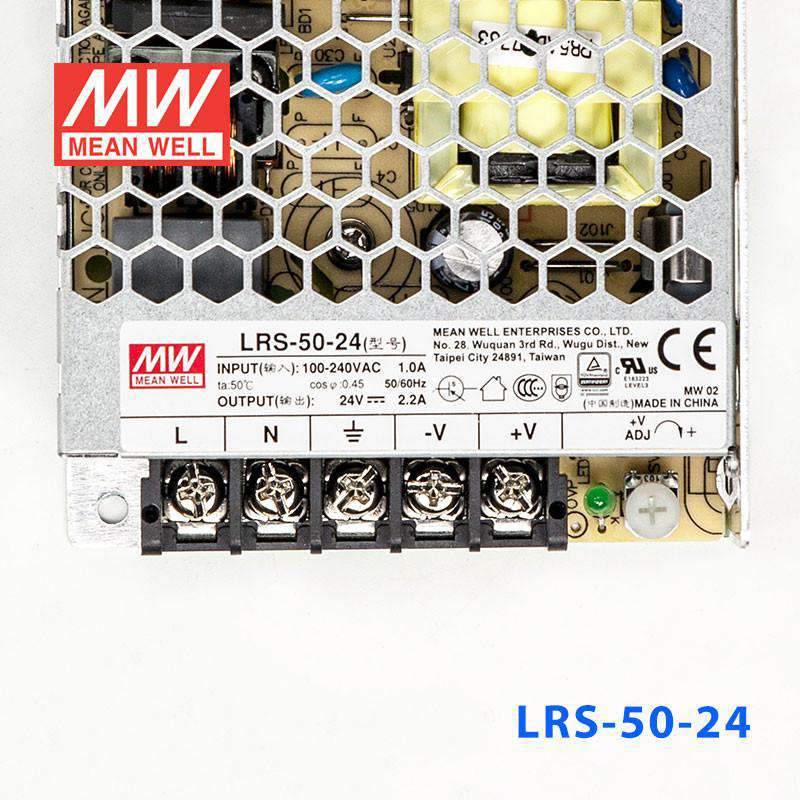

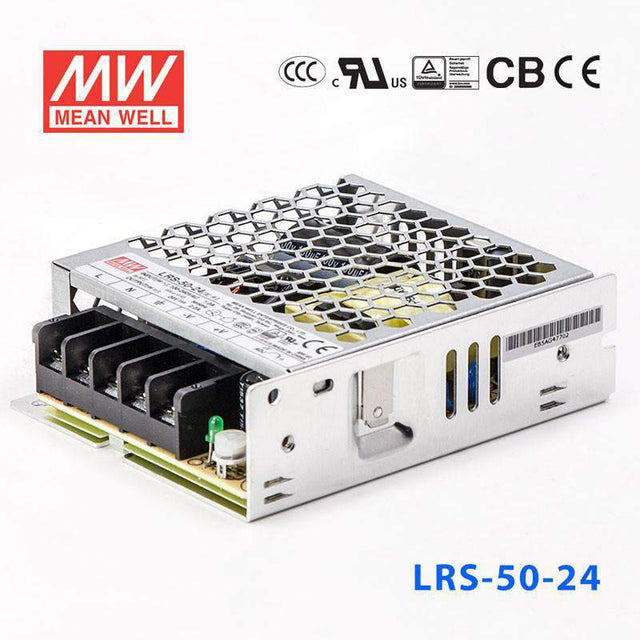

Mean Well LRS-50-24 Power Supply 50W 24V 2.2A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-50-24 Power Supply 50W 24V 2.2A
The LRS-50 is a 52.8W Mean Well power supply (input: 85~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 85~264VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 2.2A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CB, CCC, CE, EAC, RCM, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating52.8 Watt
-
Output Voltage24 Volt
-
Rated Current2.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.18 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
What equipment can the LRS-50-24 power at 24V?
At 24V and 2.2A (52.8W), the LRS-50-24 is appropriate for compact industrial sensors, small PLC I/O modules, 24V relay coils, and low-power HMI displays. Its 99 × 82 × 30 mm form factor integrates easily into compact control enclosures.
How does the LRS-50-24 compare to the LRS-75-24 and LRS-100-24?
All three accept 85–264VAC and share similar certifications. The LRS-50-24 (99 × 82 × 30 mm, 0.21 kg) delivers 52.8W at 2.2A. The LRS-75-24 (99 × 97 × 30 mm, 0.23 kg) delivers 76.8W at 3.2A. The LRS-100-24 delivers 108W at 4.5A. Choose by the total 24V load wattage required.
What is the lower temperature limit of the LRS-50-24?
The LRS-50-24 operates as low as -30°C, supporting cold-start in unheated enclosures, outdoor junction boxes in moderate climates (within a protective cabinet), or refrigeration control panels. The upper limit is +70°C ambient.
Does the LRS-50-24 require a dedicated enclosure for DIN-rail installation?
The LRS-50-24 is an open-frame supply and is not IP-rated on its own. For DIN-rail use it should be installed inside a closed control cabinet that provides protection from dust, moisture, and accidental contact, as required by the installation environment's classification.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-50 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-50-15 Power Supply 50W 15V 3.4A | 51W | 15V | 3.4A | Indoor | $13.30 | View |
| Mean Well LRS-50-5 Power Supply 50W 5V 10A | 50W | 5V | 10A | Indoor | $14.35 | View |
| Mean Well LRS-50-48 Power Supply 50W 48V 1.1A | 52.8W | 48V | 1.1A | Indoor | $13.30 | View |
| Mean Well LRS-50-12 Power Supply 50W 12V 4.2A | 50.4W | 12V | 4.2A | Indoor | $13.59 | View |
