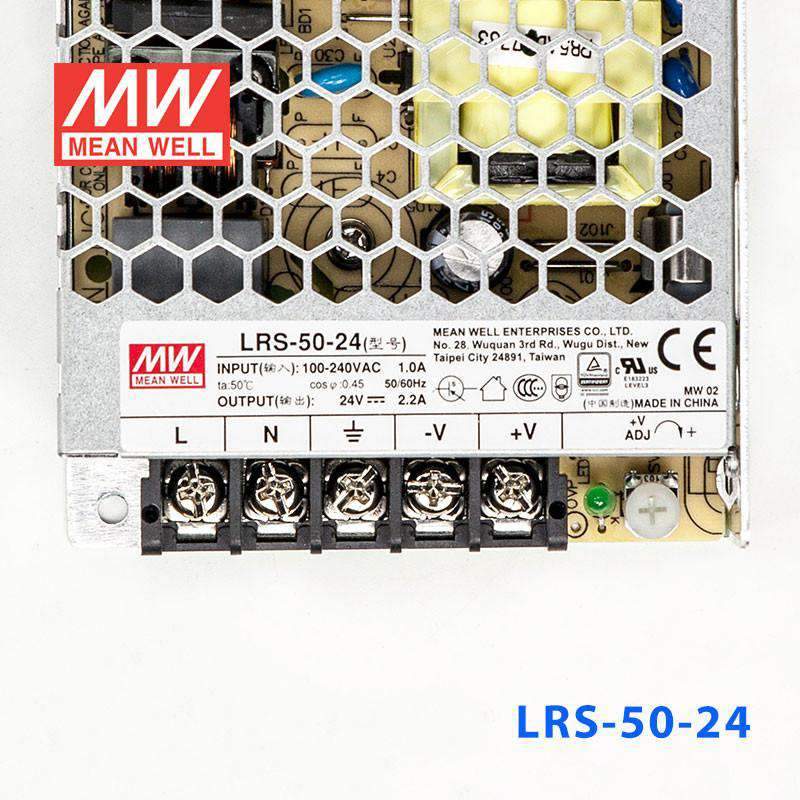

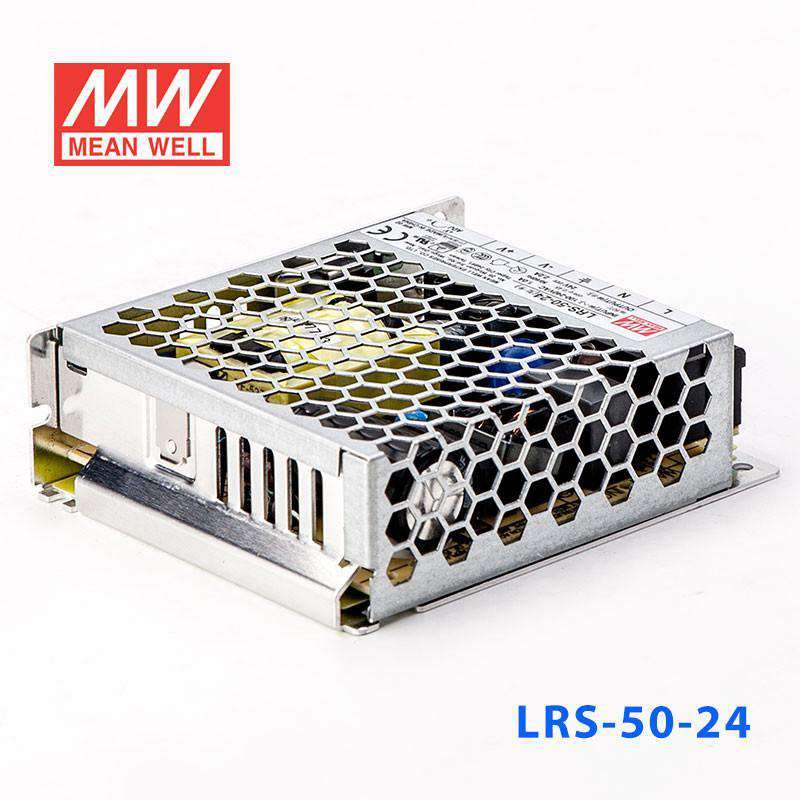

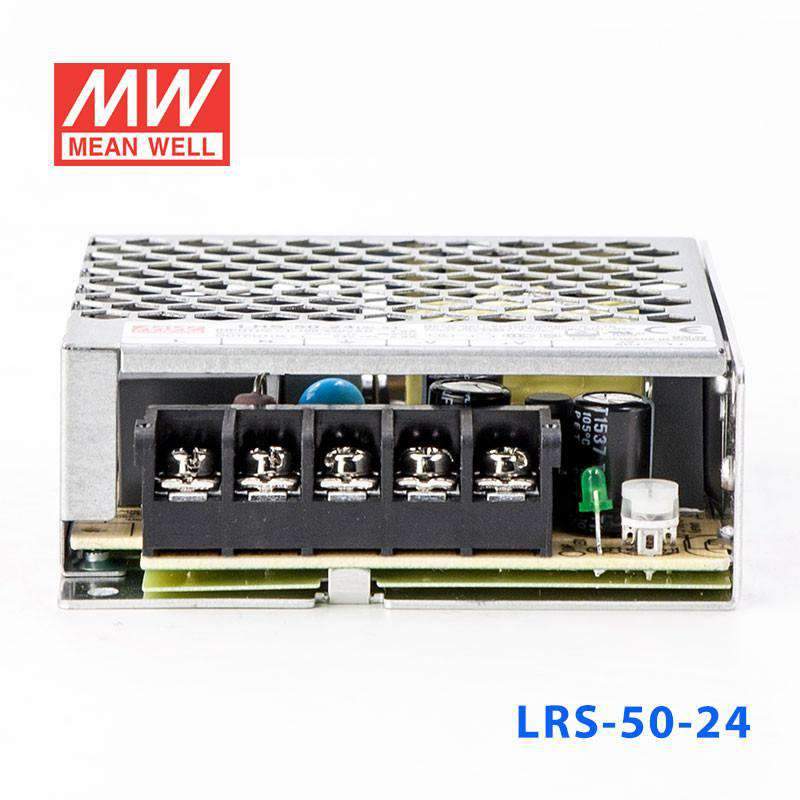

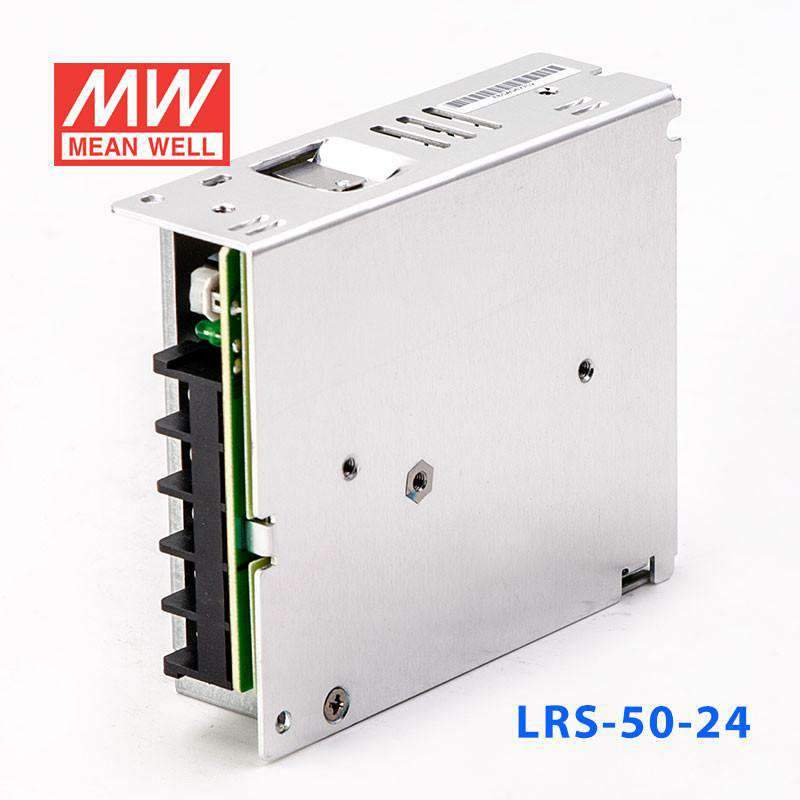

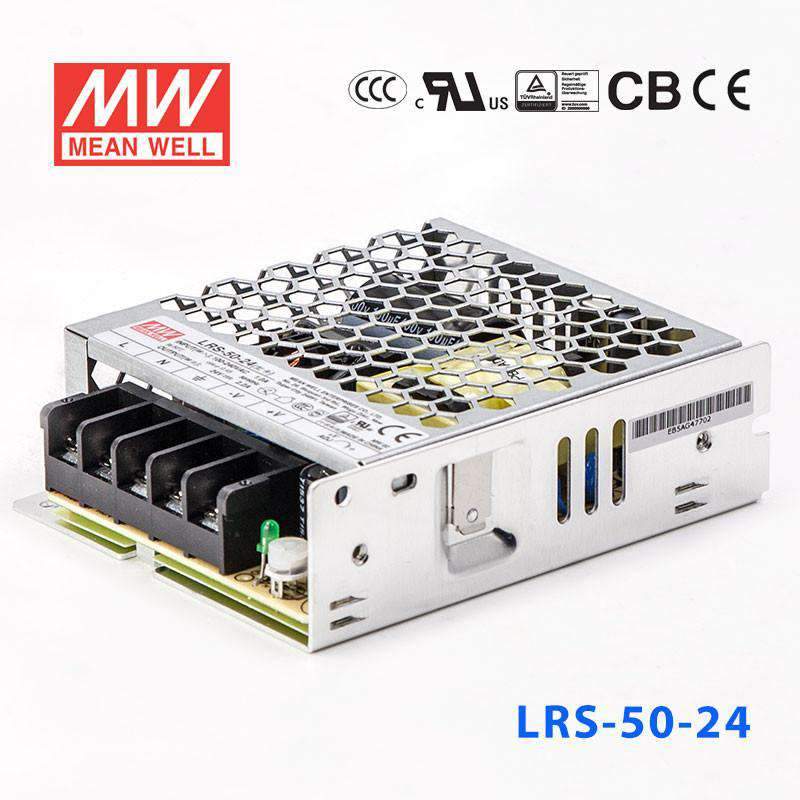

Mean Well LRS-50-24 Power Supply 50W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-50-24 Power Supply 50W 24V
Description
Description
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating52.8 Watt
-
Output Voltage24 Volt
-
Rated Current2.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.18 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What equipment can the LRS-50-24 power at 24V?
At 24V and 2.2A (52.8W), the LRS-50-24 is appropriate for compact industrial sensors, small PLC I/O modules, 24V relay coils, and low-power HMI displays. Its 99 × 82 × 30 mm form factor integrates easily into compact control enclosures.
How does the LRS-50-24 compare to the LRS-75-24 and LRS-100-24?
All three accept 85–264VAC and share similar certifications. The LRS-50-24 (99 × 82 × 30 mm, 0.21 kg) delivers 52.8W at 2.2A. The LRS-75-24 (99 × 97 × 30 mm, 0.23 kg) delivers 76.8W at 3.2A. The LRS-100-24 delivers 108W at 4.5A. Choose by the total 24V load wattage required.
What is the lower temperature limit of the LRS-50-24?
The LRS-50-24 operates as low as -30°C, supporting cold-start in unheated enclosures, outdoor junction boxes in moderate climates (within a protective cabinet), or refrigeration control panels. The upper limit is +70°C ambient.
Does the LRS-50-24 require a dedicated enclosure for DIN-rail installation?
The LRS-50-24 is an open-frame supply and is not IP-rated on its own. For DIN-rail use it should be installed inside a closed control cabinet that provides protection from dust, moisture, and accidental contact, as required by the installation environment's classification.
Other LRS-50 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-50-15 Power Supply 50W 15V | 51W | 15V | 3.4A | Indoor | $13.59 | View |
| Mean Well LRS-50-5 Power Supply 50W 5V | 50W | 5V | 10A | Indoor | $14.35 | View |
| Mean Well LRS-50-48 Power Supply 50W 48V | 52.8W | 48V | 1.1A | Indoor | $13.30 | View |
| Mean Well LRS-50-12 Power Supply 50W 12V | 50.4W | 12V | 4.2A | Indoor | $13.59 | View |
