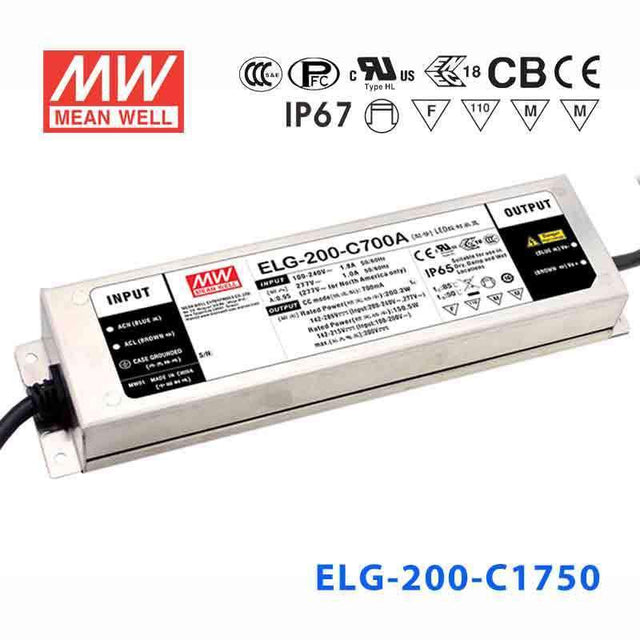

Mean Well ELG-200-C1750B Power Supply 200W 1750mA - Dimmable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage120 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Does the ELG-200-C1750B support built-in dimming for integration with lighting control systems?
Yes. The "B" suffix denotes 3-in-1 dimming support (1–10V, PWM, and resistance control), enabling the driver to work with standard analog and PWM dimming controllers commonly used in commercial lighting installations.
Is the ELG-200-C1750B rated for wet outdoor environments?
Yes. The ELG-200-C1750B carries an IP67 waterproof rating and operates from -40°C to +85°C, making it suitable for fully outdoor luminaires, wet-rated landscape lighting, and exterior architectural LED fixtures.
Can the ELG-200-C1750B drive LED modules for outdoor sports or area lighting?
Yes. With 199.5W constant current output at 1750mA, IP67 protection, and a wide 100–305VAC input, this driver is appropriate for high-power LED floodlights or area luminaires used in outdoor sports courts, parking lots, and building perimeter lighting.
What is the CC voltage range of the ELG-200-C1750B, and how does that affect LED string compatibility?
The CC voltage range is 57–114V. This driver will deliver a regulated 1750mA to any series LED string whose combined forward voltage falls within that range. The number of LEDs in the string depends on each LED's individual forward voltage.
How does the ELG-200-C1750B differ from the ELG-200-C1750A and ELG-200-C1750AB?
The C1750B adds 3-in-1 dimming (1–10V/PWM/resistance) and has IP67 waterproofing. The C1750A adds output current adjustability but has IP65 rating and no dimming. The C1750AB combines adjustability and 3-in-1 dimming but also has IP65 rather than IP67. All three are 199.5W at 1750mA.
Can the ELG-200-C1750B be used in horticultural or greenhouse LED grow-light systems?
Yes. Its IP67 waterproof rating, wide temperature range (-40°C to +85°C), and 199.5W constant current output at 1750mA make it suitable for dimmable grow-light fixtures in humid greenhouse environments where moisture resistance is essential.
