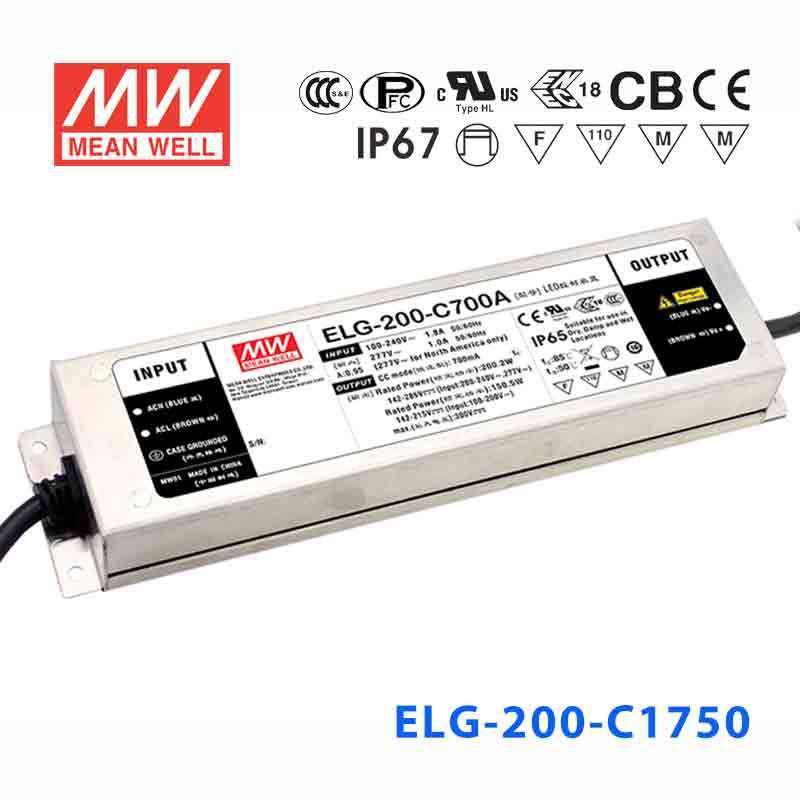

Mean Well ELG-200-C1750B Power Supply 200W 1750mA - Dimmable

Name: Mean Well ELG-200-C1750B Power Supply 200W 1750mA - Dimmable
Brand: Mean Well
SKU: ELG-200-C1750B
Price: 59.46 USD
Availability: InStock

Mean Well ELG-200-C1750B Power Supply 200W 1750mA - Dimmable

On Backorder

$59.46 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	244x71x37.5
Packing	12pcs / 15.2kg
