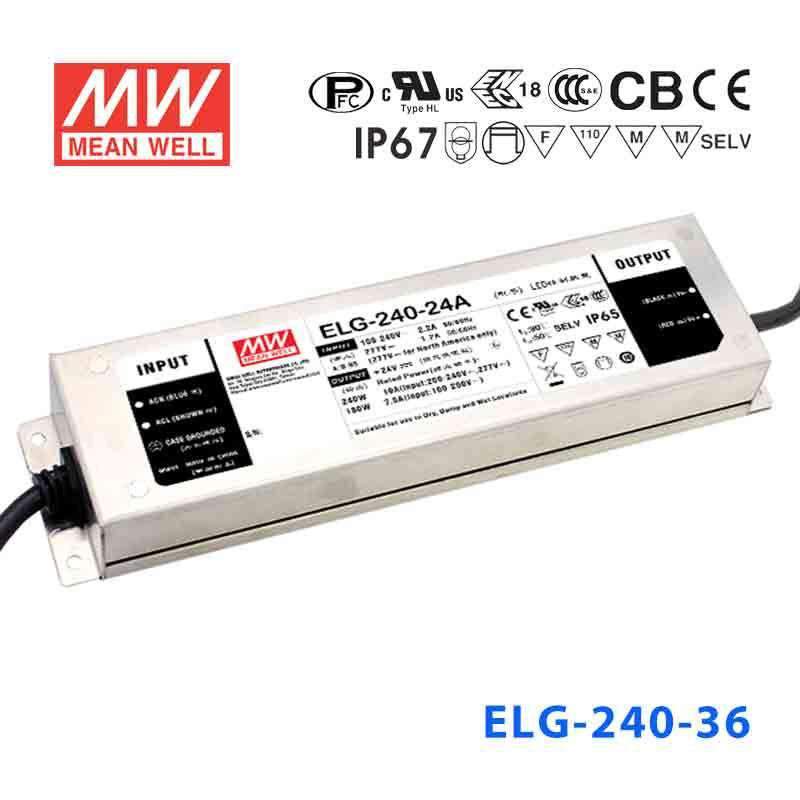

Mean Well ELG-240-36 Power Supply 240W 36V
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating239.76 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-240-36 power 36V LED strips in a large outdoor pedestrian bridge lighting installation?
Yes. The IP67 waterproof construction and -40°C to +90°C operating range make the ELG-240-36 suitable for the fully exposed outdoor conditions typical of bridge or overpass lighting. The 100–305VAC universal input accommodates diverse electrical infrastructure across jurisdictions.
Is the ELG-240-36 suitable for commercial outdoor sign cabinets using 36V LED modules?
Yes. At 239.76W and 36V, it provides ample output for large illuminated sign boxes, and the IP67 rating allows mounting inside exterior sign cabinets exposed to rain. The wide input voltage range covers both North American and international mains supplies.
Can the ELG-240-36 be used for 36V LED strip lighting in a large parking garage?
Yes. The IP67 rating protects against vehicle exhaust moisture and cleaning sprays common in parking structures, and the -40°C to +90°C range handles underground temperature fluctuations. At 239.76W and 36V, it supports long continuous strip runs across multi-bay garage spaces.
How many meters of 36V LED strip can the ELG-240-36 power?
The ELG-240-36 delivers 239.76W at 36V with a maximum 6.66A output. Divide 239.76 by your strip's rated wattage per meter: a 14.4 W/m strip allows approximately 16.6 meters, while a 20 W/m strip allows approximately 12 meters. Verify your strip's rated power per meter and apply a 20% safety derating.
Is the ELG-240-36 waterproof enough for in-ground outdoor LED fixtures?
Yes. The IP67 rating provides complete dust protection and resistance to temporary water immersion, which covers the moisture levels found in ground-mounted or buried outdoor fixtures during rain events. Continuous permanent submersion should be avoided.
What is the CC voltage range of the ELG-240-36 and why does it matter?
The ELG-240-36 has a constant-current operating voltage range of 18–36V. When the LED load voltage falls within this window, the driver switches to constant-current mode and maintains 6.66A output. This provides flexibility for different 36V LED strip configurations and helps protect against overloading LED loads near the rated voltage.
How does the ELG-240-36 compare to the ELG-240-36A?
Both models share 239.76W output at 36V, 6.66A, and identical dimensions. The ELG-240-36 is rated IP67 waterproof with no output adjustment. The ELG-240-36A is rated IP65 water-resistant and adds a potentiometer for output voltage trimming. Choose the ELG-240-36 when maximum water ingress protection is needed; choose the ELG-240-36A when output fine-tuning is the priority.
