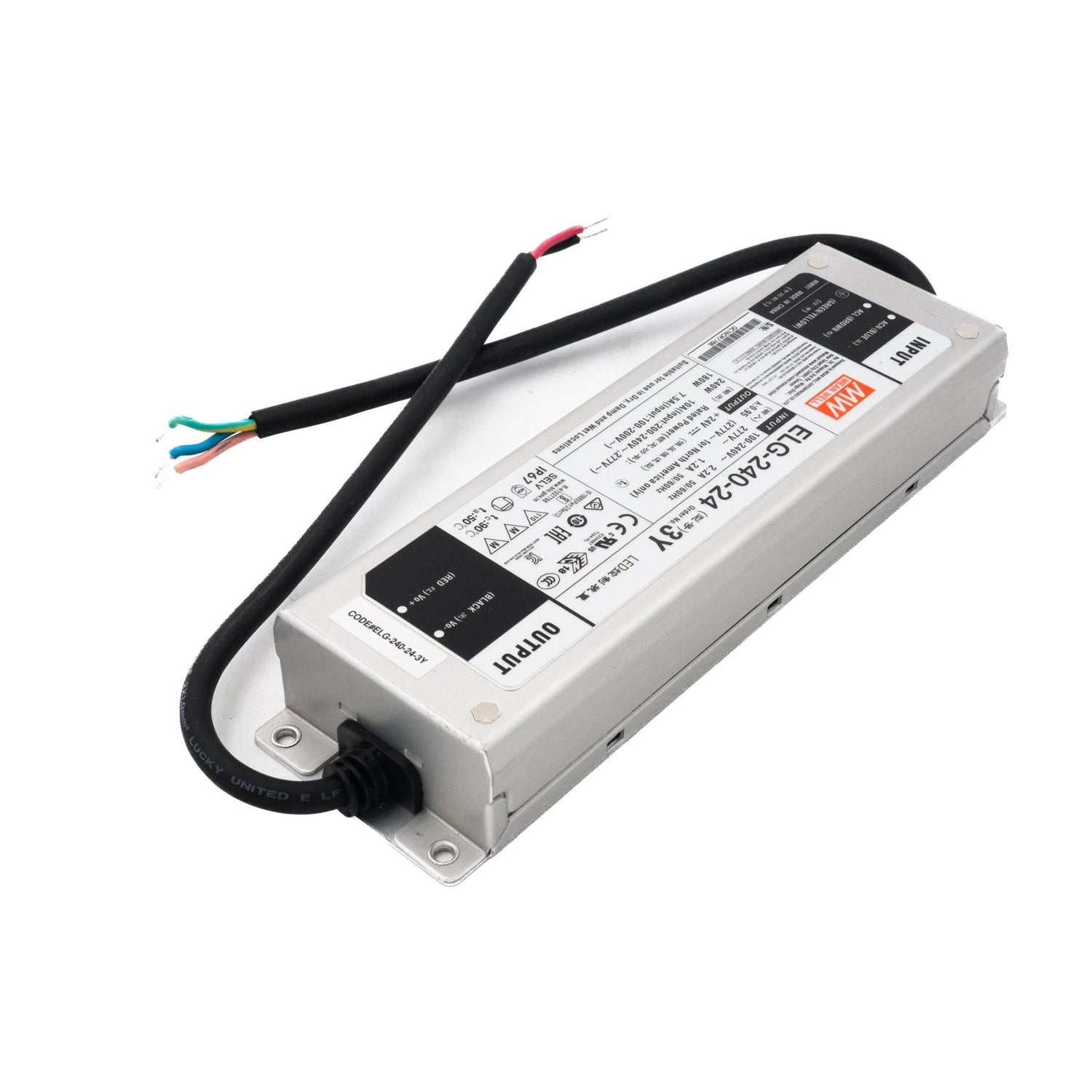

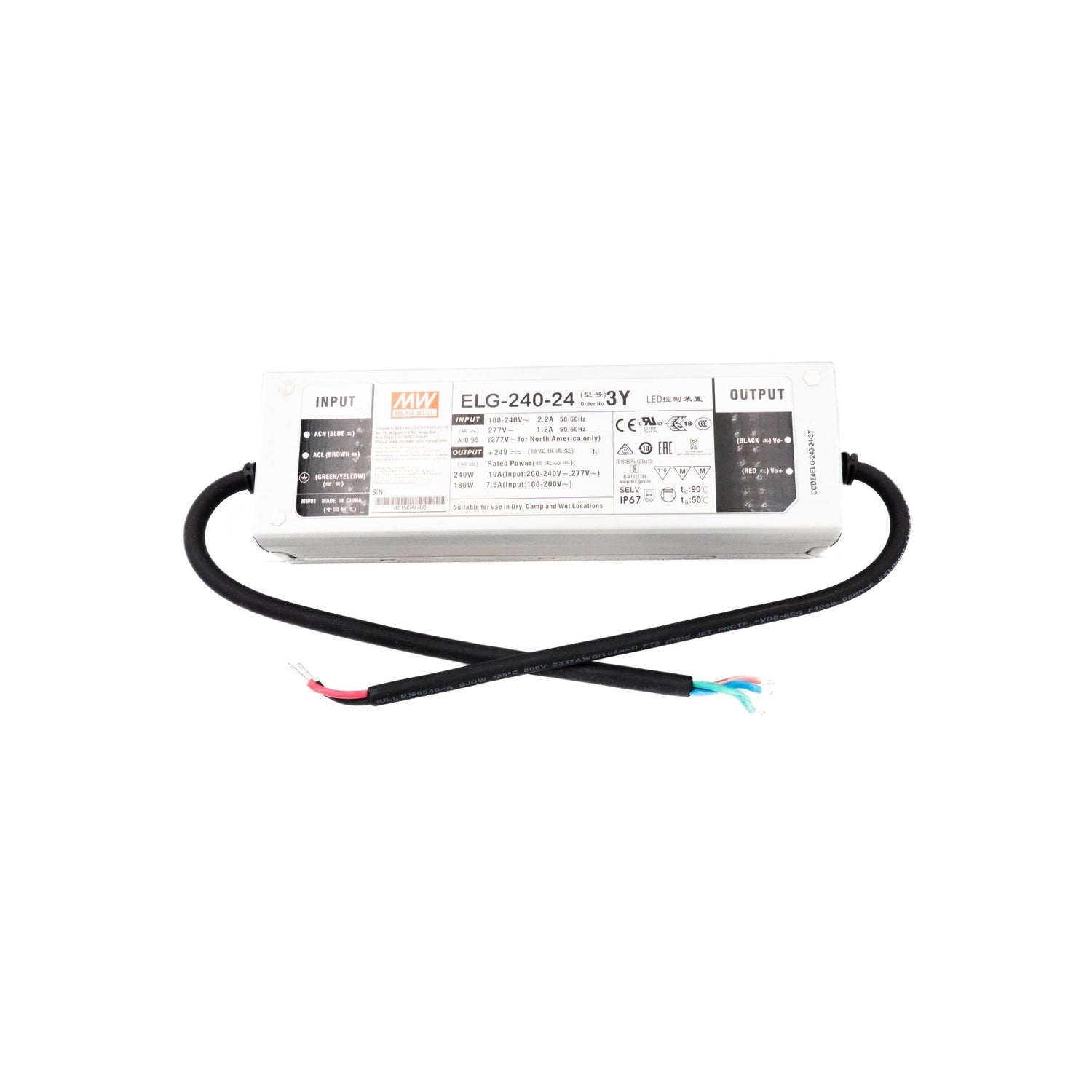

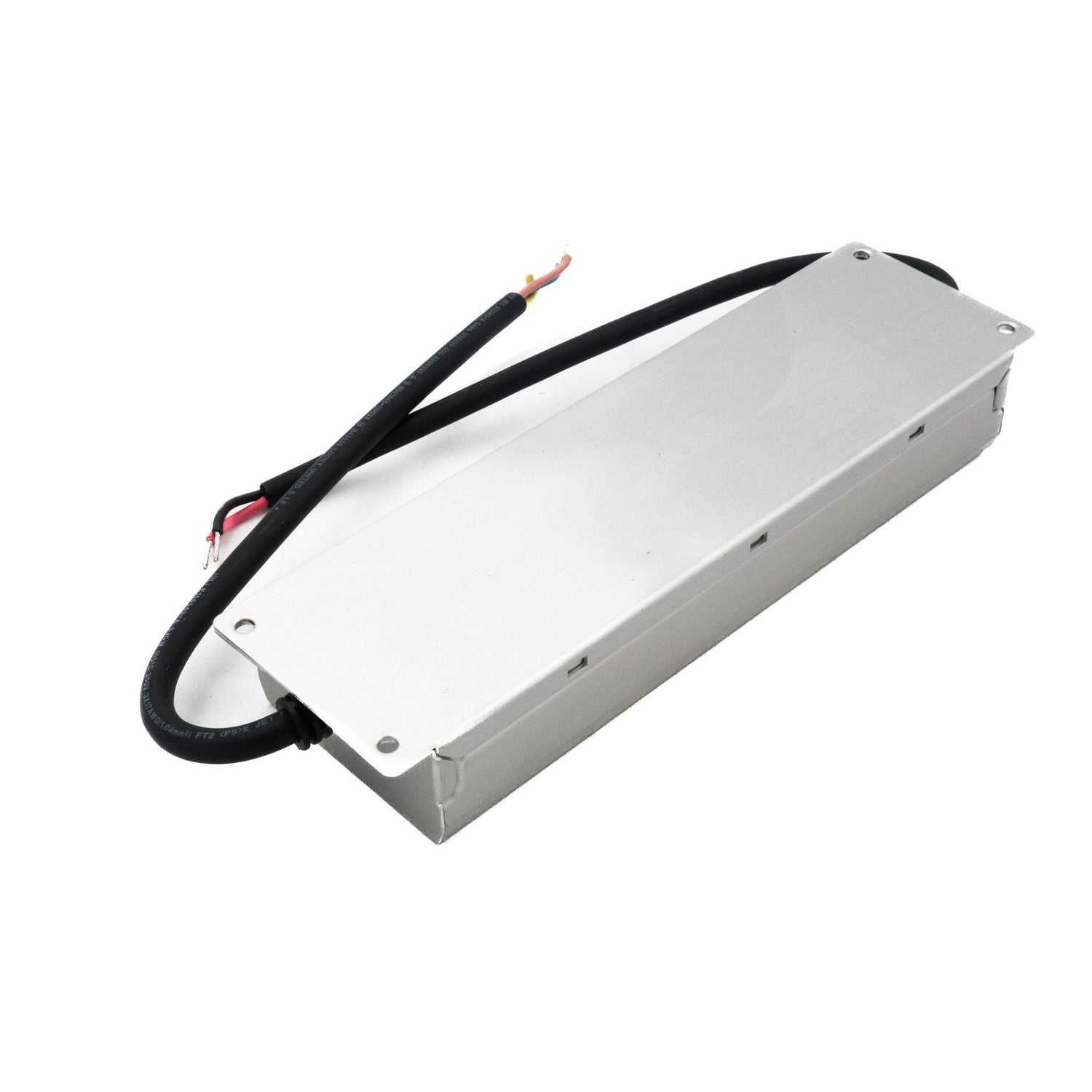

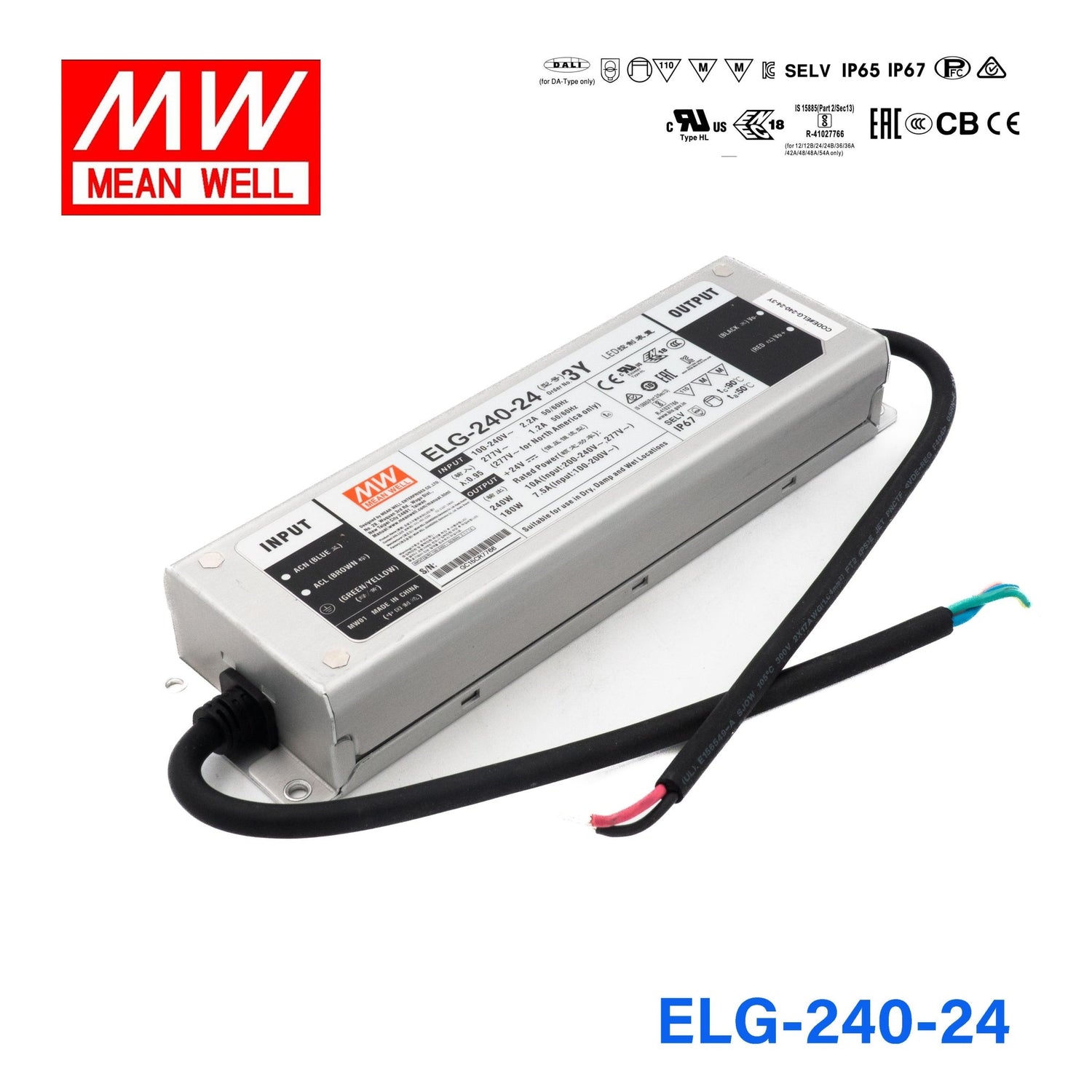

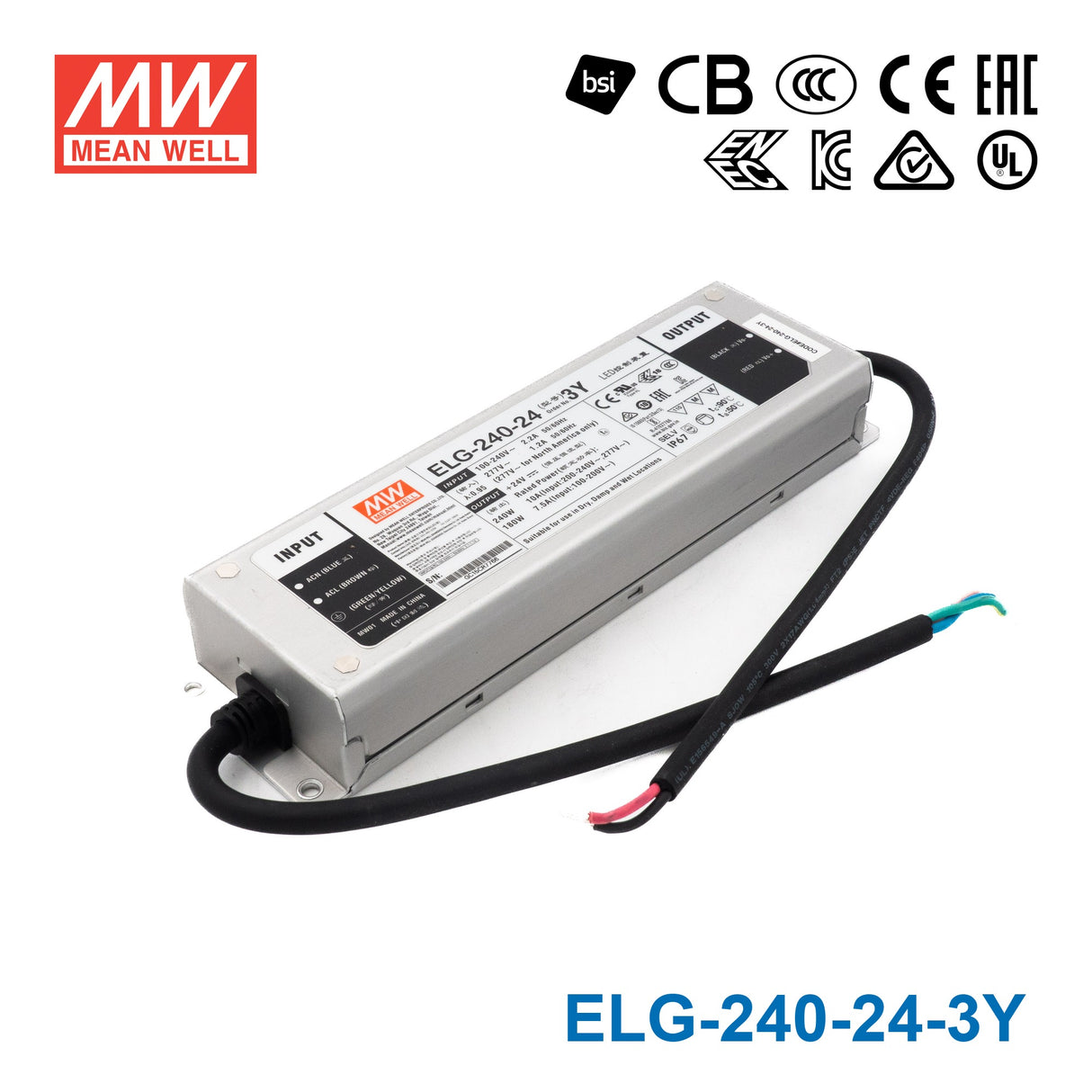

Mean Well ELG-240-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-240-24-3Y AC-DC Single output LED Driver Mix Mode (CV...
Description
Description
The ELG-240-24 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & DALI STANDARDS EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What makes the ELG-240-24-3Y different from the standard ELG-240-24?
The '-3Y' designation indicates this variant is tested and certified specifically to the 3Y safety class requirements. Both deliver 240W at 24V with 10A output and share IP67 waterproof construction, but the ELG-240-24-3Y carries BSMI, CB, CE, EAC, and UL certifications tailored to markets requiring that classification.
Can the ELG-240-24-3Y power 24V LED strips in a wet outdoor environment?
Yes. The IP67 waterproof rating seals the driver against complete, temporary water immersion, making it appropriate for outdoor LED strip installations in fountains, pool surrounds, or other wet-area applications. The operating range of -40°C to +90°C accommodates harsh outdoor climates.
Is the ELG-240-24-3Y suitable for powering 24V LED channel letters on building exteriors?
Yes. At 240W and 24V it provides ample power for medium-to-large channel letter or illuminated sign cabinets using 24V LED modules. The IP67 rating keeps the driver protected when mounted behind signs exposed to outdoor weather.
How many meters of 24V LED strip can the ELG-240-24-3Y support?
The driver outputs 240W at 24V. For 24V strip rated at 20W per meter: 240W ÷ 20W/m = 12m at full rated load. For continuous duty apply an 80% derating, giving approximately 9.6 meters. Check your strip's rated power per meter and apply the same calculation.
Can the ELG-240-24-3Y be used in a transit or transportation lighting application?
Yes. The wide 100–305VAC input range, IP67 waterproof seal, and -40°C to +90°C temperature range make this driver appropriate for 24V LED lighting in bus shelters, railway platform canopies, or other public transport infrastructure exposed to weather extremes.
Other ELG-240 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ELG-240-24DA Power Supply 240W 24V - DALI | 240W | 24V | 10A | IP67 | $61.09 | View |
| Mean Well ELG-240-36A Power Supply 240W 36V - Adjustable | 239.76W | 36V | 6.66A | IP65 | $52.87 | View |
| Mean Well ELG-240-48A-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC | — | — | — | IP65 | $49.17 | View |
| Mean Well ELG-240-48DA-3Y Power Supply 240W 48V 3-wire Input - DALI | 240W | 48V | 5A | IP67 | $59.32 | View |
