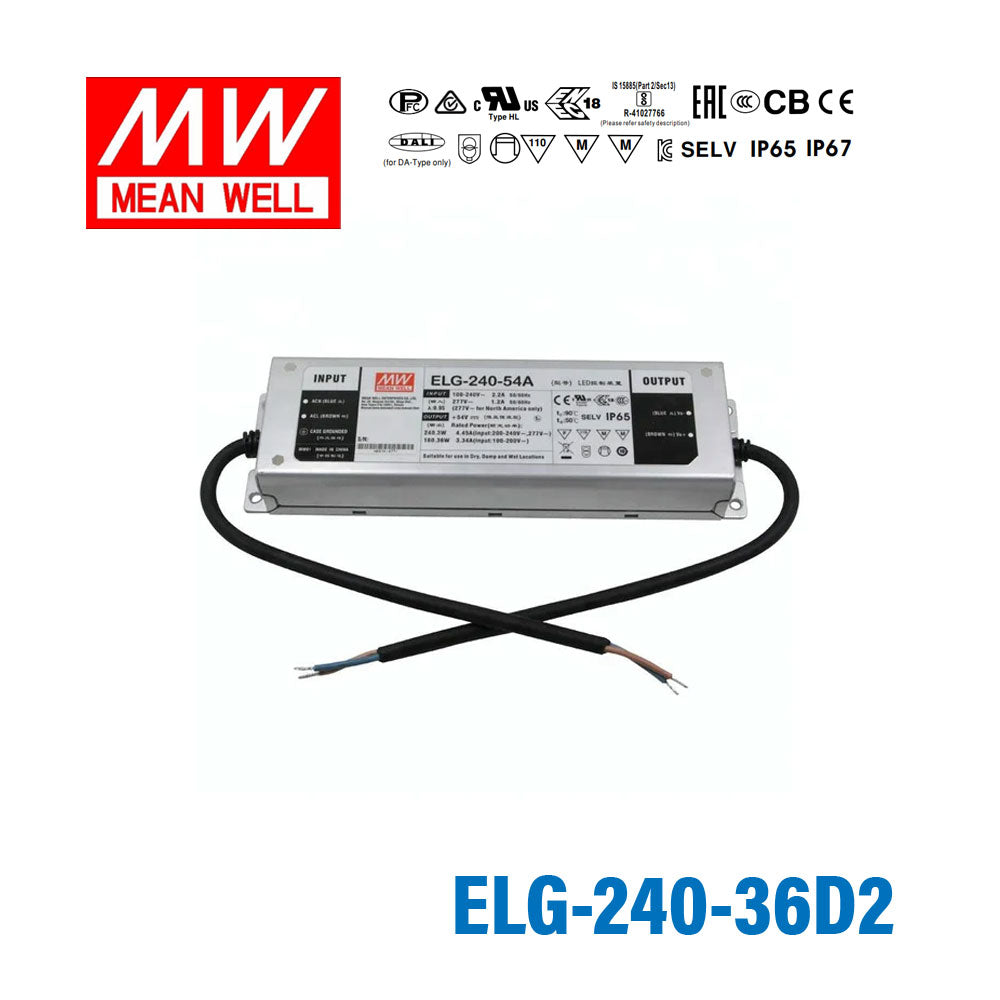

Mean Well ELG-240-36D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Is the ELG-240-36D2 suitable for wet or outdoor LED installations?
Yes. The ELG-240-36D2 is rated IP67, fully sealed against dust and protected against temporary water immersion. It is appropriate for outdoor signage enclosures, landscape fixtures, and other wet-location LED applications.
How many meters of 36V LED strip can the ELG-240-36D2 run?
The ELG-240-36D2 delivers 240W at 36V. At 14.4 W/m strip density that equates to approximately 16.7 m (240 ÷ 14.4). Check your strip's specific rated wattage per meter and derate by 20% for continuous-duty safety.
Can the ELG-240-36D2 power 36V LED fixtures in a transit or transportation environment?
Yes. The –40°C to +90°C operating range and IP67 waterproof housing make this driver suitable for transportation infrastructure LED lighting such as tunnel approach signs, platform edge lighting, or underpass illumination.
Is this driver appropriate for 36V LED strips used in covered parking or car park installations?
Yes. Parking structures often expose drivers to moisture and dust; the IP67 rating on the ELG-240-36D2 provides reliable protection in those environments. Its 240W capacity supports extended runs of 36V LED strips across parking bays or access ramps.
Can the ELG-240-36D2 be used to supply 36V LED retrofit panels in industrial facilities?
Yes. The wide 100–305VAC input and 240W output make this driver suitable for industrial retrofit projects replacing fluorescent high-bay or strip lighting with 36V LED panels. The IP67 sealed housing provides additional protection in dusty or wet factory environments.
Does the ELG-240-36D2 support dimming?
Yes. The D2 suffix indicates 0–10V or PWM dimming capability, allowing the driver to be controlled by standard building lighting control systems. This is useful in industrial or commercial applications that require occupancy-responsive or scheduled dimming.
