Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

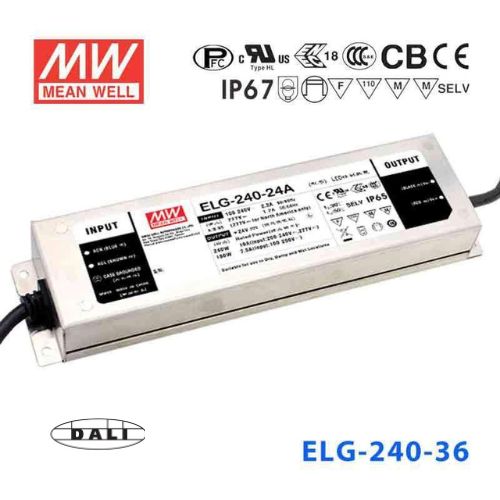

Mean Well ELG-240-36DA Power Supply 240W 36V - DALI
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating239.76 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Is the ELG-240-36DA rated for outdoor or wet-location use?
Yes. The ELG-240-36DA carries an IP67 waterproof rating, making it fully sealed against dust and capable of withstanding temporary water immersion. It is suitable for outdoor or wet-area installations where condensation or rain exposure is a concern.
How many meters of 36V LED strip can the ELG-240-36DA support?
The ELG-240-36DA outputs 239.76W at 36V. Dividing 239.76 by your strip's rated watts per meter gives the maximum run length — for a 10 W/m strip that is approximately 24 meters. Verify your strip's rated power per meter and apply a 20% safety derating.
Can the ELG-240-36DA integrate with a DALI building automation system?
Yes. The DA suffix specifically indicates DALI (Digital Addressable Lighting Interface) dimming support. This driver can be addressed and controlled individually on a DALI bus, making it appropriate for intelligent building lighting management systems.
Is the ELG-240-36DA suitable for museum or gallery LED lighting requiring precise dimming control?
Yes. The DALI interface provides fine-grained, digitally addressable dimming that is well suited to museum or gallery environments where precise lumen output control is needed for artwork preservation and ambiance. The 239.76W at 36V supports substantial LED track or cove loads.
Can this driver power 36V LED linear luminaires in office or commercial fit-out projects?
Yes. The ELG-240-36DA's DALI capability pairs naturally with office lighting control systems. At 239.76W it can supply multiple 36V LED linear fixtures, and the IP67 housing provides durability during construction phases before suspended ceilings are installed.
Does the ELG-240-36DA operate over a wide input voltage range for international use?
Yes. The driver accepts 100–305VAC input, covering all standard global mains voltages. This makes it suitable for international projects or buildings supplied by both 120V and 230V mains without requiring a different driver SKU.
