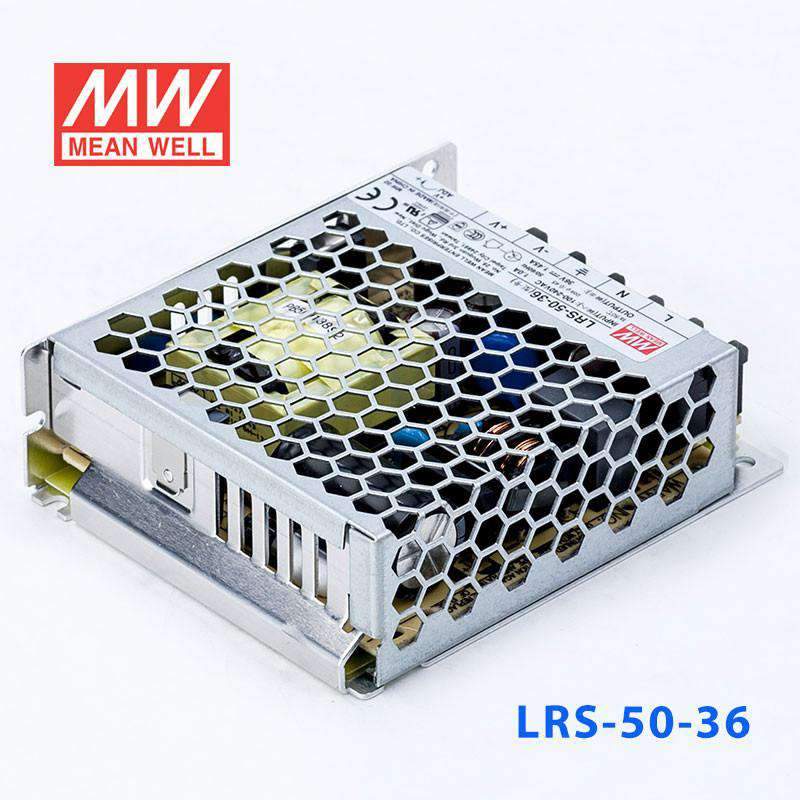

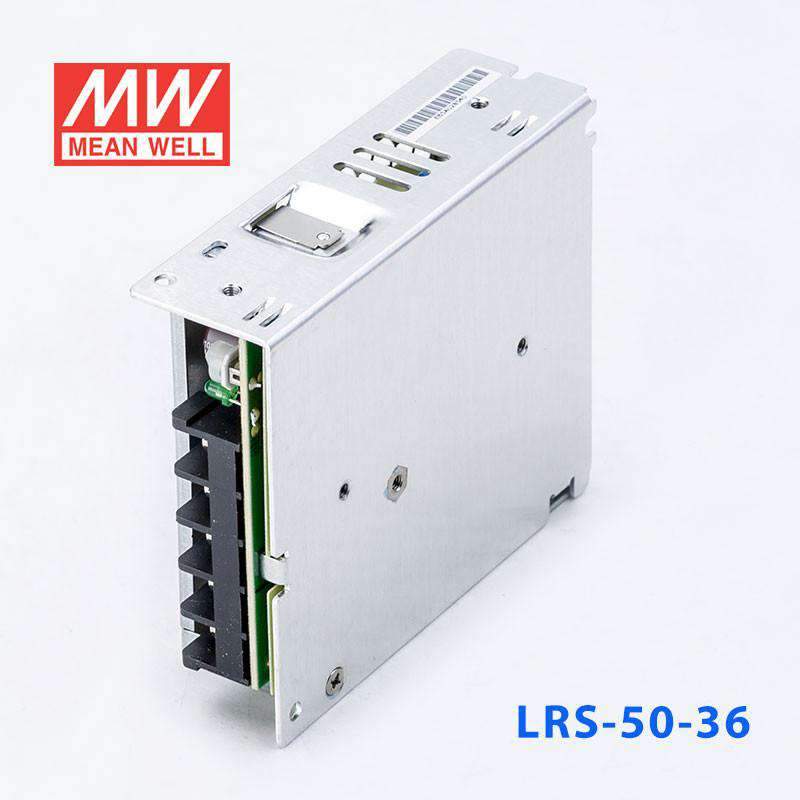

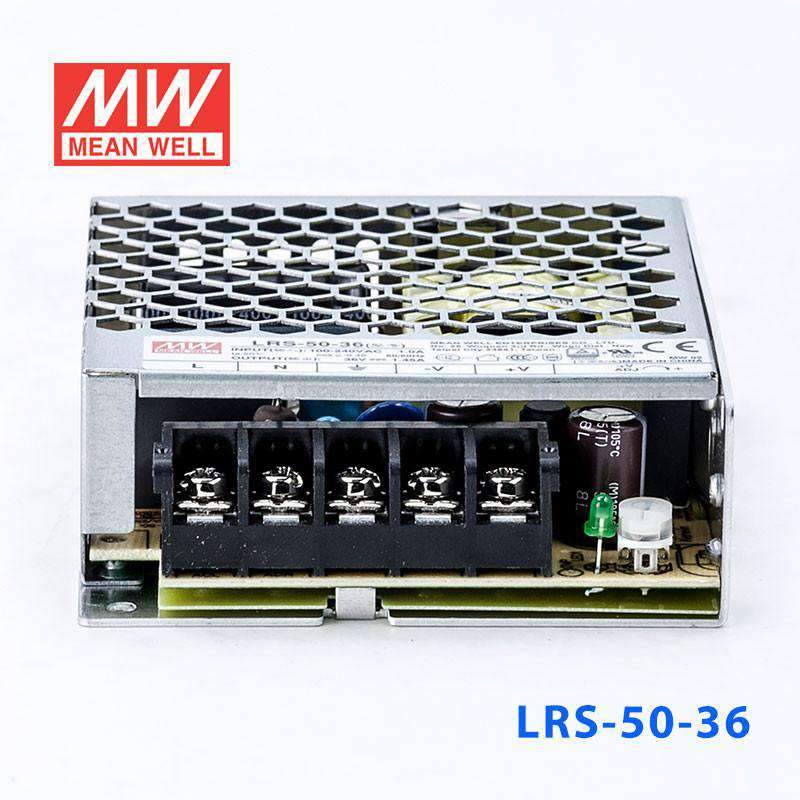

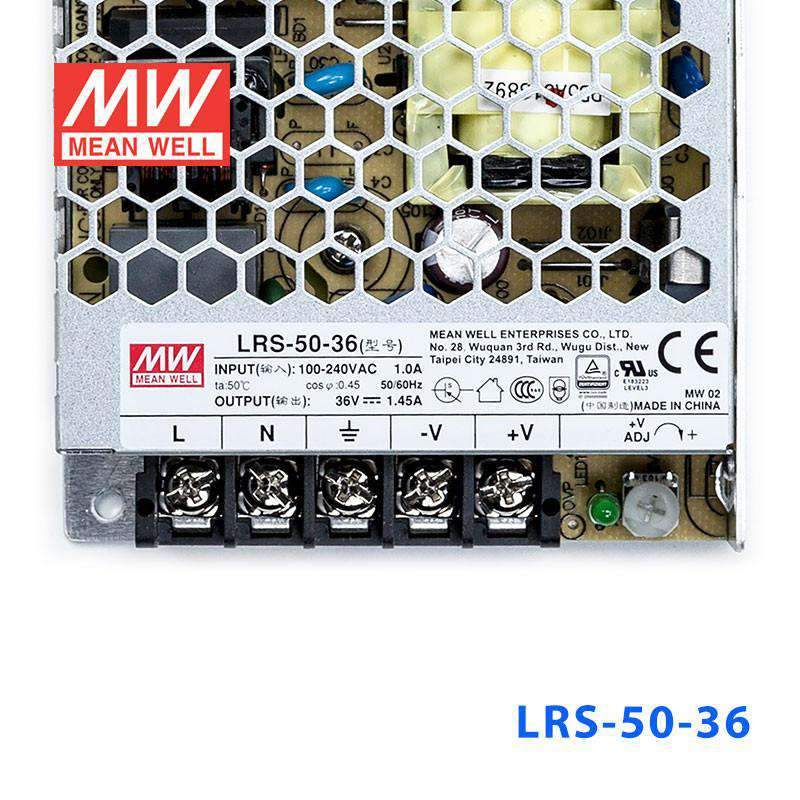

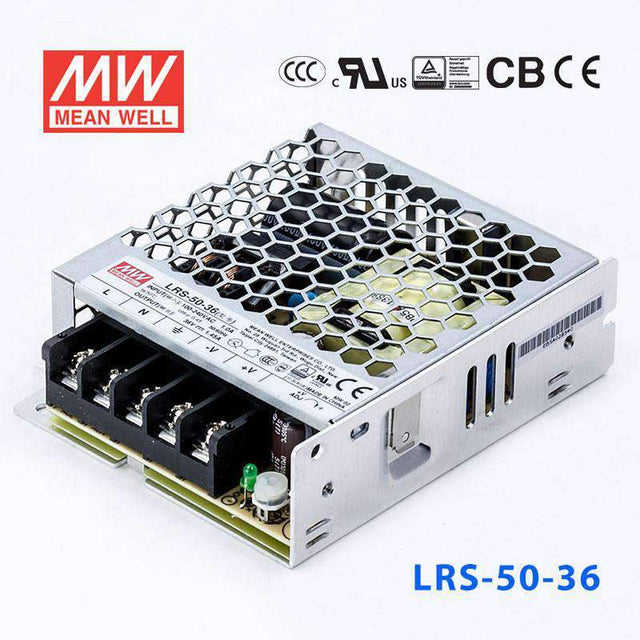

Mean Well LRS-50-36 Power Supply 50W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-50-36 Power Supply 50W 36V
No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100WUniversal AC input / Full rangeWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltageCooling by free air convectionCompliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliancesOperating altitude up to 5000 metersHigh efficiency, long life and high reliabilityLED indicator for power onLow cost3 years warranty
Key Features
- ✓85~264VAC; 120~370VDC
- ✓Cold start, 45A at 230VAC
- ✓±10% by potentiometer
- ✓110%~150%
- ✓Type Hiccup mode, auto-recovery
- ✓115%~135% rated output voltage
- ✓Shut down o/p voltage, re-power on to recover
- ✓3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
- ✓-30~+70°C (refer to output derating curve)
- ✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
- ✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
- ✓5P/9.5mm pitch terminal block
- ✓99x 82x 30
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating52.2 Watt
-
Output Voltage36 Volt
-
Rated Current1.45 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.18 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
What 36V low-power applications suit the LRS-50-36?
The LRS-50-36 delivers 36V at 1.45A (52.2W), suitable for powering small 36V brushless DC motors in light-duty automation, 36V battery chargers at low current, and compact 36V sensor networks. Its 99 × 82 × 30 mm form factor fits confined control enclosures.
How does the LRS-50-36 compare to the LRS-50-48 and LRS-50-24?
All share the same 99 × 82 × 30 mm case and 0.21 kg weight. LRS-50-24 (52.8W, 2.2A), LRS-50-36 (52.2W, 1.45A), LRS-50-48 (52.8W, 1.1A). The wattage is nearly identical across the three; the key difference is the output voltage and resulting current, so the selection depends on the target load's required voltage.
Is the LRS-50-36 suitable for cold storage or unheated industrial spaces?
The LRS-50-36 operates from -30°C to +70°C, making it one of the more cold-tolerant models in the LRS family. This allows use in unheated warehouses, refrigerated storage control panels, or cold-climate outdoor enclosures within a suitable protective cabinet.
What certifications does the LRS-50-36 carry, and which markets does it cover?
The LRS-50-36 holds BSMI, CB, CCC, CE, EAC, RCM, TÜV, and UL certifications. This covers North America (UL), Europe (CE, TÜV), Australia/New Zealand (RCM), China (CCC), Taiwan (BSMI), and Eurasia (EAC), supporting broad international deployment.
