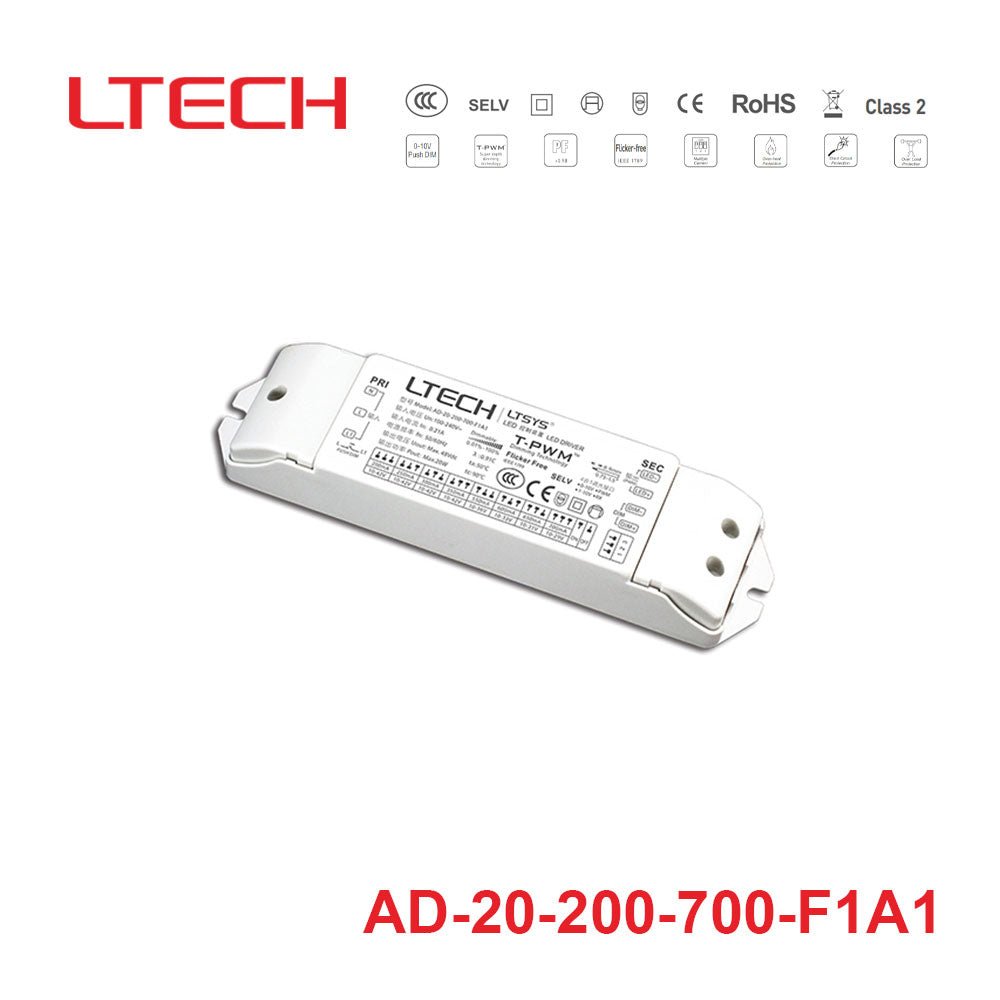

LTECH AD-20-200-700-F1A1 20W 200 ~ 700mACC 0/1-10V LED Driver - Selectable Output

• Dimming interface: 0-10V (1-10V/10V PWM/RX)
• Push Dim
• T-PWM digital dimming
• With soft-on and fade in function
• visual more comfortable.
• Automatic recognition of 0-10V
• 1-10V input signal
• Innovative thermal management technology
• intelligent power life protection.
• Dimming range:0~100%
• LED start at 0.01% possible.
• 0-100% flicker-free
• High Frequency Exemption
• Multi-current & wide voltage
• suitable for different power LED.
• Over load / Over-heat / Short circuit protection
• Suitablefor internal lights application for I/II/III

• Brand
  Ltech
• Series
  Ltech 0/1-10V Series
• Power Rating
  20 Watt
• Output Voltage
  58 Volt
• Rated Current
  0.2 Ampere
• Input Voltage
  100V~277V
• No of Output
  1
• Dimming Control
  0-10V,1-10V
• Standards Met
  CB,CCC,CE,EMEC,RCM,ROHS,TUV
• Operation Mode
  Constant Current
• Operating Temperature
  -30°C~55°C
• Warranty
  5 Year
• Length
  6.89 in
• Width
  1.73 in
• Height
  1.18 in
• Weight
  0.4 lb
