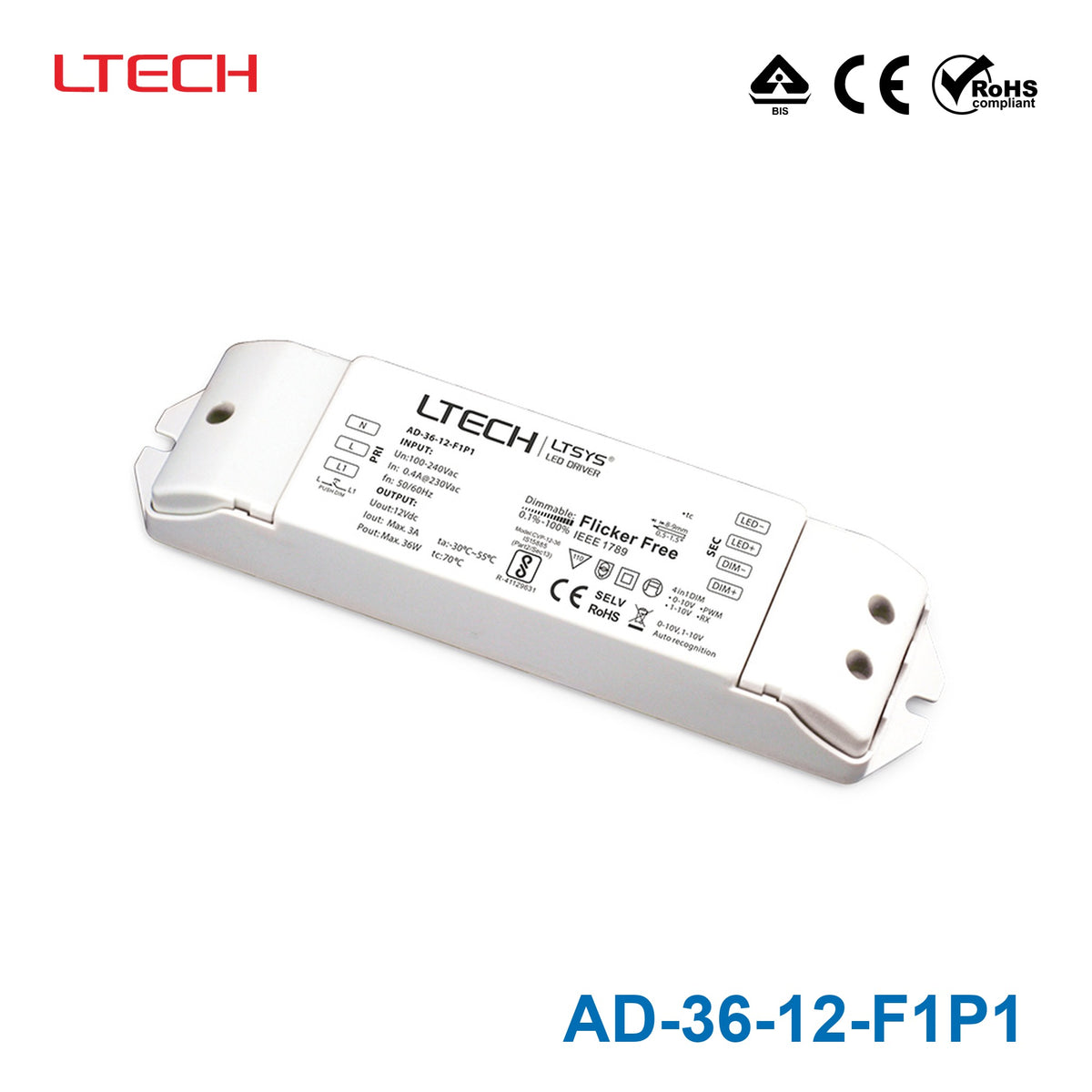

LTECH AD-36-12-F1P1 36W 12Vdc CV LED Driver - 0/1-10Vdimmable 3A
The AD-36-12-F1P1 is a constant-voltage 12Vdc LED driver intended for indoor lighting applications. It is suited to installations that need a 12V power supply with 0-10V or 1-10V dimming capability and a 36W output rating.
Input 100~240VAC. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 100~240VAC
- ✓Dimming: 0-10V, 1-10V
- ✓Output voltage: 12V
- ✓Rated output current: 3A
- ✓Rated power: 36W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
What type of LED applications is the LTECH AD-36-12-F1P1 designed for?
This model is a constant-voltage 12Vdc LED driver intended for indoor lighting applications. It is suited to installations that need a 12V power supply with 0-10V or 1-10V dimming capability and a 36W output rating.
What are the main electrical ratings of the LTECH AD-36-12-F1P1?
The AD-36-12-F1P1 is rated for 36W output at 12Vdc with a rated current of 3.0A. These published ratings make it a constant-voltage driver for compatible 12V LED loads within that output capacity.
Does this LED driver support both 0-10V and 1-10V dimming?
Yes. The product data lists support for both 0-10V and 1-10V dimming control, and the description states automatic recognition of 0-10V and 1-10V input signals. It also specifies a dimming range of 0 to 100% with flicker-free performance.
How is this model different from a non-dimmable 12V LED driver?
The key difference is dimming capability: this model is built for 0-10V and 1-10V controlled dimming rather than simple fixed-output operation. It is intended for projects where light level control is required while still delivering a 12V constant-voltage output.
Is the LTECH AD-36-12-F1P1 suitable for harsh temperature conditions?
This driver is rated for operation from -30°C to 55°C. That gives it a relatively broad operating temperature range for indoor lighting environments, but it should still be used within those stated limits.
What protection features are included in this LED driver?
The product description lists short circuit, over-heat, and overload protection, with automatic recovery. It is also described as a Class 2 power supply with a full protective plastic housing and compliance with Safety Extra Low Voltage standards.
What warranty is offered for the LTECH AD-36-12-F1P1?
The stated warranty period for this model is 5 years. For B2B buyers, that can be useful when evaluating lifecycle expectations and replacement planning for lighting projects.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other AD-36 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| LTECH AD-36-24-F1P1 36W 24Vdc CV LED Driver - 0/1-10Vdimmable 1.5A | 36W | 24V | 1.5A | Indoor | $34.37 | View |
| LTECH AD-36-200-1200-E1A1 36W 200~1200mA CC 0/1-10V LED Driver - Selectable Output | 36W | 58V | 0.2A | — | $41.97 | View |
