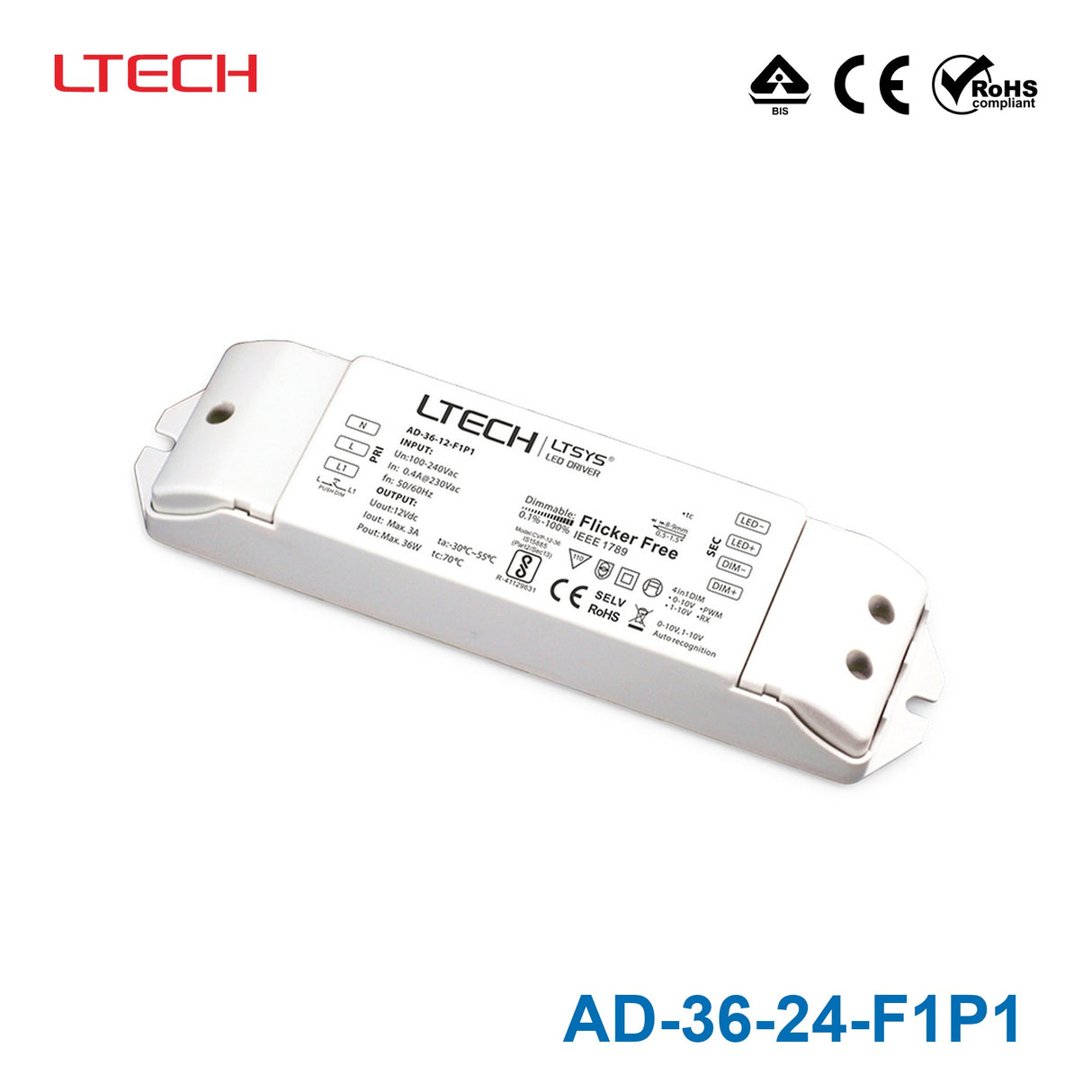

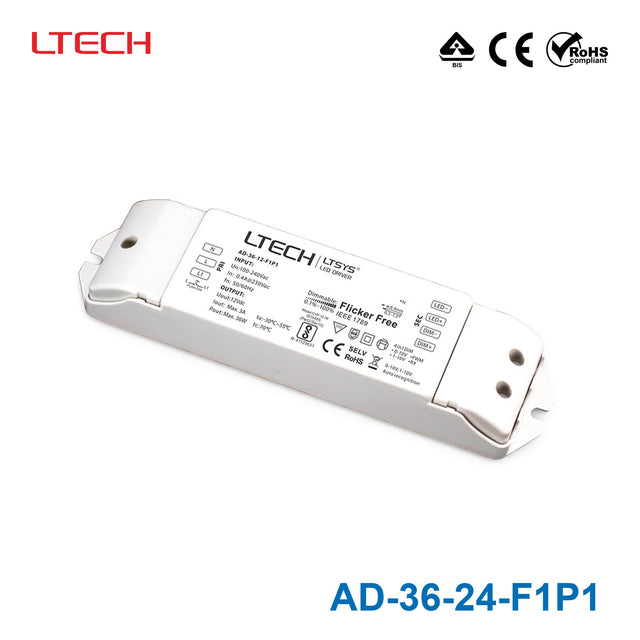

LTECH AD-36-24-F1P1 36W 24Vdc CV LED Driver - 0/1-10Vdimmable
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push Dim
- Built-in SCM
- dimming curve and smoothing time of power on can be customized
- Automatic recognition of 0-10V
- 1-10V input signal
- Dimming range:0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- achieve the level of exemption assessment.
- Short circuit / Over-heat / Over load protection
- recover automatically
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard
- Over load / Over-heat / Short circuit protection
- Suitable for indoor lamps application for I/II/III
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED driver is the LTECH AD-36-24-F1P1?
The LTECH AD-36-24-F1P1 is a constant-voltage LED driver rated at 24Vdc output. It delivers up to 36W with a rated current of 1.5A, making it suitable for 24V constant-voltage LED lighting applications that need dimming support.
What dimming controls does this LED driver support?
This model supports 0-10V and 1-10V dimming control. The product description also states automatic recognition of 0-10V and 1-10V input signals, with a dimming range of 0 to 100% and flicker-free performance across that range.
Is the AD-36-24-F1P1 suitable for indoor lighting projects?
Yes. The product description states that it is suitable for indoor lamps application for Class I, II, and III use cases. It is intended for indoor LED lighting systems that require a 24V constant-voltage dimmable driver.
What protection features are included in this LED driver?
The AD-36-24-F1P1 includes short-circuit, overload, and over-heat protection. The description states that it recovers automatically after these protection events, and it uses a full protective plastic housing as a Class 2 power supply.
What operating temperature range can this driver handle?
This model is rated for operation from -30°C to 55°C. That range makes it a practical choice for indoor environments where the ambient temperature stays within those specified limits.
What makes this model a good fit for dimmable 24V LED systems?
This driver combines a 24V constant-voltage output with 36W capacity and support for 0-10V and 1-10V dimming. It also offers 0 to 100% dimming, flicker-free performance, and the ability to start LEDs at 0.1%, which helps distinguish it for applications needing smooth low-end dimming.
What warranty comes with the LTECH AD-36-24-F1P1?
The listed warranty period for this model is 5 years. That gives buyers a defined long-term coverage window for this specific LED driver.
