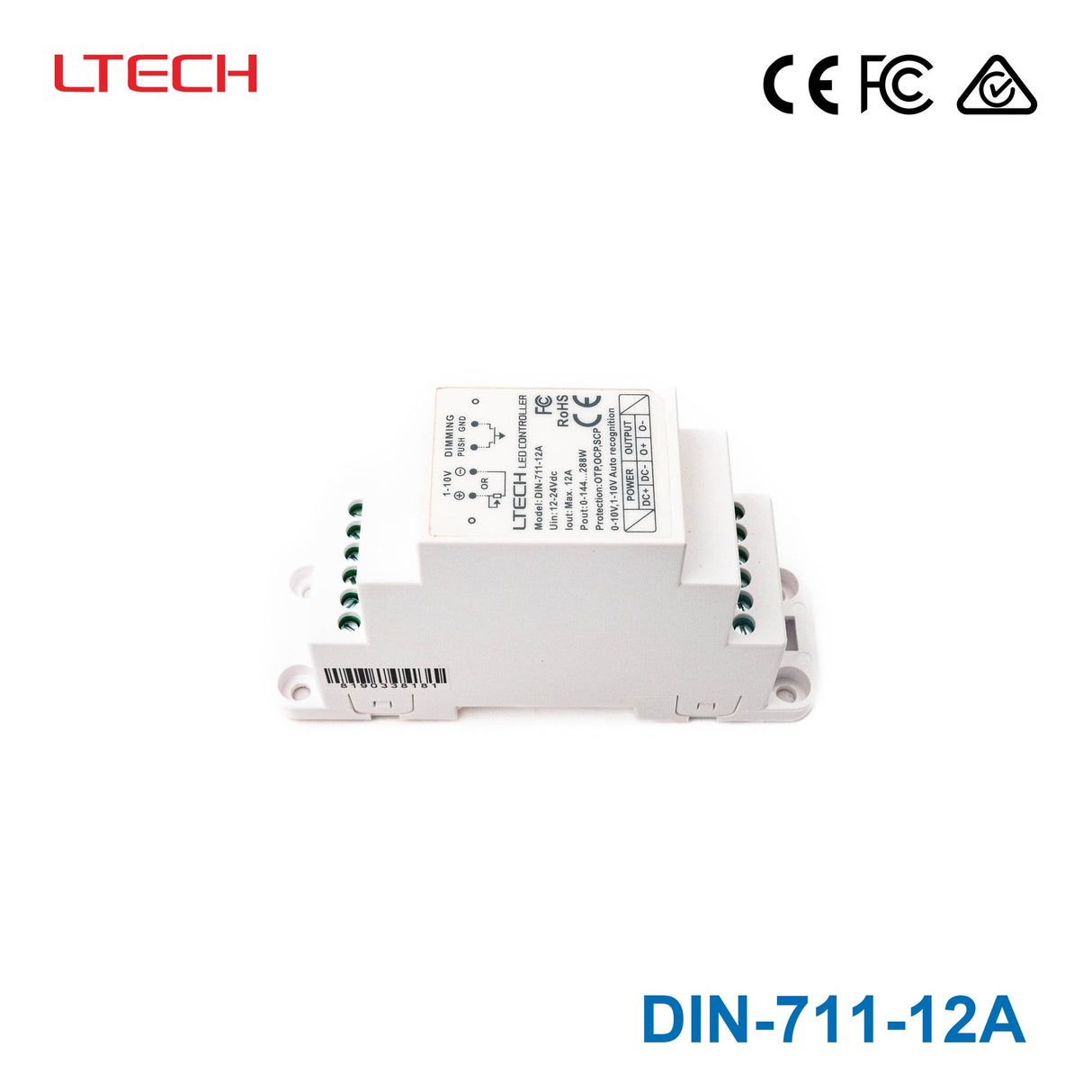

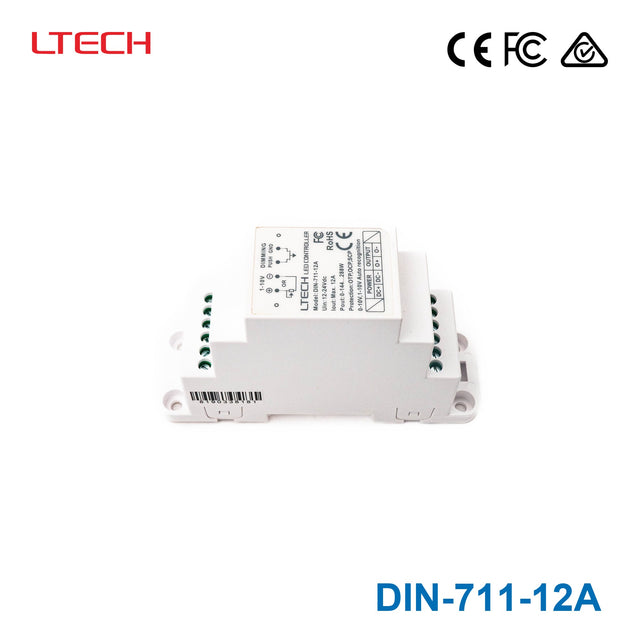

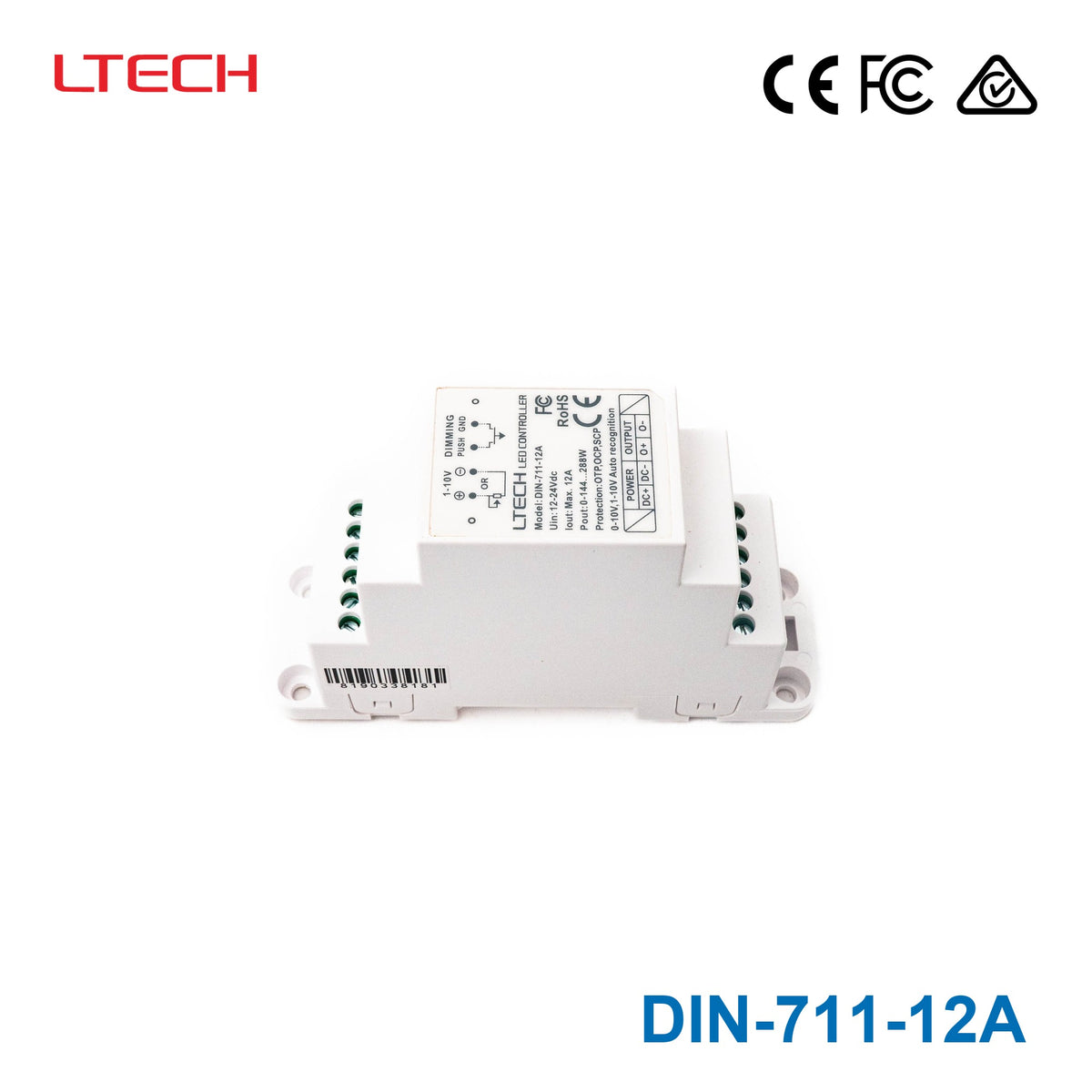

Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A
The Ltech DIN-711-12A is a 1-10V LED controller designed for dimming LED lighting systems. It also supports 0-10V, 10V PWM, and push-button dimming input methods, which makes it useful in commercial and building lighting control applications.
Input 12~24VDC. 1 channels at 12A each. Operating temperature -30~+55°C. Backed by a 3 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: 0-10V, 10V PWM, 1-10V, Push DIM
- ✓Output signal: Normal
- ✓Output channels: 12A - 1 Channel
- ✓Maximum load: 12A per channel
- ✓Maximum total load: 288W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 112 x 35 x 67mm
- ✓3 year warranty
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming Control0-10V,10V PWM,1-10V,Push Dimming
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty3 Year
-
Length4.41 in
-
Width1.38 in
-
Height2.64 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What does the Ltech DIN-711-12A control?
The Ltech DIN-711-12A is a 1-10V LED controller designed for dimming LED lighting systems. It also supports 0-10V, 10V PWM, and push-button dimming input methods, which makes it useful in commercial and building lighting control applications.
What dimming signal types are supported by this controller?
This model supports 0-10V, 1-10V, 10V PWM, and push-button dimming interfaces. It also includes automatic identification of 0-10V input, helping it work across multiple low-voltage dimming control approaches.
What are the electrical ratings of the DIN-711-12A?
The DIN-711-12A is rated for 24V output, 12A maximum current, and 288W power. These ratings make it suitable for higher-load 24V LED dimming applications where a single controller needs to handle substantial output capacity.
How smooth is the dimming performance on this model?
This controller uses PWM digital dimming and supports a dimming range from 0-100%. It also allows LED startup at as low as 0.1%, which is useful for applications that need very low-end dimming performance.
Is the Ltech DIN-711-12A suitable for indoor commercial environments?
Yes, this model is specified for indoor environments and uses a full protective plastic housing. Its DIN rail form factor and broad control signal support make it a practical option for indoor lighting control panels and commercial LED systems.
What operating temperature range does this controller support?
The DIN-711-12A is rated for operation from -30°C to 55°C. That range supports use in a wide variety of indoor environments where control equipment may be exposed to colder or warmer conditions.
Does this controller include protection features?
Yes, the Ltech DIN-711-12A includes short-circuit and overload protection. These built-in protections help safeguard the controller in demanding LED control applications.
What warranty is offered for the DIN-711-12A?
This model includes a 3-year warranty period. That warranty term can be useful for buyers evaluating long-term support and lifecycle expectations for commercial LED control components.
