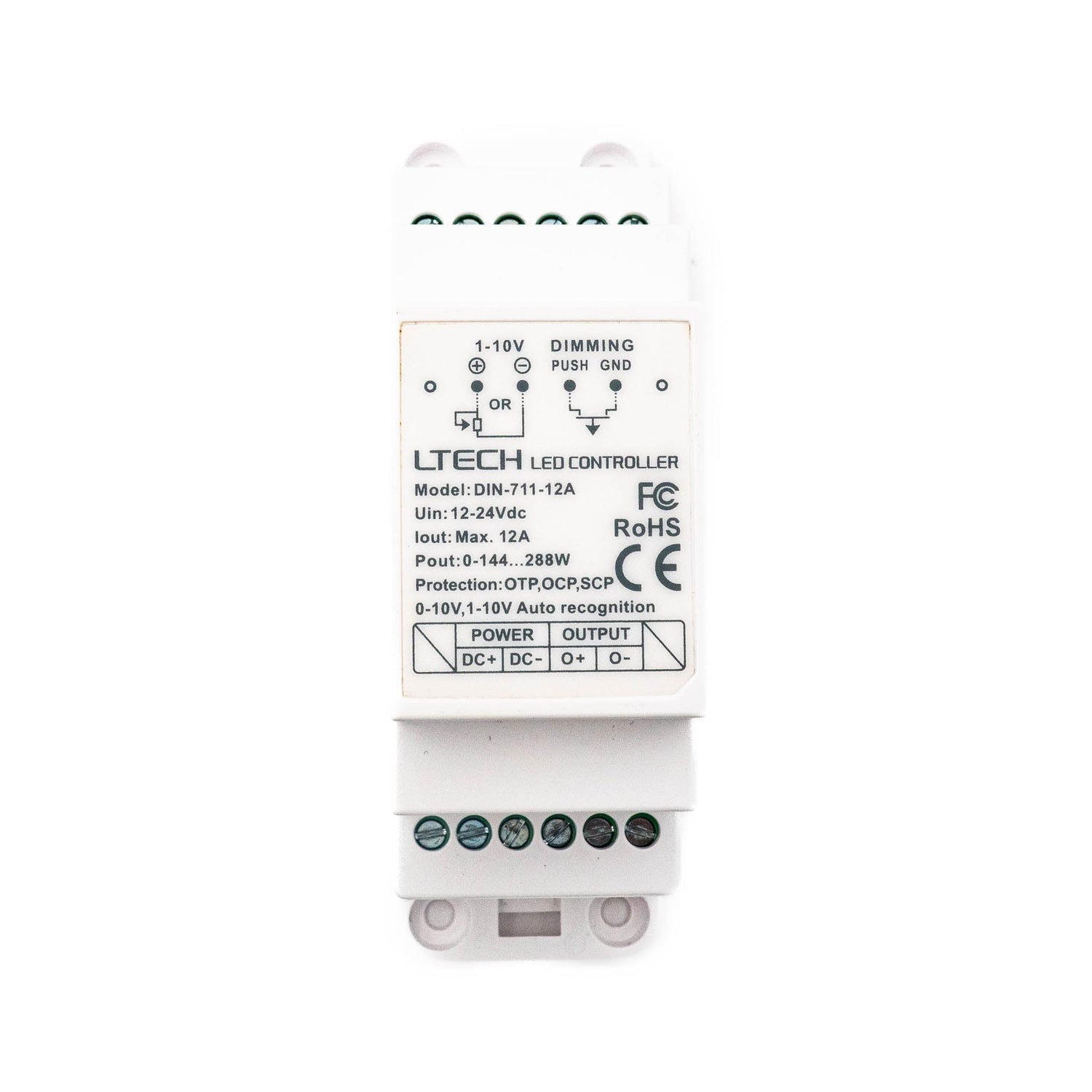

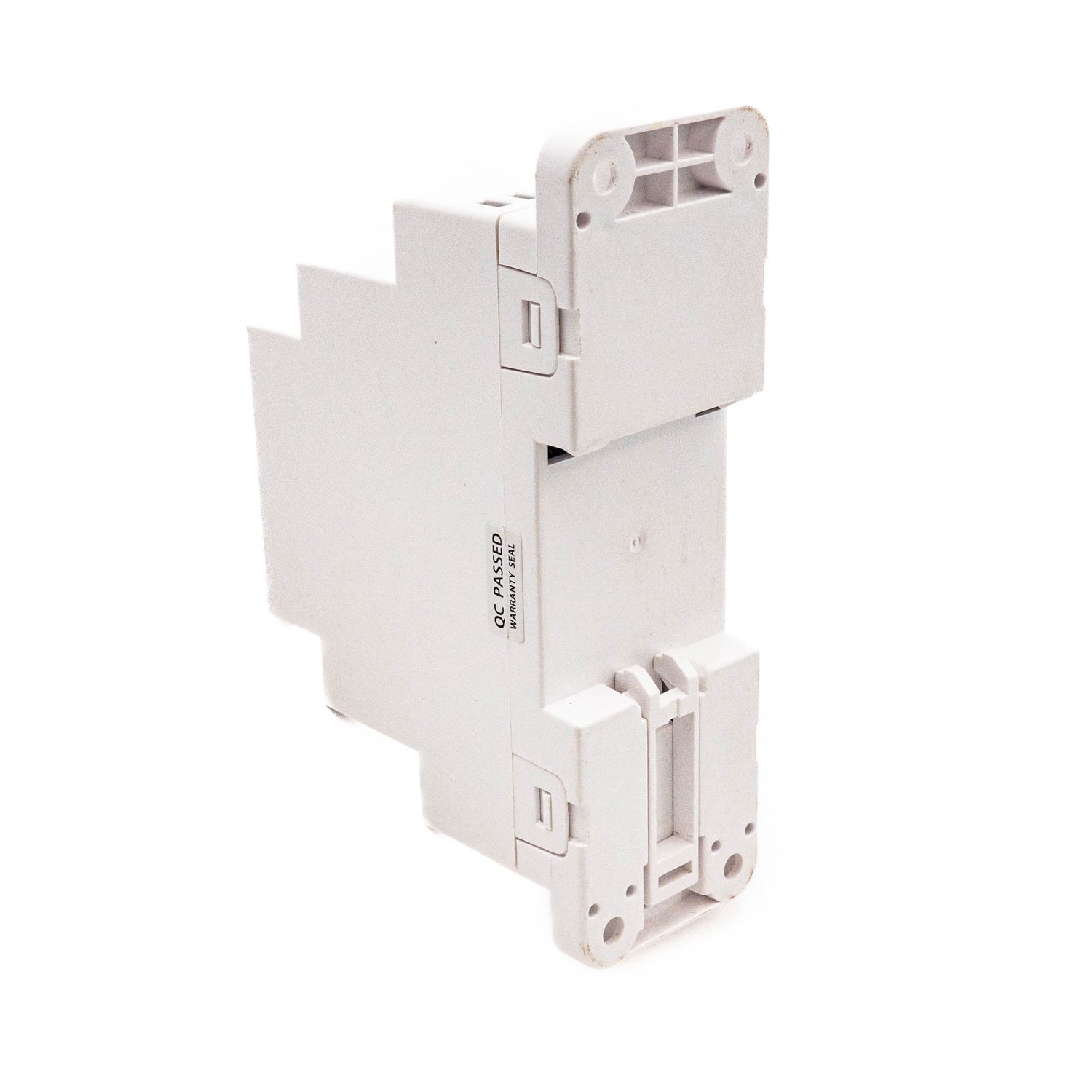

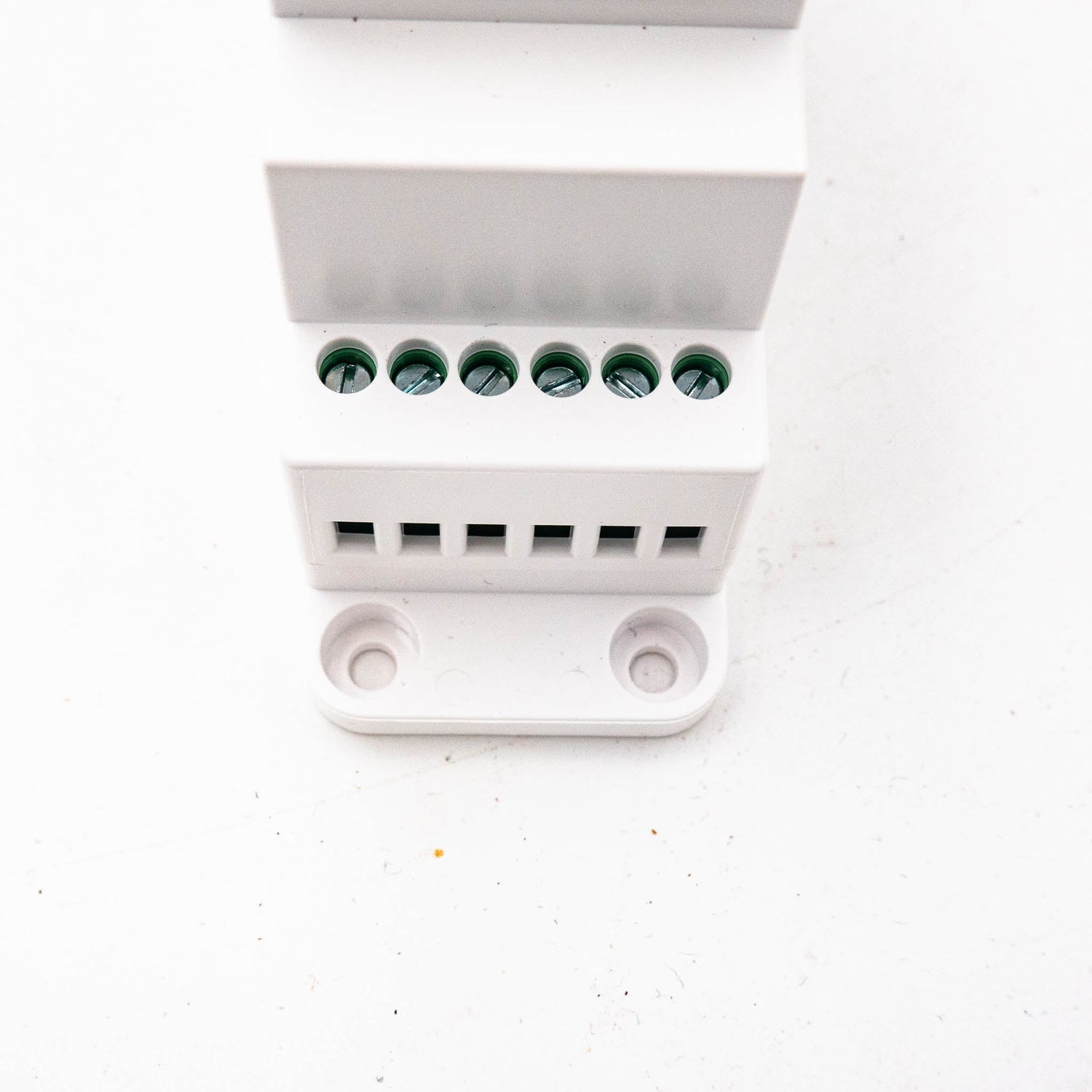

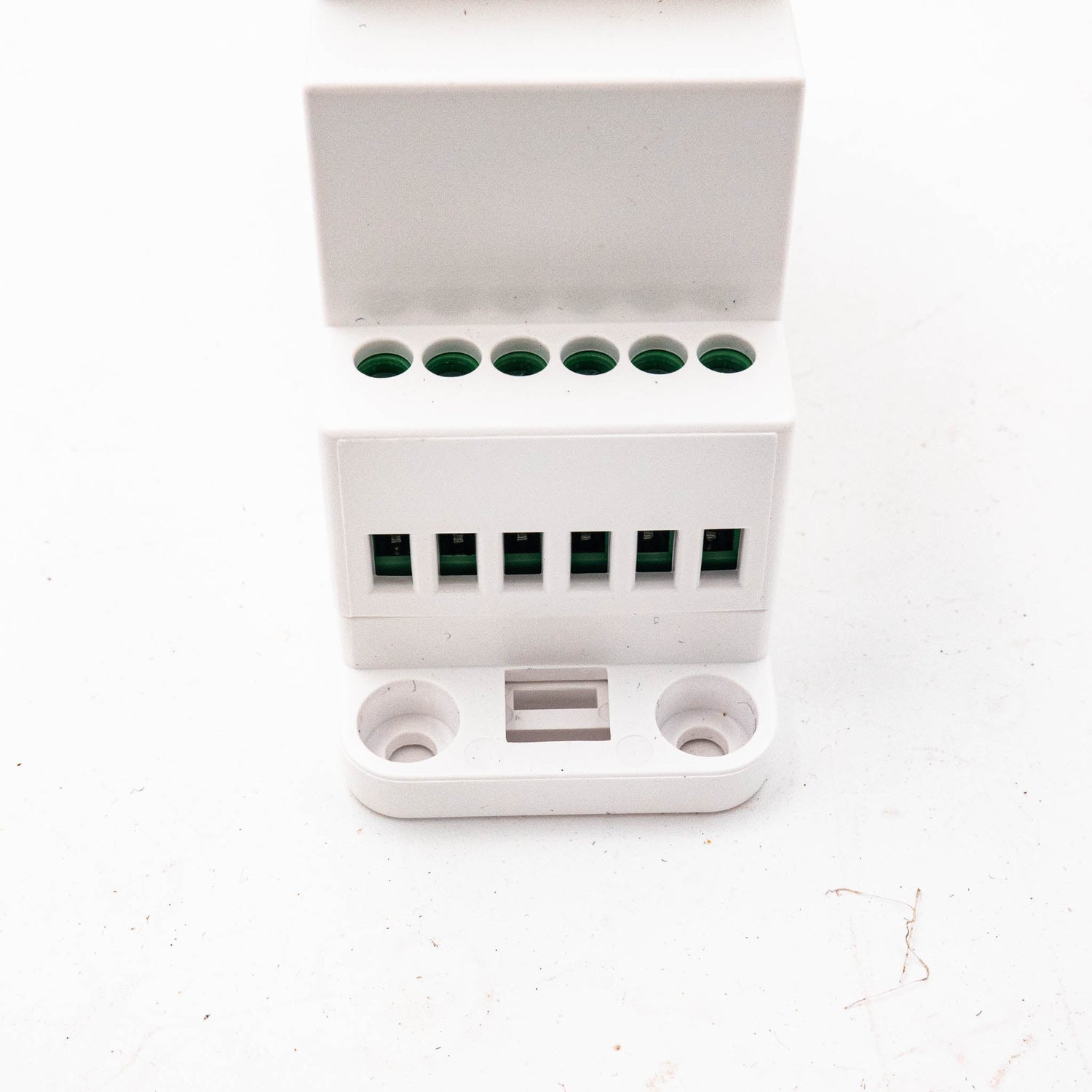

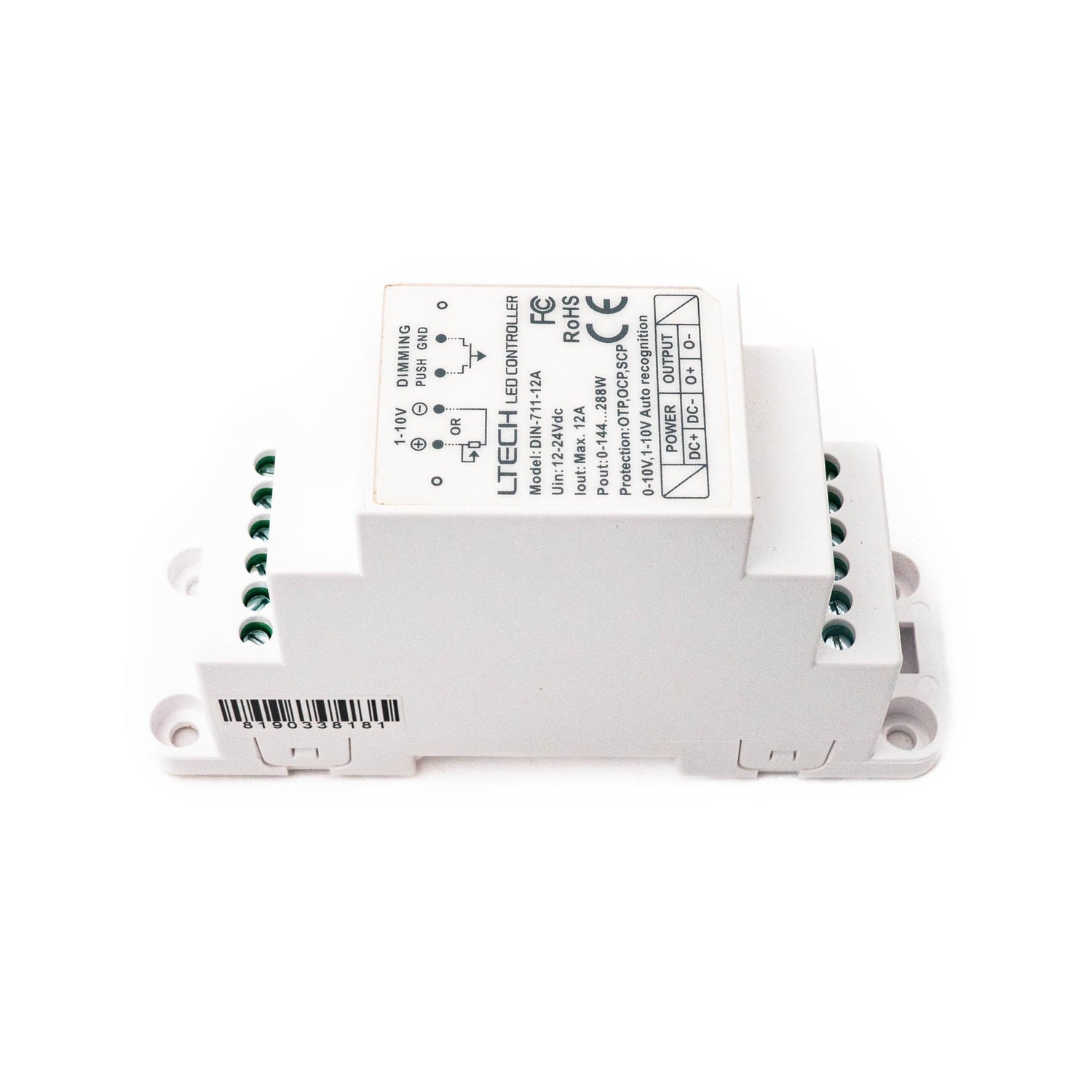

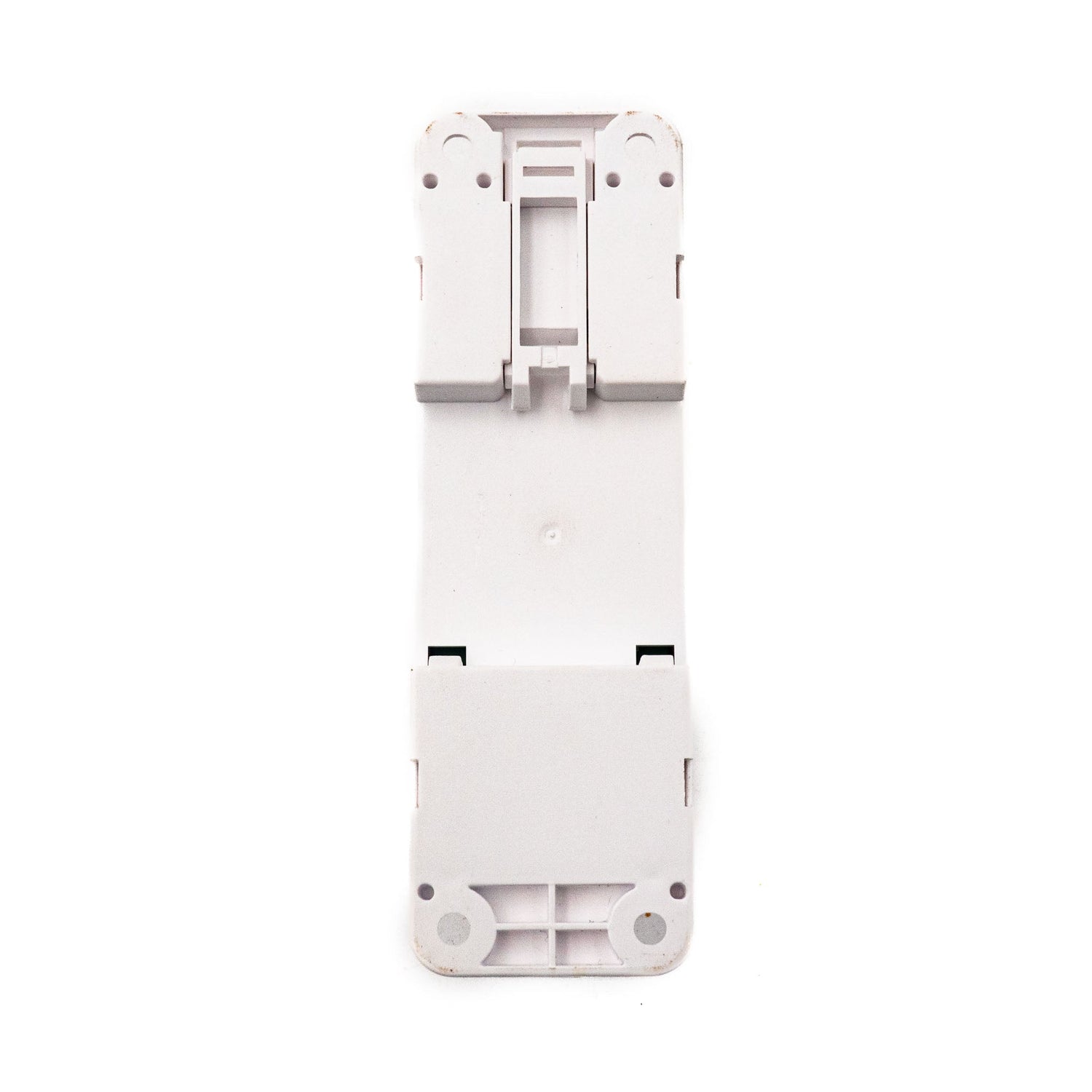

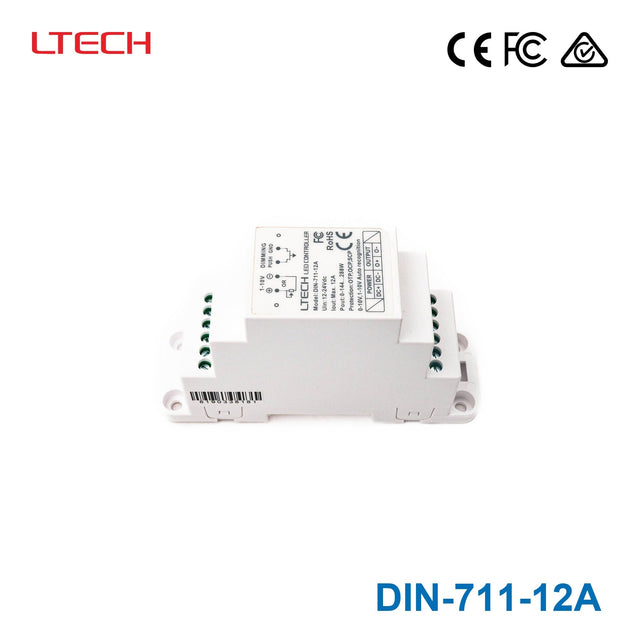

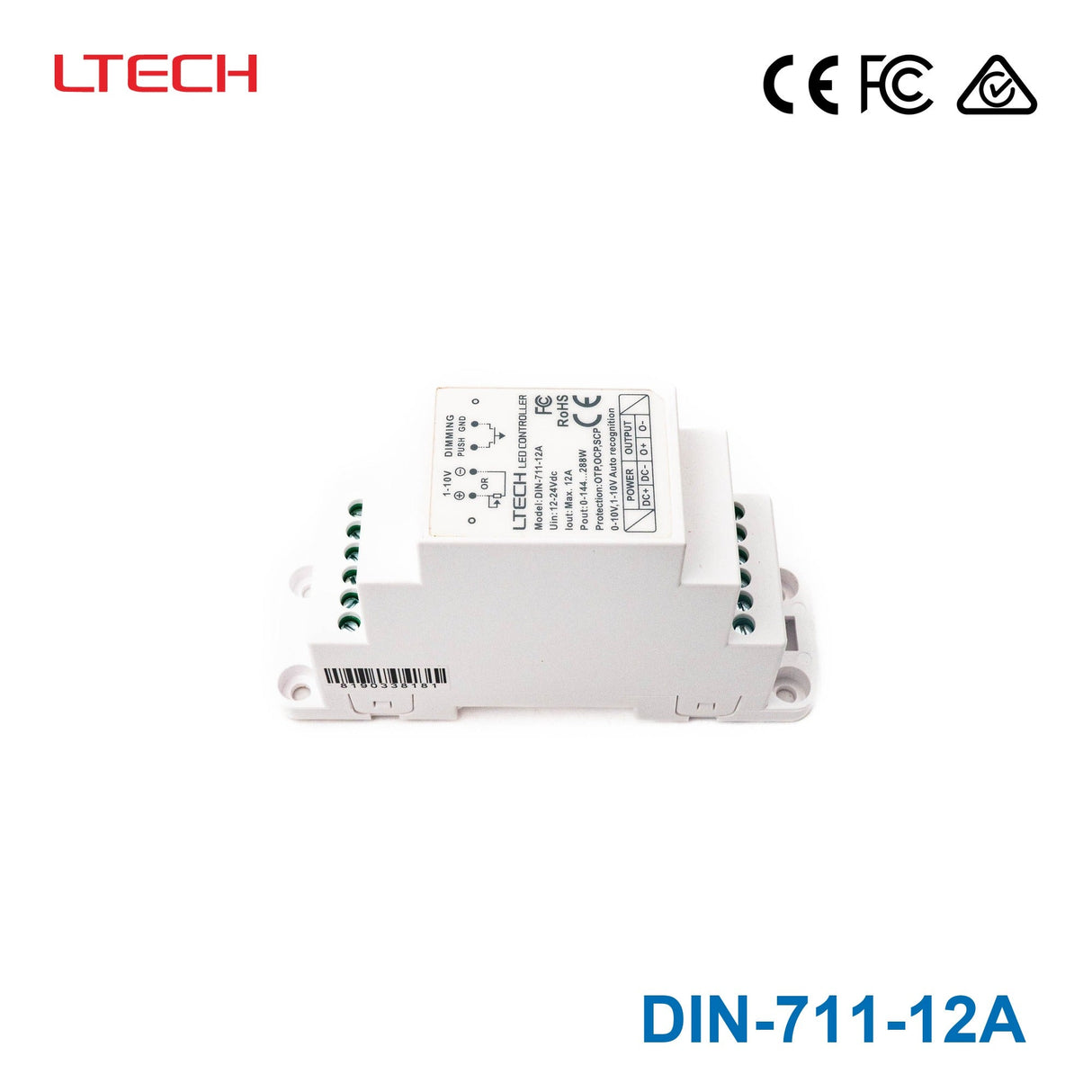

Ltech DIN-711-12A Din Rail 1-10V LED Controller 12A

$67.44 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface:0-10V, 1-10V, 10V PWM or push button
  • 1-10V
  • 10V PWM or push button.
  • Automatic identification of 0-10V
  • Dimming interface:
  • PWM digital dimming, no alter LED color rendering index.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • Max. current output: 12A.
  • Short circuit / Over load protection.
  • Full protective plastic housing.
  • Suitable for indoor environments.

Specifications

  • Brand
    Ltech
  • Series
    Ltech 0/1-10V Series
  • Power Rating
    288 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    12 Ampere
  • Input Voltage
    12V~24V
  • No of Output
    1
  • Dimming Control
    0-10V,10V PWM,1-10V,Push Dimming
  • Standards Met
    CE,FCC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~55°C
  • Warranty
    3 Year
  • Length
    4.41 in
  • Width
    1.38 in
  • Height
    2.64 in
  • Weight
    0.29 lb
