Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

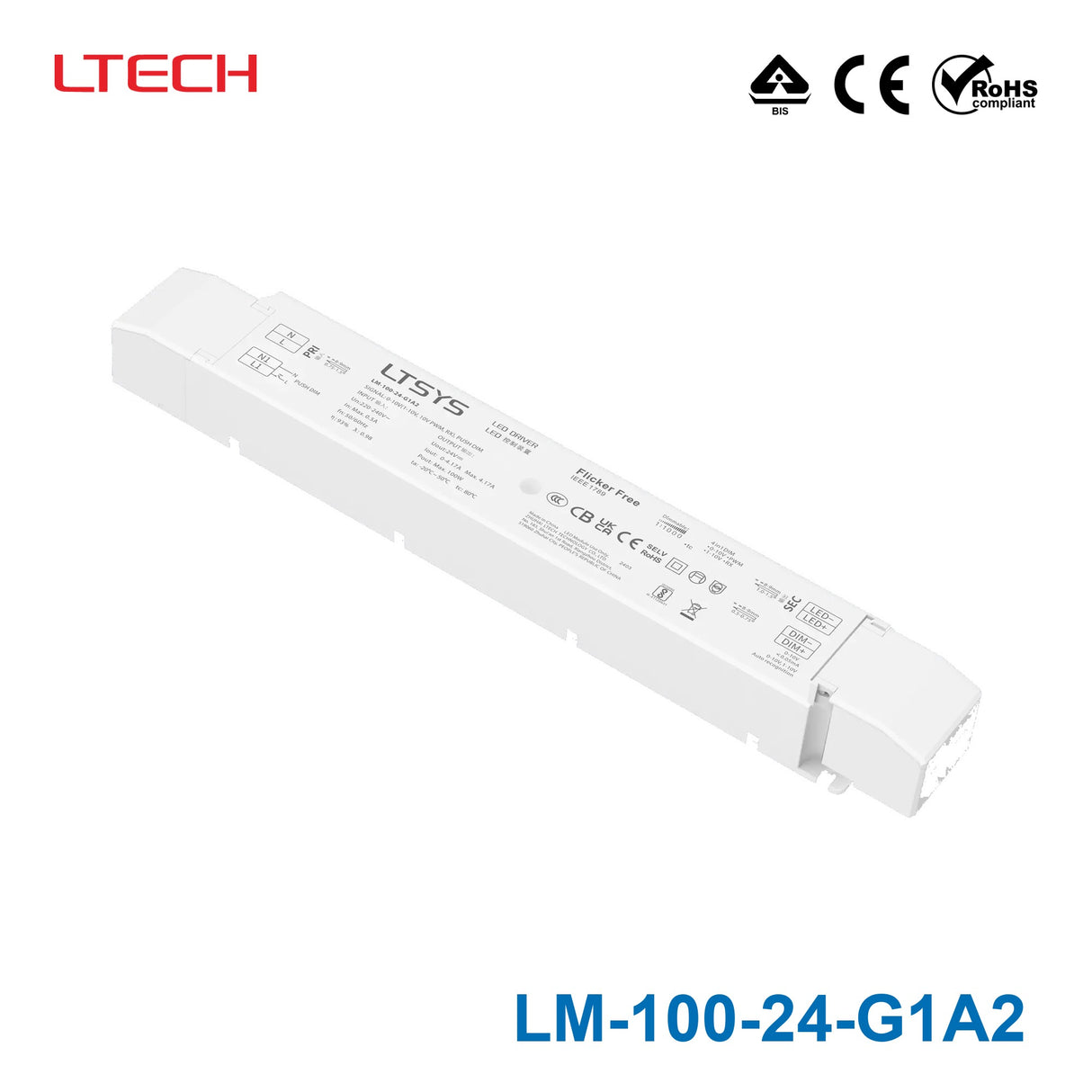

Ltech LM-100-24-G1A2 100W 24VDC CV LED Driver - 0/1-10Vdimmable 4.17A
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push Dim
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- Automatic recognition of 0-10V
- 1-10V input signal
- Dimming range:0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- High Frequency Exemption.
- Over-heat / Over voltage / Over load / Short circuit protection
- recover automatically
- Full protective plastic housing
- Compliant with Safety Extra Low Voltage standard
- Suitable for indoor lamps application for I/II/III
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4.17 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What are the main electrical specifications of the Ltech LM-100-24-G1A2?
The Ltech LM-100-24-G1A2 is a constant-voltage LED driver rated at 100W with a 24VDC output. It is specified for up to 4.17A rated current, making it suitable for 24V lighting loads that need stable constant-voltage power.
What dimming control types does the LM-100-24-G1A2 support?
This model supports 0-10V and 1-10V dimming control. The product description also states automatic recognition of 0-10V and 1-10V input signals, with a dimming range of 0 to 100 percent.
Is the LM-100-24-G1A2 a good choice for low-level dimming applications?
Yes. The manufacturer states that this driver supports 0 to 100 percent flicker-free dimming and that LED start at 0.1 percent is possible, which is useful for projects that need smooth low-end light control.
Where is the Ltech LM-100-24-G1A2 intended to be used?
This driver is described as suitable for indoor lamp applications. It also uses a full protective plastic housing and is noted as compliant with Safety Extra Low Voltage standards, which supports indoor low-voltage lighting use cases.
What operating environment is specified for the LM-100-24-G1A2?
The specified operating temperature range is -20°C to 50°C. That makes it appropriate for indoor environments that stay within that temperature window.
What protection features are included in the LM-100-24-G1A2?
The product description lists over-heat, over-voltage, over-load, and short-circuit protection. It also states that the unit recovers automatically after protection events.
What warranty is offered for the Ltech LM-100-24-G1A2?
This model has a stated 5-year warranty period. That can be useful for commercial buyers comparing long-term support across dimmable 24V LED driver options.
