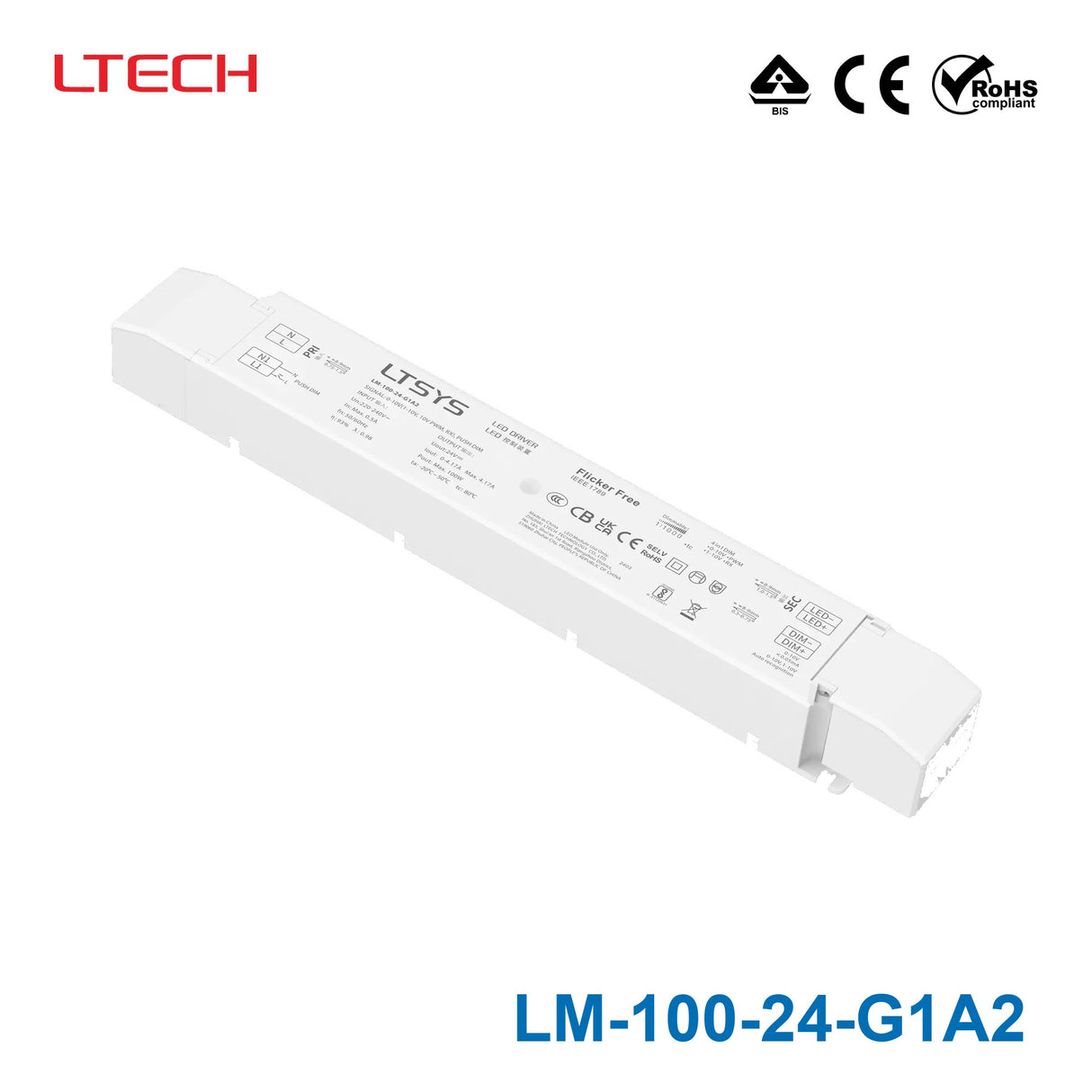

LTECH LM-100-24-G1A2 100W 24VDC CV LED Driver - 0/1-10Vdimmable

$73.50 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: 0-10V (1-10V/10V PWM/RX)
  • Push Dim
  • Withsoft-onandfadeinfunction
  • visualmorecomfortable
  • Automatic recognition of 0-10V
  • 1-10V input signal
  • Dimming range:0~100%
  • LED start at 0.1% possible.
  • 0-100% flicker-free
  • High Frequency Exemption.
  • Over-heat / Over voltage / Over load / Short circuit protection
  • recover automatically
  • Full protective plastic housing
  • Compliant with Safety Extra Low Voltage standard
  • Suitable for indoor lamps application for I/II/III

Specifications

  • Brand
    Ltech
  • Series
    Ltech 0/1-10V Series
  • Power Rating
    100 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    4.17 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    0-10V,1-10V
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    11.54 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.66 lb
