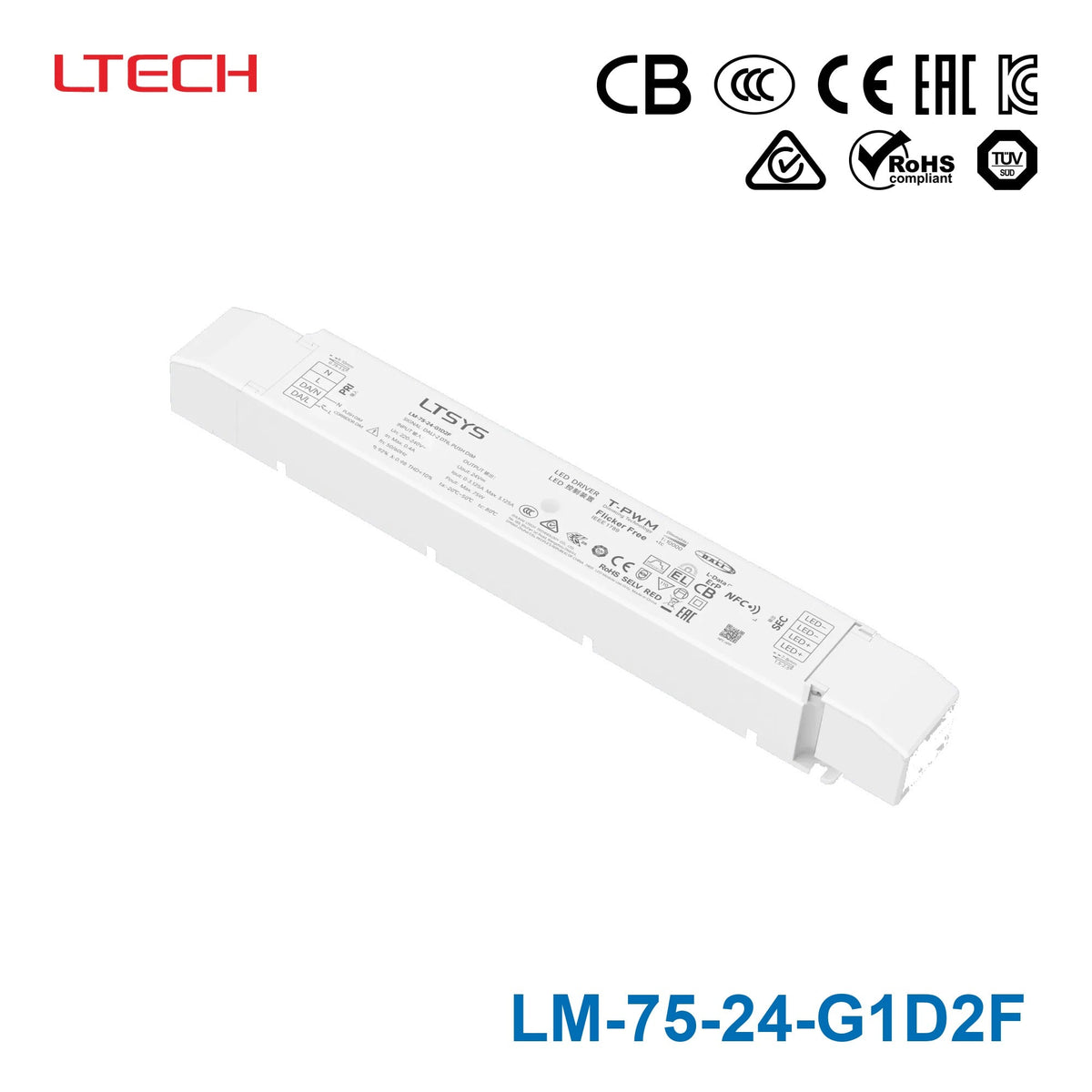

LM-75-24-G1D2F
The LM-75-24-G1D2F is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI
- ✓Output voltage: 24V
- ✓Rated output current: 3.125A
- ✓Rated power: 75W
- ✓Operating temperature: -20~+50°C
- ✓Certifications: CB, CCC, CE, EAC, KC, RCM, ROHS, TUV
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
Input Voltage220V~240V
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the Ltech LM-75-24-G1D2F designed for?
This model is a 75W constant voltage LED driver with a 24Vdc output, so it is intended for 24V constant voltage LED lighting applications. It is suited to indoor luminaires that need DALI-2 DT6 or Push DIM control and benefit from deep dimming performance.
Does this LED driver support DALI-2 control?
Yes. The LM-75-24-G1D2F supports DALI-2 DT6 and also works with Push DIM and corridor light dimming modes. It is additionally listed as compatible with L-Data and DALI Parts 251, 252, and 253.
What are the main output specifications of this model?
The LM-75-24-G1D2F provides a 24Vdc output with a maximum output current of 3.125A and a power range of 0 to 75W. It also features two independent SELV constant voltage output channels.
How low can this driver dim?
This model supports dimming from 0 to 100%, with a minimum dimming level down to 0.01%. That makes it a strong option for projects that need very fine low-end dimming control rather than only basic on/off or limited dimming range.
Can this driver be programmed without dedicated hardware tools?
Yes. The LM-75-24-G1D2F supports full-command NFC fast programming via a mobile app, allowing supported parameters such as dimming mode, brightness range, and DALI templates to be modified. This can be useful for commercial projects that need model-specific configuration flexibility.
Is this LED driver suitable for indoor commercial environments?
Yes, it is designed for indoor use and carries an IP20 rating. Its operating temperature range is -20°C to +50°C, and it is suitable for Class I, II, and III indoor luminaires.
What efficiency and energy performance does this driver offer?
The LM-75-24-G1D2F has a typical efficiency of 92% and a power factor above 0.98 at 230V under full load. It is also EU ERP compliant, with no-load power consumption below 0.5W and network standby below 0.5W.
What protections and warranty are included with this model?
This driver includes overheat, over-voltage, overload, and short-circuit protection with automatic recovery. It is backed by a 5-year warranty and is rated for a service life of up to 100,000 hours.
